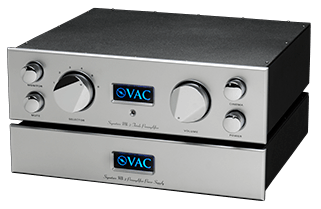

    VAC Signature Mk IIa - Signature SE

    VAC Signature Mk IIa - Signature SE

    Have questions about this product?

    We love answering questions. Talk to an expert now.

    Call Now 941-259-6000

    FREE SHIPPING

    on all e-commerce orders over $100

    TECH SUPPORT

    Always Included

    The Signature’s line stage has no coupling capacitors to detract from the purity and detail of the hand-wired circuit. With no loop feedback, the output is stable and free from dynamic interactions with the load. Six standard line inputs (five when phono is fitted) are present, as well as a fully balanced Cinema Bypass input. The optional six-tube phono stage is sensitive and quiet, compatible with low-output, moving coil cartridges. Gain is adjustable, as is resistive loading. Electrostatic decoupling prevents the heater circuits from “talking” to each other, a common cause of lost detail. A separate power transformer is used, eliminating any disturbance of the delicate phono signal by the powerful line stage. The VAC logos are backlit in an elegant blue in normal operation, and display red when the mute is activated. These are set in the heirloom-quality sculpted 3/8” faceplate. The Signature SE (Special Edition) upgrades the input transformers to the premium designs used in the Statement and Master ranges.

    Specification

    SIGNATURE MK IIA Optional MM/MC phono stage with user adjustable loading

    Gain

    12 dB

    Inputs
    • 3 sets RCA line input
    • 2 sets balanced/RCA selectable inputs
    • set RCA cinema bypass input
    • Optional 1 MM and 1 MC (or additional line input if phono is not fitted)

    Outputs
    • 2 sets RCA
    • 2 sets balanced XLR (EIA “pin 2 hot” studio standard)

    Tubes

    2x 12AU7
    2x 8416, 7308, 6922, E88CC, ECC88, 6DJ8, (or 12DJ8 twin triodes)

    Absolute Phase

    correct from all inputs to all outputs

    Frequency Response

    Flat over audio band
    –3 dB bandwidth 5 Hz – 210 kHz

    THD

    <0.009% @ 1 kHz, 1 V RMS

    Maximum Output

    > 8 V RMS

    Output Impedance

    < 150 ohms, 20 Hz - 20 kHz, static (i.e., not dependent upon feedback)

    Maximum Input

    Infinite signal (attenuation precedes the gain circuitry)

    Recommended Output Load

    > 300 ohms

    Power

    External power supply, detachable umbilical cable, detachable IEC power cord

    Cinema Bypass

    Yes

    Voltage

    May be ordered for 100v, 120v, 220v, or 230/240v operation

    Remote Control

    included

    Illumination

    Illuminated logo may be switched off

    Finish

    Hand-rubbed gold-flake gloss black lacquer with chrome knobs standard.

    Hand-rubbed metallic gloss silver lacquer with chrome knobs special order with additional cost.

    Warranty

    Two years parts and labor, excluding tubes (USA, see manual for full details)

    Dimensions (H x W x D)

    Audio chassis (not including knobs and connectors): 5.5" x 18" x 14.5" (14 cm x 45.7 cm x 36.8 cm)

    Power supply (not including connectors): 4.3" x 18" x 14.5" (10.9 cm x 45.7 cm x 36.8 cm)

    Shipping Weight

    With phono: 61 lbs. (27.7 kg.)
