| Mains | 220 – 240 V (50 – 60 Hz) 100 – 120 V (50 – 60 Hz) |
| Power consumption | < 0.5 W standby 60 W device in operation |

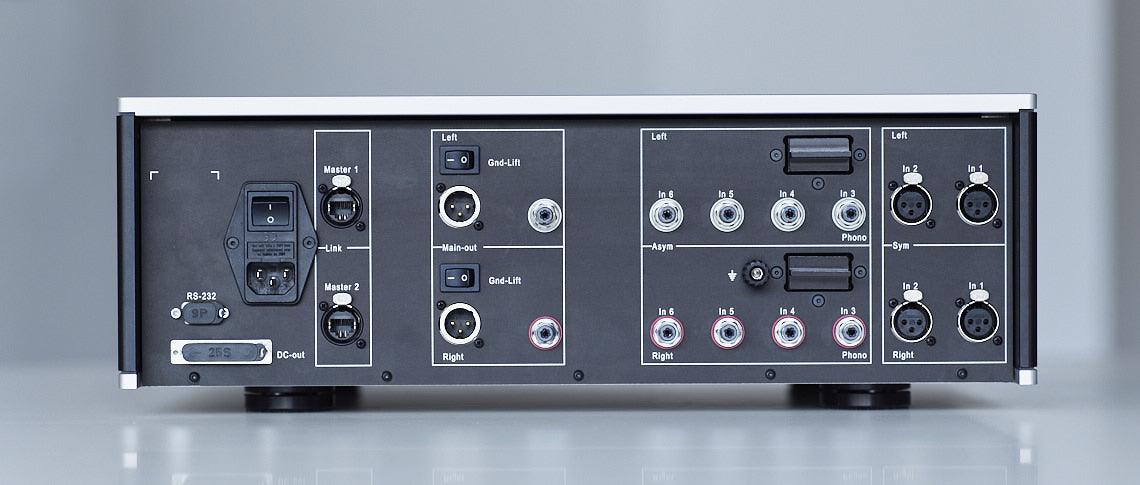

| Inputs | 2 × balanced (XLR) 3 × unbalanced (RCA) 1 × Phono-MC (optional) |
| Input impedance | 2 kΩ balanced (XLR) 47 kΩ unbalanced(RCA) 10 – 1000 Ω (adjustable) |
| Outputs | 1 × balanced (XLR) 1 × unbalanced (RCA) |
| Frequency response (– 3 dB) | 0 – 1 MHz |
| THD + N | < 0.00009% (20 Hz – 20 kHz) |
| Signal-to-noise ratio | > 140 dB |
| Channel separation | > 110 dB |
| Gain | + 9.5 dB balanced (XLR) + 3.5 dB unbalanced (RCA) + 54/60 dB Phono-MC unbalanced (optional) plus gain adaption + 3/+ 6/+ 9 dB |
| Volume control range | 0 to – 79 dB in 1 dB steps |
| Output impedance | 2 Ω balanced (XLR) 2 Ω unbalanced (RCA) |
| Output voltage | 16 VRMS balanced (XLR) 8 VRMS unbalanced (RCA) |
| Output current max | 1 A (limited by protection circuit) |
| Dimensions | 480 × 167 × 450 mm |
| Weight | approx. 30 kg |
| LINK (remote turn-on) | 12 V control signal |
