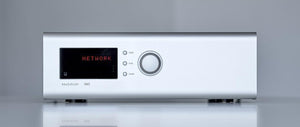

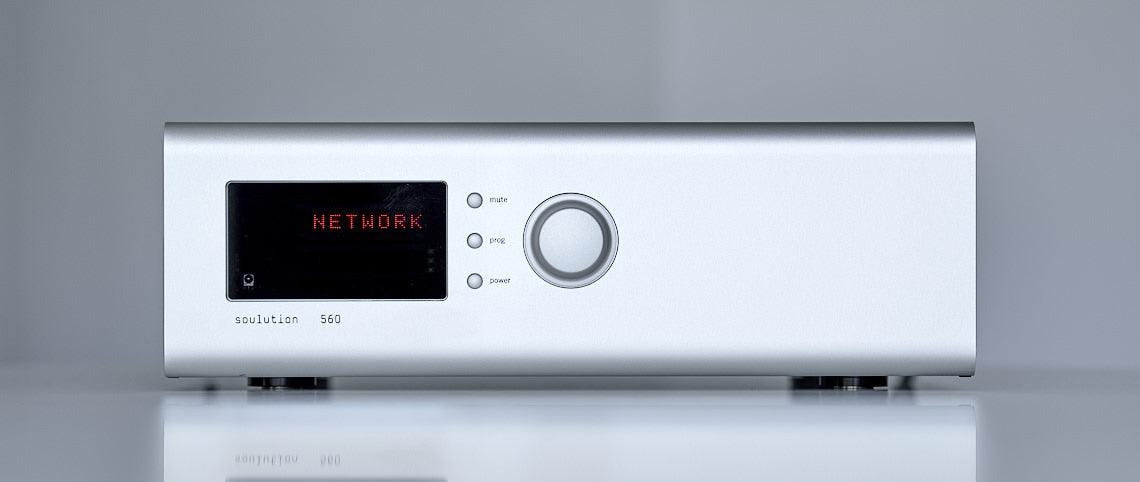

Soulution 560 D/A converter

The Soulution 560 D/A Converter preserves the complete integrity of your digital music files, delivering every nuance from high-resolution sources without compromise. Built on proven architecture from the acclaimed 745 SACD Player, it features precision master clock generation to eliminate jitter, advanced upsampling to 24-bit/384kHz using Anagram Technologies algorithms, and innovative Zero-Phase Technology that reduces phase shift to below 1° across the audio band. Dual mono output stages with separate power supplies ensure exceptional signal purity, while Burr-Brown D/A converters in symmetric configuration maximize dynamics and signal-to-noise performance. The wideband output stage delivers 20MHz bandwidth for three-dimensional, lifelike reproduction. Direct amplifier connectivity via digital volume control simplifies integration into any high-fidelity system.

Specifications

Mains- 100-120V (50-60Hz)

220-240V (50-60Hz)

Power consumption- <0.5 W standby

100 W device in operation

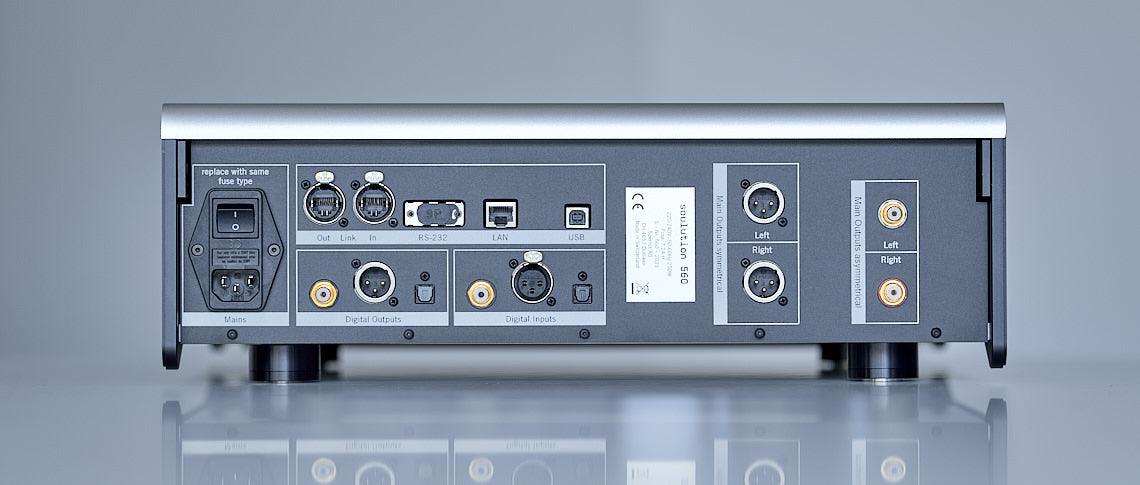

Analog outputs- 1 x balanced (XLR)

1 x unbalanced (RCA)

Frequency response- 0-200kHz (DXD)

THD+N- <0.002% (20Hz-20kHz)

Signal-to-noise ratio- > 140 dB

Channel separation- > 130 dB

Output impedance- 10 Ω balanced (XLR)

10 Ω unbalanced (RCA)

Output Voltage- 4 Vrms balanced (XLR)

2 Vrms unbalanced (RCA)

Output current max- 0.2 A (limited by protection circuit)

Volume control range- 0 to -79 dB in 1 dB steps

Digital inputs- AES/EBU, SPDIF-RCA, Optical, USB, Network

Digital outputs- AES/EBU, SPDIF-RCA, Optical

Digital formats- WAV, AIFF< FLAC< ALAC< DSF, DFF, DXD, MP3, AAC

Bit depth/sampling rage max- AES/EBU: 24 bit/192 kHz

SPDIF: 24 bit/192 kHz

Optical: 24 bit/96 kHz

USB: 24 bit/384 kHz, 1 bit/5.64 MHz

Network: 24 bit/384 kHz, 1 bit/5.64 MHz

Dimensions- 442 x 143 x 448mm

(W x H x D)

Weight- approx. 20 kg

LINK (remote turn-on)- 12 V control signal

USB driver- v1.22c for Win7

v1.611 for Win7

v2.26 for Win10
