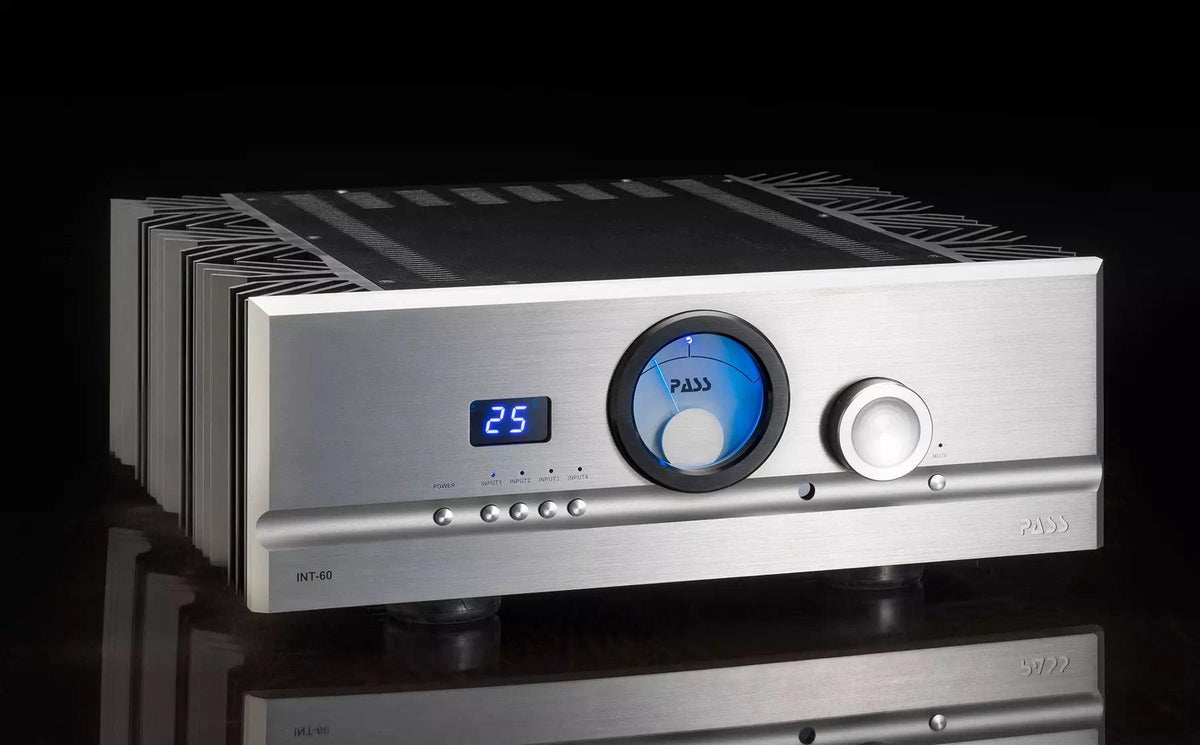

Pass Labs INT-60 Integrated Amplifier

z
z

FREE SHIPPING

on all e-commerce orders over $100

TECH SUPPORT

Always Included

INT-60 High Bias 60W Integrated Amplifier The INT-250 and INT-60 are not literally identical to their stand-alone counterparts the X-250.8 and XA-60.8; in particular the INT-60 is a stereo amplifier using the hardware of a single channel XA-60.8, and it necessarily has lower bias current in the output stage and does not operate Class A to 60 watts, rather somewhat less than half that. Nevertheless, the essential details that deliver the sound of the .8 series have been tweaked in subjective testing, and the result is very close. There are a couple new wrinkles to the “preamp” portions of these two products. The volume control circuit outputs are buffered by 6 dB gain stages whose input JFETs present many megohms of load, getting attenuator distortions down below the .001% line. The extra gain allows optimal figures for the power amp stages, and offers improvement over the previous “passive” circuits. The output noise figures of the integrated amplifiers are a little higher than the stand alone amplifiers, but after you figure in the noise of a separate preamp external to the amplifier, it comes out about the same, so I don't think you lose out on noise performance.

Specifications

Gain (db)
29 / 35
Power Output /ch (8 ohm)

60

Power Output /ch (4 ohm)

120

Input Impedance,(Kohms)

45

Power Consumption (W)
375
Number of Chassis

1

Volume Control

63

Inputs

4

Dimensions (W x H x D)
19 x 7.5 x 21.3
Remote

Yes

Ship Weight (LBS)

110

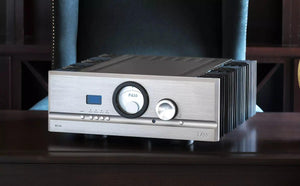

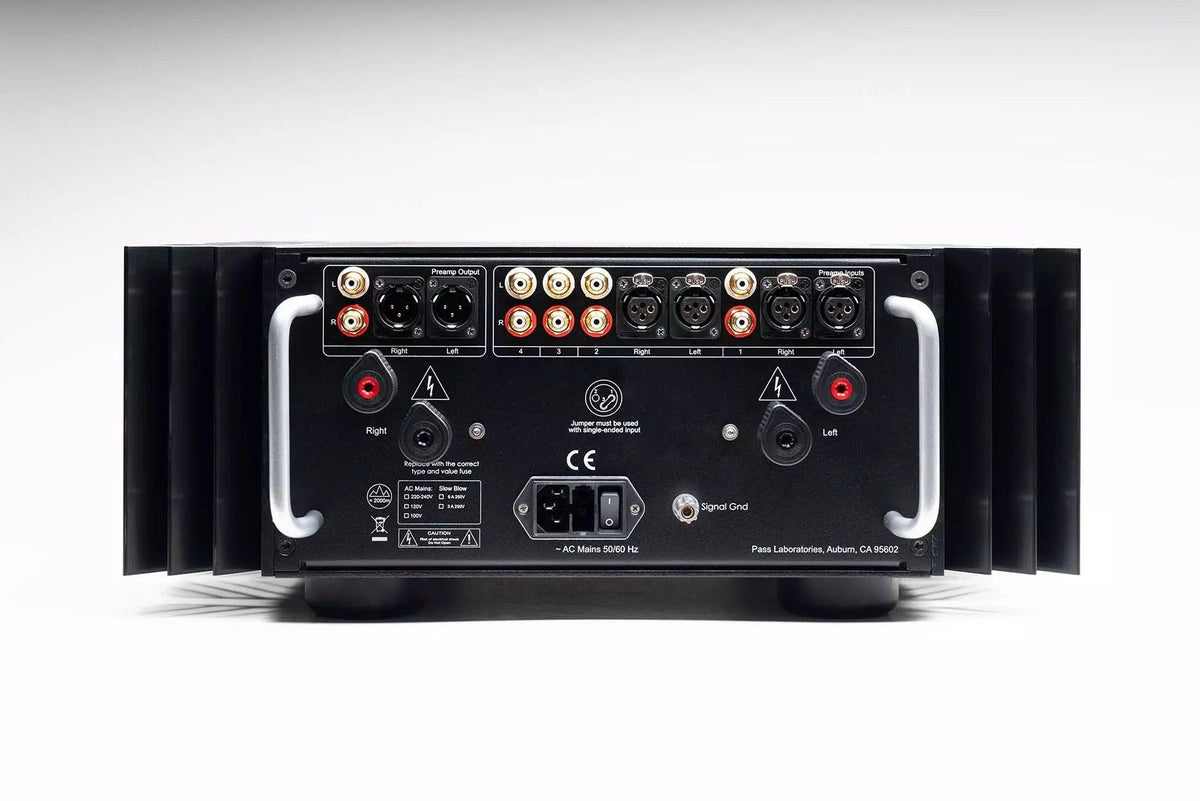

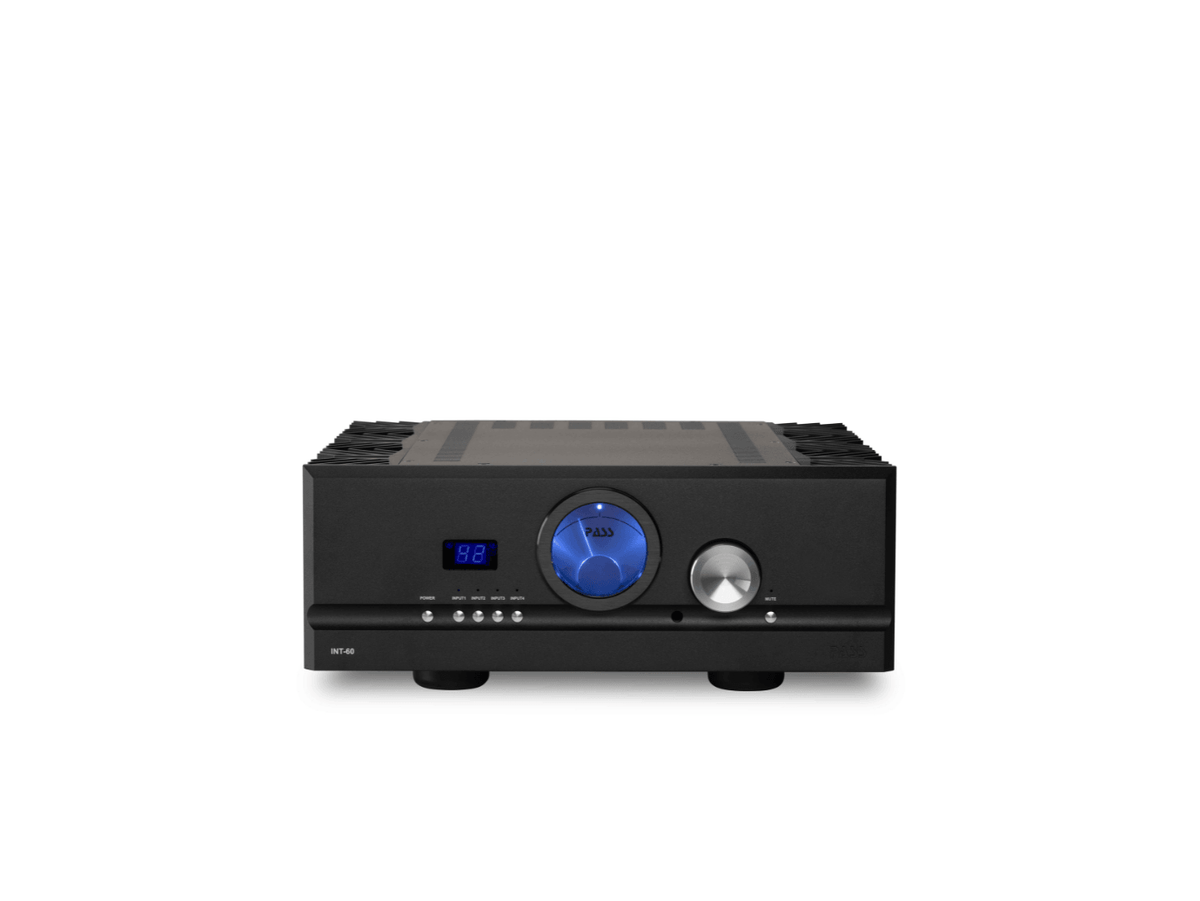

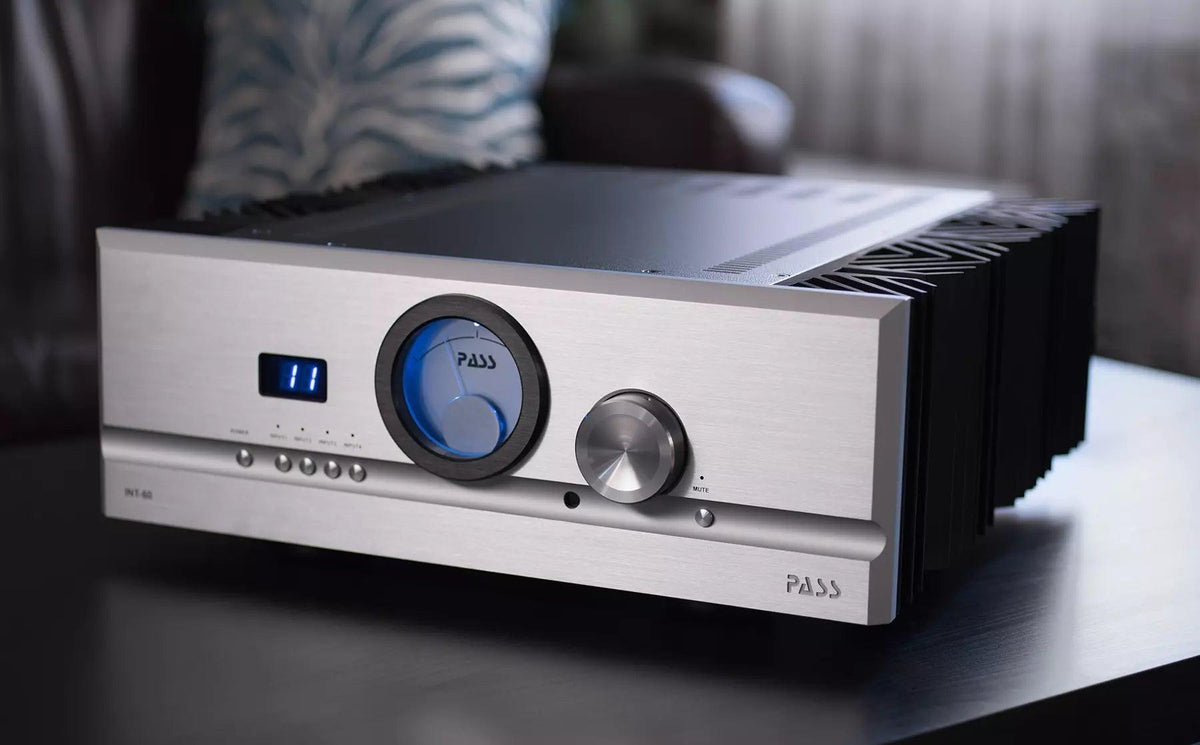

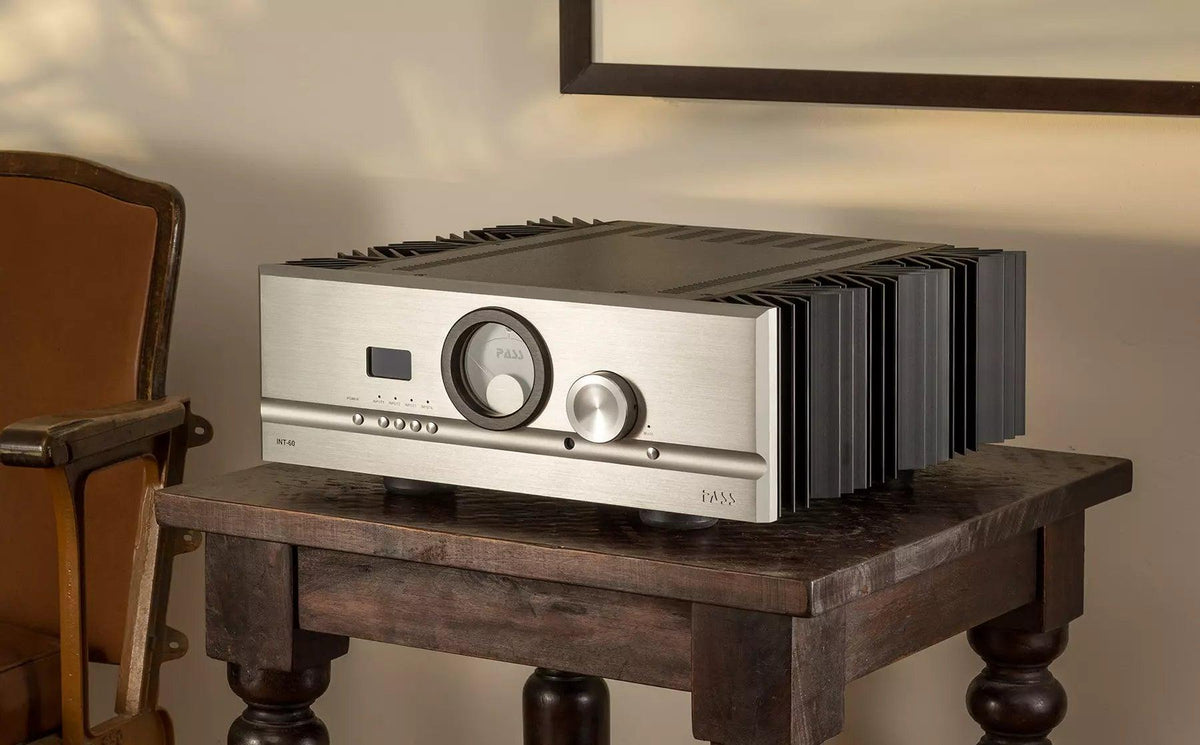

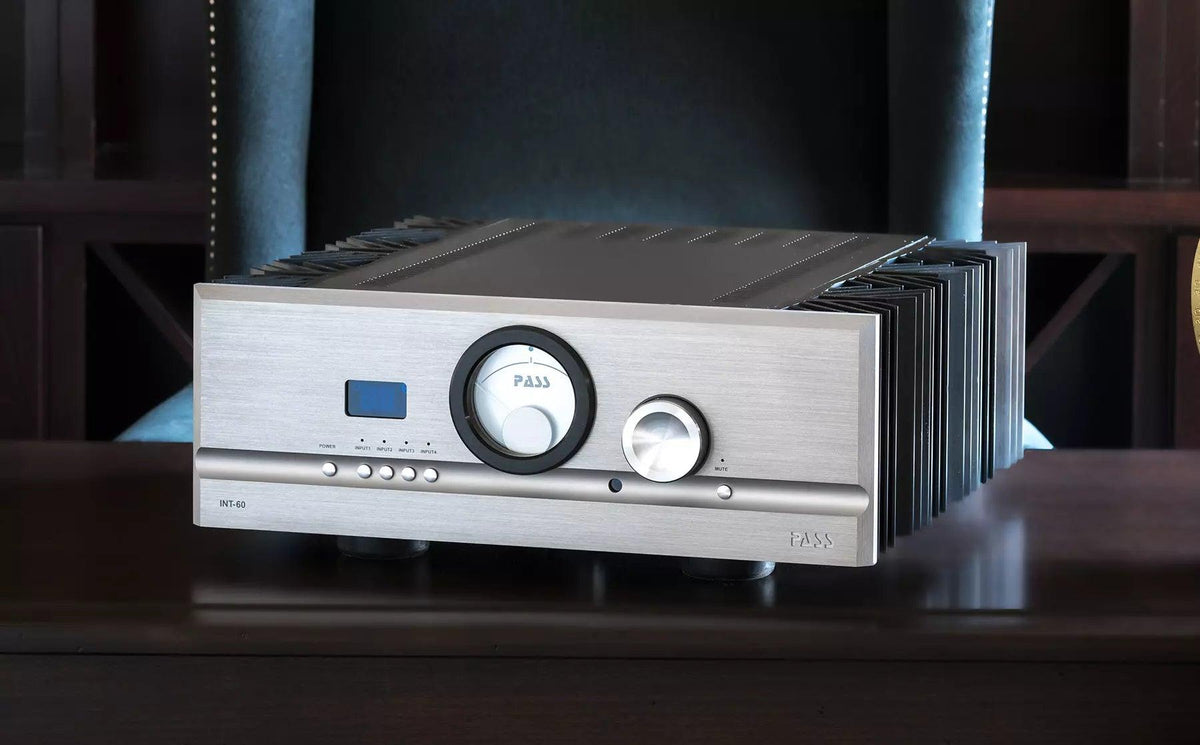

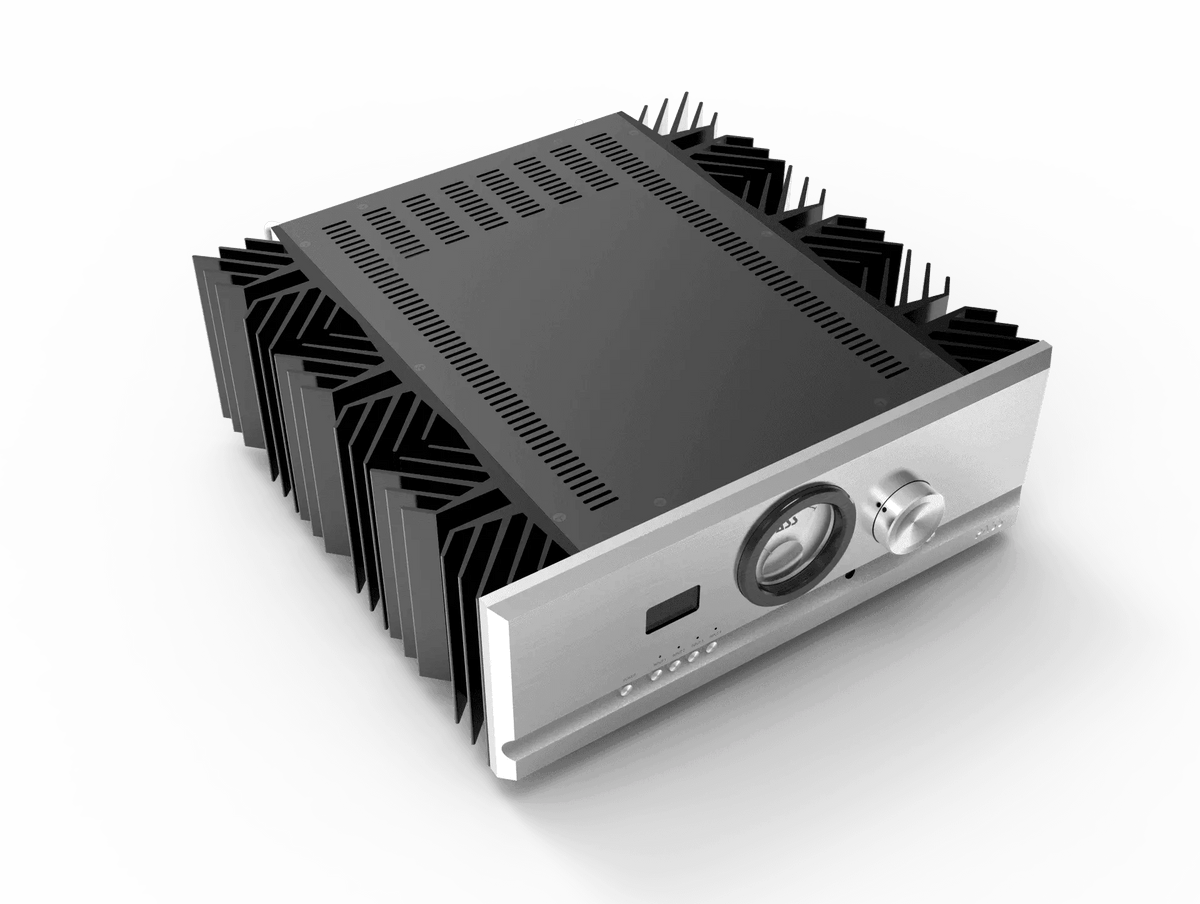

INT 60    INT-60_main_sm    INT-60_on_desk    INT-60_on_marble    INT-60_rear_sm
