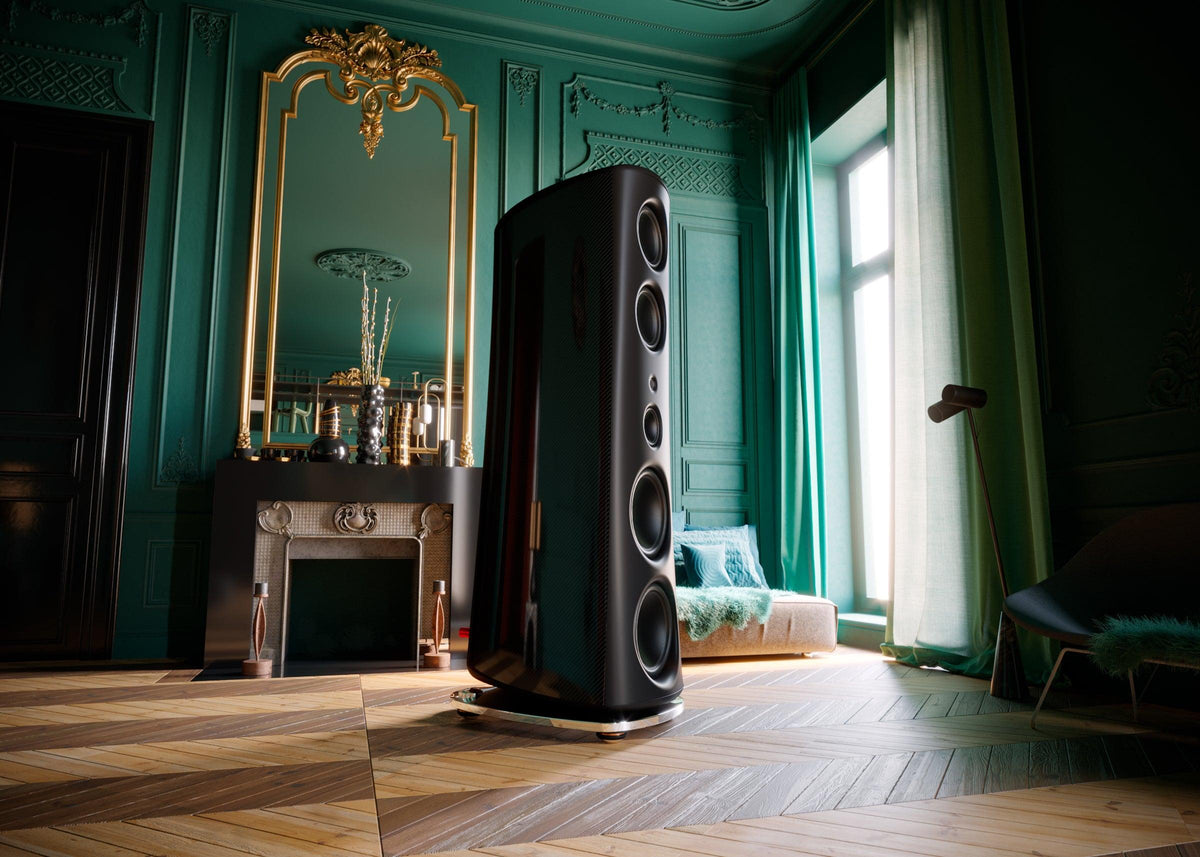

The Magico M7 is a four-way, six-driver floor-standing loudspeaker—that brings together avant-garde engineering and the latest advanced technology. Its immaculately crafted, organically shaped shell of carbon fiber and aluminum houses a bevy of cutting-edge components. From Elliptical Symmetry Crossovers to an array of tools like Klippel Near-Field Scanners and Polytec Laser Doppler vibrometers, each piece interlocks to make this speaker a force to be reckoned with. Magico Founder and CEO Alon Wolf conceived of the M7 as a more accessible version of the semi-active M9, and the result is awe-inspiring. A listening session in the Magico room proved that the M7 had far outstripped even its own engineers' expectations.
All M7 drivers were designed to eliminate music-related distortions in both the frequency and Tme domains. Their design was optimized using the latest state-of-the-art FEA simulation. Acoustic, mechanical, electromagnetic, and thermal behaviors were examined on a single platform allowing simultaneous optimization of each parameter.
The highest expression of our tweeter technology
The M7's exceptional high-frequency 28mm driver features a beryllium diaphragm with a diamond coating applied with a chemical vapor deposition process, allowing for extraordinary distortion-free dynamic range, power handling, and detail. FEA modeling of the back chamber affords further optimization for acoustical performance. Magico has crafted an unrivaled tweeter.
A most marvelous midrange
The M7 features a 5” Gen 8 Nano-Tec cone, combining an aluminum-honeycomb core with outer and inner layers of graphene-infused carbon fiber. An innovative foam surround ensures ideal integration with the cone. This driver is amplified by a neodymium-based motor system with two extra-large magnets and a pure copper pole cap to minimize distortion. With its all-new development, the 5" midrange driver is the highest-performance ever produced.
Music lives in the midbassThe Magico M7's 9" midbass driver, with its 127mm voice coil, dual extra-large magnets, and vented pure titanium voice-coil former allowing for +/-13mm of stable movement, provides unparalleled audio accuracy with its Gen 8 Nano-Tec cone of aluminum-honeycomb and graphene-infused carbon fiber layers, reaching peak output of 120dB @ 1m in its bandpass. You will not find the sound of this caliber in any other design apart from the M9.
ConfiguraTon: 4-way, 6-driver design Tweeter: MBD5D 1.1” (28mm) pure-beryllium, diamond-coated diaphragm Midrange: MAG5004RTC 5” Gen 8 midrange driver Midbass: MAG9508HE 9” Gen 8 midbass drivers (2) Woofer: MAG12008HE 12” Gen 8 bass drivers (2) SensiTvity: 92dB Impedance: 4 ohms Frequency Response: 18Hz—50kHz Recommended power: 50W—1000W Dimensions: 65H” (164cm) x 29D” (73cm) x 19.3W” (49cm) Weight: 526 pounds (239kg) Note: All features and specificaTons subject to change. Ship date: Q1 2024
