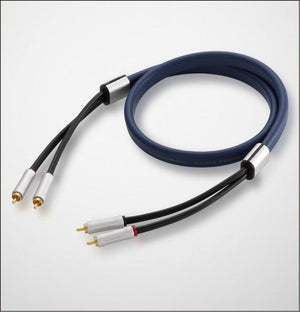

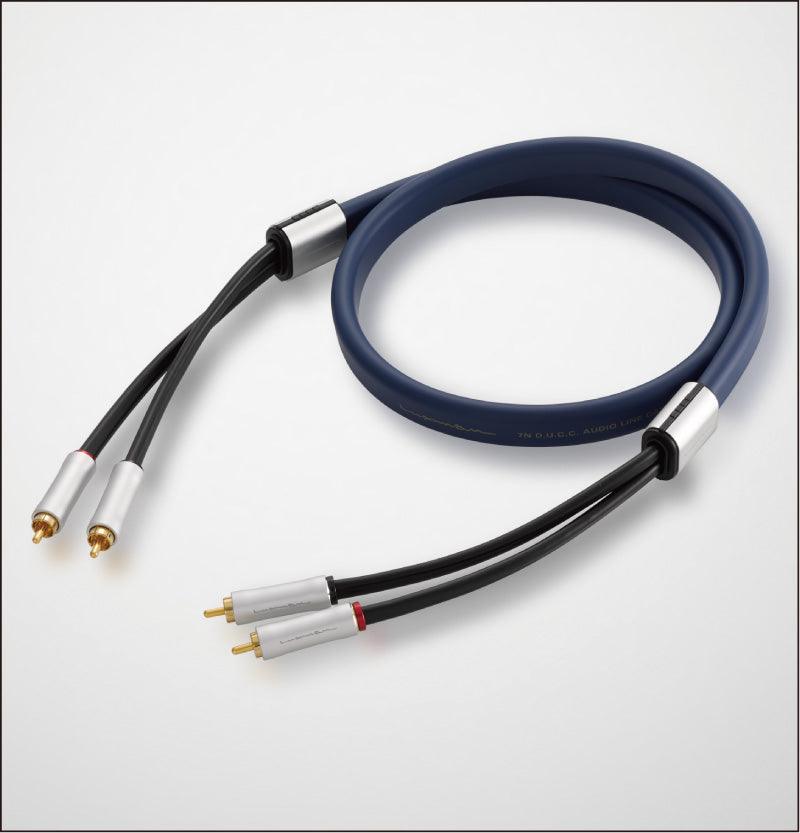

Luxman JPR-15000 Interconnect

LUXMAN JPR-15000 interconnect cables have been engineered to optimize the wide range of breakthrough technologies developed,and know-how gained, from decades of experience in developing class leading audio amplifiers.

Have questions about this product?

We love answering questions. Talk to an expert now.

FREE SHIPPING

on all e-commerce orders over $100

TECH SUPPORT

Always Included

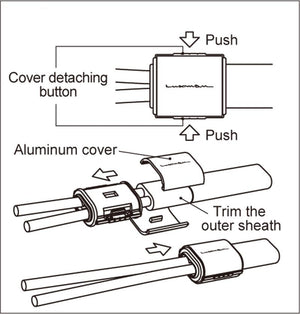

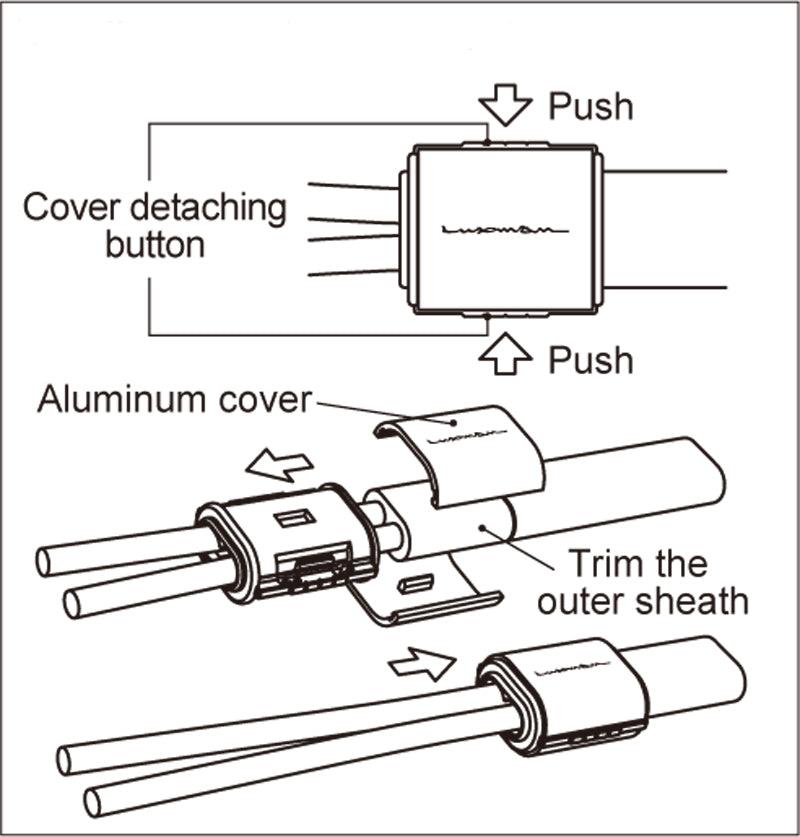

The LUXMAN 15000 series line cables feature a large diameter core utilizing high-purity 7N CLASS D.U.C.C. (99.99998%+ pure copper*) to ensure lower impedance. LUXMAN original technologies, such as a non-twisted structure of binding hot and cold lines in parallel to eliminate unwanted inductance, an integrated bound structure of the Left and Right channels to minimize unwanted ground loops and individual shielding for hot and cold transmission lines (reducing line-to-line capacitance by half) are also featured, resulting in an unconstrained and lively sound. The JPR-15000 features newly developed, easy to mount, high quality RCA terminals that are constructed of high conductivity materials. The JPC-15000 is fitted with genuine XLR terminals manufactured by Neutrik®. A newly developed, adjustable branch holder with an integral aluminum cover allows the length from the terminal to the holder to be easily adjusted without compromising the structural performance or appearance.

Specifications

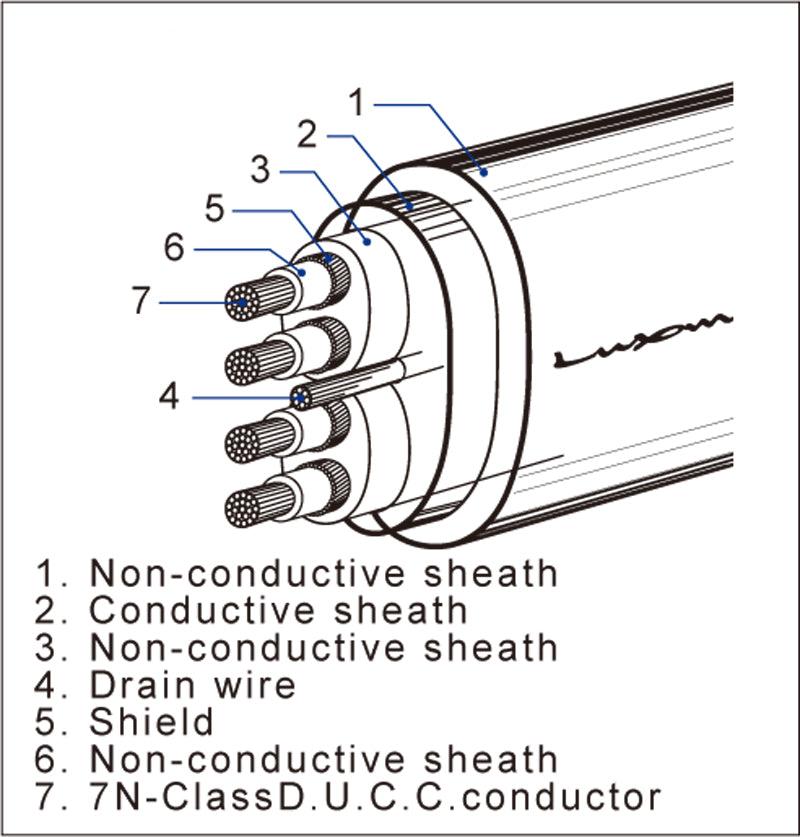

Structure Individually shielded 2-core,non-twisted structure
Core wire High-purity copper (7N CLASS D.U.C.C.), Φ0.26mm x 19pcs
Insulator / Sheath Polyethylene (red, primary color)/PVC(blue)
Shielded wire Oxygen-free copper (OFC) wire, Φ0.18mm x 38pcs
Drain wire Oxygen-free copper (OFC) wire, Φ0.08mm x 30pcs
Conductor resistance 18mΩ/m or less (at 20°C)
Insulation resistance 5000MΩ/m or more (at 20°C)
Capacitance 70pF/m or less
Withstand voltage 1,000VAC (for 1 minute)
Cable outside diameter 10.5mm x 20mm
