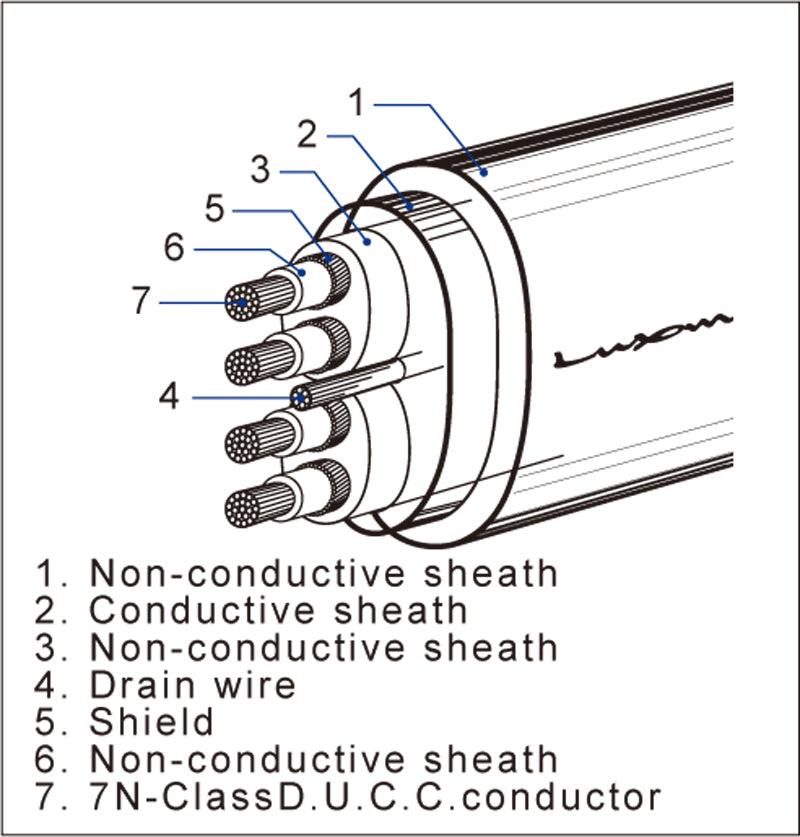

Structure | Individually shielded 2-core,non-twisted structure |
---|---|
Core wire | High-purity copper (7N CLASS D.U.C.C.), Φ0.26mm x 19pcs |
Insulator / Sheath | Polyethylene (red, primary color)/PVC(blue) |
Shielded wire | Oxygen-free copper (OFC) wire, Φ0.18mm x 38pcs |
Drain wire | Oxygen-free copper (OFC) wire, Φ0.08mm x 30pcs |
Conductor resistance | 18mΩ/m or less (at 20°C) |
---|---|
Insulation resistance | 5000MΩ/m or more (at 20°C) |
Capacitance | 70pF/m or less |
Withstand voltage | 1,000VAC (for 1 minute) |
Cable outside diameter | 10.5mm x 20mm |
