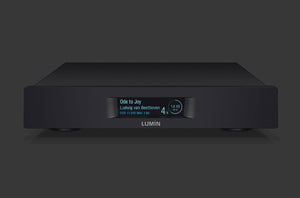

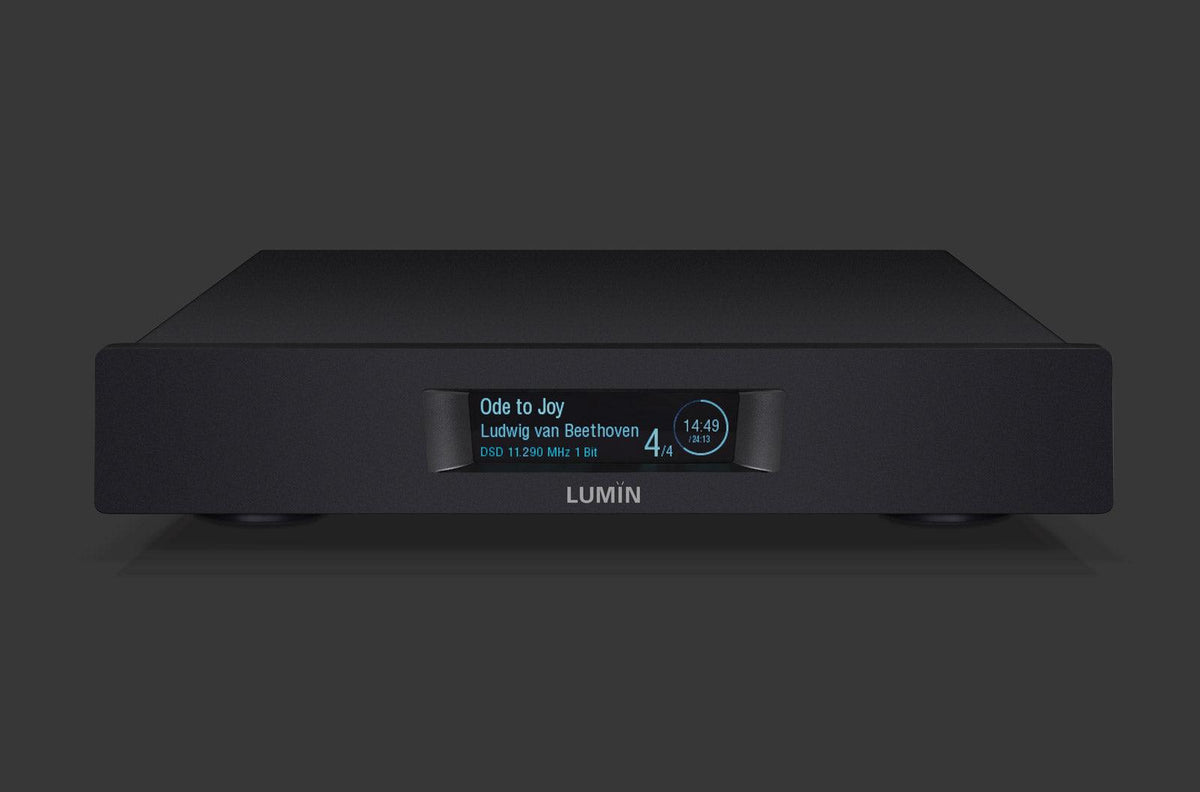

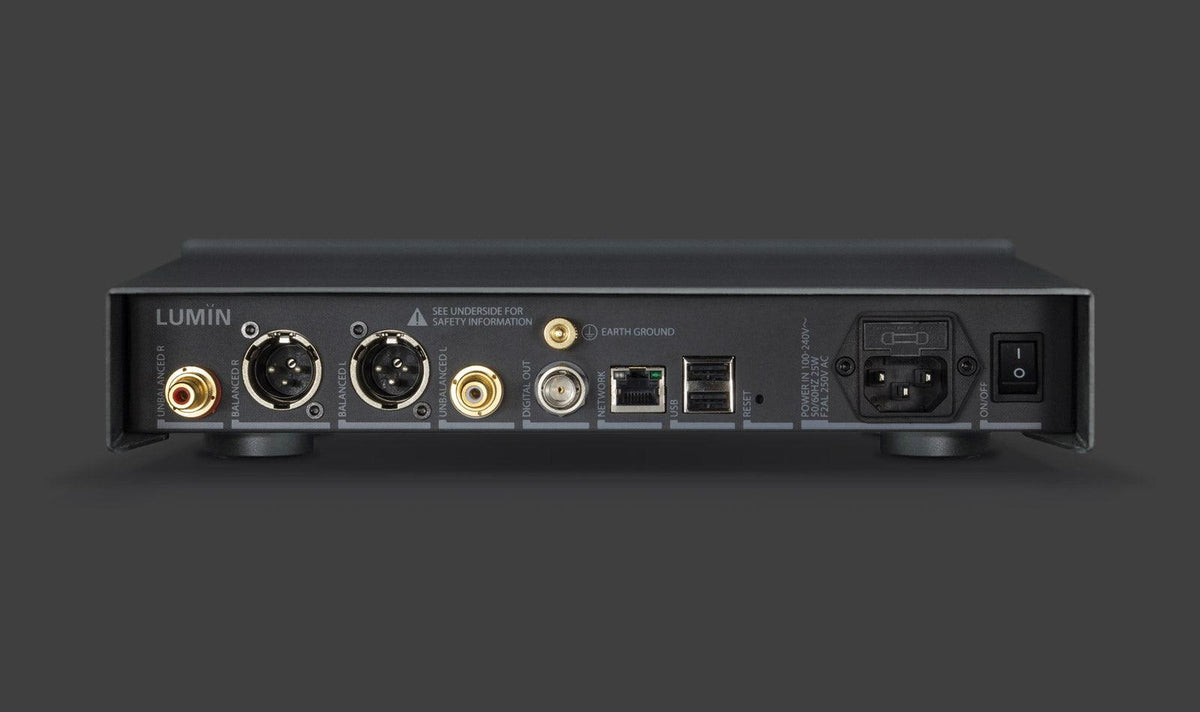

Lumin D3

LUMIN D3 offers audiophile-quality music streaming for all, thanks to its advanced features and compact all-aluminum design. It incorporates the same renowned Sabre DAC technology used in our other models and boasts DSD256 upsampling and TIDAL Connect for high-end performance. With a fully balanced design, XLR outputs, and improved processor and DAC technology, the LUMIN D3 sets a new standard in audio streaming. Its sleek, CNC front panel and increased power and storage capacity make it a standout in both form and function. Upgrading from the D2, the D3's new hardware and software provide an unparalleled listening experience.


SPECIFICATION

• DSD SUPPORT:

  • Up to DSD256, 1-bit, Stereo

• PCM SUPPORT:

  • Up to 384kHz, 16–32-bit, Stereo

• ANALOG OUTPUT STAGE:

  • ESS SABRE³² ES9028Pro DAC chip

  • Balanced layout with high-quality components

  • The completely redesigned analog buffer includes an audio grade output capacitor and ultra-low-noise and high dynamic range.

  • Discreet clock system for precision timing

• UPSAMPLING RATES & BIT DEPTHS:

  • DSD256 upsampling option for all files

  • PCM 384kHz upsampling option for all files

• DIGITAL OUTPUT STAGE:

  • BNC SPDIF:

    • PCM 44.1kHz–192kHz, 16–24-bit

    • DSD (DoP, DSD over PCM) 2.8MHz, 1-bit

• POWER SUPPLY:

  • Internal 100–240V AC auto-ranging

  • Low-noise

  • Shielded power supply compartment for reduced interference with delicate electronics

• PHYSICAL:

  • FINISH:

    • Black anodized aluminum

    • Raw anodized aluminum

DIMENSIONS

• 300mm (W), 244mm (D), 60mm (H), 2.5kg
