Partnering once again with Dr. Sean Jacobs, a new power supply architecture was designed exclusively for the Statement. The power supply is distributed between two enclosures, with one enclosure containing the AC/DC conversion stage and the other containing the regulation stage together with the server components.
The advantage is clear: regulated “clean” power traverses a very short path, soldered point to point, with the least impedance and exposure to EMI. This is superior in efficiency compared to a traditional architecture where a separate power supply is used – regulated “clean” power needs to go through more obstacles of internal cabling, output connectors, cable, input connectors and more internal cable before it reaches its destination.
Each critical component of the server receives its own dedicated power supply from one of the 8 independent power rails, further preventing component cross-contamination. Of particular note is the use of a dedicated power supply for each of the Ethernet and USB high-precision OCXO clocks, ensuring these clocks work at their best.
The motherboard has been fully EMI-optimised to our own exclusive design by, removing any unnecessary, noise-generating components capable of compromising audio. A fully-customised BIOS ensures the hardware works at its lowest noise without impairing performance. Further EMI treatment is then applied to the motherboard so that EMI is absorbed rather than reflected to other components.
Not fully satisfied with existing USB and Ethernet re-clocking designs, Innuos designed in-house their own boards for this purpose.At the heart of the design are 3 principles: The use of very high-precision OCXO clocks for timing the signals, extreme care in powering important components preventing cross-contamination, and extremely short paths between components.
While the use of OCXO clocks is not new, the way they are powered and the layout of the board has proven to be extremely important for their performance. As an example, dozens of USB controllers were analysed in terms of how they were powered and clocked so that they allowed this control to be done externally. The USB Controller is regulated by no less than 3 ultra-low noise regulators, one per independent voltage.
Keeping the clock very close to the controllers, via a dedicated track on the board itself, helps to avoid the losses in signal quality that come with the use of external clock units.

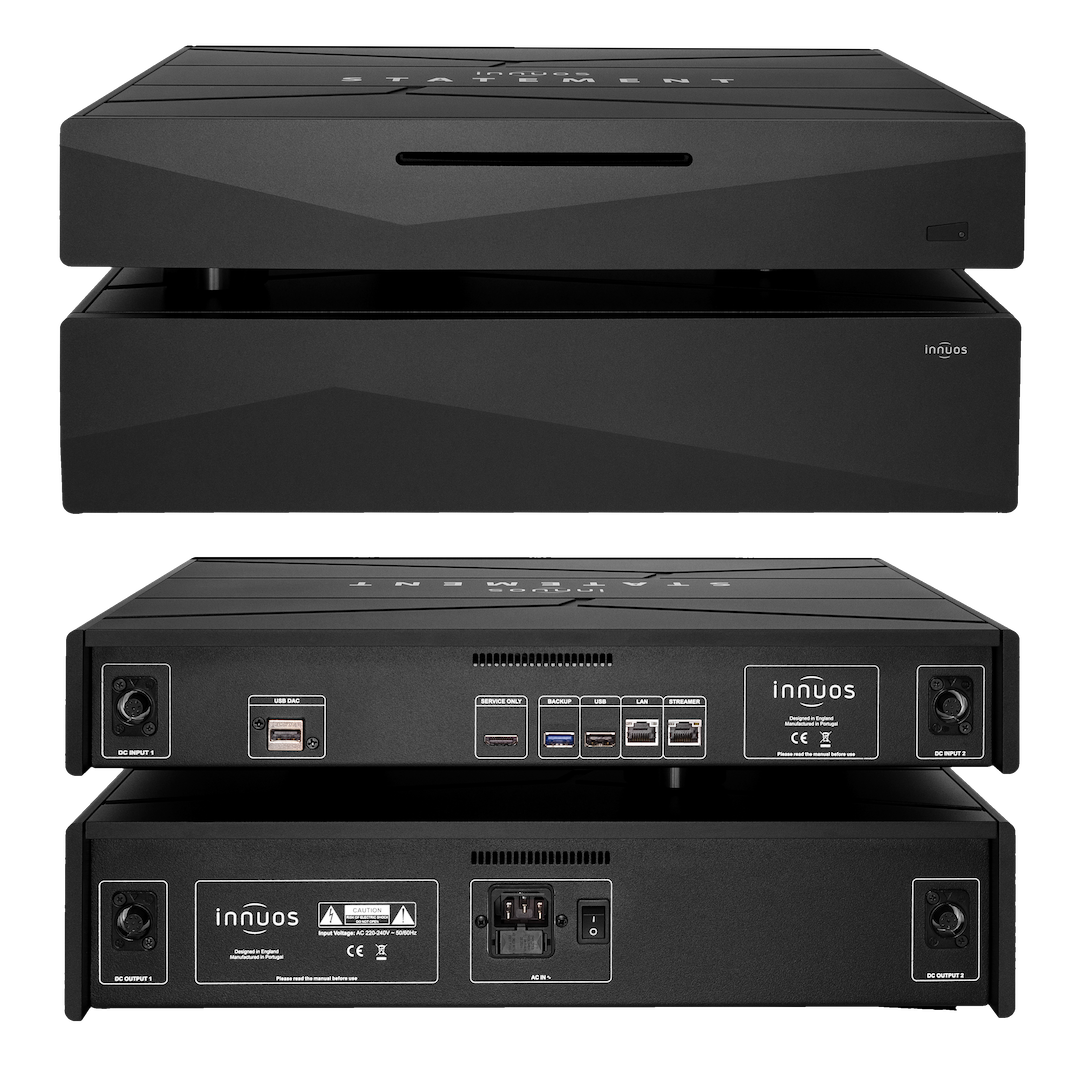

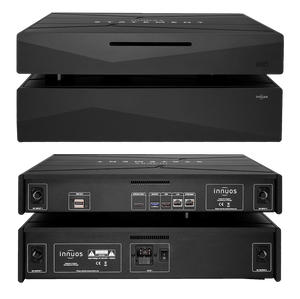

Housed in a casing of 10mm-thick CNC-machined aluminium, the Statement is not just a pretty face. The thick metal enclosure helps to isolate external EMI, and its weight helps dampen harmful vibration into the system. By using a double-enclosure design, it also helps to contain the vibration effects of the massive 540VA toroidal transformer at its heart.
|Digital Output||Re-clocked USB 2.0 supporting USB Audio Class 2, DoP, Native DSD and MQA|
|Re-clocked dedicated Ethernet Streamer Port|
|Ethernet||2 x rear panel RJ45 – Bridged Gigabit Ethernet|
2x USB 2.0 (1x re-clocked, 1x non-reclocked), 1x USB 3.0 (Backup)
|Mains Supply||230V AC / 115V AC – 8x Internal Linear Power Supply|
|Power Consumption||20W when idle, 35W peak|
|UPnP/DLNA||Integrated UPnP Server|
|Streaming Services||Qobuz, Tidal, Radio Paradise, Internet Radio|
|Roon Compatibility||Roon Core and Roon Endpoint|
|Average CD Storage Time||5 minutes|
|CD Metadata||FreeDB, MusicBrainz, Discogs, GD3|
|Compatible Music Systems||Sonos Multi-room Wireless Music System|
|DLNA/UPnP compatible devices|
|USB DACs complying to USB Audio Class 2|
|USB DACs supporting DSD over DoP protocol|
|Selected USB DACs supporting Native DSD|
|Dimensions||Server = 420mm x 352mm x 88mm
Power = 420mm x 352mm x 102mm
(W x D x H)
|Weight||Server = 8.2kg
Power = 13.4kg
|In the box||Innuos STATEMENT Music Server|
|2x 0.3m umbilical interconnect|
|2m Ethernet Cable|
|Quick Start Guide|
Statement Umbilical Cords Upgrade
Longer length umbilical cords for connection between Statement's
Longer length umbilical cords for connection between Statement's main
unit and PSU.
Useful for racks that can't accommodate the combined stack height of
main unit + PSU.
0,5m (pair) $ 1,499.00
1,0m (pair) $ 1,649.00
1,5m (pair) $ 1,799.00
Call to order and for further information about the cords
|Style||1TB SSD, 2TB SSD, 4TB SSD, 8TB SSD|
