Audio Sensibility Signature Lumin X1 Conversion Silver DC Cable

Have questions about this product?

We love answering questions. Talk to an expert now.

z
z

FREE SHIPPING

on all e-commerce orders over $100

TECH SUPPORT

Always Included

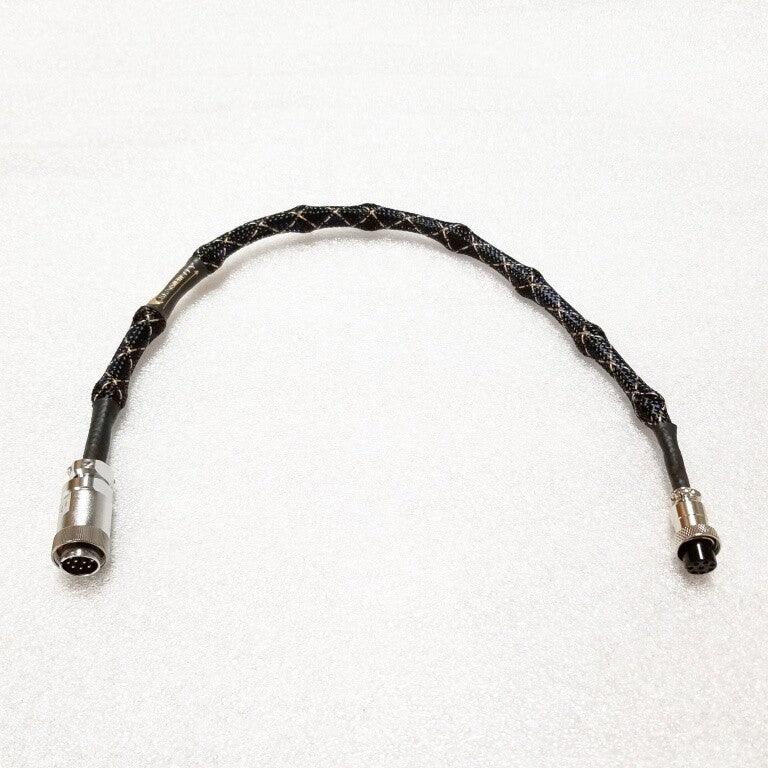

Signature Lumin cable for Lumin X1

The Signature OCC Silver Lumin X1 Conversion DC cable provides a huge upgrade in performance over the stock Lumin X1 Conversion DC cable. It is used for the following Lumin products being powered with an upgraded X1 power supply.

  • Lumin S1
  • Lumin A1
  • Lumin U1

At the heart of these cables is Ohno Continuous Cast (OCC) silver with a purity of 99.99998% (7N). OCC silver does not possess the brightness/glare often associated with conventional silver due to the elimination of crystal boundaries.

Cable Geometry: 3 twisted pairs of Teflon insulated solid core OCC silver wire:

  • one 20AWG twisted pair for the high current DC rail
  • two 22AWG twisted pairs for the low current DC rails
  • special carbon fiber spacers provide separation between twisted pairs to reduce noise floor.

Connectors: The following connectors are used for PSU and component side:

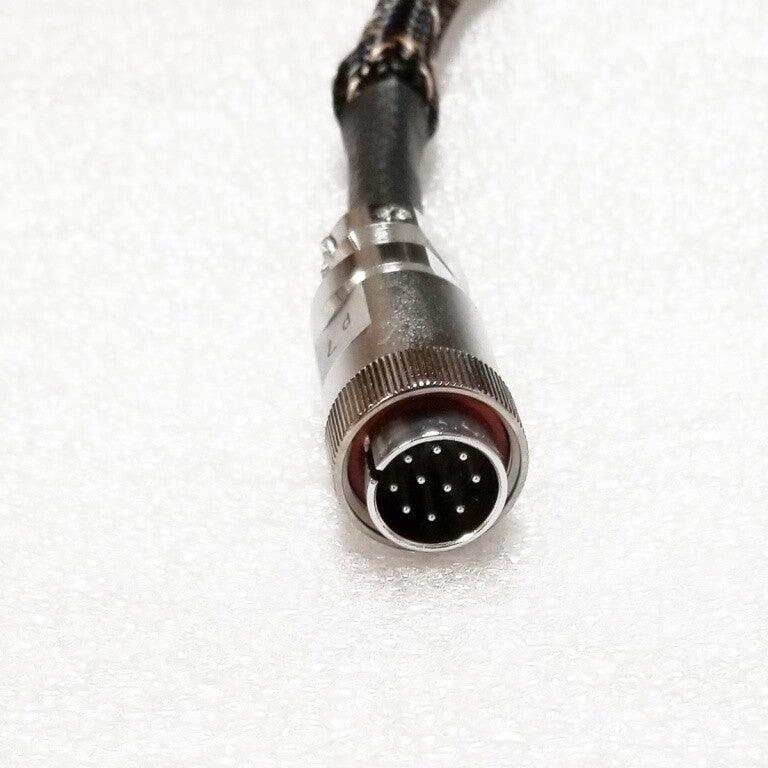

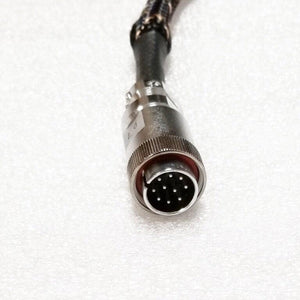

  • Standard Lumin (10pin Hirose) connector for X1 power supply connection.

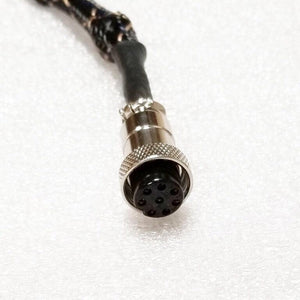

  • Standard Lumin 8 pin connector for S1/A1/U1 component connection.
  • Covering: The cable is finished with Techflex expandable sleeving.

Other Details: The wire and connectors have been cryogenically treated. Mundorf Silver-Gold Supreme Solder is used for all solder connections.

Weight (kg): 0.1
Cryogenically Treated: by Audio Sensibility
Units of Measure: single 0.5m in length
Call us if you are looking for a different length
