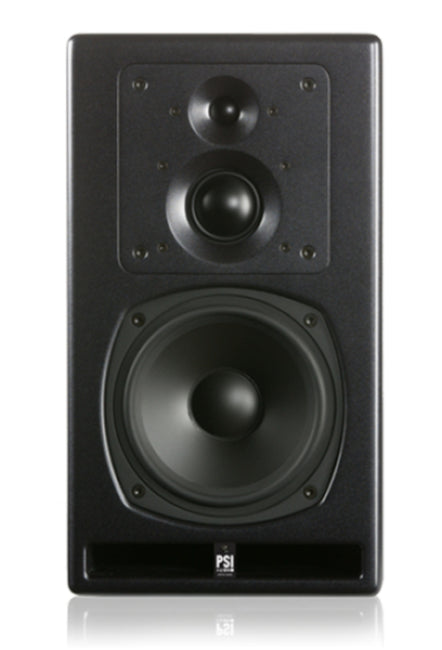

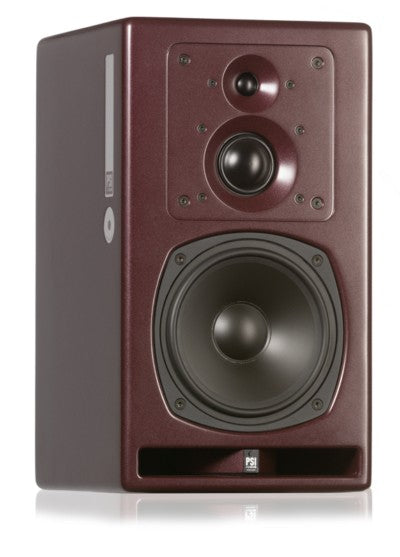

The A23-M is the combination of our advanced analogue technology and the development of a unique midrange driver. The result is precision never achieved before on a 3-way monitor. You will wonder how you ever managed to work without it.
Only you know where your story begins, and who knows where it will take you? But with the A23-M, you are prepared for everything. You can even rotate the tweeter and midrange driver to fit your studio perfectly!
Then there is the sound that has earned PSI Audio the respect of sound professionals all around the world. Building on the renowned A25-M, PSI Audio has created a more compact A23-M that retains the outstandingly accurate, mastering-grade audio reproduction. Assess the entire frequency range effortlessly even without a subwoofer – although you can opt to enhance the A23-M with a Sub A225-M, of course. Whatever story you need to tell, the A23-M helps you along the way – and once you have heard it, you certainly will not go back.
Main Features
Power
310 + 120 + 55W
Frequency Range
34Hz – 23kHz
Peak max. SPL@1m
122dB
Typical listening distance
1.2 to 3.5m
100% Analog – No DSP
Flat frequency response
Perfect stereo image
Handmade midrange driver AND tweeter
Tweeter-mid unit can be swivelled 90°
Class G/H Amplifiers
Individually calibrated
5+1 years warranty
Handmade in Switzerland
Data | A23-M | [Unit] |
---|---|---|
Potential peak power | 310 + 120 + 55 | W |
Continuous max SPL@1 m | 108 | dB |
Short term max. SPL@1m | 111 | dB |
Peak max. SPL@1m | 122 | dB |
Signal to noise ratio (S/N) | 100 | dBA |
Bandwidth at -6dB | 34-23'000 | Hz |
SPL tolerances | ±1.5 | dB |
Phase tolerances | ± 45 (200 Hz – 20 kHz) | deg |
Dispersion (H x V) | 85 x 40 | deg |
System | 3 | ways |
Crossover frequency | 620, 3'300 | Hz |
Woofer ext. diam. | 240 | mm |
Woofer ext. diam. | 9.4 | in |
W. diaphragm diam. | 172 | mm |
W. diaphragm diam. | 6.8 | in |
Tweeter ext. dim. | 100 | mm |
Tweeter ext. dim. | 3.9 | in |
T. diaphragm diam. | 27 | mm |
T. diaphragm diam. | 1.06 | in |
Dimensions W x H x D | 280 x 500 x 340 | mm |
Dimensions W x H x D | 11 x 19.7 x 13.4 | in |
Net Weight | 18 | Kg |
Net Weight | 39.6 | lbs |
Input connector | 1 x XLR F / 3P | |
Warranty | 5 (+1) | years |
Color | Studio Red, Metal Black |
