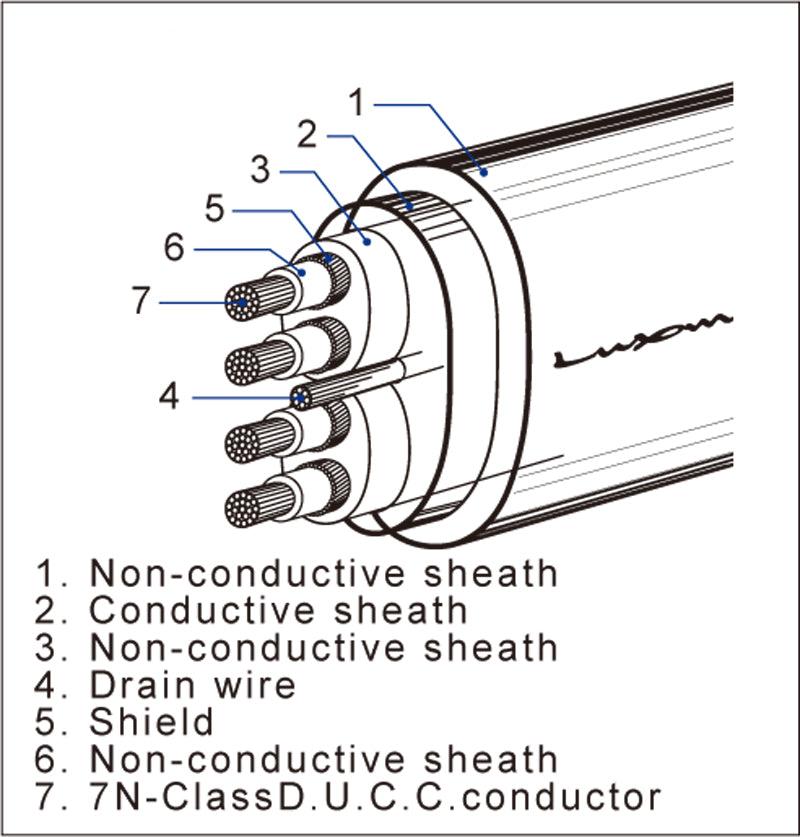

| Structure | Individually shielded 2-core,non-twisted structure |
|---|---|
| Core wire | High-purity copper (7N CLASS D.U.C.C.), Φ0.26mm x 19pcs |
| Insulator / Sheath | Polyethylene (red, primary color)/PVC(blue) |
| Shielded wire | Oxygen-free copper (OFC) wire, Φ0.18mm x 38pcs |
| Drain wire | Oxygen-free copper (OFC) wire, Φ0.08mm x 30pcs |
| Conductor resistance | 18mΩ/m or less (at 20°C) |
|---|---|
| Insulation resistance | 5000MΩ/m or more (at 20°C) |
| Capacitance | 70pF/m or less |
| Withstand voltage | 1,000VAC (for 1 minute) |
| Cable outside diameter | 10.5mm x 20mm |
