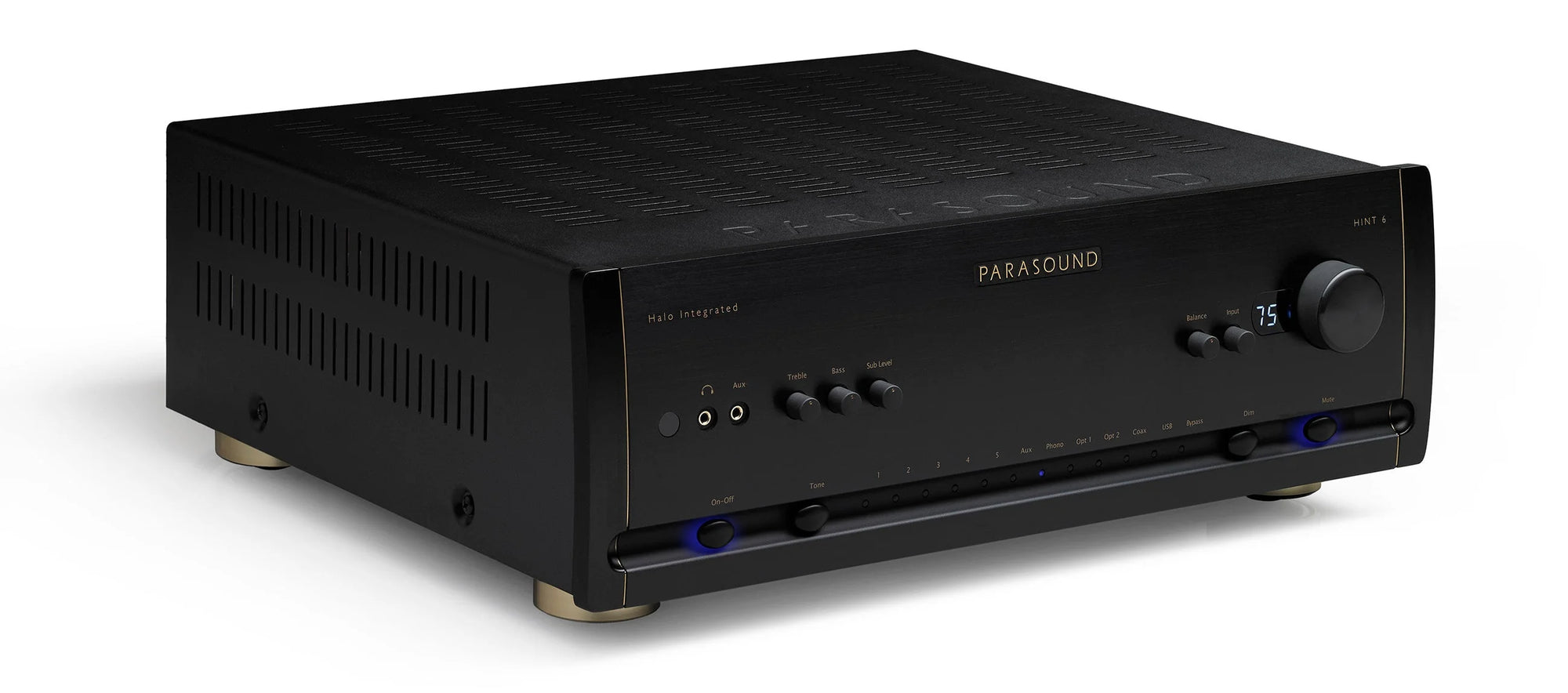

The HINT6 integrated amplifier offers high-end performance in a compact and stylish design. With two channels delivering 160 watts per channel into 8 Ω, it delivers exceptional audio performance. The high bias Class A/AB operation ensures accurate and detailed sound reproduction. Its stable operation into 2 Ω loads provides flexibility for various speaker configurations. The direct-coupled design, without capacitors in the signal path, preserves signal integrity and enhances transparency. With balanced XLR and unbalanced RCA inputs and gold-plated speaker terminals, it offers versatility and reliability. Experience high-end performance in a compact form with the Hint 6 integrated amplifier.
New Features (Changes from the original Halo Integrated)
- Burr Brown analog resistor ladder volume control
- Dimmable front panel volume display
- Updated USB receiver is Plug and play with Windows 10 and MAC
- An additional optical input (2 total)
- Ball bearing supported solid aluminum volume knob
- Programable default turn on volume setting
- Favorite volume memory with remote control button
- Increased phono stage gain for lower output cartridges
- Improved Left/Right channel separation and balance tracking
- Updated cosmetics with subtle gold highlights
Power Output - (0.9% THD)
(Both channels driven, 20 Hz - 20 kHz)
180 watts x 2 @ 8 Ω RMS
270 watts x 2 @ 4 Ω RMS
Power Output - (0.05% THD)
(Both channels driven, Thank 20 Hz - 20 kHz)
160 watts x 2 @ 8 Ω RMS
240 watts x 2 @ 4 Ω RMS
Current Capacity
45 amps peak per channel
Frequency Response
10 Hz - 100 kHz, +0/-3 dB
20 Hz - 20 kHz, +0/-0.5 dB
Total Harmonic Distortion (THD)
< 0.01 %, average listening levels
< 0.05 %, 160 watts x 2 @ 8 Ω
Interchannel Crosstalk
> 70 dB at 20 kHz
> 78 dB at 1 kHz
Signal to Noise Ratio - IHF A-weighted
Line in: - 103 dB (input shorted)
Digital in: - 106 dB
Amplifier Damping Factor
> 800 at 20 Hz
Preamplifier Stage Input Sensitivity
300 mV in for 1 V at Preamp Output jacks
Total Preamp Stage Gain: 10 dB
Max Output Unbalanced: 7 V
Max Output Balanced: 9 V
Power Amplifier Stage Sensitivity
1 V at Bypass/Amp In for 28 V at Speaker Out
Total Amp Stage Gain: 28 dB
Phono Stage Sensitivity / Input Impedance
MM: 41 dB / 47 k Ω
MC: 54 dB / 47 k Ω or 100 Ω
High & Low Pass Crossover Slope
12 dB per octave
Supported DAC Sampling Rates
USB: up to 384 kHz / 32-bit PCM
DSD Native: DSD 64, DSD 128, DSD 256
DSD over PCM (DoP) at 384 kHz
Coax/Optical: up to 192 kHz / 24-bit PCM
Digital to Analog Converter
ESS Sabre32 Reference ES9018K2M
384 kHz / 32-bit
USB 2.0 Controller
Savitech SA9227, 384 kHz / 32-bit
Headphone Amplifier
Texas Instruments TPA6120A
Output Impedance 10 ohms
XLR Pin Identification
1 = Ground (Shield)
2 = Positive
3 = Negative (Return)
Input Impedance
Unbalanced: 24 k Ω
Balanced: 100 k Ω per leg
Preamplifer Output Impedance
Unbalanced: 100 Ω
Balanced: 470 Ω per leg
Dimensions
Width: 17-1/4" (437 mm)
Depth: 16-1/4" (413 mm)
Depth, with cables 17-1/4" (437 mm)
Height, with feet: 5-7/8" (150 mm)
Height, without feet: 5-1/4" (133 mm), 3U
Net Weight
33 lb. (15 kg)
Shipping Weight
45 lb. (20.4 kg)
Power Requirement
Standby: 0.5 watts
Idling power: 70 watts
Maximum: 750 watts
110-125 VAC 60 Hz or 220-250 VAC 50 Hz
AC mains voltage is set on rear panel
