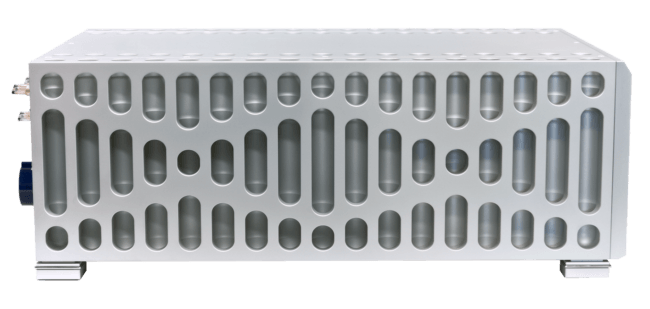

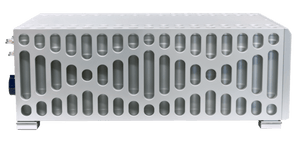

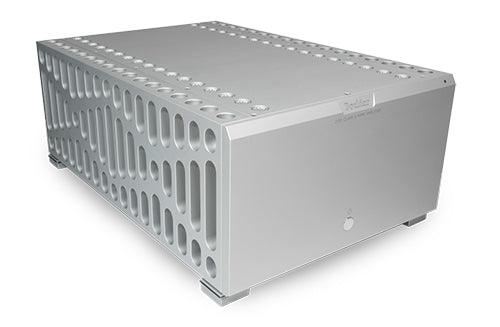

Boulder 2160 Stereo Power Amplifier

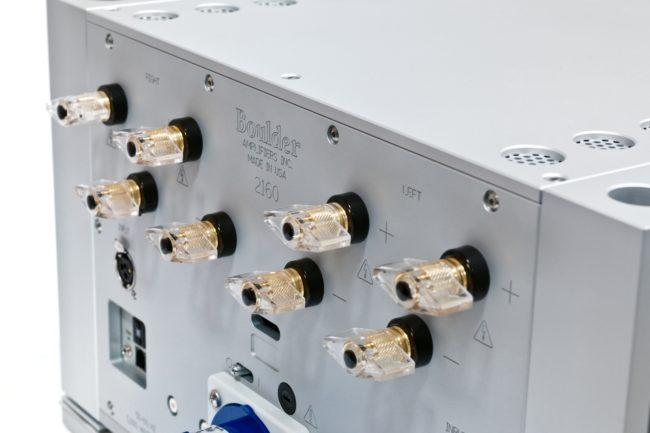

Bias operation is Class-A to full rated output power and managed with an analog circuit that minimizes heat and power consumption Boulder's most powerful, continually produced stereo amplifier: 600W per channel Surface-mount circuit board design minimizes connection resistance and lead inductance Non-resonant chassis carved from solid blocks of aluminum on Boulder's own CNC machining centers Four fully-discrete 99H2 gain stages, potted and housed in machined shells for thermal stability and shielding Two massive transformers are filtered, potted, and enclosed in a welded steel case Power cycling, turn on sequencing, and status messages sent to Boulder preamplifier displays via the Boulder Link communication system 12V trigger connection for remote turn-on and use with most surround sound processors and external control systems Supervising microprocessor circuitry controls and monitors protection systems, and the turn-on and turn-off of any linked amplifiers Dual stage design incorporates the majority of gain in the first stage to maximize bandwidth and minimize distortion Two pairs of speaker connections per channel to accommodate bi-wired loudspeakers Fully-balanced design from the inputs to the outputs substantially reduces distortion and noise

Specifications

Peak Power, 8 Ohms- 600W

Peak Power, 4 Ohms- 1200W

Peak Power, 2 Ohms- 2400W

THD, 8 Ohms, 600W- 20-2 kHz: 0.0008%, 20 kHz: 0.0040%

THD, 4 Ohms, 600W- 20-2 kHz: 0.0012%, 20 kHz: 0.0065%

THD, 2 Ohms, 600W- 20-2 kHz: 0.0018%, 20 kHz: 0.0100%
