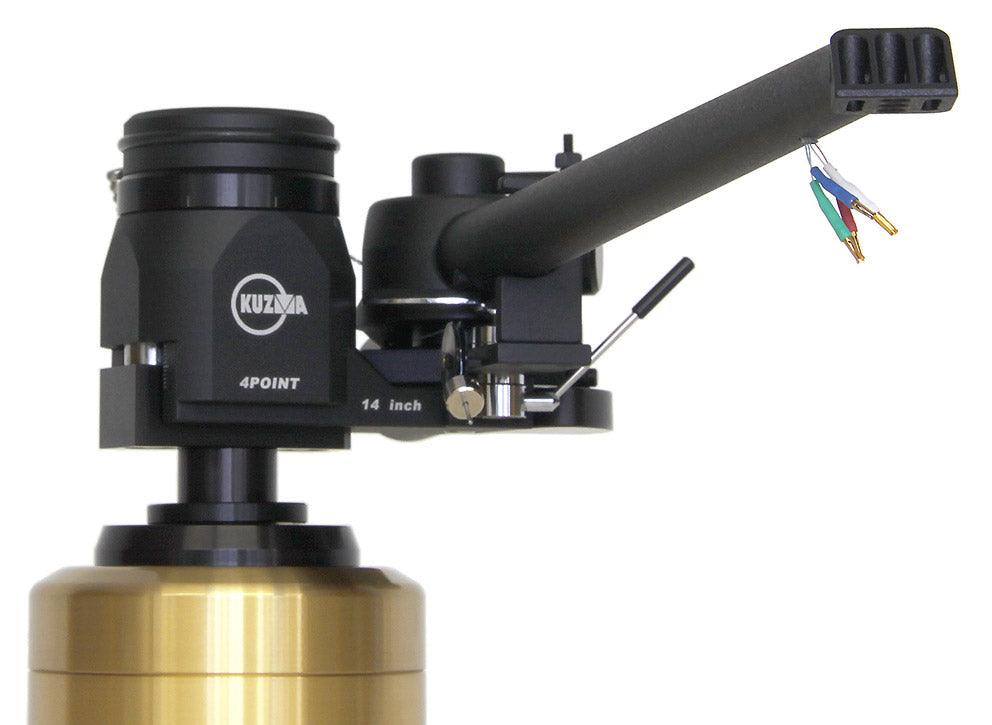

Kuzma 4Point 14 inch

Kuzma 4Point 14 inch

Mount the 4Point 14-inch tonearm and cartridge on a Stabi M turntable carefully, ensuring that the lid does not touch the tonearm or cartridge. Adjust the distance from the spindle to the horizontal bearing to 338 mm, and the protractors will automatically compensate for this change. Make sure the counterweight shaft does not touch the lid when the lid is closed.

Call to inquire about prices and other Kuzma 4Point 14 inch Model variations

4Point 14 inch SE bi-wired w/RCA box

4Point 14 inch SE single wire

4Point 14 inch SE DIN

4Point 14 inch CarCL single wire

4Point 14 inch CarCl DIN

4Point 14 inch KS single wire

4Point 14 inch KS DIN

Specifications

Technical data

Mass- 2150 gr

Effective length- 353 mm (14 inch)

Mounting distance- 291,50 mm (Kuzma cut- 291 mm)

Offset angle- 15,35 degrees

Distance spindle- horizontal bearing- 340 mm (338 mm for Stabi M)

Bearing type- 4 points (sapphire & ruby cups/steel pivots-see modification)

Effective mass- 19 g

VTA adjustment- Yes

Azimuth adjustment- Yes

Bias adjustment- Yes

Vertical damping- Yes

Horizontal damping- Yes

Detachable headshell- Yes (one extra supplied- two dots)

Cables- Silver

Arm mount- Kuzma cut (12-inch position)

Optional- Extra headshells, headshell containers, different wiring option
