Shunyata Venom V16 120V

Have questions about this product?

We love answering questions. Talk to an expert now.

z
z

FREE SHIPPING

on all e-commerce orders over $100

TECH SUPPORT

Always Included



The Shunyata Venom V16 120V Power Conditioner democratizes premium power management by integrating advanced dynamic transient current delivery, proprietary CCI noise suppression, and precision vibration isolation into an accessible platform. With 16 strategically designed outlets, this unit accommodates complex multi-component systems while delivering performance characteristics typically reserved for conditioners commanding significantly higher investment. The V16's engineering foundation—refined through Shunyata's extensive research—ensures your entire system operates with minimal electrical contamination, revealing the full resolution and dynamic authority your components are capable of delivering.



Maximum Voltage:
90-125 VAC r.m.s. unregulated (US)
220-240 VAC r.m.s. unregulated (AS)

Input Current Ratings:
Maximum Continuous Current: 20A (US)
Maximum Continuous Current: 16A (AS)

Output Current Ratings:
Max Current/Outlet: 15A (US)
Max Current/Socket: 15A (AS)

Transient Suppression:
Maximum Transient Protection: 40,000 A @ 8/50 μs

Over-Current Protection:
Hydraulic Electromagnetic Breaker

Wiring System:
Dual 12-gauge ArNi® VTX™ Buss System
Ratings: 600 V 105° C

Noise Suppression:
Input to Output (100 kHz – 30 MHz): > 24 dB reduction
Zone to Zone (100 kHz – 30 MHz): > 26 dB reduction

Isolation Zones: 2 zones

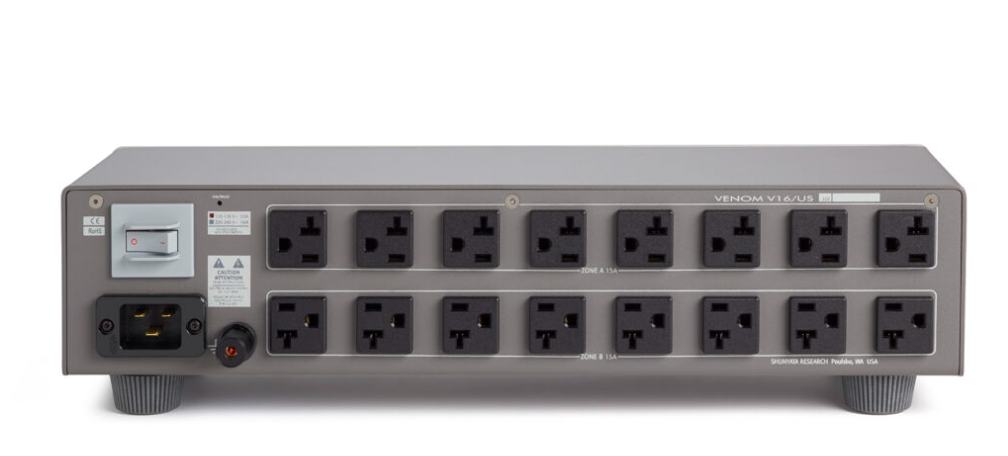

Outlets & Connectors:
Inlet: IEC C19R

US Outlets: 16 NEMA5-20R
AS Outlets: 16 NEMA 5-20R

KPIP v2 Processing: 4-days

Vibration Control:
Vibration dampening panels (internal)
AC outlet dampening gaskets

Construction:
Aluminum and steel chassis

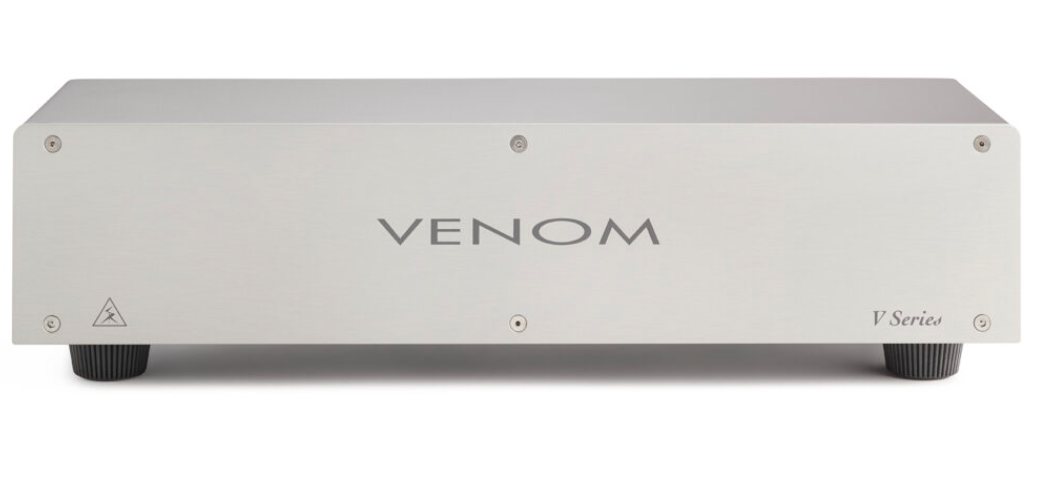

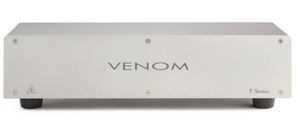

Anodized, aluminum faceplate

Dimensions:
Width: 17.0 inches (43.2 cm)
Depth: 9 inches (22.9 cm)
Height: 4.6 inches (11.7 cm)
Weight: 5.0lbs. (2.26kg)
