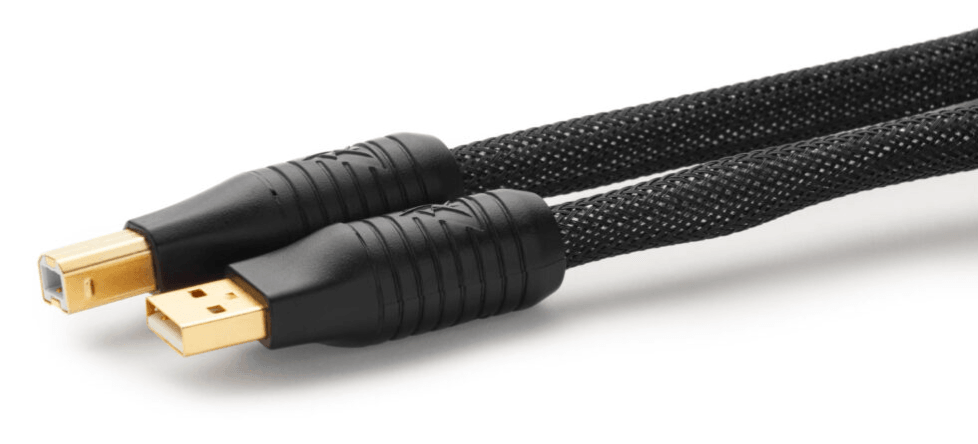

Shunyata Research Sigma USB Cable

SR USB Cable— There are many problems with off-the-shelf USB cables including poor quality conductors and dielectrics and insufficient shielding.  Conventional cables induce high amounts of signal jitter and phase noise degrading sonic performance.

The SR-USB-Cable is an exclusive Shunyata Research product that was designed to achieve the ultimate levels of performance without regard to production cost. It starts with our highest grade of ArNi^® wire featuring pure OHNO copper in a VTX™ geometry with fluorocarbon dielectrics.  The power wiring is a completely different type of conductor designed specifically for DC power transfer minimizing any signal transmission interference. Massive silver-plated copper braided shields protect the delicate signals from external RFI/EMI.

Sigma USB cables feature Precision Matched Z conductors. Signal and power wires are heavily shielded for superior noise immunity. Each Sigma USB cable is handmade. As the performance vanguard in the Shunyata Research’s cable line-up; Sigma Series cables take the term ‘state-of-the-art’ to an entirely new level with the introduction of two new cutting-edge technologies. The first, integrated into the Sigma Series interconnects and digital cables, is the ‘Transverse Axial Polarizer (TAP). It minimizes a form of ‘micro distortion identified as ‘electromagnetic polarization’ that reduces ‘sonic glare’ while increasing clarity and coherency. The second technology incorporates a proprietary device called HARP that reduces current resonances within speaker cables — a concept that is sonically analogous to the use of diffusion panels to treat frequency irregularities in room acoustics. ~ Patents Pending ~

‌‌KPIP™ (‌‌Kinetic Phase Inversion Process) was developed by Caelin Gabriel after years of research into the underlying causes of various effects such as burn-in, wire directionality, and the effects of cryogenic treatment. He discovered that there was an underlying core principle that burn-in and cryogenics only “partially” addressed. Once the governing principle was understood it became possible to create a processing technique and machine that could virtually eliminate the need for burn-in and cryogenic treatment.

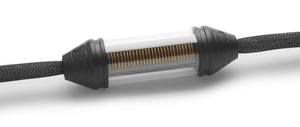

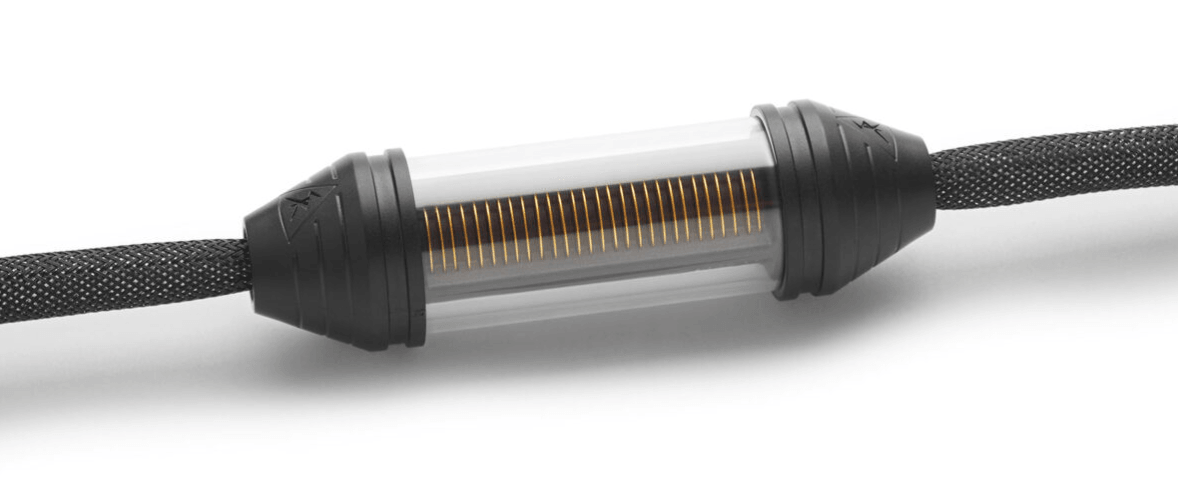

‌TAP (‌‌Transverse Axial Polarizer) is a device that interacts with the electromagnetic field generated by the signal traveling along the signal cable. ‌‌TAP improves the sonic performance of the cable by modifying the behavior of the electromagnetic wave that surrounds the signal cable. In effect, the ‌‌TAP blocks longitudinal-oriented waves while passing transverse-oriented waves. The effect in sonic terms is like using polarized sunglasses to reduce reflected sunlight. Correcting polarization micro-distortion reduces what some call sonic glare. ~ Patent Pending ~

Shunyata Research digital cables are produced using a ‌Precision Matched Z (‌‌PMZ) concept. This means that tolerances of the conductor surface, dielectric extrusion, and the precision of the braided shield are held to minute variances. To achieve these tight tolerances, the extrusion and braiding machines must be run at one-quarter speed during the manufacturing process. The result is better performance through a reduction of cable-induced ‘signal jitter. (Note: Z means impedance)

Specifications
SIGMA USB

Cable Type: SR-USB-b

Conductors: ArNi^®, Ohno, PMZ, VTX

Dielectric: fluorocarbon

Impedance: 90

Connectors: SR-USB-Conn

TAP Modules: 1

KPIP Processing: 4-days

Length: 1.50 meters

Safety Assurance:
Continuity and polarity tests – by two technicians
HiPOT tests insulation breakdown @ 1,200 VAC
