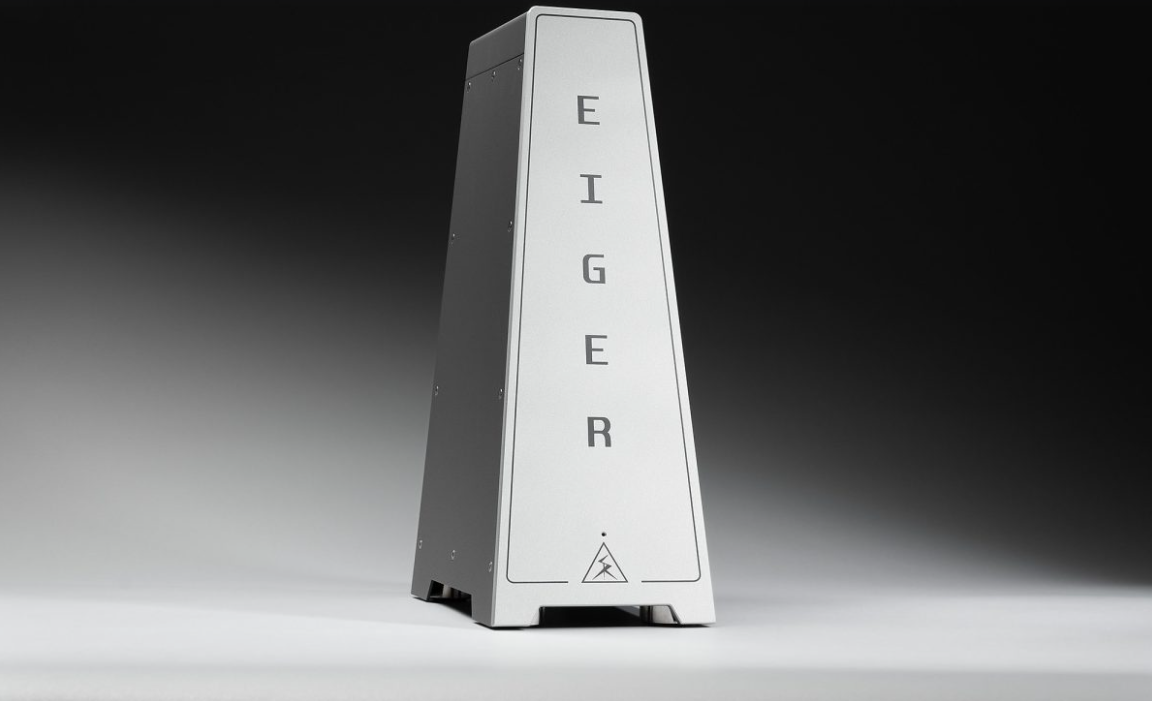

Shunyata Eiger-X

The Shunyata Eiger-X is a six-outlet power distributor that brings Everest-X technology to a more accessible price point. Engineered for serious audio and video enthusiasts, it combines a compact footprint with proven noise-reduction innovations. At its heart, the patented QRBB circuit optimizes power delivery to your components, enhancing clarity, dynamics, and timing precision. The Noise Isolation Chamber and CCI filters work together to strip away electrical noise, revealing previously hidden detail in your recordings. The patent-pending TAPc technology tackles EMI interference directly, adding depth and transparency to your sound. Two rear-panel ground posts connect to the Ground Plane Noise Reduction System (GPNR), lowering the noise floor for all connected equipment—even components on separate dedicated lines when linked via ground cables. This multi-layered approach to noise elimination creates a cleaner signal path throughout your system. Eiger-X delivers a significant portion of Everest-X's performance-critical technologies at less than half the cost. It's engineered to demonstrate how Shunyata Research's scientific innovations translate into real-world listening and viewing improvements, without the premium price tag.

Maximum Voltage:
90-125 VAC r.m.s. unregulated (US)
220-240 VAC r.m.s. unregulated (EU, AS)

Input Current Ratings:
Maximum Continuous Current: 20A (US, AS)
Maximum Continuous Current: 16A (UK, EU, AU)

Output Current Ratings:
US/AS: Max Current/Outlet 15A
EU: Max Current/Socket 16A

Transient Suppression:
Maximum Transient Protection: 40,000 A @ 8/50 μs

Over-Current Protection:
Hydraulic Electromagnetic Breaker

Wiring System:
8 gauge ArNi® VTX™ Buss System
10 gauge ArNi® VTX™ Wiring
Ratings: 600 V 105° C

Noise Suppression:
Input to Output (100 kHz – 30 MHz): > 50 dB reduction
Zone to Zone (100 kHz – 30 MHz): > 60 dB reduction

Technology:
TAPc (patent-pending)
NIC (patented)
QRBB (patented)
GPNR
KPIP v2
CCI

Outlets & Connectors:
Inlet: IEC C19R
US/AS Outlets: 6 NEMA 5-20R
EU Sockets: 6 CEE 7/3

Zones of Isolation: 3 Zones

KPIP v2 Processing: 4-days

Vibration Control:
Vibration dampening panels (internal)
AC outlet dampening gaskets (US/AS)
Shunyata Polymer Footer (Optional SSF-38 shown in photos)

Construction:
Powder coated steel chassis
Anodized aluminum faceplate

Dimensions:
Width: 6.2 inches (15.75 cm)
Depth: 9.1 inches (23.11 cm)
Height: 16.7 inches (42.42 cm)
Weight: 12.7 lbs (5.75 kg)
