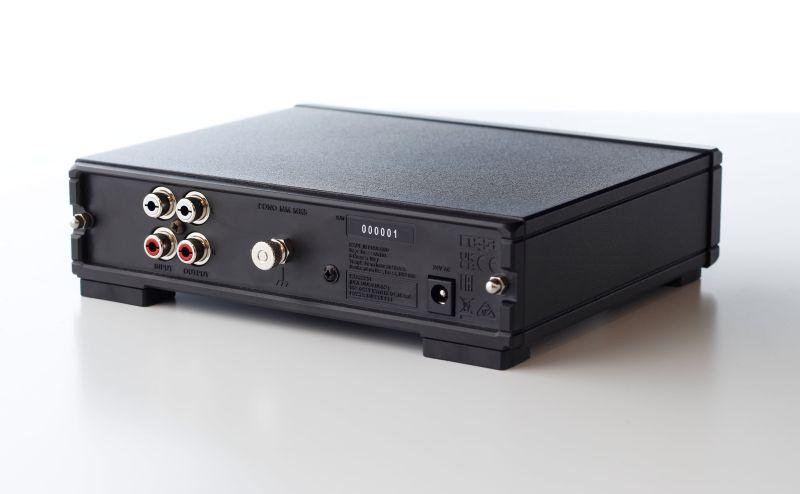

Rega Fono MM MK5

The Fono MM MK5 phono stage has been designed to be effective, easy to use, and above all, to reproduce music. The Fono MM MK5 uses a fully discrete, cascaded, complementary amplifier input stage, a configuration designed to optimize the performance of your moving magnet cartridge. Now housed in a brand new redesigned case to match the new Fono MC and Rega’s latest range of electronic components offering a modern look guaranteed to integrate into any hi-fi system.

TECHNICAL SPECIFICATIONS

Input Sensitivity

1.7 mV for 200 mV Output

Input Loading

47 kΩ in parallel with 100 pF

Maximum Input Level

60 mV at 1 kHz

Gain

41.4 dB at 1 kHz

Output Impedance

200 Ω

Recommended Minimum Output Load Resistance

5 kΩ

Frequency response (50KΩ output load)

15 Hz (-3 dB) to 100 kHz (-0.2 dB)

RIAA Accuracy (50 kΩ Output Load)

Better than ±0.2 dB 100 Hz to 100 kHz

Power Requirements

24 V AC at 80 mA maximum
