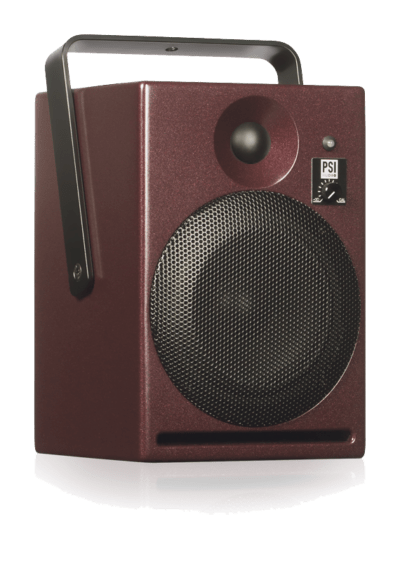

Psi Audio A14-M Broadcast

Have questions about this product?

We love answering questions. Talk to an expert now.

Color
Studio Red
Metal black
z
z

FREE SHIPPING

on all e-commerce orders over $100

TECH SUPPORT

Always Included

The broadcasters’ love

The A14-M is designed to produce the highest possible SPL and broad bandwidth in an extremely compact cabinet. It is perfect for applications with limited space that still require the best in terms of precision and reliability. Nothing else comes close.

Fast and reliable results with the A14-M Broadcast

“Have you heard?” The number one question in news and gossip does not concern the audio engineer with A14-M speakers – they have heard everything.

The sound that has earned PSI Audio the respect of sound professionals all around the world improves your results and quickens your pace. From broadcast vans to the use as surround speakers in immersive setups, the A14-M Broadcast brings the trademark PSI Audio accuracy into the most discerning and demanding environments. Speakers you can trust … from any angle.

Main Features

Power

110 + 45W


Frequency Range

56Hz – 23kHz


Max SPL

113dB


Typical listening distance

0.5 to 1m

100% Analog – No DSP


Flat frequency response


Perfect stereo image


Handmade tweeter


Equipped with brackets


Class A/B Amplifiers


Individually calibrated


5+1 years warranty


Handmade in Switzerland

Potential peak power 110 + 45 W
Continuous max SPL@1 m 98 dB
Short term max. SPL@1m 103 dB
Peak max. SPL@1m 113 dB
Signal to noise ratio (S/N) 95 dBA
Bandwidth at -6dB 56-23'000 Hz
SPL tolerances  ±2.5 dB
Phase tolerances  ± 45 (350 Hz – 20 kHz) deg
Dispersion (H x V) 80 x 35 deg
System 2 ways
Crossover frequency 3600 Hz
Woofer ext. diam. 147 mm
Woofer ext. diam. 5.8 in
W. diaphragm diam. 104 mm
W. diaphragm diam. 4.1 in
Tweeter ext. dim. 90 mm
Tweeter ext. dim. 3.5 in
T. diaphragm diam. 27 mm
T. diaphragm diam. 1.06 in
Dimensions W x H x D 163 x 243 x 170 mm
Dimensions W x H x D 6.4 x 9.6 x 6.7 in
Net Weight 4.9 Kg
Net Weight 10.8 lbs
Input connector 1 x XLR F / 3P
Warranty 5 (+1) years
Color Studio Red, Metal black
