Kuzma Stogi S Tonearm

Have questions about this product?

We love answering questions. Talk to an expert now.

FREE SHIPPING

on all e-commerce orders over $100

TECH SUPPORT

Always Included

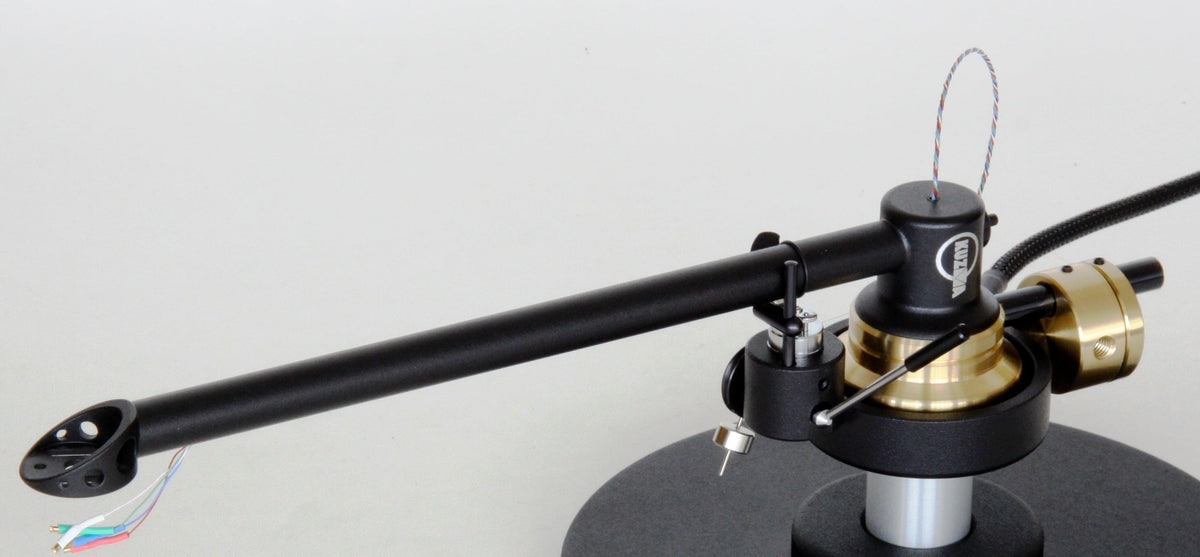

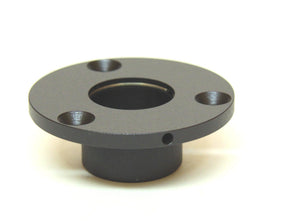

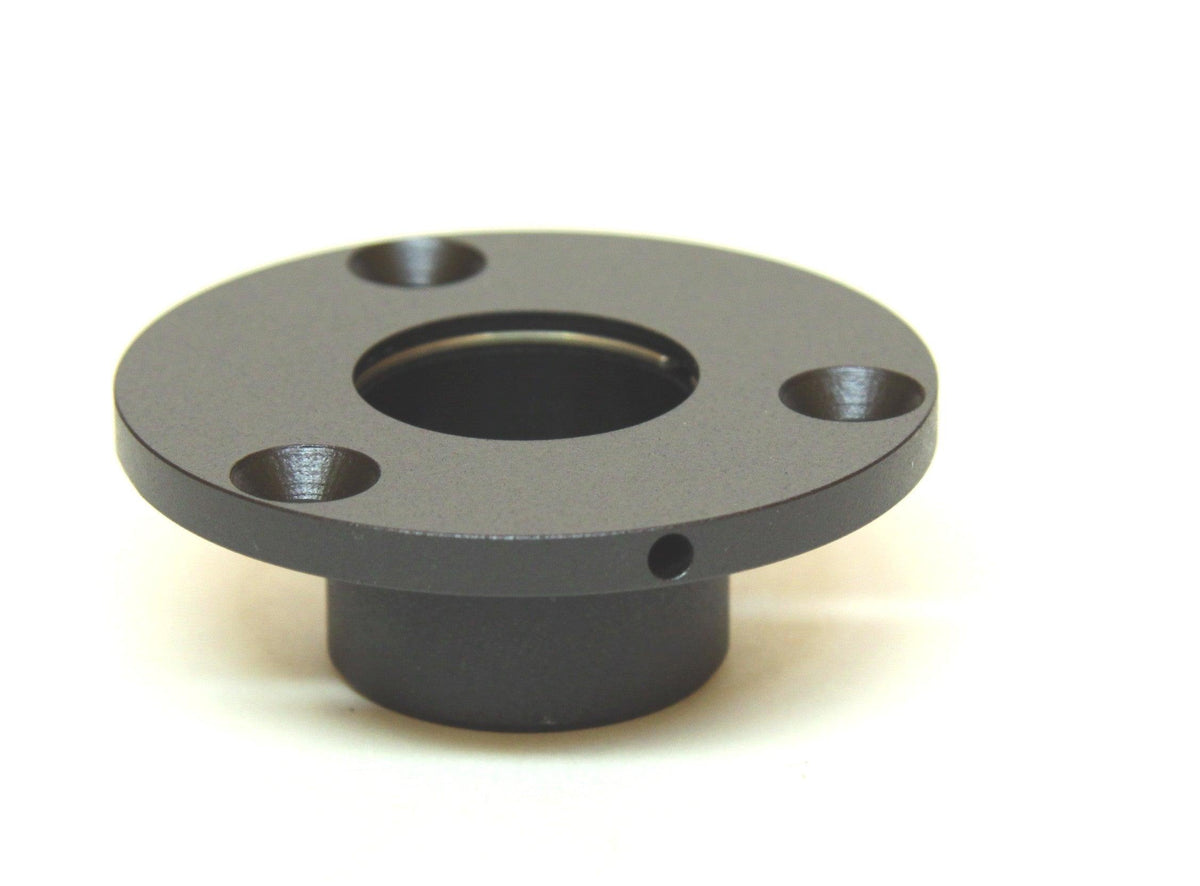

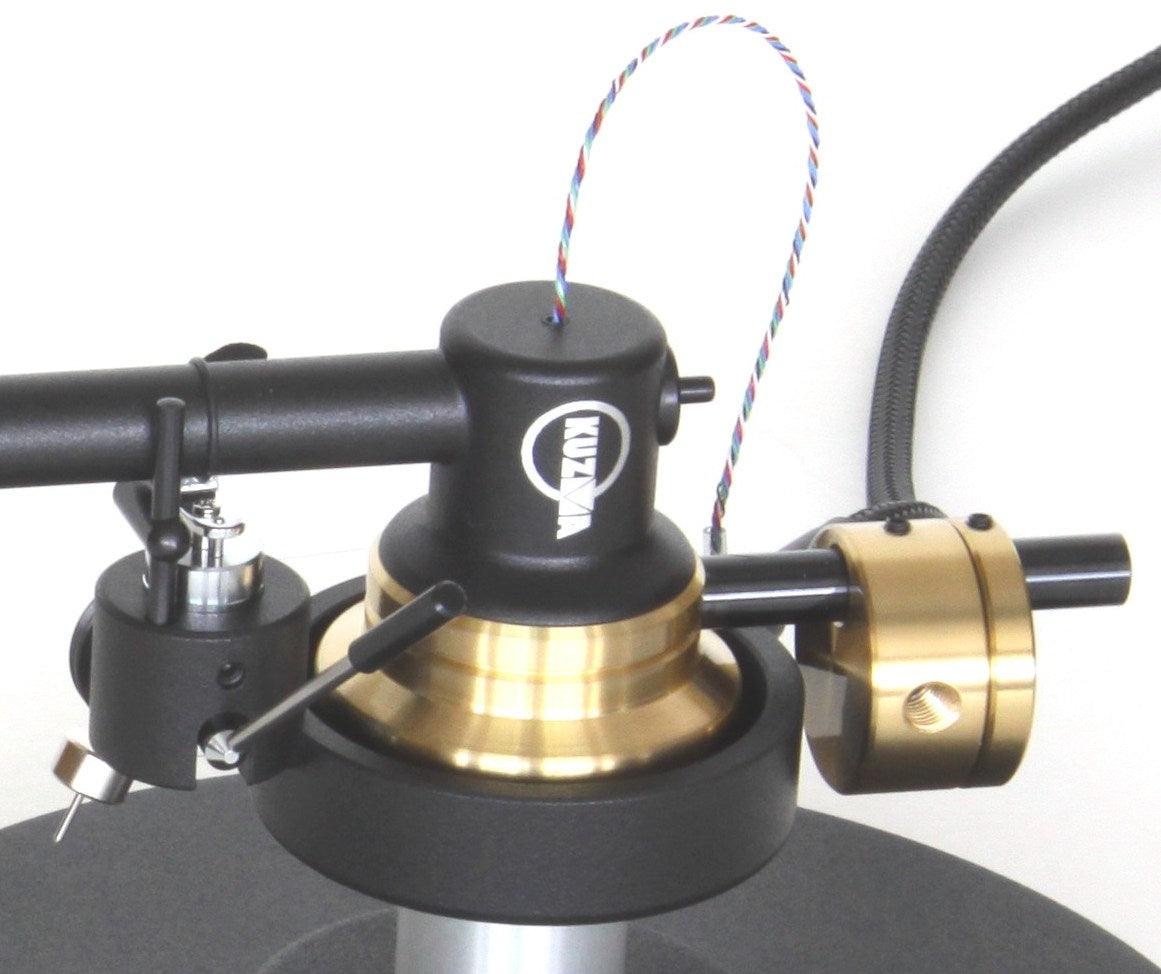

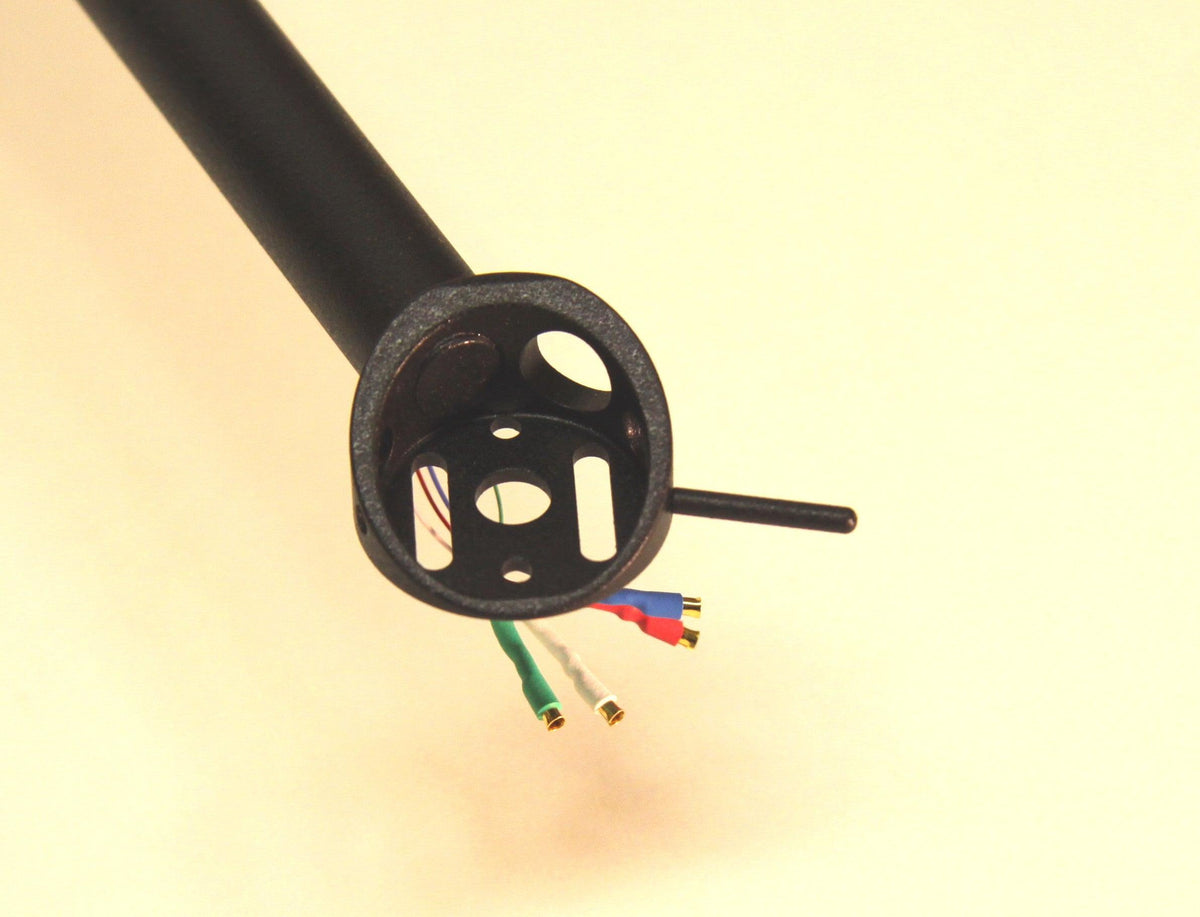

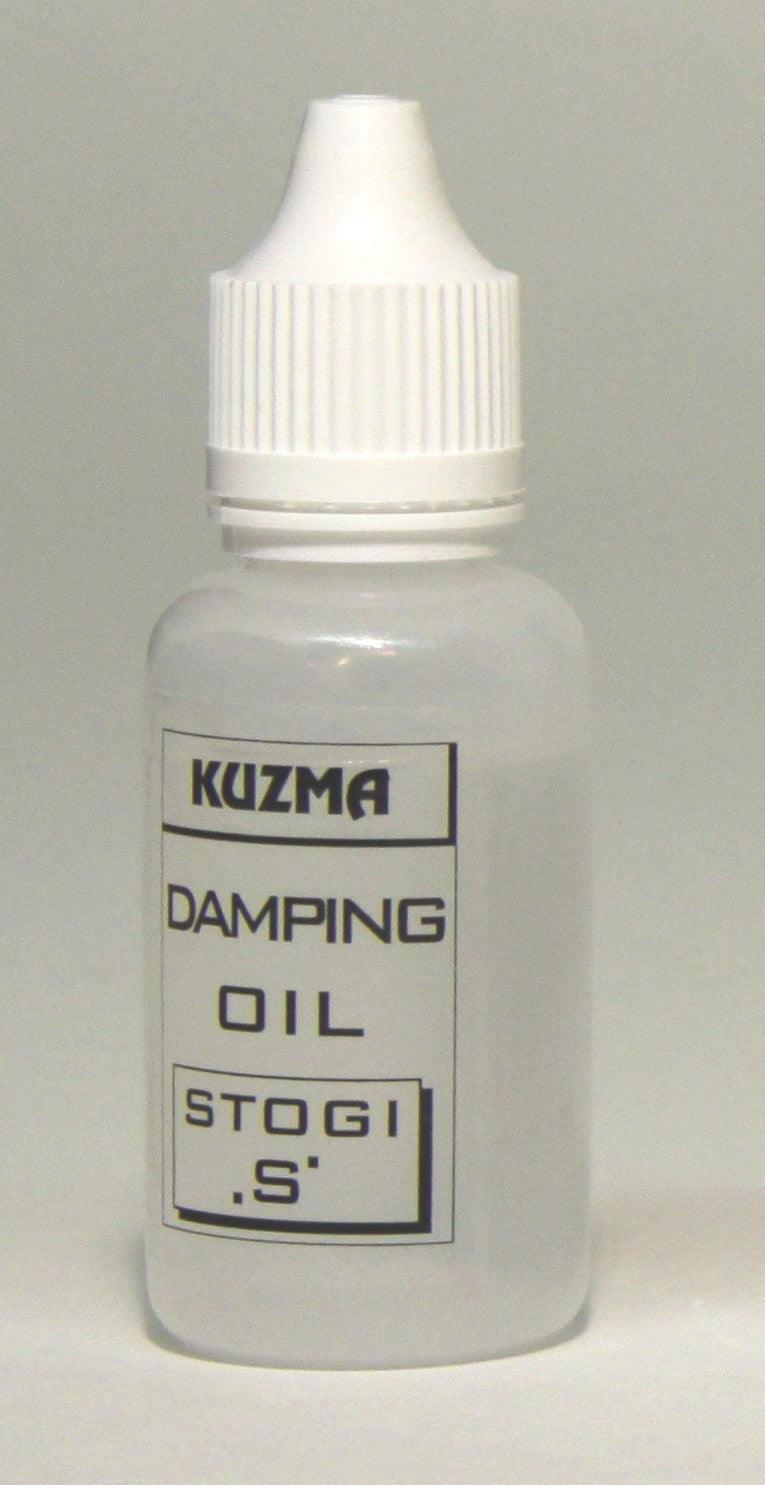

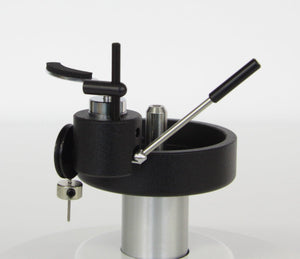

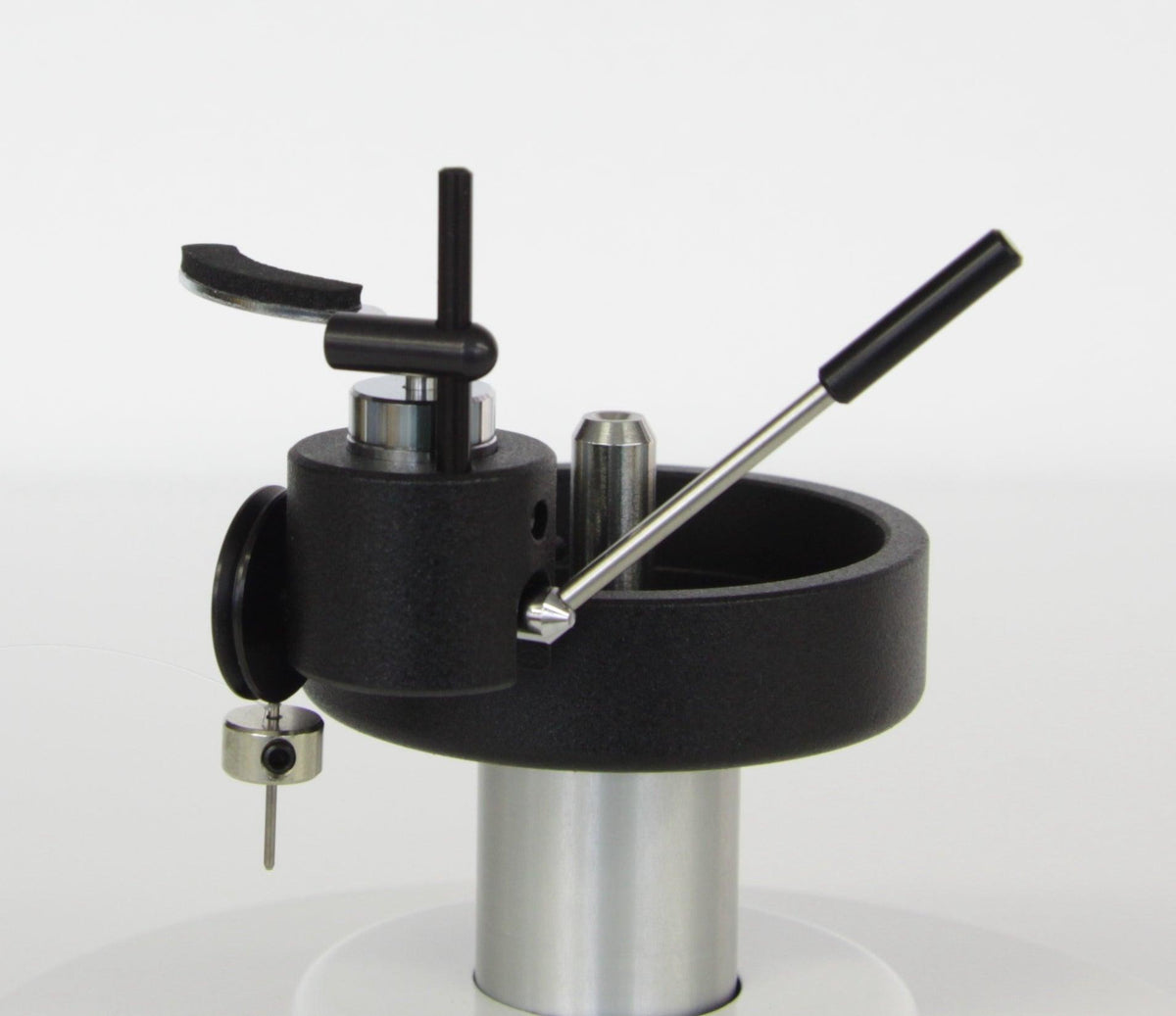

This is a 9-inch tonearm with a uni pivot bearing design with a unique, rigid round headshell made from a solid aluminum block and a base of solid brass which controls all vibration and facilitates the stability of the tonearm as a whole. All parts of the arm are machined from blocks of solid metal, to provide damping and minimize resonance. The polished pivot point is sited in an oil well, which provides extremely low friction and bearing vibration. The bearing height is at a record level for optimum tracking. The silicone damping controls the resonance of the cartridge and also gives stability in the azimuth direction.

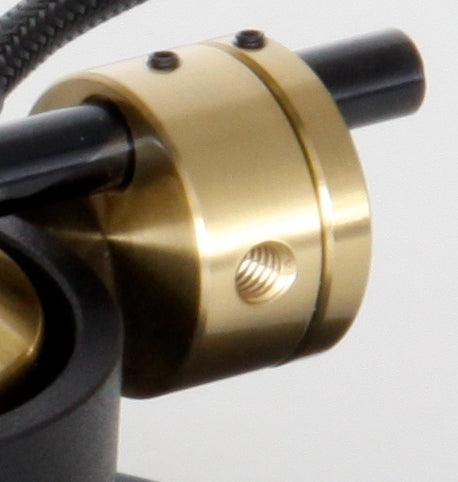

Two counterweights allow easy adjustments of tracking force and azimuth. Fine azimuth adjustment is achieved by rotation of a horizontal screw in the main counterweight, which does not affect other tonearm parameters and which makes fine azimuth adjustment very simple.

Wires are in one uninterrupted piece from headshell to RCA phono connectors. By pre-order, wiring can also be fitted in for a balanced ( XLR) connection.

Introduced: 1992



Specifications

Effective length- 229 mm

Arm mount distance- 212 mm

Distance from spindle to horizontal bearing- 212 mm

Bearing type- Unipivot

Effective mass- 11 gr

Total mass- 690 g

Offset angle- 23*

VTA adjustment- Yes

Azimuth adjustment- Yes (fine)

Tube- Straight

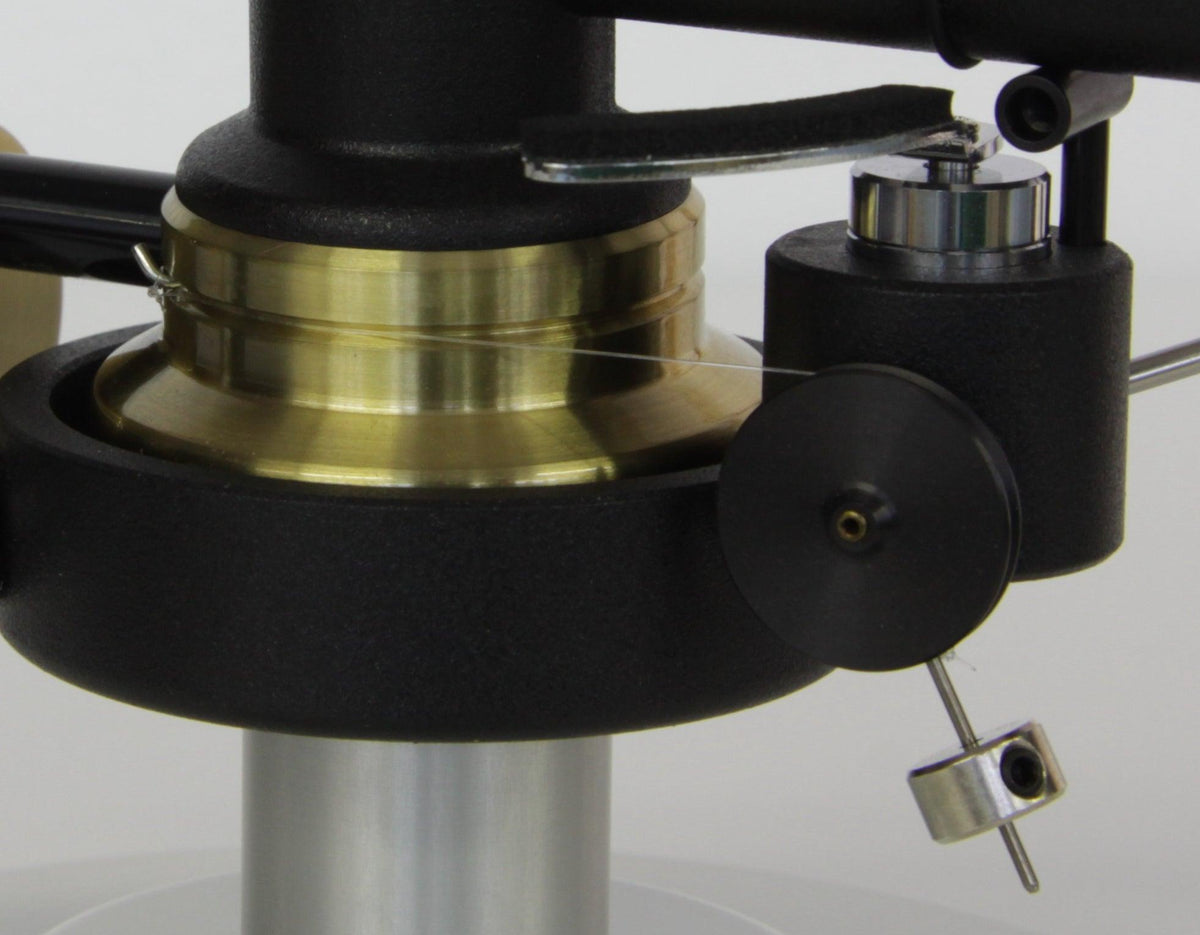

Bias- Yes

Max. Standard cartridge weight- 15 g

Optional light and heavy counterweight- Yes

Damping- Yes

Detachable headshell- No

Arm mount- Kuzma & Stogi

Standard wiring- Copper, RCA Bullets (58pF)

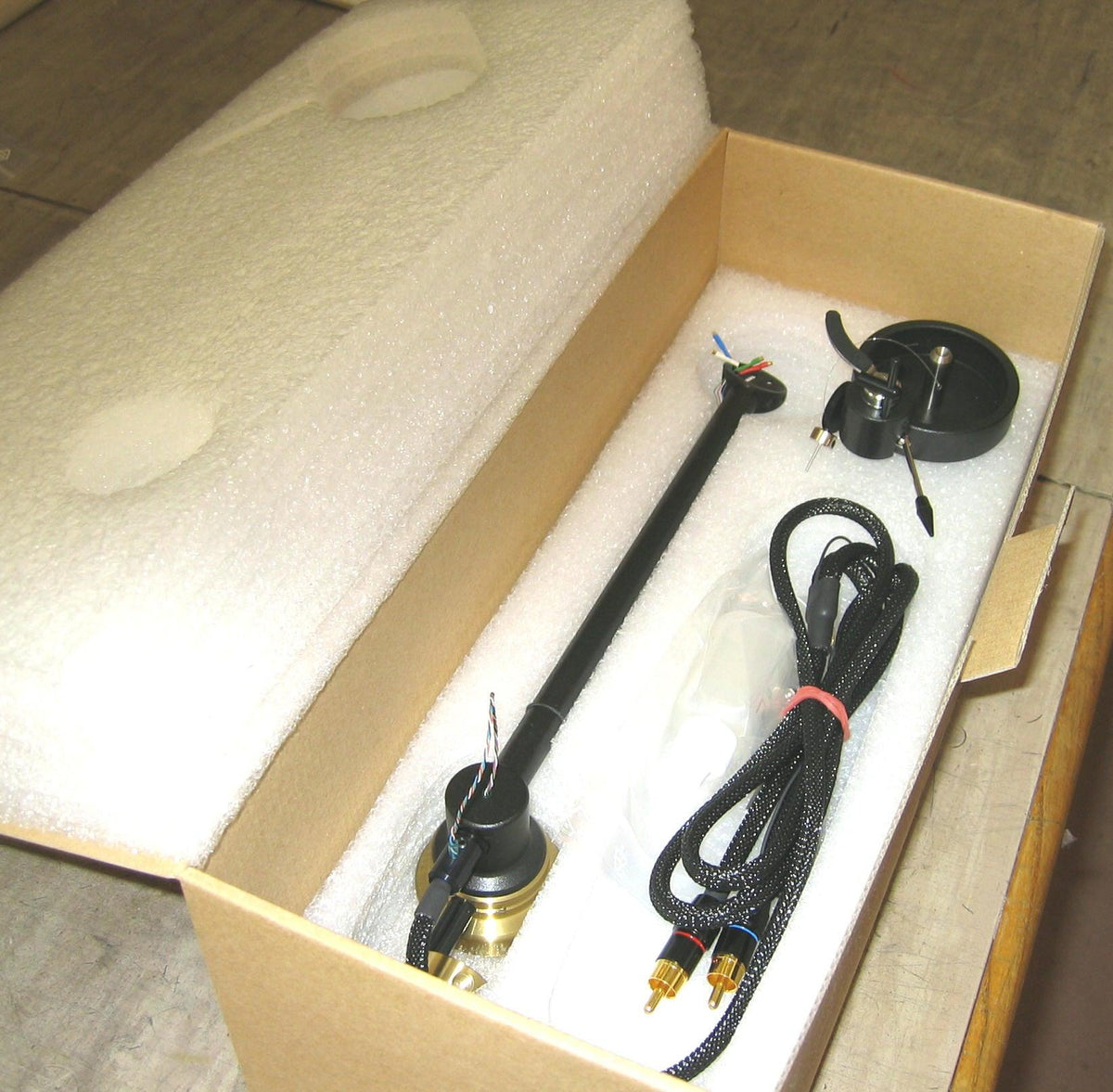

Accessories- protractor, Allen keys, cartridge mounting screws

Options- XLR, 5pin
