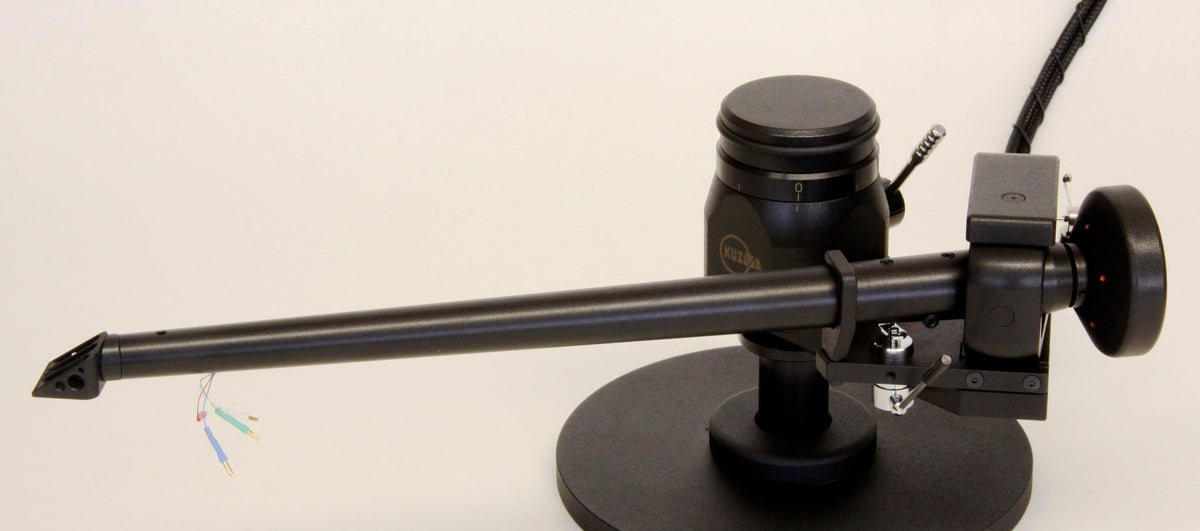

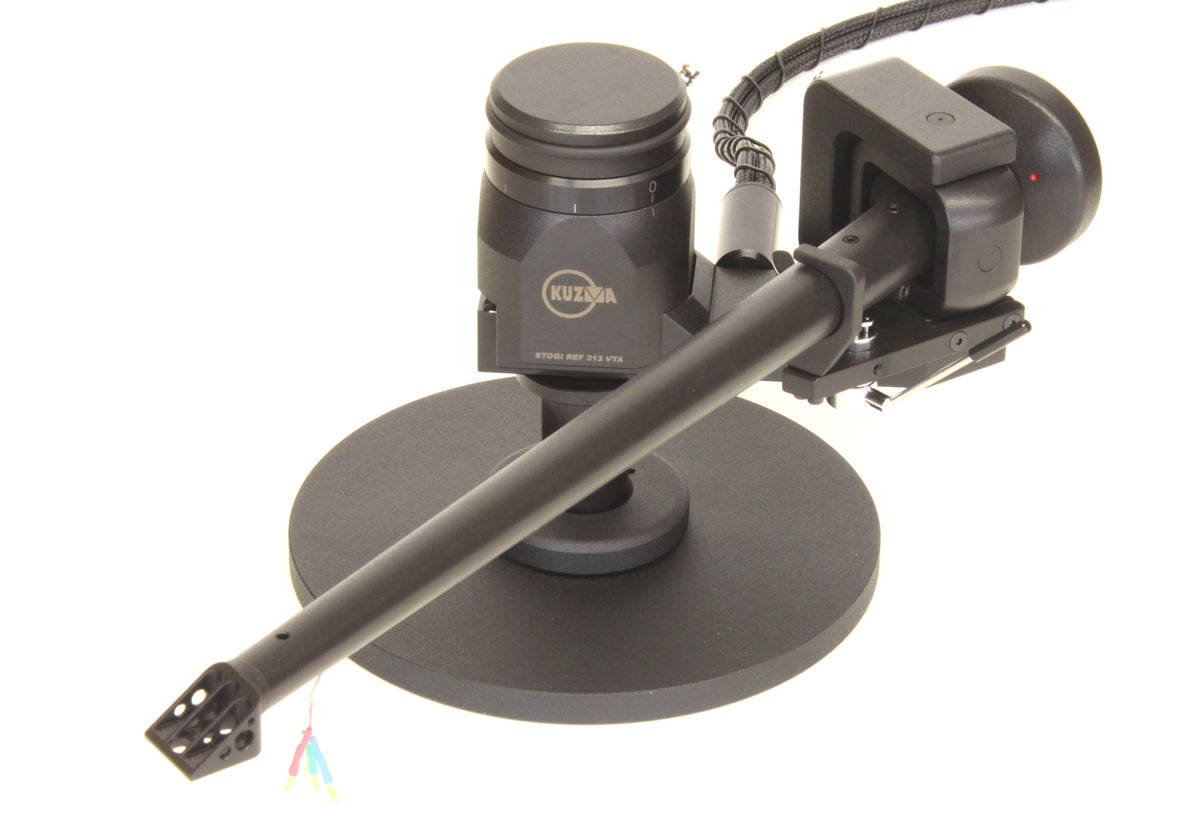

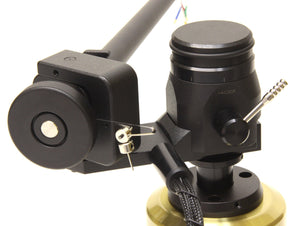

This is 12 inch version of Stogi Ref 313 tonearm with fully adjustable VTA tower mounting on standard 9 inch position. The Stogi Ref 313 VTA tonearm shares the main features of Stogi Ref and 4 Point tonearm, i.e. precision ball bearings, a conical tube and unique VTA tower.

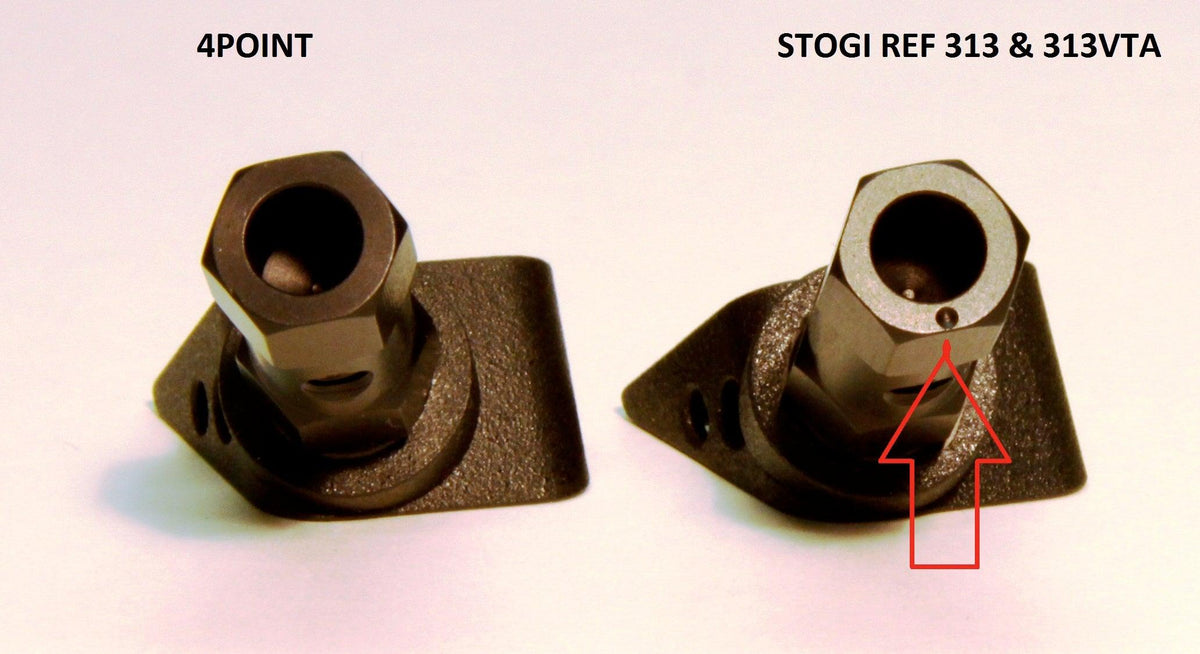

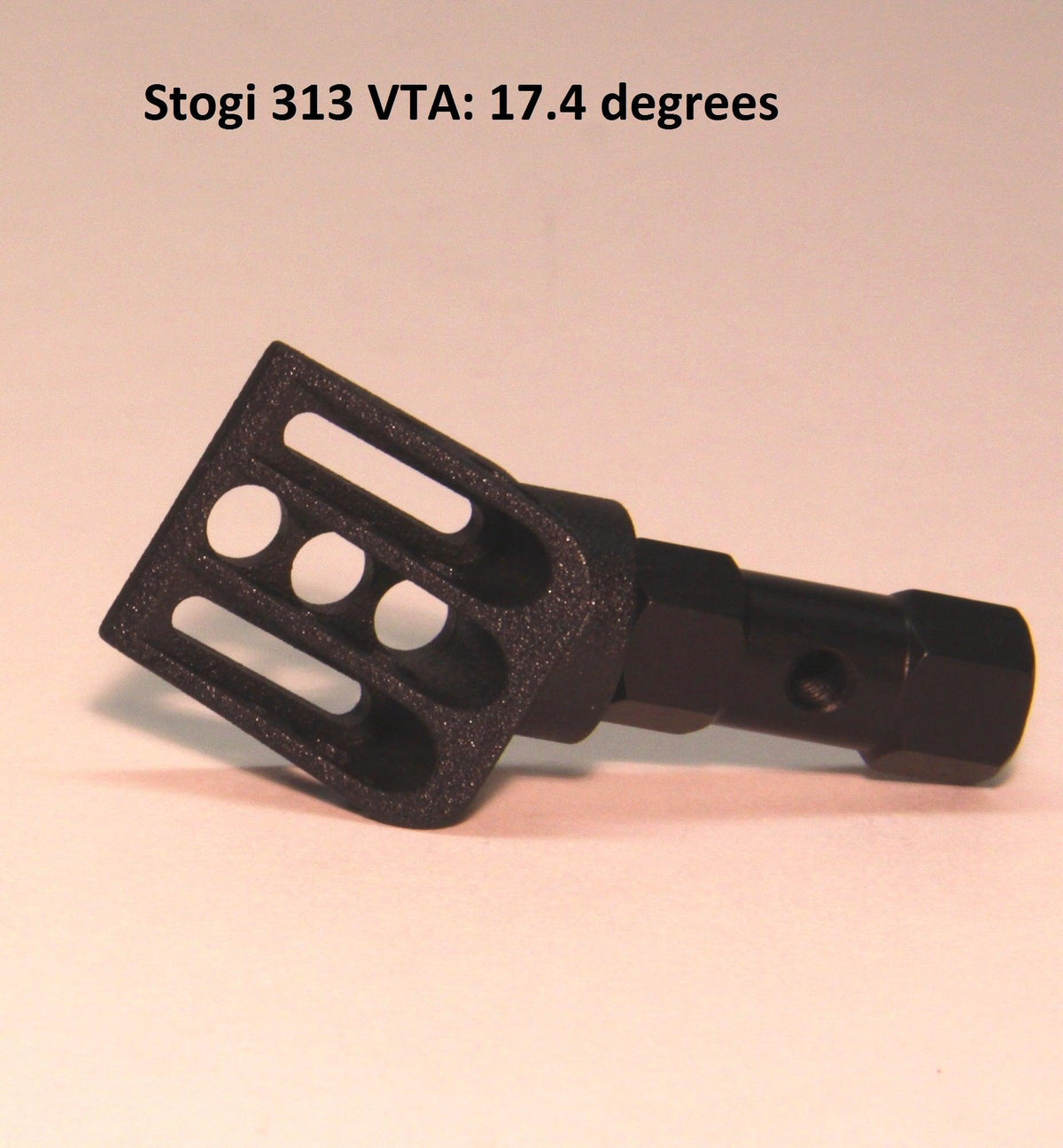

General description: This is a very rigid medium mass tonearm with precision ball bearings which ( ceramic ball bearings fitted from July 1st 2018) , while withstanding very heavy loads, displays extremely low starting and running friction and noise levels. The main frame and all other parts are machined from solid aluminium and brass blocks. Some parts are anodised and some are not, in order to help control tonearm resonance. The detachable headshell provides a stable cartridge mounting, while the internally damped tube connects this to the massive bearing parts where any vibration or noise is dispersed. Most parts are glued together for rigidity and damping. Detachable headshell: The electrical connection is via standard pins but the headshell can be simply removed by unscrewing with an Allen key. The headshell is fixed with a unique hexagonal locking system, giving the same rigidity as with a fixed headshell. The conical tube machined from solid aluminium rod is internally damped and divided into two parts which, while further aiding damping, also allows for precise azimuth adjustment. A special mechanism (worm drive), using an Allen key, allows the tube to be rotated back and forth in minimal increments with no air gap. This mechanism is submerged in silicone grease for further damping. A marker line clearly shows the azimuth position and facilitates use, while allowing for repeated adjustments. A decoupled brass counterweight controls balance and adjusts tracking force, while damping vibration in the tube. The massive arm base serves to clamp the tonearm rigidly to the armboard. All bearings are pre-loaded and glued into position which, while damping vibrations in them, also provides long lasting, zero play, low friction and low noise level in the bearings. VTA tower: The whole construction is mounted on a rigid VTA tower which allows VTA ( vertical tracking angle) adjustment while playing, without any loss of rigidity, yet with up to 0.01mm of precision with zero play and repeatability. Wires are in one length from cartridge pins to RCA connectors. High quality wires are incorporated into our own cable. It is also possible to use the tonearm in a balanced ( XLR) or 5pin configuration.
|Effective length||313 mm|
|Arm mount distance||212 mm|

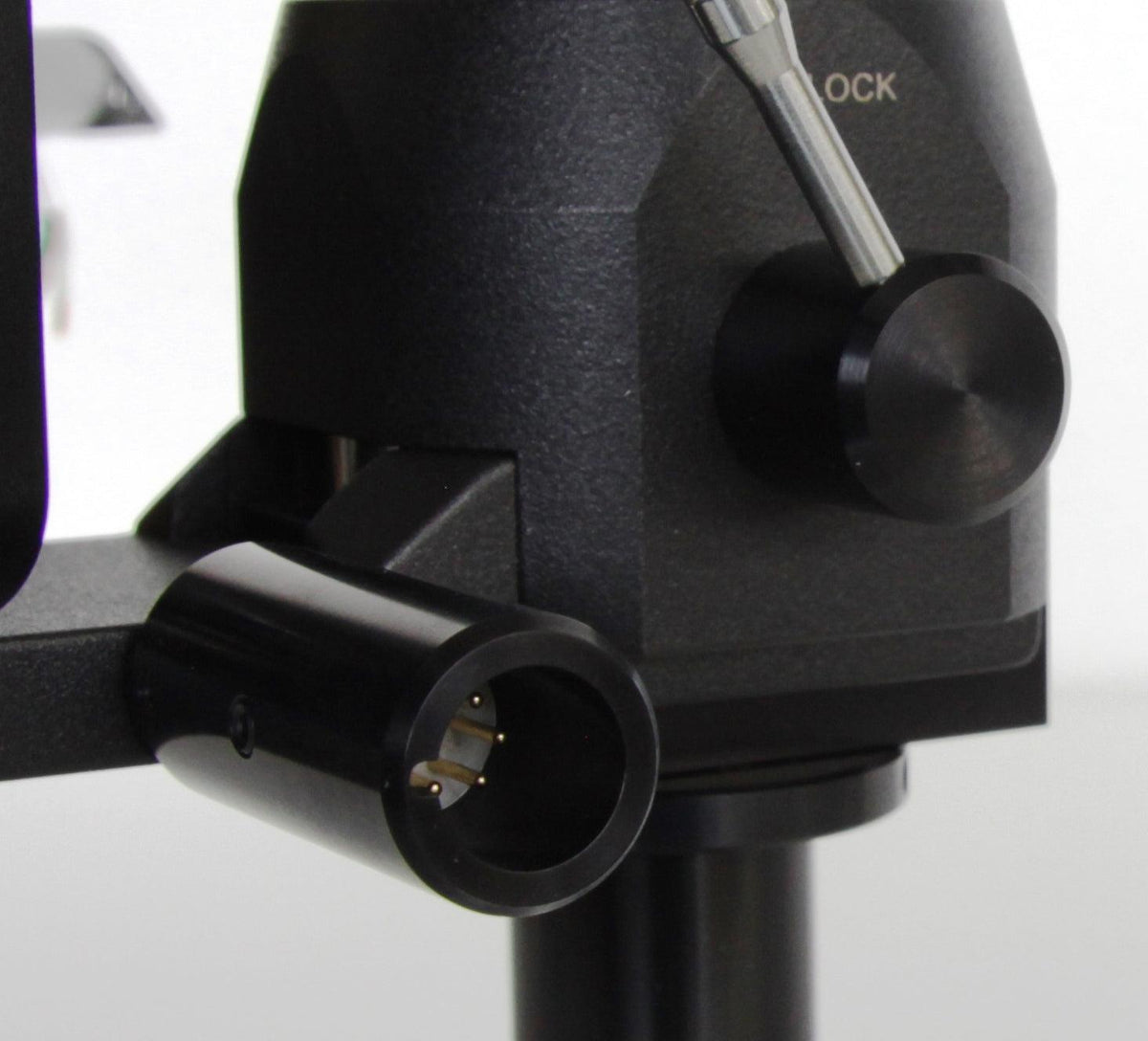

|Distance from spindle to horizontal bearing||300 mm||Bearing type||Precise Ceramic ball bearings( from Jan 2019)||Effective mass||14 gr||Total mass||2010 g||Offset angle||17.4*||VTA adjustment||Precise VTA tower||Azimuth adjustment||Precise worm drive||Tube||Conical||Bias||Yes||Max. Standard cartridge weight||15 gr||Optional light and heavy counterweight||Yes||Damping||No||Detachable headshell||No||Arm mount||Kuzma||Standard wiring||Copper, RCA Bullets ( 66 pF )||Accessories||protractors, Allen keys, cartridge mounting screws||Options||XLR, 5pin|
