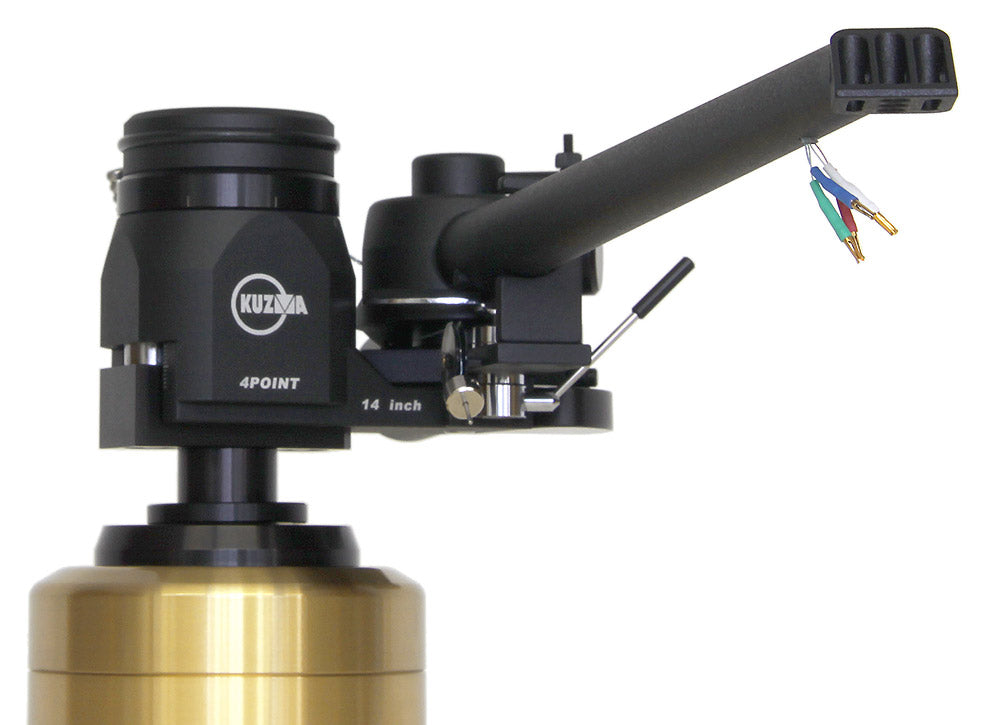

Kuzma 4Point 14" KS Single-Wired Tone Arm with Kondo Silver wire and Furutech CF-126 R RCA plugs

Have questions about this product?

We love answering questions. Talk to an expert now.

FREE SHIPPING

on all e-commerce orders over $100

TECH SUPPORT

Always Included

Use the 4Point 14-inch tonearm on a Stabi M turntable with a lid.

The 4Point 14-inch tonearm just fits the Stabi M turntable with the use of a 12-inch cutout but some parts of the tonearm come very close to the edge of the lid.  Please follow these instructions when mounting the 4Point 14-inch tonearm and cartridge.

To fit the tonearm on a Stabi M you need to change the distance from the spindle to the horizontal bearing.  The standard distance is 340 mm and this must be changed to 338 mm so that the closed lid does not touch the tonearm.  When the cartridge's geometry is adjusted the protractors will automatically compensate for this change. This change  in effective length  is minor and not important ( just over 1%)

As the headshell with cartridge comes very close to the front of the lid, especially when the lid is half closed, slowly close the lid at first and check if the edge of the lid passes in front of the cartridge. At the same time check that the counterweight shaft at the rear of the tonearm is not touching either the back or right side of the lid.



Specifications

Technical data

Mass- 2150 gr

Effective length- 353 mm (14 inch)

Mounting distance- 291,50 mm (Kuzma cut- 291 mm)

Offset angle- 15,35 degrees

Distance spindle- horizontal bearing- 340 mm (338 mm for Stabi M)

Bearing type- 4 points (sapphire & ruby cups/steel pivots-see modification)

Effective mass- 19 g

VTA adjustment- Yes

Azimuth adjustment- Yes

Bias adjustment- Yes

Vertical damping- Yes

Horizontal damping- Yes

Detachable headshell- Yes (one extra supplied- two dots)

Cables- Silver

Arm mount- Kuzma cut (12-inch position)

Optional- Extra headshells, headshell containers, different wiring option

Style 4Point 14" KS Single-Wired Tone Arm with Kondo Silver wire and Furutech CF-126 R RCA plugs, 4Point 14" KS DIN Single-Wired Tone Arm with Kondo Silver wire and DIN (no output cable), 4Point 14" MC DIN Single-Wired Tone Arm with Crystal Cable Mono-Crystal Silver wire and DIN (no output cable), 4Point 14" NOR DIN Single-Wired Tone Arm with Nordost II wire and DIN (no output cable), 4Point 14" NOR Single-Wired Tone Arm with Nordost II wire and Furutech CF-126 R RCA plugs, 4Point 14" SE Single-Wired Tone Arm with Crystal Cable Silver/Gold wire and Furutech CF-126 R RCA plugs
