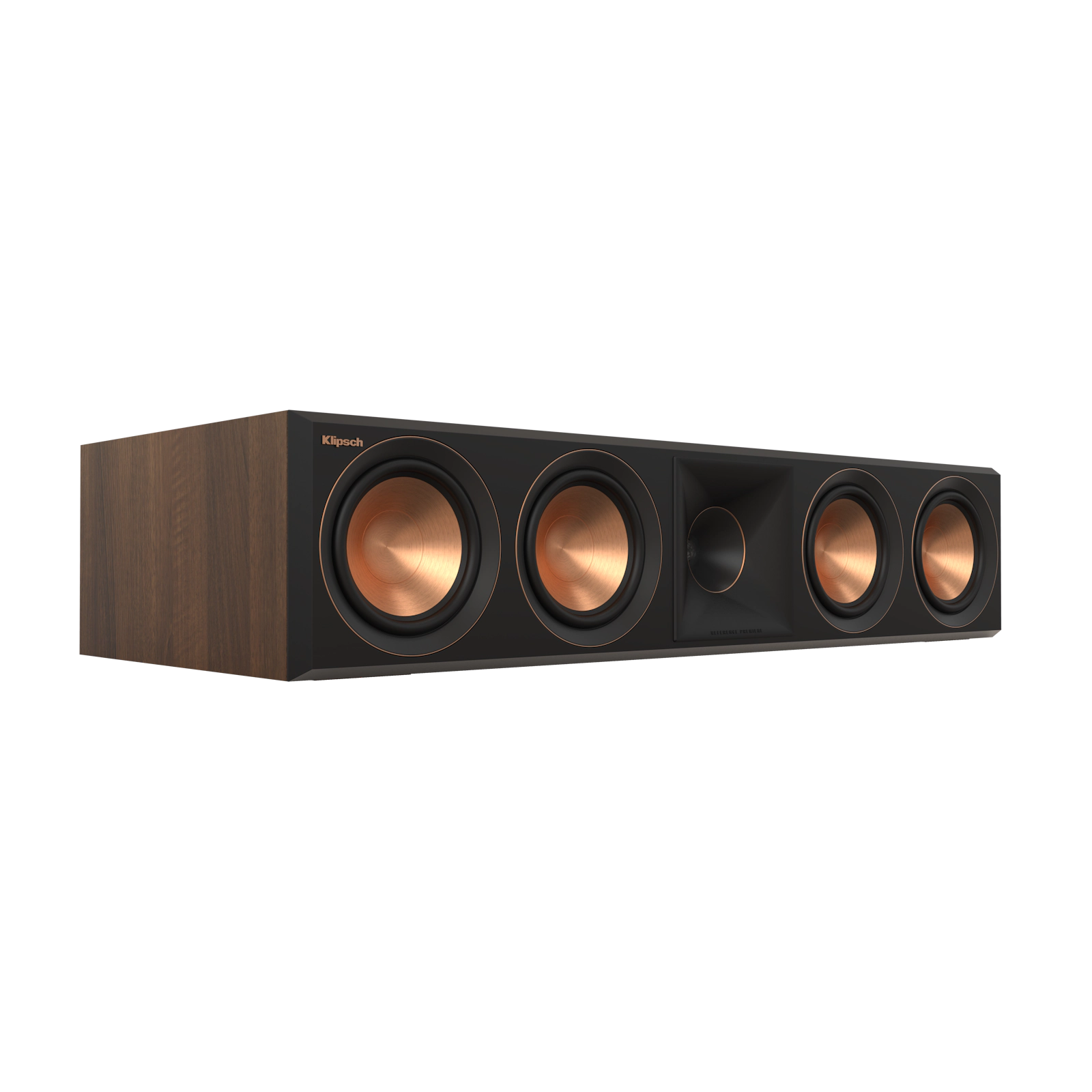

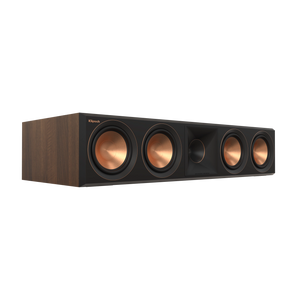

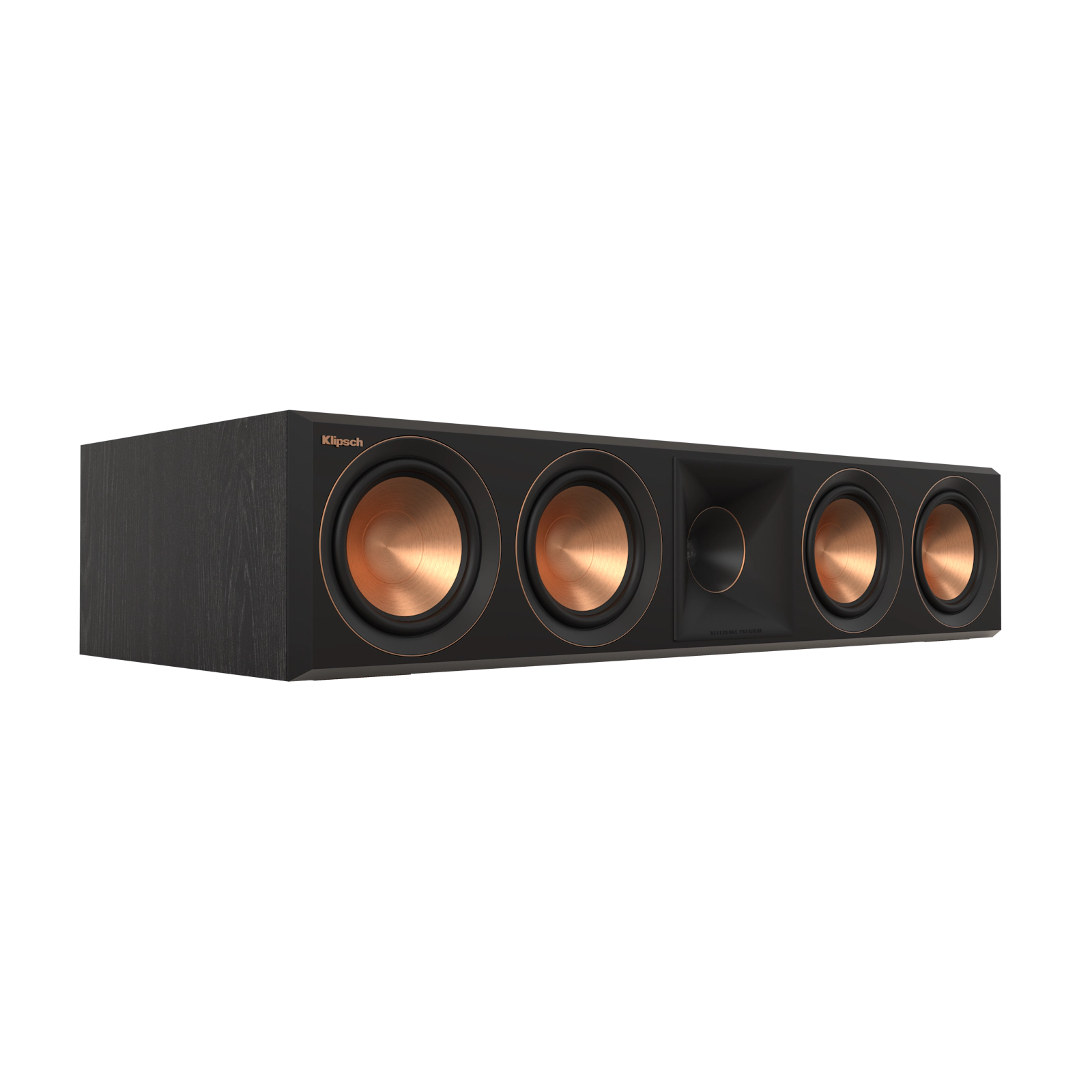

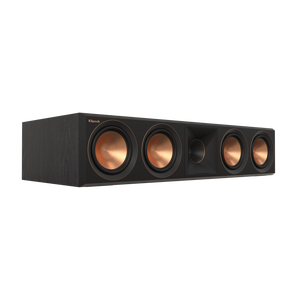

Klipsch RP-504C II (Each)

The Klipsch RP-504C II center channel speaker delivers exceptional vocal clarity and dialogue reproduction through its advanced horn-loaded tweeter design. The 90° x 90° Silicon Composite Hybrid Tractrix Horn focuses high frequencies with precision, while the Linear Travel Suspension titanium diaphragm tweeter minimizes distortion for articulate, detailed performance. New Cerametallic woofers combine rigid construction with lightweight materials to reduce coloration and maximize efficiency. Vented tweeter housing eliminates standing waves for cleaner highs, while Tractrix ports employ custom inner flares to minimize turbulence and deliver controlled, punchy bass. The second-generation design features an enlarged horn for expanded soundstage and improved directivity. Premium aluminum binding posts accommodate any connection type, making this an ideal anchor for discerning home theater systems.

FREQUENCY RESPONSE 50-25kHz +/- 3dB
SENSITIVITY* 96dB @ 2.83V / 1m*
POWER HANDLING (CONT/PEAK) 150W/600W
NOMINAL IMPEDANCE 8 Ohms Compatible
CROSSOVER FREQUENCY 650Hz/1950Hz
HIGH FREQUENCY DRIVER 1" Titanium LTS Vented Tweeter with Hybrid
Cross-Section Expanded Tractrix® Horn
LOW FREQUENCY DRIVER Quad 5.25" Cerametallic Cone Woofers with Faraday rings
ENCLOSURE MATERIAL MDF (Internally Braced)
ENCLOSURE TYPE Bass Reflex via rear-firing Tractrix® Port
INPUTS Single aluminum binding posts
HEIGHT INCHES (MM) 6.87" (17.4 cm)
WIDTH INCHES (MM) 32.06" (81.4 cm)
DEPTH INCHES (MM) 15.08" (38.3 cm)
PRODUCT WEIGHT LBS (KG) 36.3lb (16.45kg)
FINISH Ebony, Walnut
ACCESSORIES Angle screw
