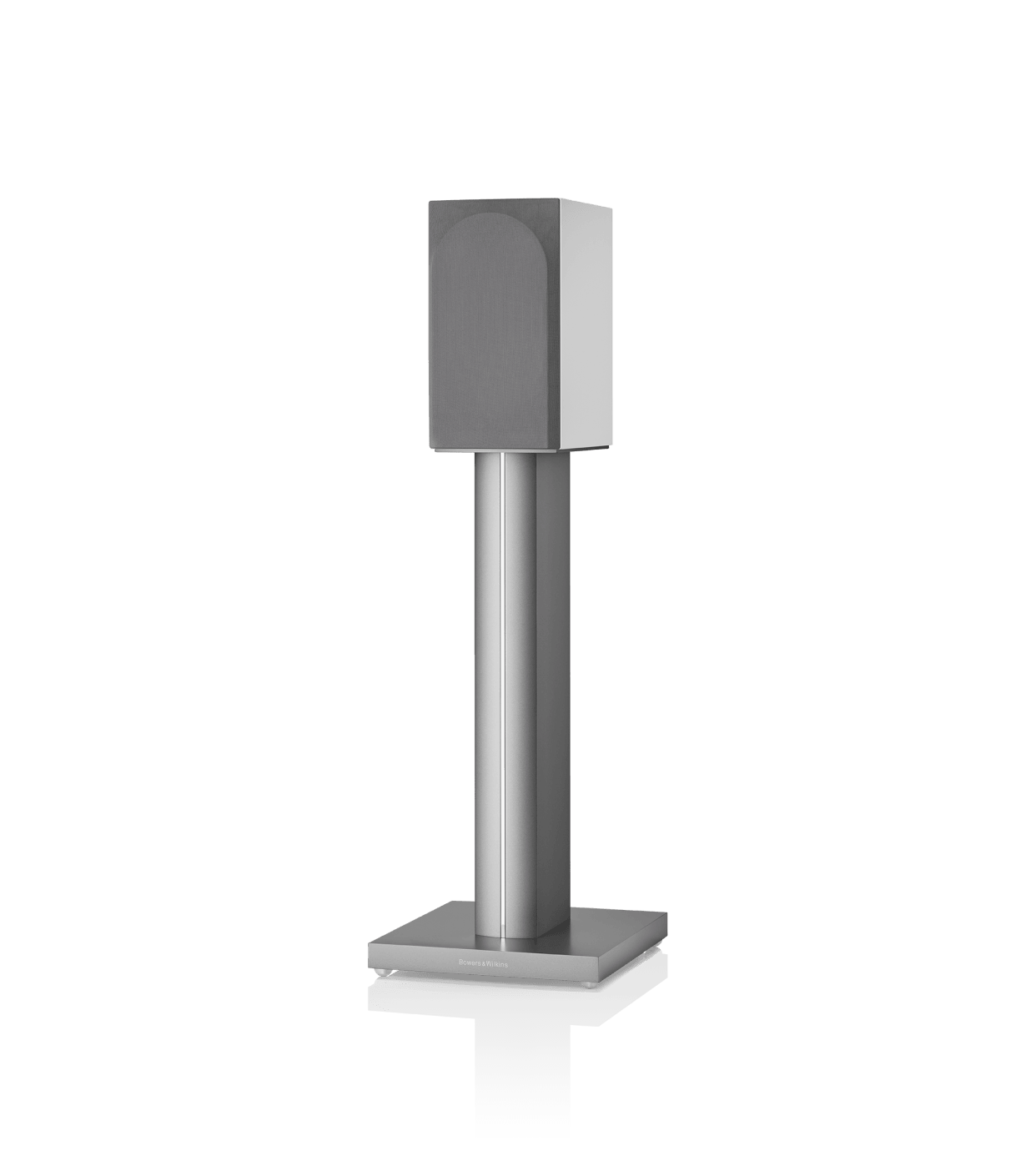

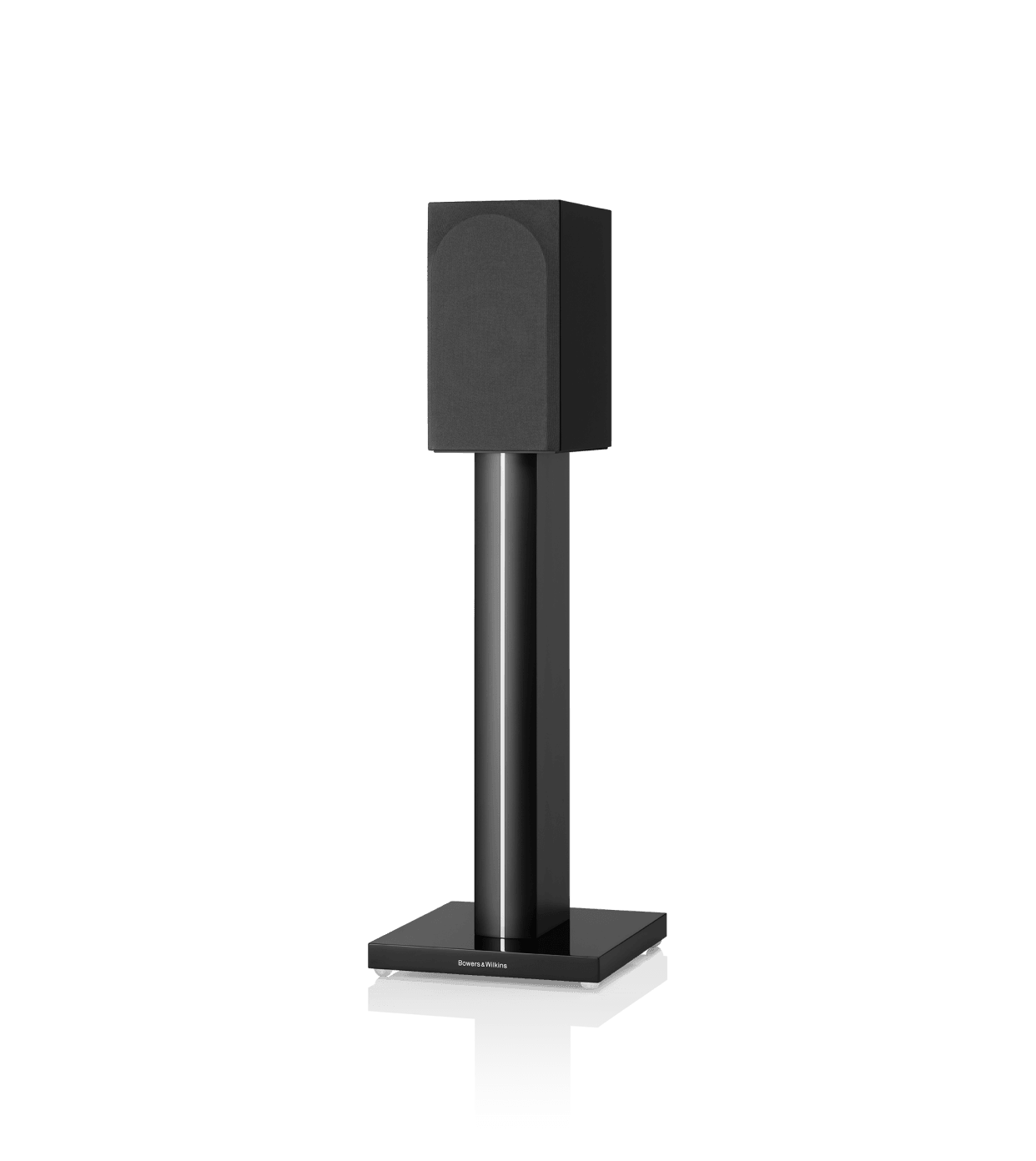

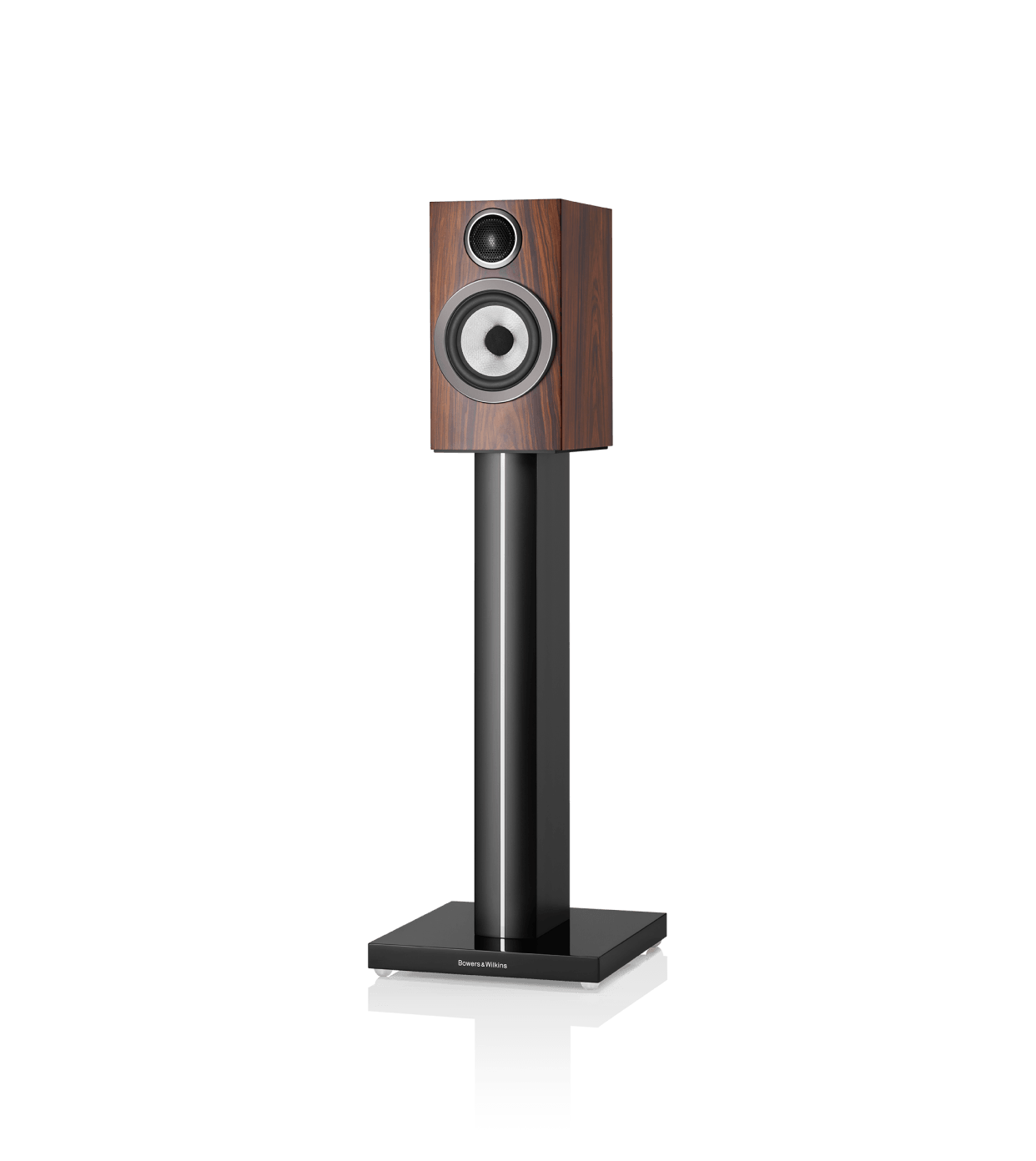

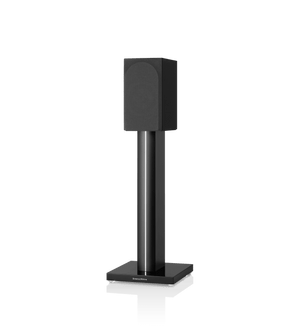

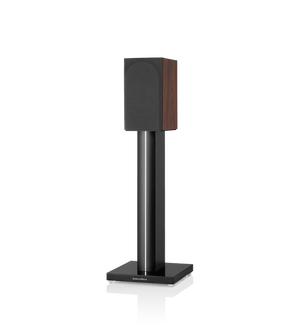

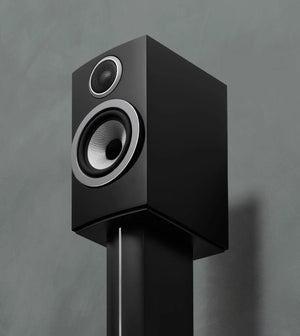

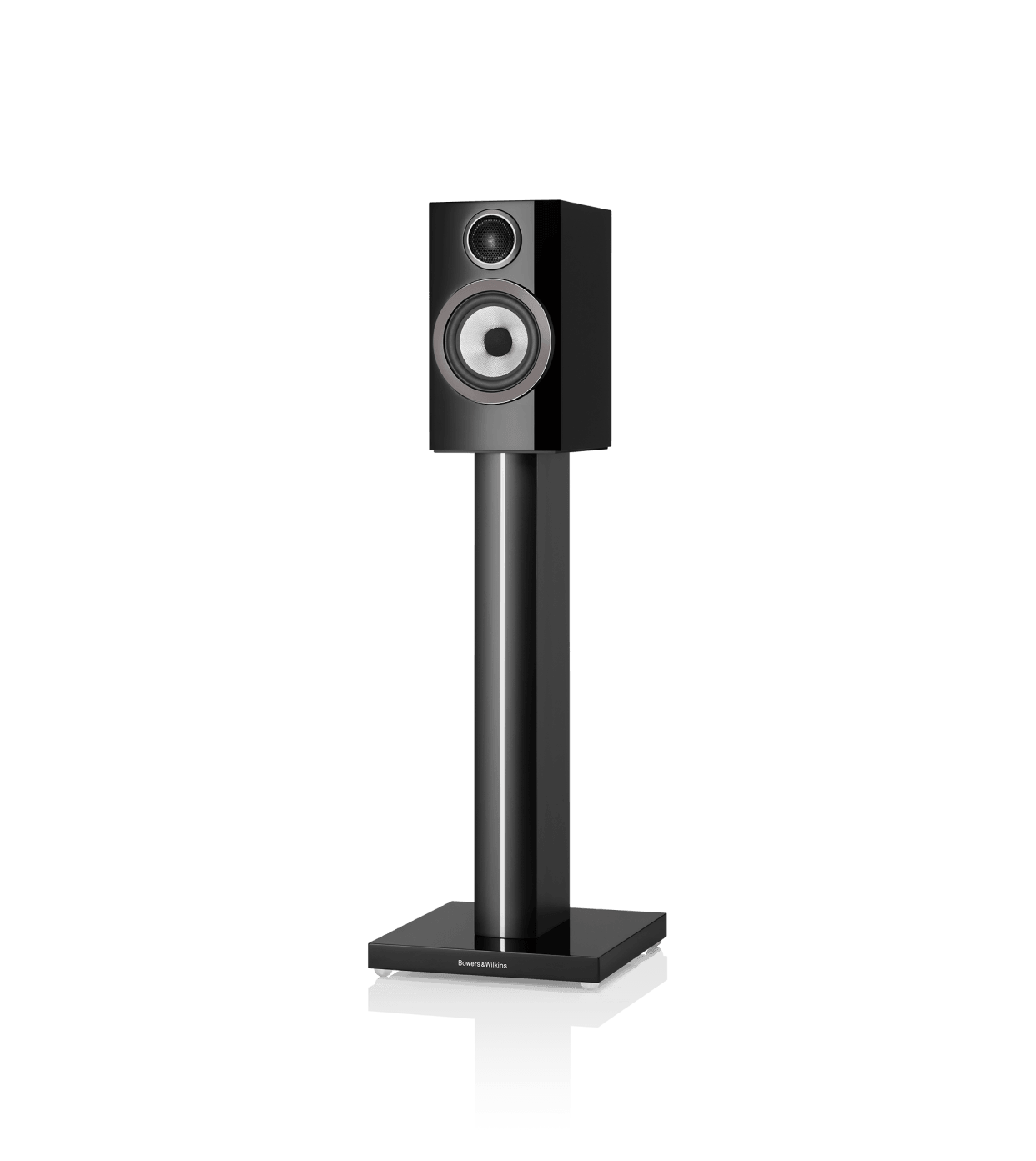

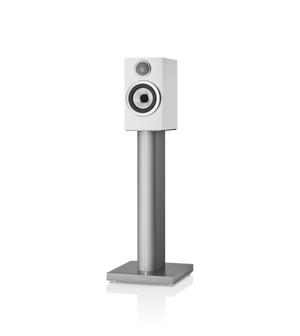

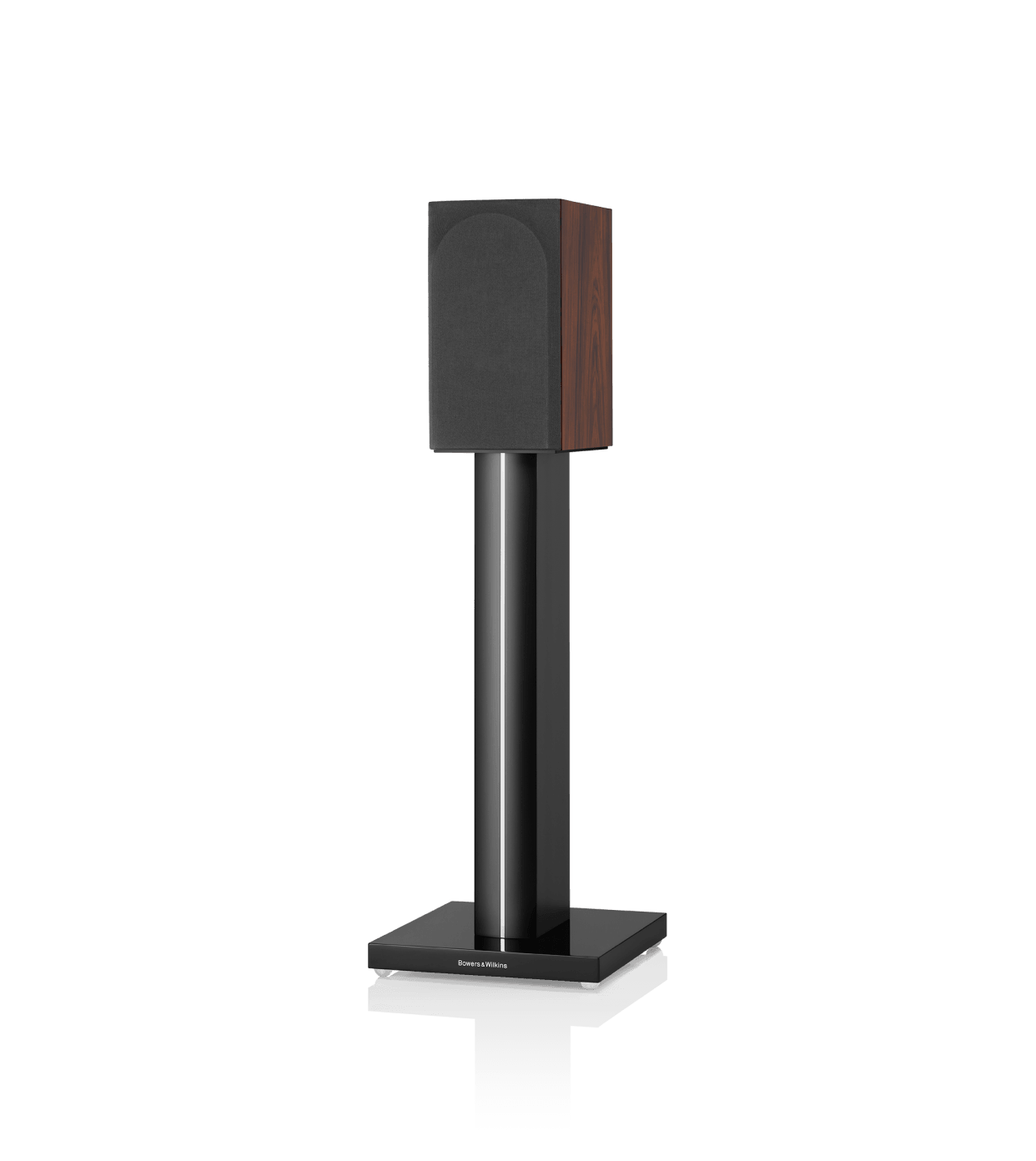

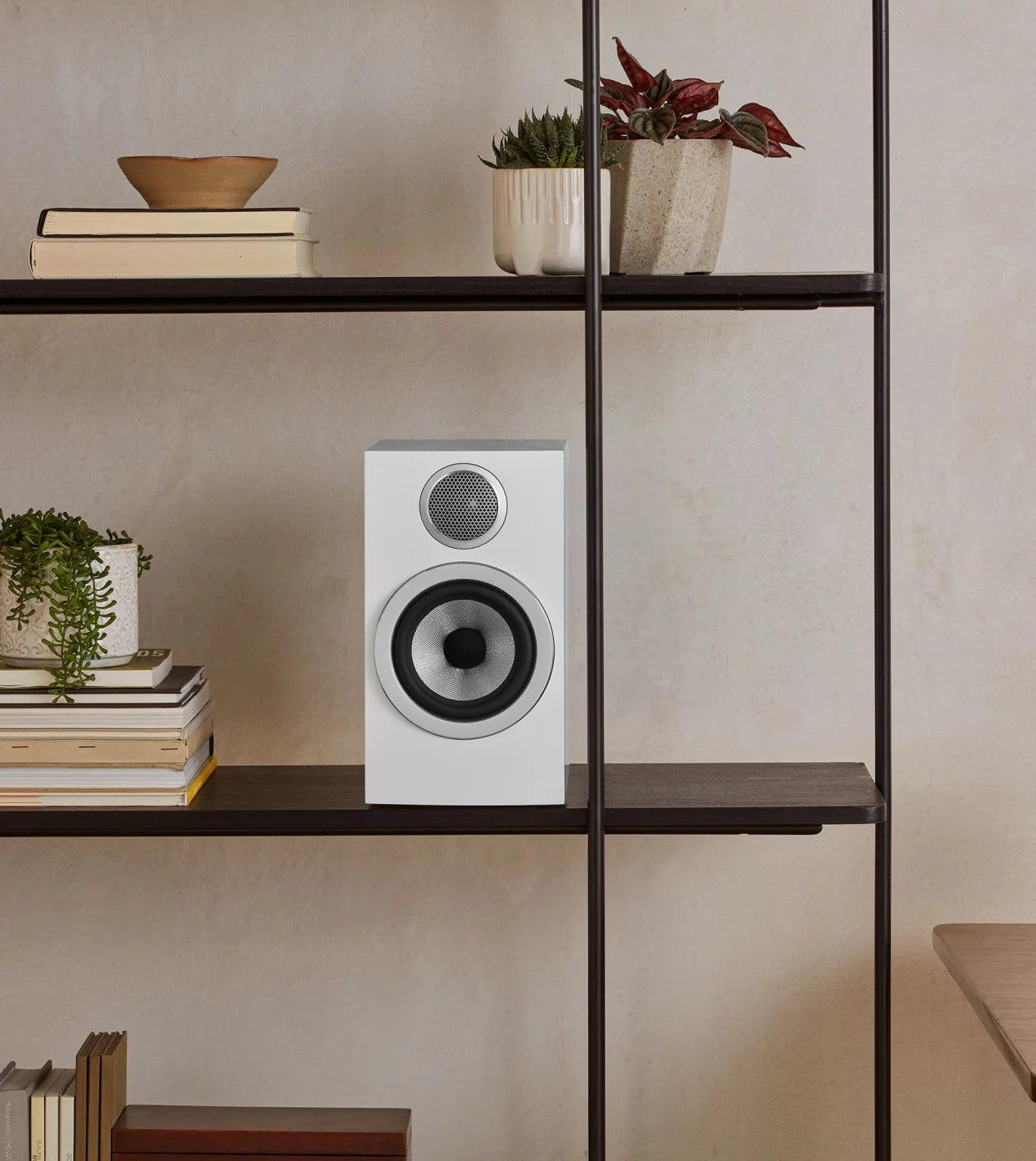

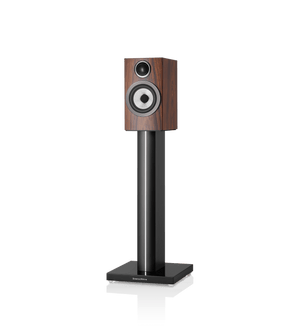

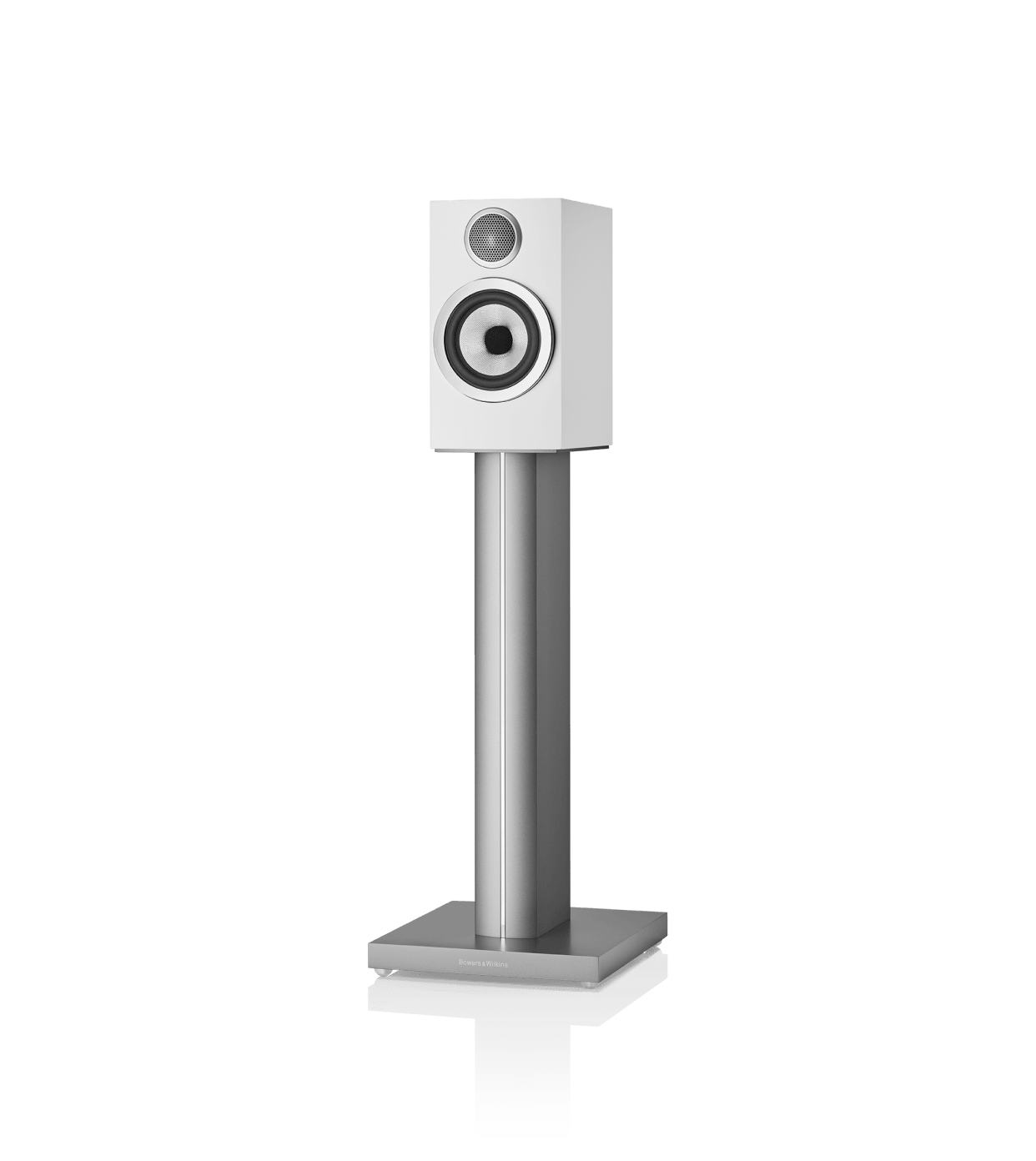

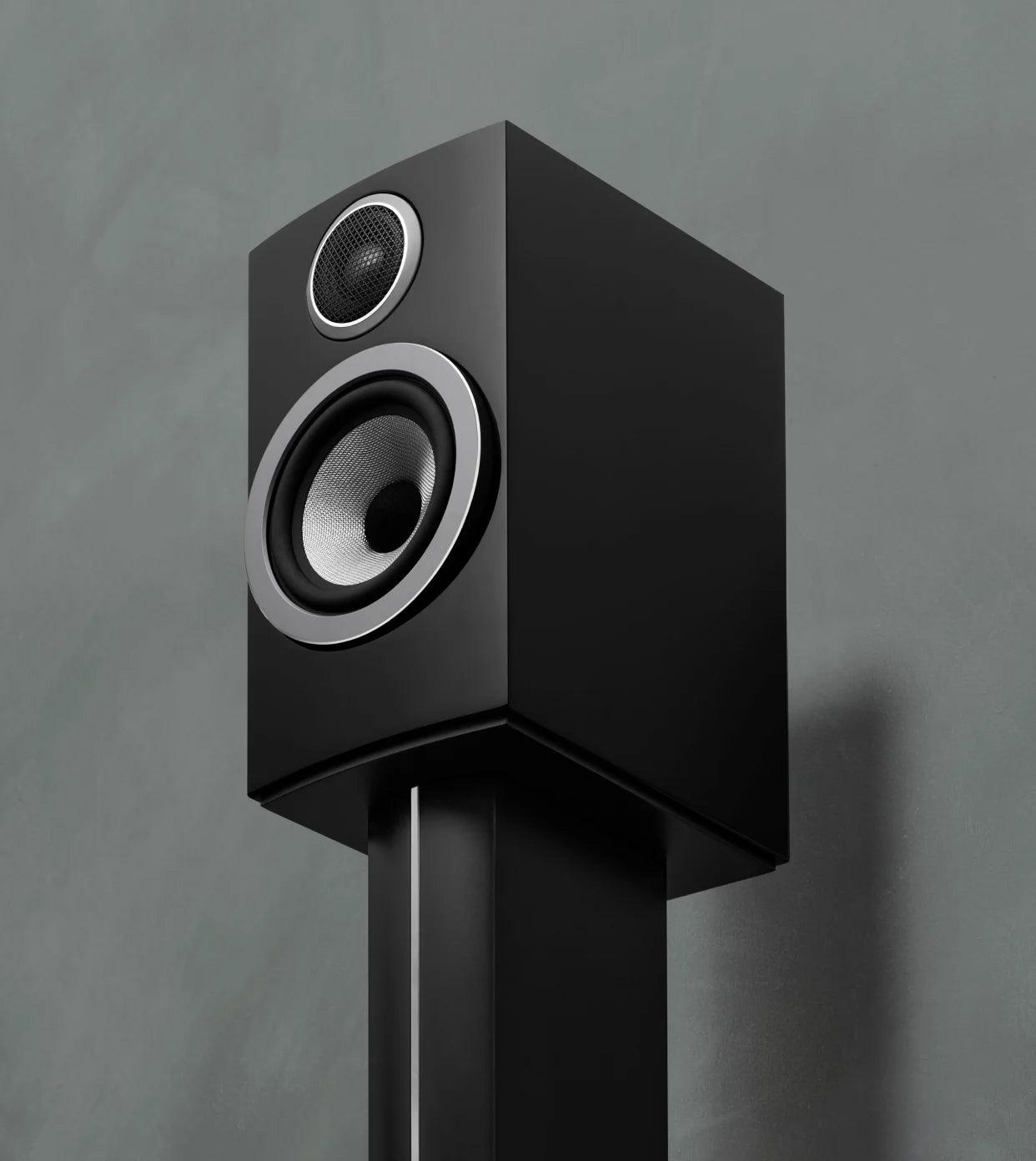

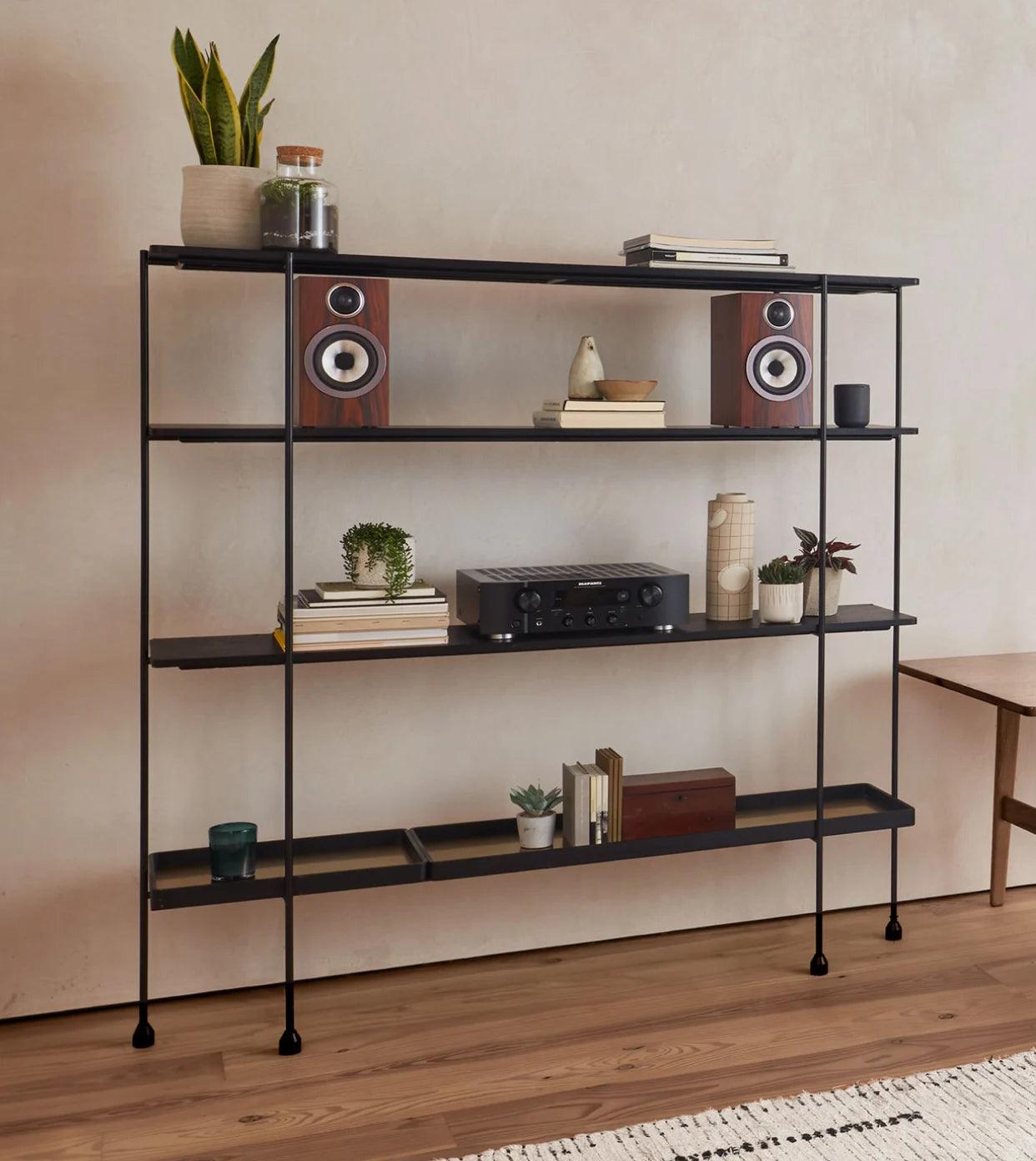

707 S3’s space-friendly design makes it easy to accommodate in smaller spaces, but thanks to its Carbon Dome tweeter, Continuum cone mid-bass, and curved baffle, this outstanding loudspeaker provides proof that often, size can be deceptive. * Stand(s) not included. The 707 S3 is the ideal book-shelf loudspeaker. It’s slimmer than ever, but it can perform above and beyond what its diminutive size may suggest. Carbon Dome tweeters are purpose-built for the 700 Series. Delivering a dramatic improvement on the aluminum double-dome tweeter, they raise the breakup threshold to 47kHz, for pinpoint imaging accuracy and detail. Thanks to its composite construction, the Continuum™ cone avoids the abrupt transitions in behavior that can impair the performance of a conventional drive unit. The result is a more open, neutral performance that delivers voices and instruments with precision and transparency.The 800 Series Diamond inspires the new curved cabinet baffle and individual drive unit pods, and greatly reduces cabinet coloration, ensuring a cleaner, more immersive sound—precision sound for sophisticated listening.
Specifications Size & weight Dimensions- Height: 300mm (11.8 in) cabinet only Width: 165mm (6.5 in) cabinet only Depth: 247mm (9.7 in) cabinet only 284mm (11.2 in) including grille and terminals Net weight- 6.16kg (13.6 lb) Technical details Technical features- Decoupled Carbon Dome tweeter Continuum cone bass/midrange Flowport Max recommended cable impedance- 0.1Ω Description- 2-way vented-box system Drive units- 1x ø25mm (1 in) Decoupled Carbon Dome high-frequency 1x ø130mm (5 in) Continuum cone bass/midrange Frequency range- 45Hz and 33kHz Frequency response- 50Hz-28kHz ±3dB Sensitivity- 84dB spl (2.84Vrms, 1m) Harmonic distortion- 2nd and 3rd harmonics (90dB, 1m on axis) <1% 100Hz-22kHz <0.5% 150Hz-20kHz Nominal impedance- 8Ω (minimum 4.0Ω) Recommended amplifier power- 30W-100W into 8Ω on an unclipped program
