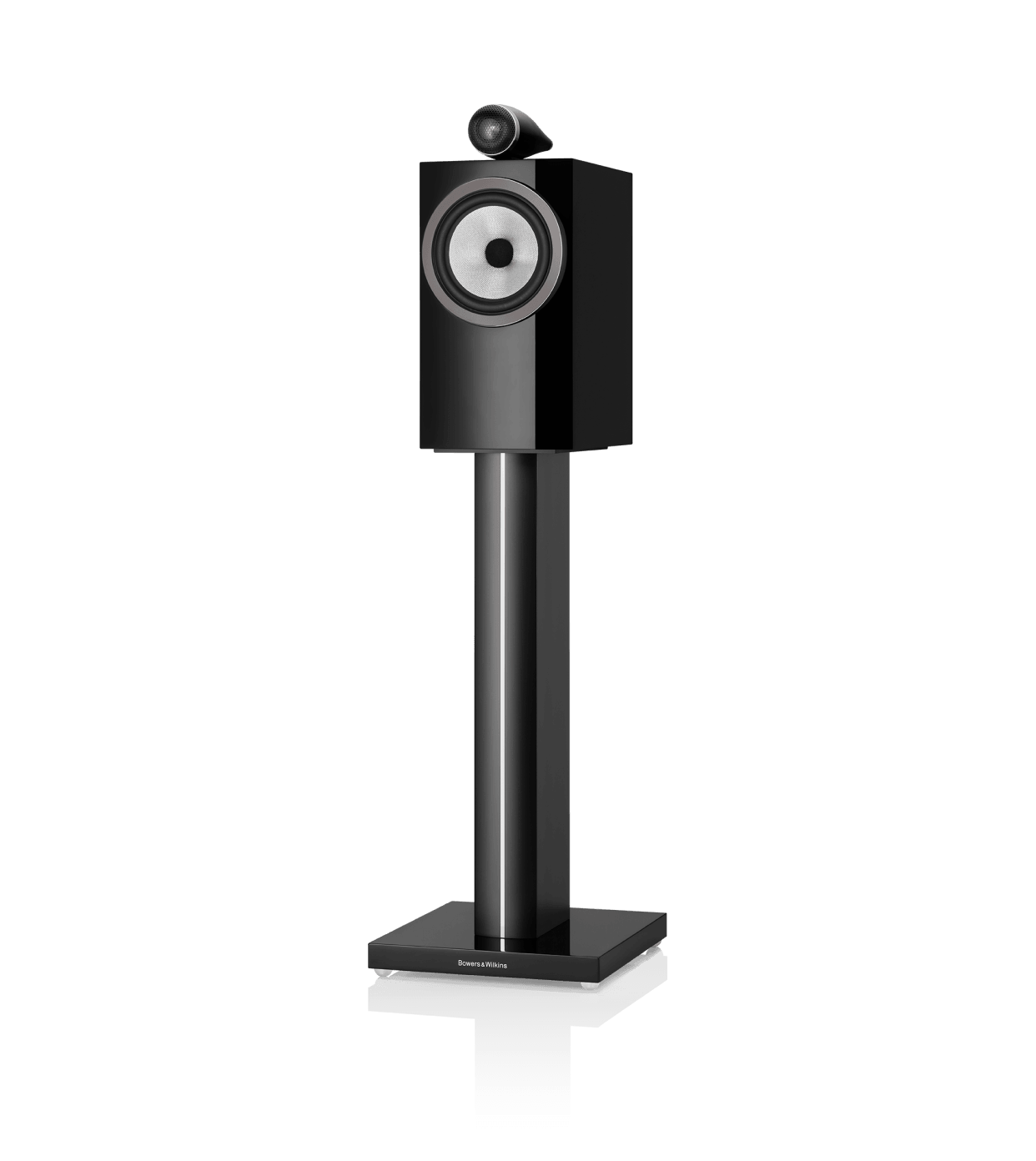

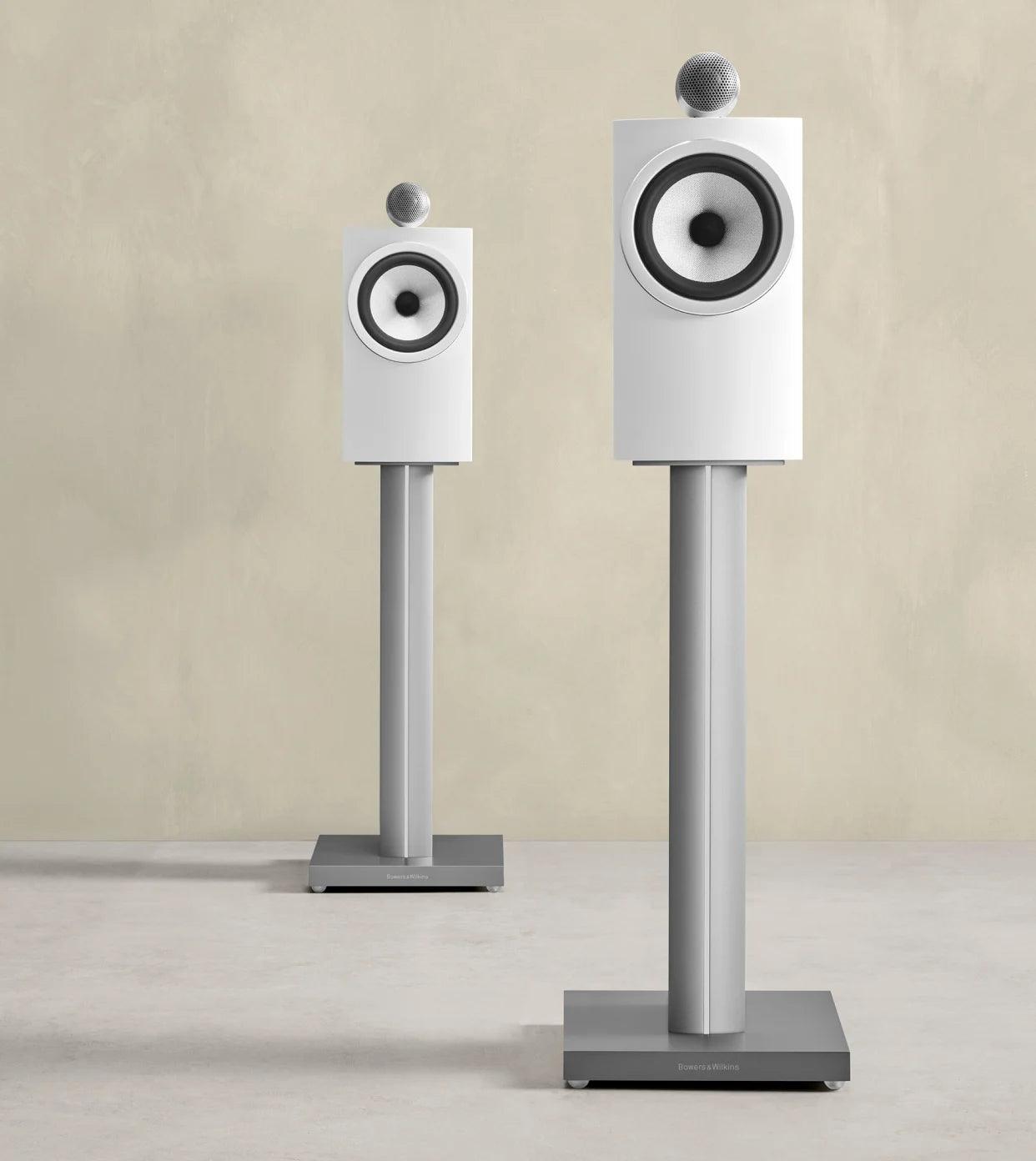

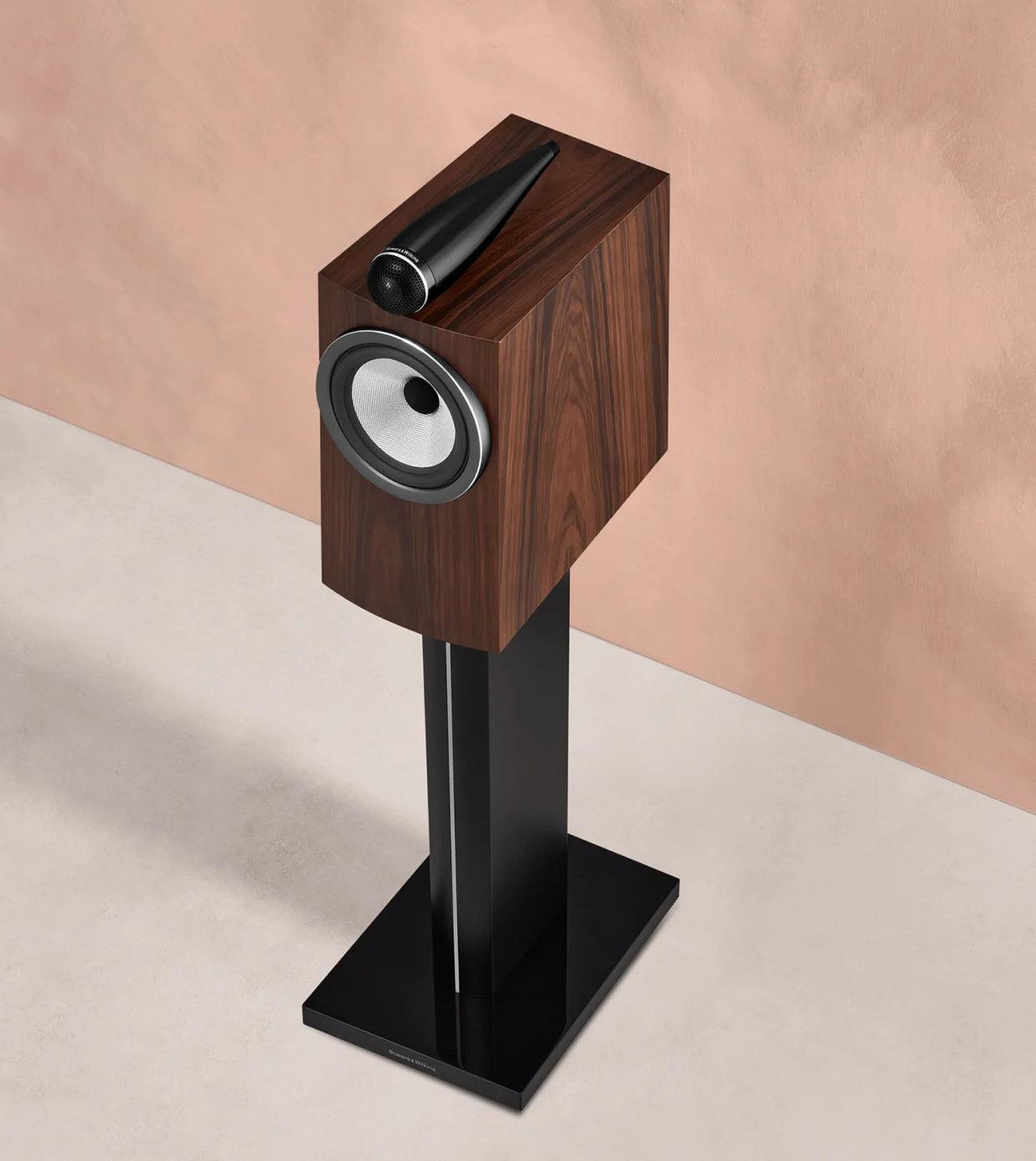

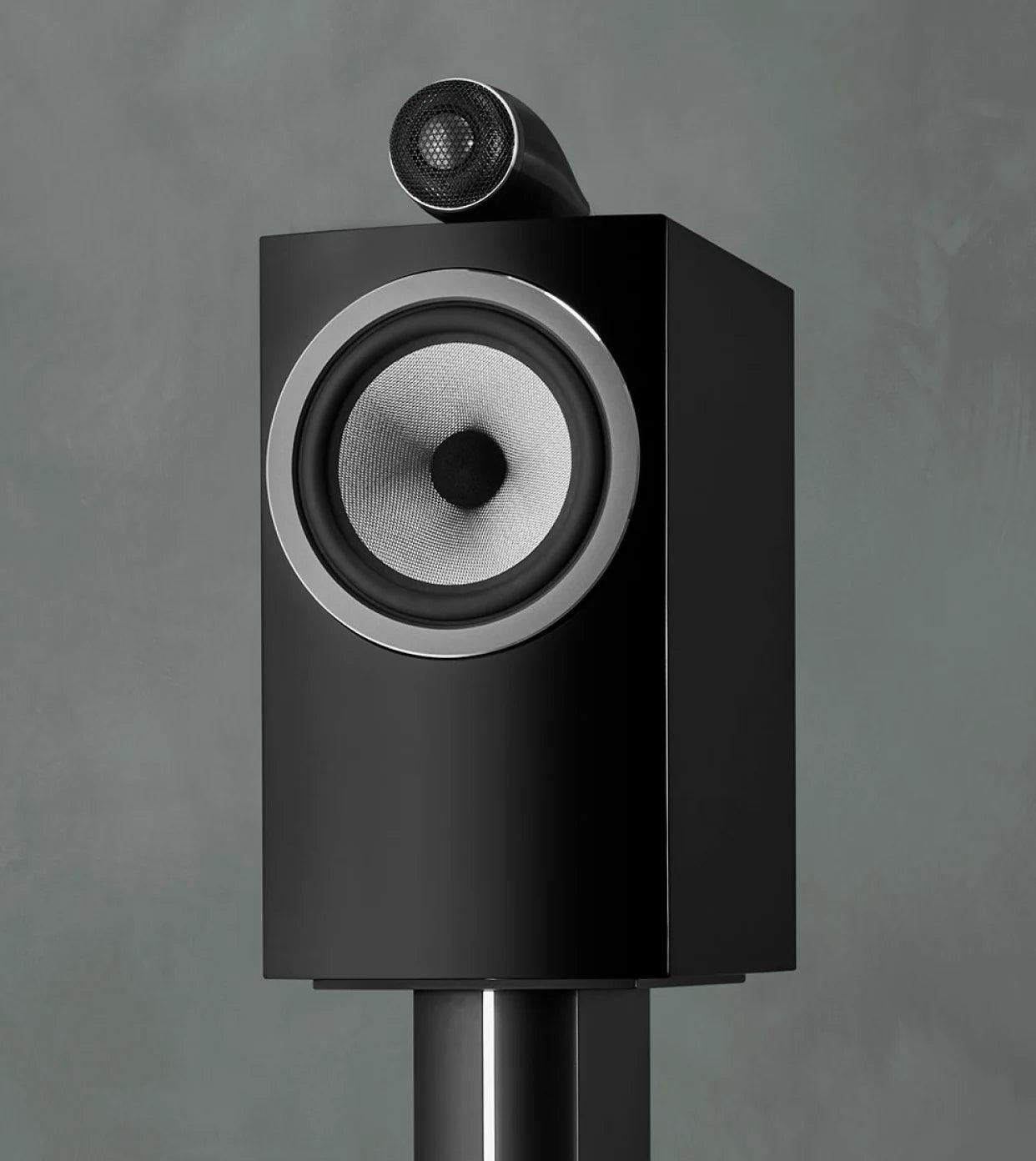

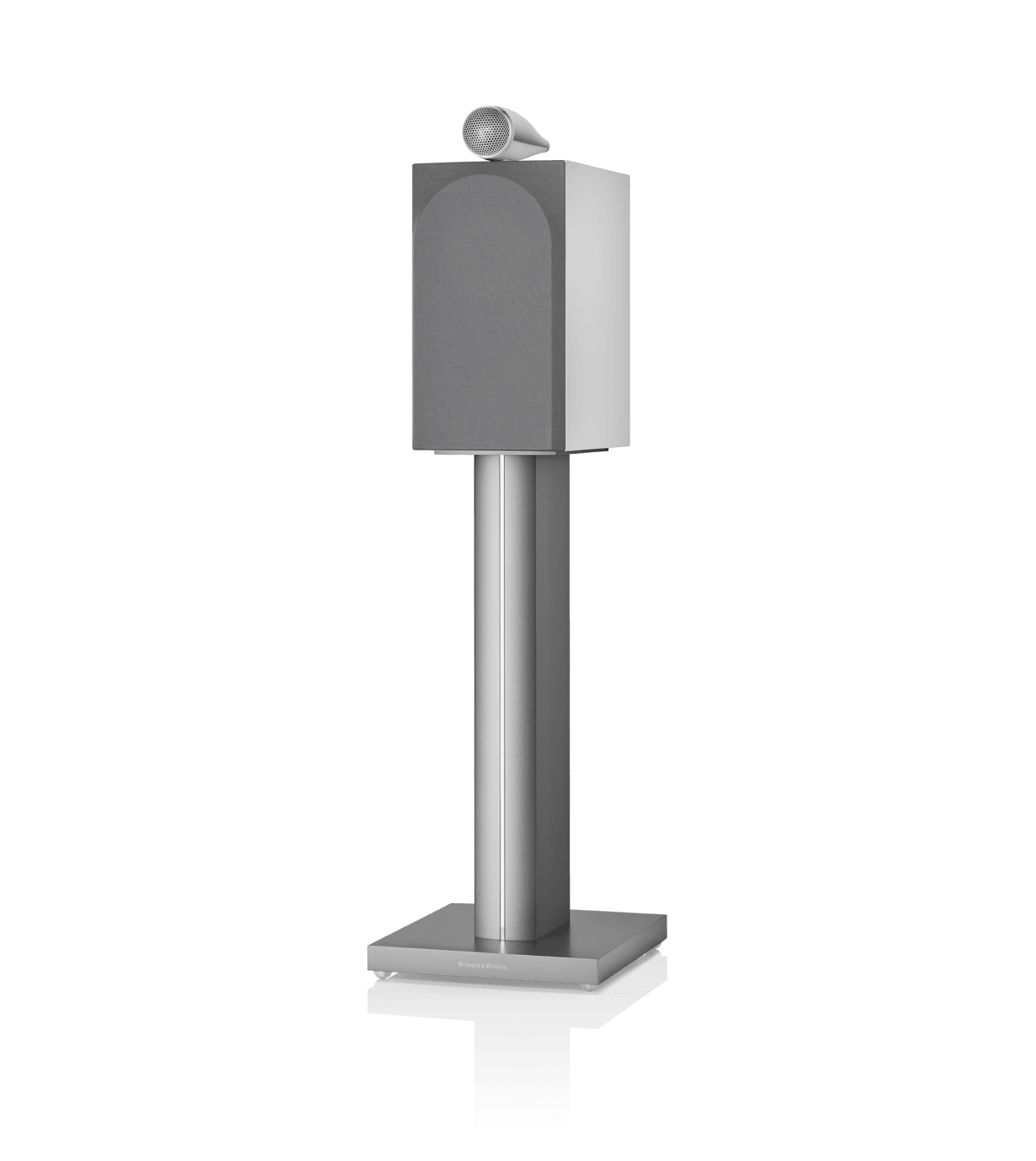

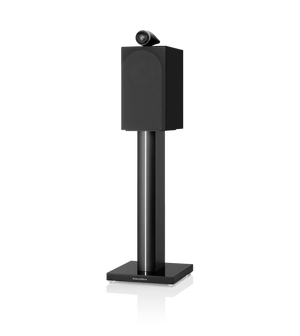

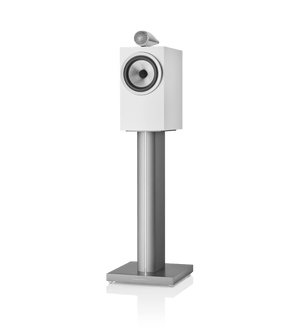

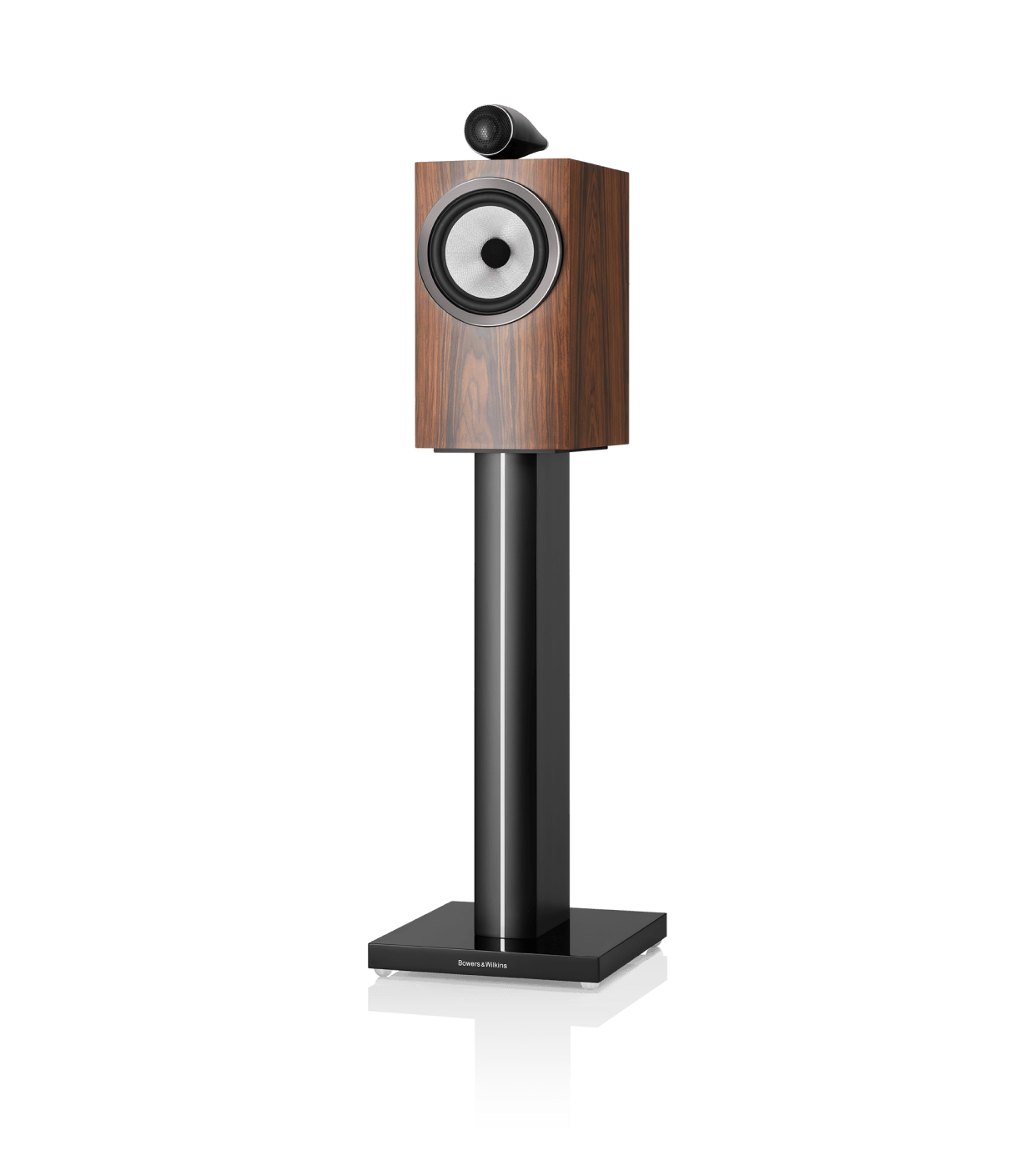

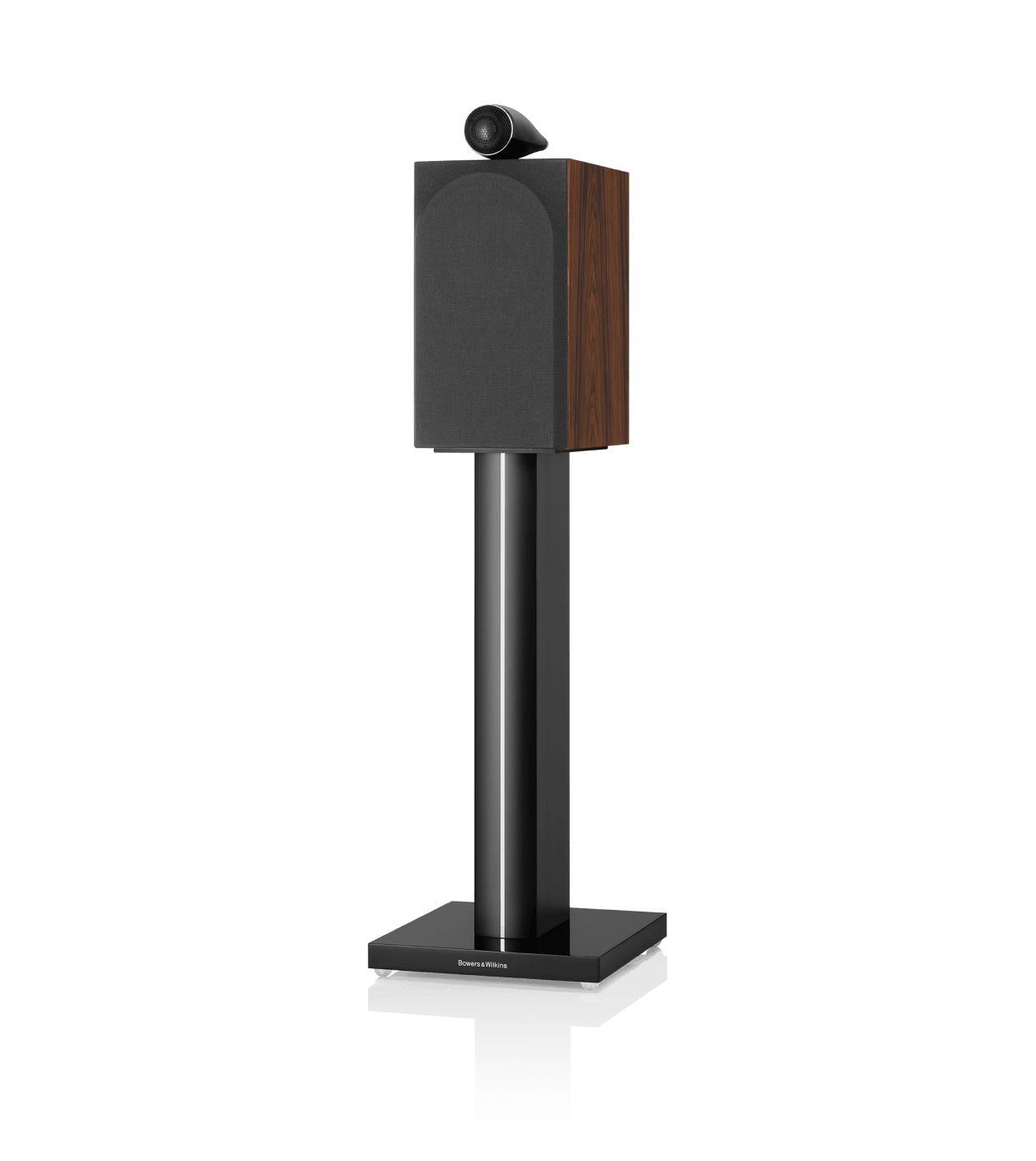

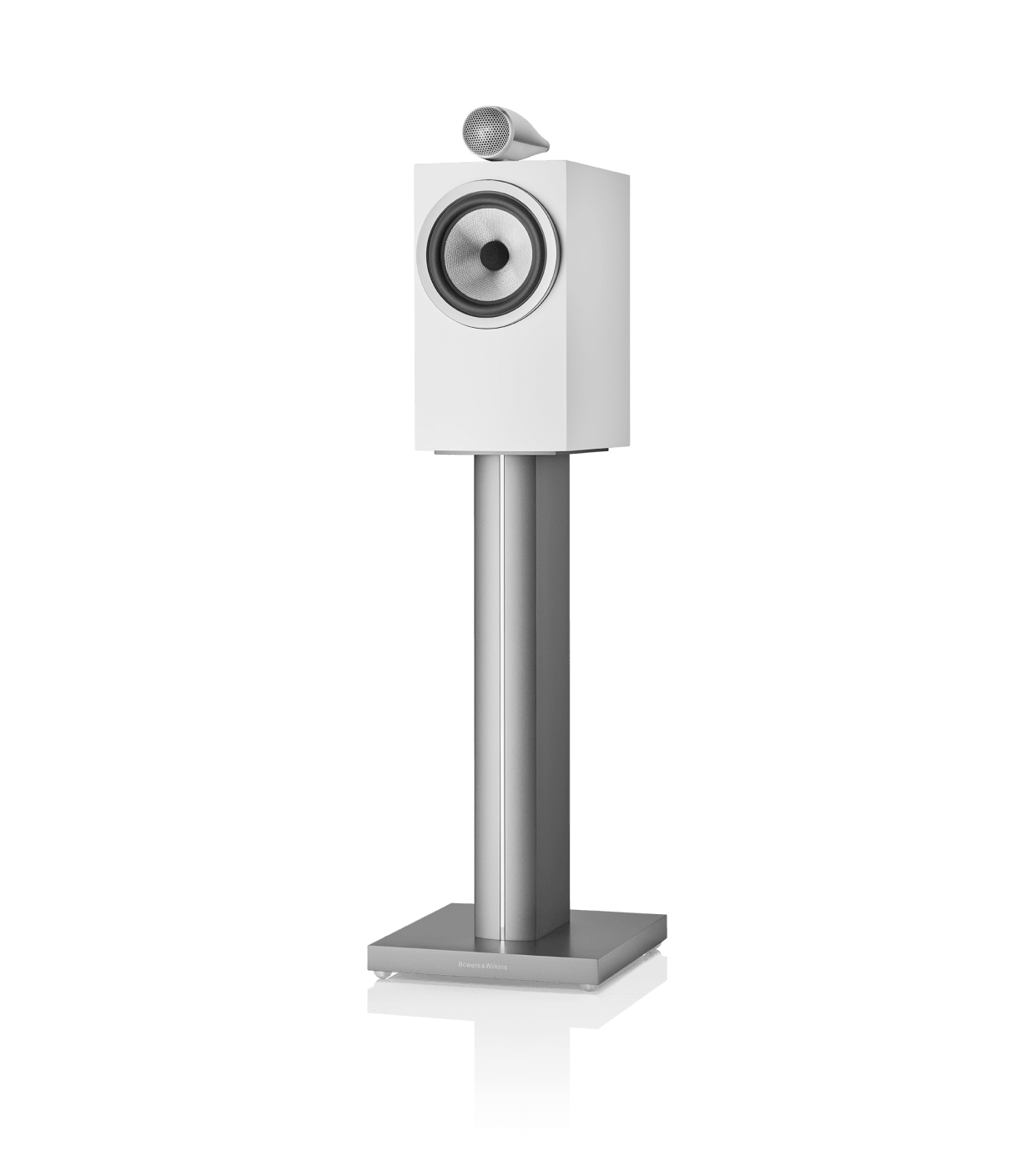

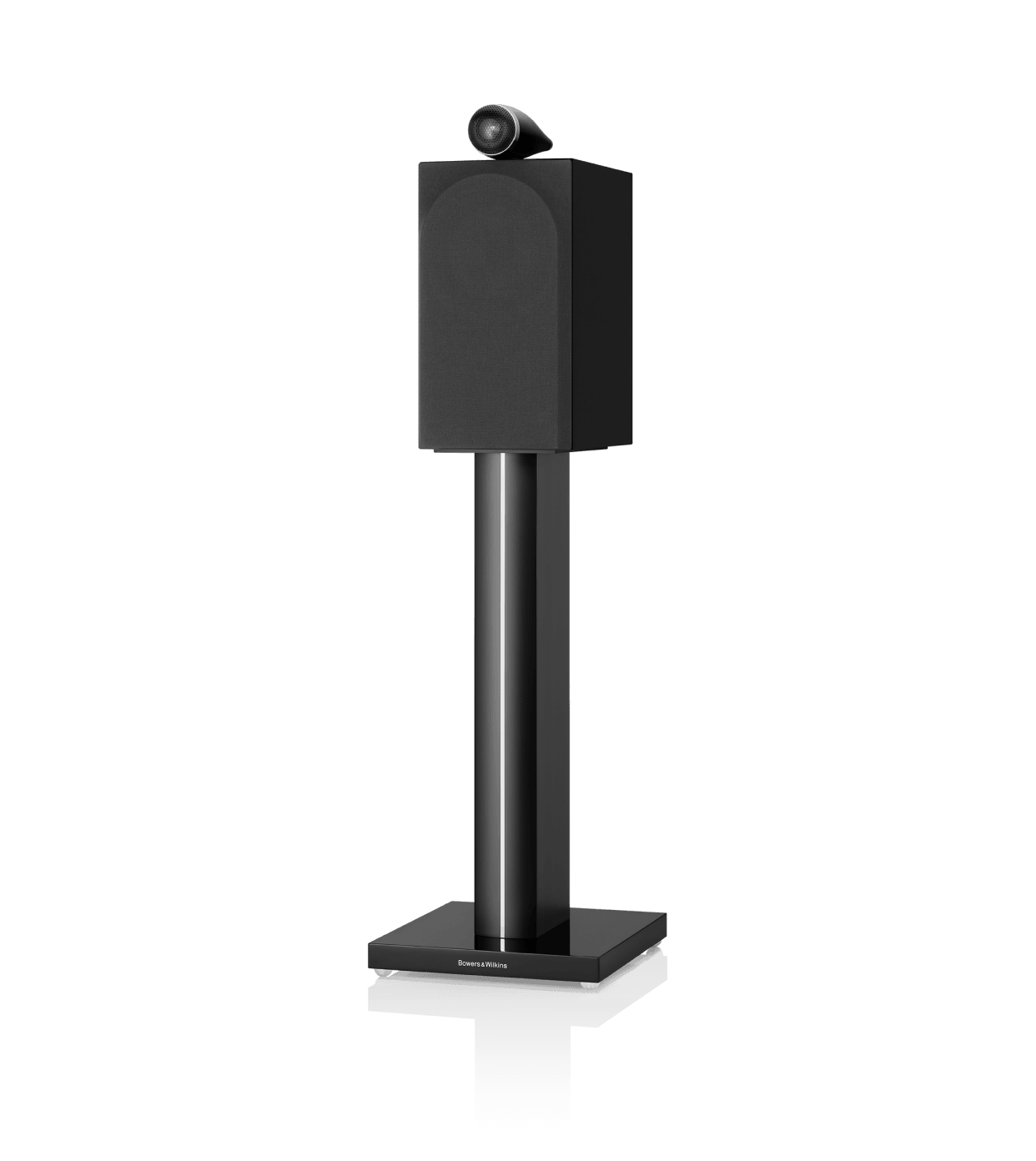

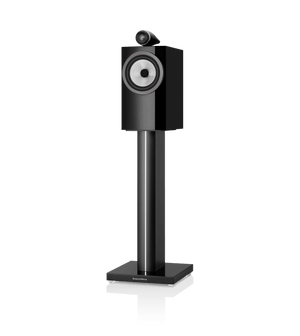

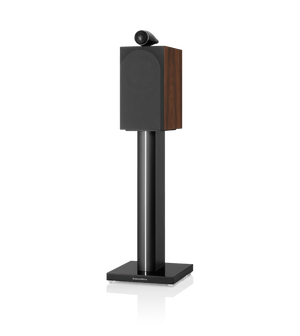

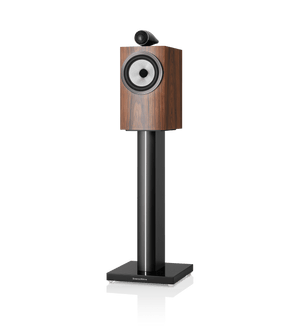

705 S3’s Carbon Dome tweeter is housed in a Solid Body Tweeter-on-Top enclosure evolved from the latest generation of 800 Series Diamond. That joins a new and subtly curved baffle endowed with an all-new ‘pod’ housing for its Continuum Cone bass/midrange driver. * Stand(s) not included. This uncompromising two-way speaker reveals subtle nuances in music that others miss. Its high-performance features include a solid body Tweeter-on-Top design borrowed from the 800 Series Diamond. The 700 Series features the latest generation of our iconic Solid Body Tweeter-on-Top housing. Its new, more elongated form incorporates a longer tube-loading system to produce an even more free and open sound with high frequencies. The carefully decoupled housing is milled from a single solid block of aluminum to better resist resonance. Carbon Dome tweeters are purpose-built for the 700 Series. Delivering a dramatic improvement on the aluminum double-dome tweeter, they raise the breakup threshold to 47kHz, for pinpoint imaging accuracy and detail. Thanks to its composite construction, the Continuum™ cone avoids the abrupt transitions in behavior that can impair the performance of a conventional drive unit. The result is a more open, neutral performance that delivers voices and instruments with precision and transparency. Precision sound for sophisticated listening.
Specifications Size & weight Dimensions- Height: 345mm (13.6 in) cabinet only 413mm (16.3 in) including tweeter Width: 192mm (7.6 in) cabinet only Depth: 297mm (11.7 in) cabinet only 337mm (13.3 in) including grille and terminals Net weight- 9.58kg (21.1 lb) Technical details Technical features- Decoupled Carbon Dome tweeter Solid Body Tweeter-on-Top Continuum cone bass/midrange Flowport Max recommended cable impedance- 0.1Ω Description- 2-way vented-box system Drive units- 1x ø25mm (1 in) Decoupled Carbon Dome high-frequency 1x ø165mm (6.5 in) Continuum cone bass/midrange Frequency range- 45Hz and 33kHz Frequency response- 50Hz-28kHz ±3dB Sensitivity- 88dB spl (2.83Vrms, 1m) Harmonic distortion- 2nd and 3rd harmonics (90dB, 1m on axis) <1% 100 Hz-22kHz <0.5% 150Hz- 20kHz Nominal impedance- 8Ω (minimum 3.7Ω) Recommended amplifier power- 30W-120W into 8 on unclipped program
