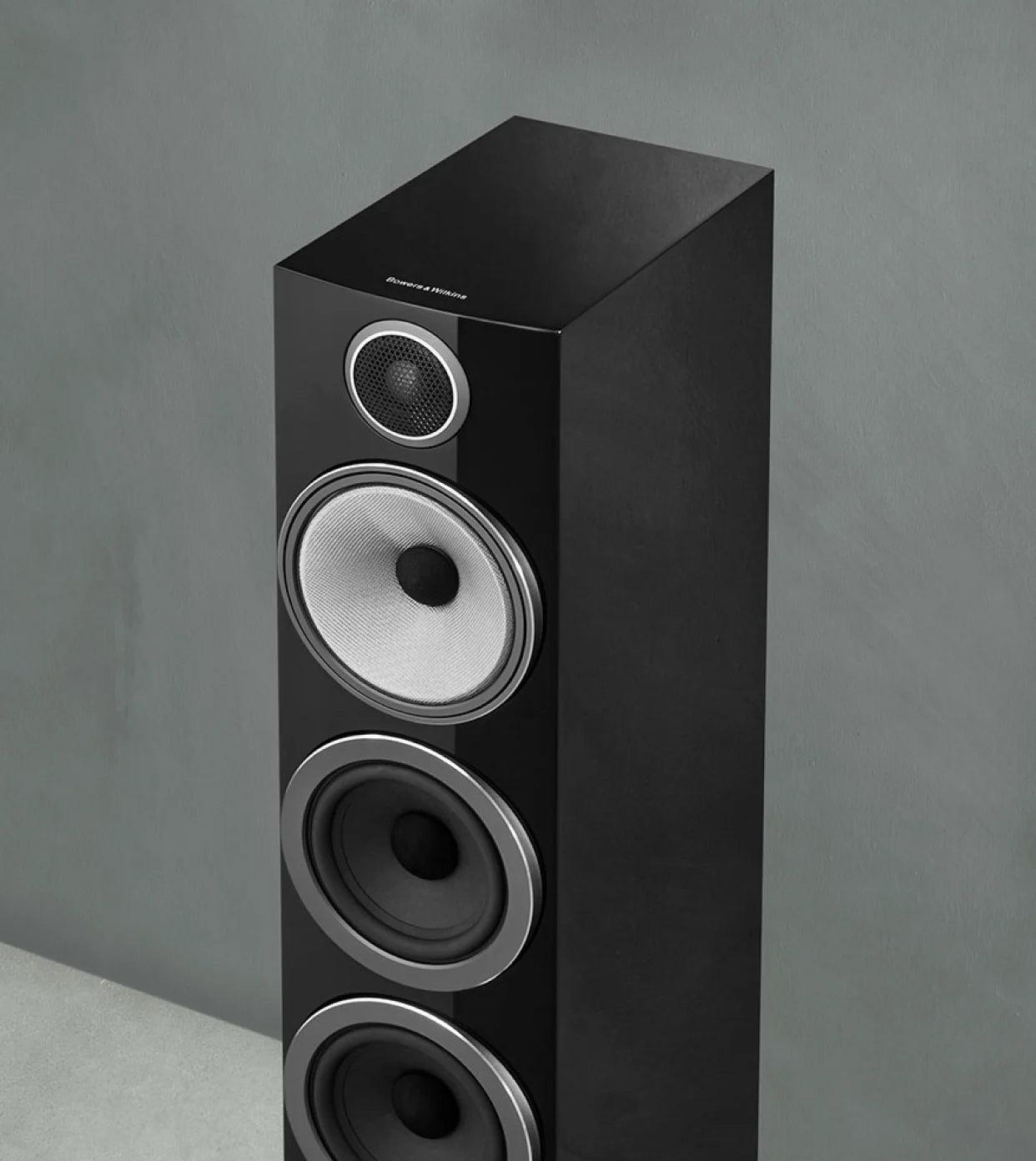

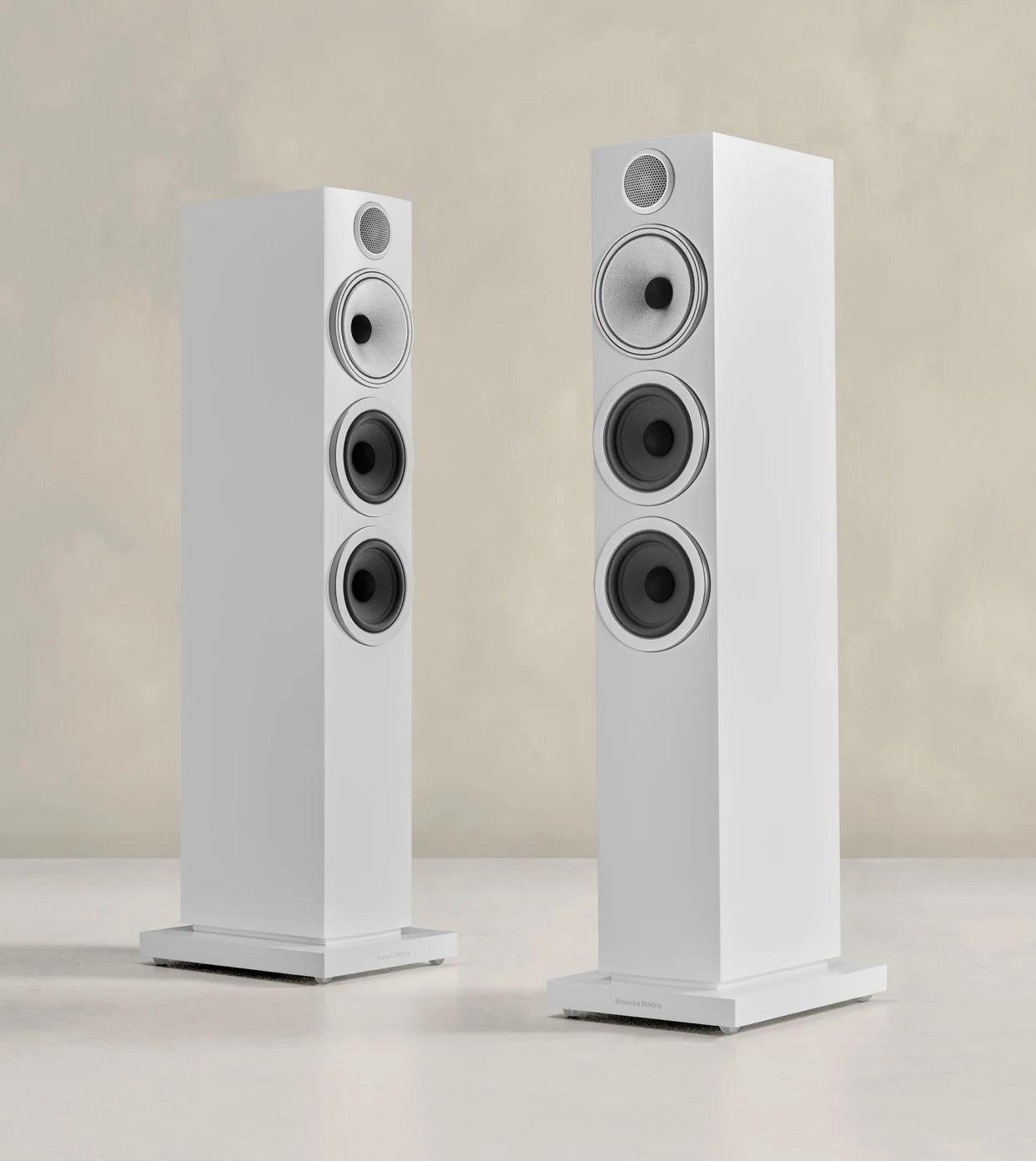

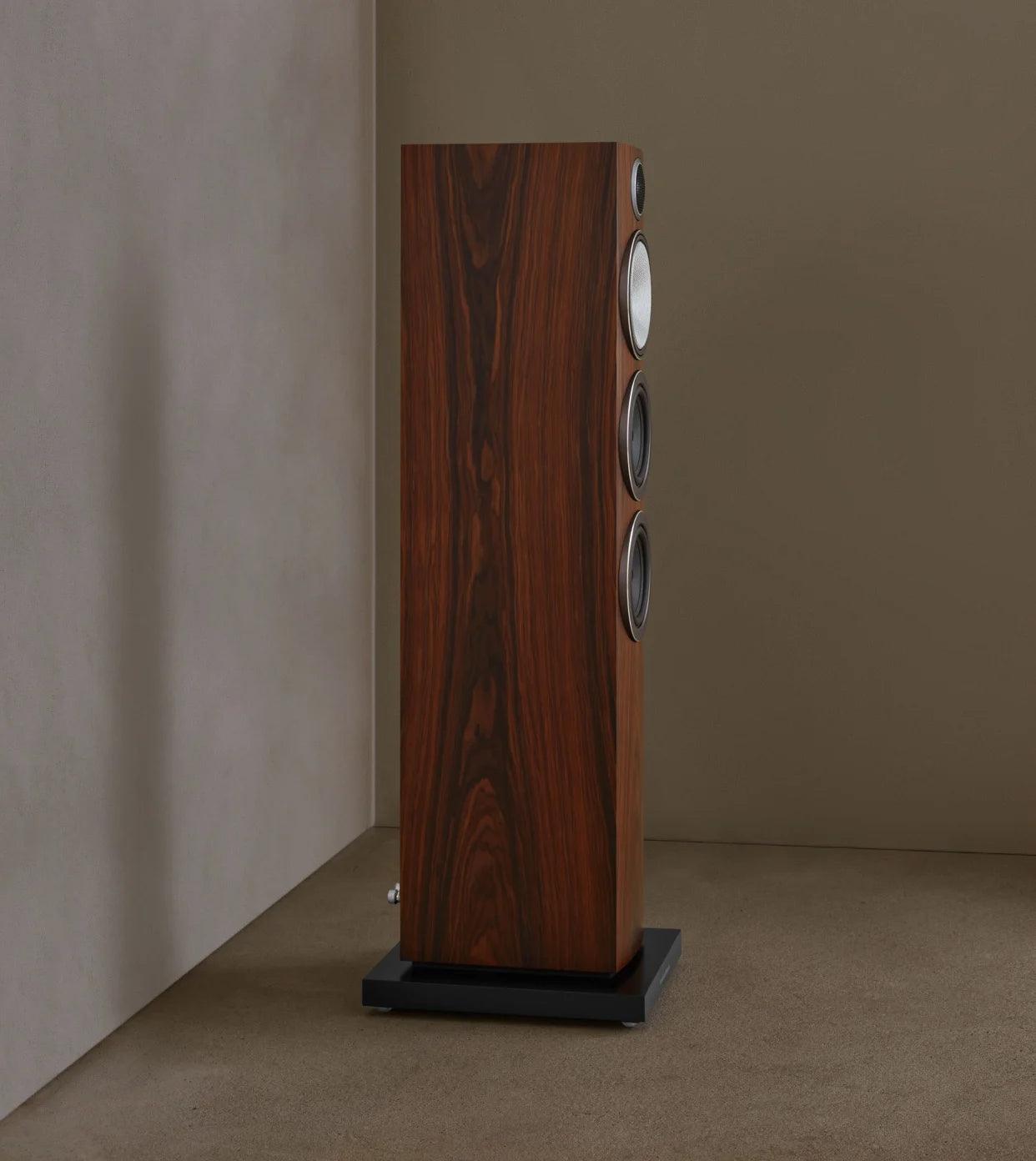

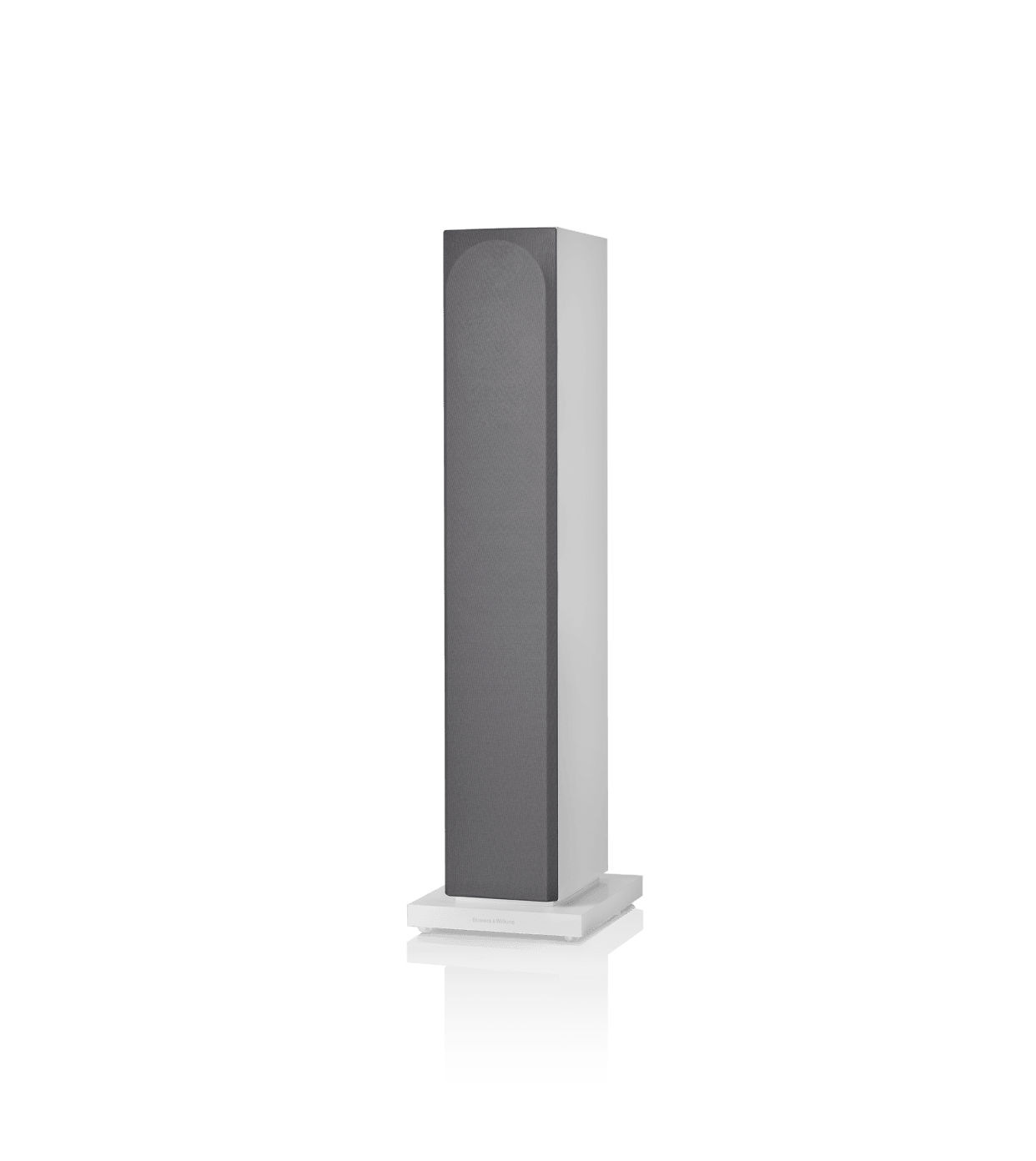

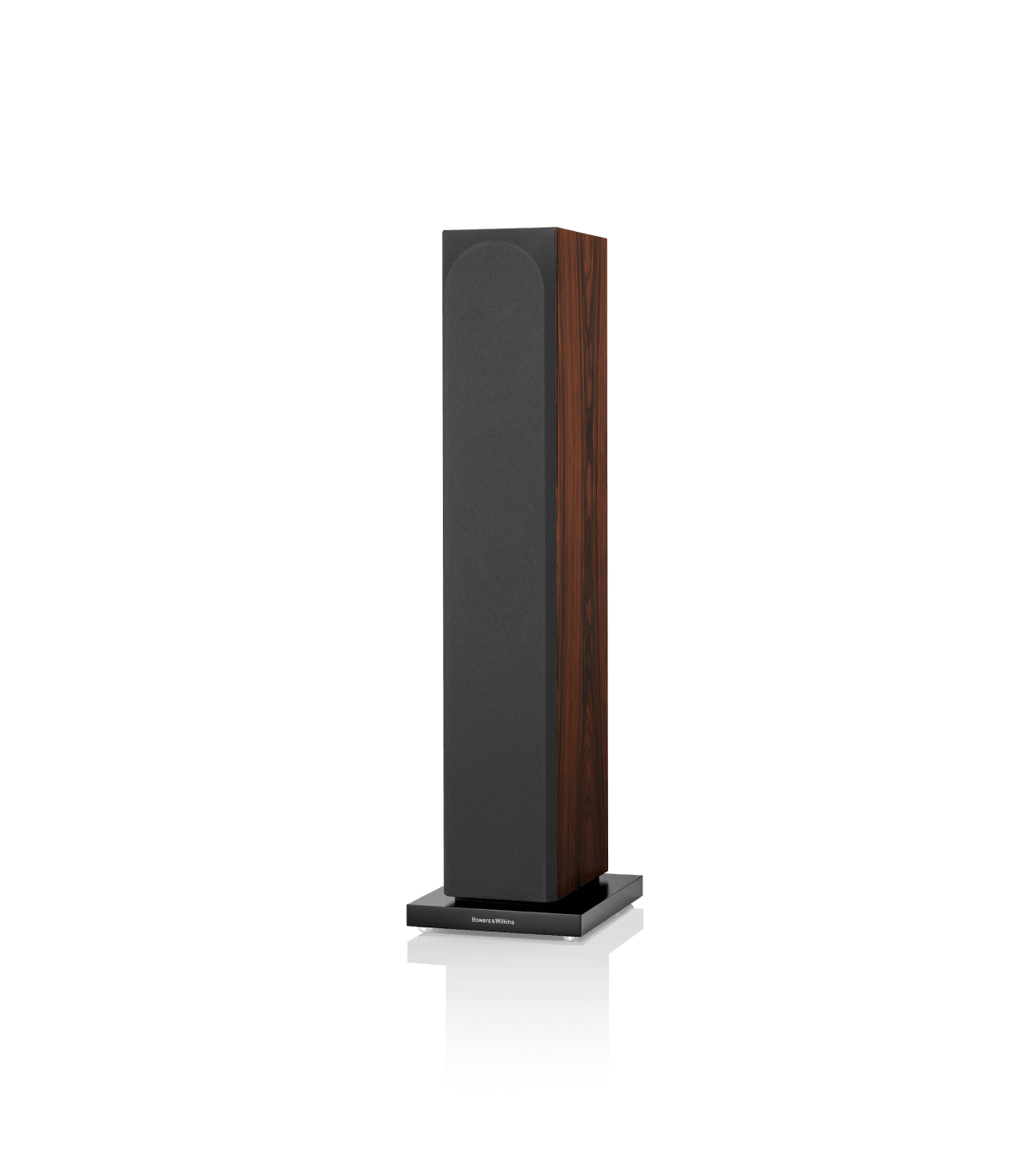

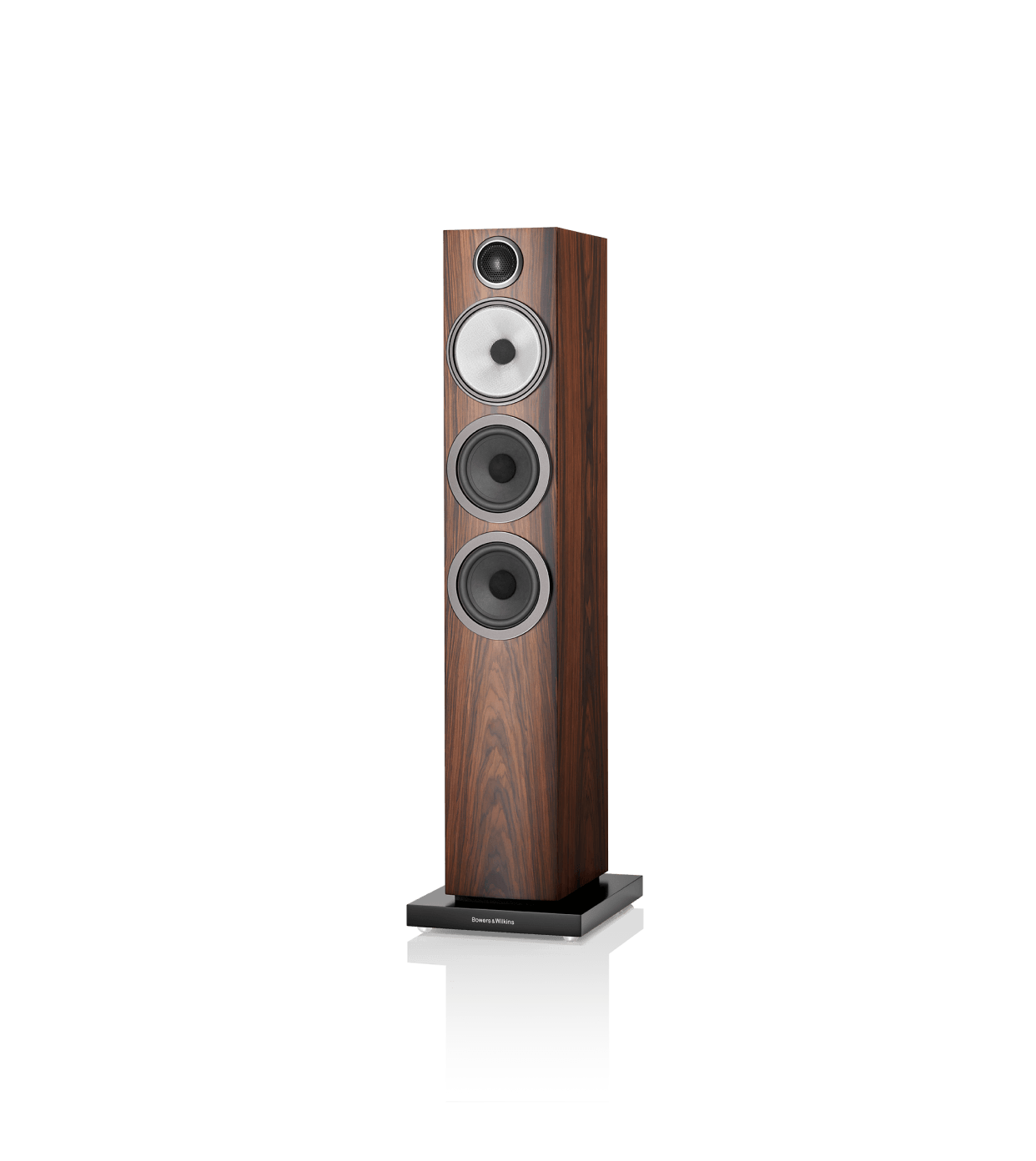

Bowers & Wilkins 704 S3

Thanks to its composite construction, the Continuum™ cone avoids the abrupt transitions in behavior that can impair the performance of a conventional drive unit. The result is a more open, neutral performance that delivers voices and instruments with precision and transparency. Every three-way loudspeaker in the new 700 Series has a dedicated midrange cone using four key Bowers & Wilkins technologies: the Continuum cone, FST™, Biomimetic Suspension, and midrange decoupling, the latter ensuring minimal interference from the operation of the loudspeaker’s bass drivers. Developed using advanced computer modeling techniques, the Aerofoil™ Profile bass cone has a variable thickness, providing stiffness and rigidity where it’s needed most—the result: deep and dynamic bass.

Size & weight-

Dimensions-

Height: 925 mm (36.4 in) cabinet only

964 mm (38.0 in) including tweeter and plinth

Width: 165 mm (6.5 in) cabinet only

252 mm (9.9 in) including plinth

Depth: 263 mm (10.4 in) cabinet only

300 mm (11.8 in) including grille and terminals

321 mm (12.6 in) including plinth

Net weight-  20.53kg

Technical details

Technical features-

Decoupled Carbon Dome tweeter

Continuum cone FST midrange

Decoupled midrange

Aerofoil Profile bass cones

Flowport

Description-

3-way vented-box system

Drive units-

1x ø25mm (1 in) Decoupled Carbon Dome high-frequency

1x ø130mm (5 in) Continuum cone FST midrange

2x ø130mm (5 in) Aerofoil profile bass

Frequency range-

43Hz and 33kHz

Frequency response-

48Hz-28kHz ±3dB

Sensitivity-  88dB spl (2.83Vrms, 1m)

Harmonic distortion-

2nd and 3rd harmonics (90dB, 1m on axis)

<1% 100Hz-22kHz

<0.5% 300Hz-20kHz

Nominal impedance-

8 Ω (minimum 3.1 Ω)

Recommended amplifier power-

30W-150W into 8 Ω on an unclipped program

Max recommended cable impedance-

0.1 Ω
