Enleum AMP 23-R Reference Compact Amplifier

Have questions about this product?

We love answering questions. Talk to an expert now.

FREE SHIPPING

on all e-commerce orders over $100

TECH SUPPORT

Always Included

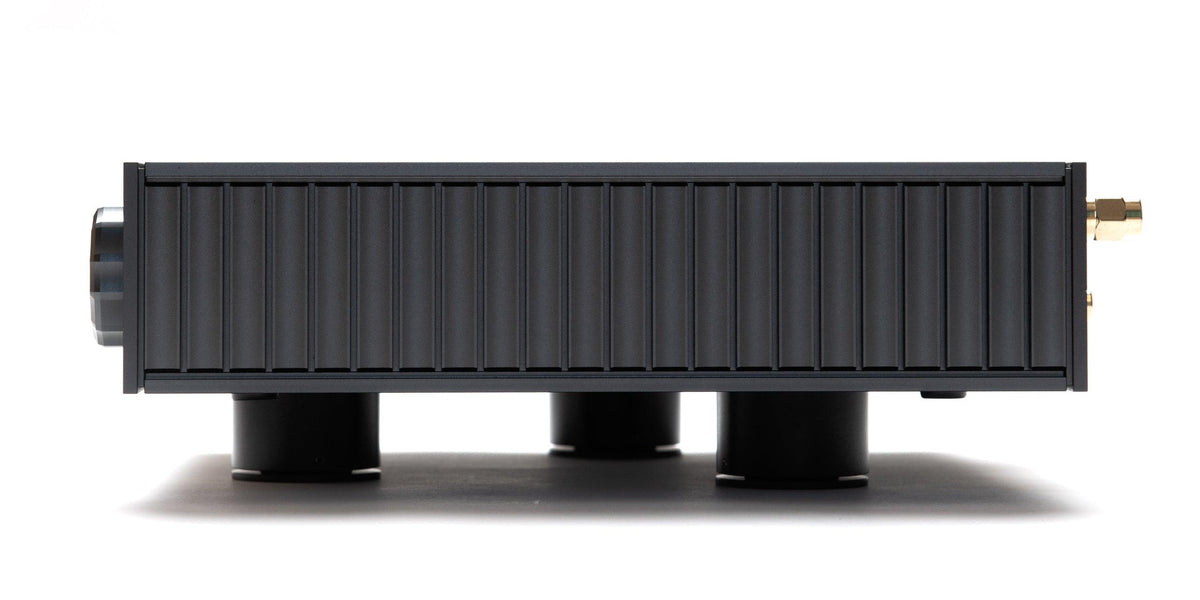

The AMP-23R’s physical size and footprint are identical to the AMP-13R, but with the all-new chassis and thermal heatsink design, we’re launching a product that’s fit for the next generation reference compact amplifier. The unique design was again awarded the Red Dot Award: Product Design 2021. The AMP-23R proudly showcases Enleum’s expertise in technology and design.



ENSENCE : ESSENCE OF ENLEUM

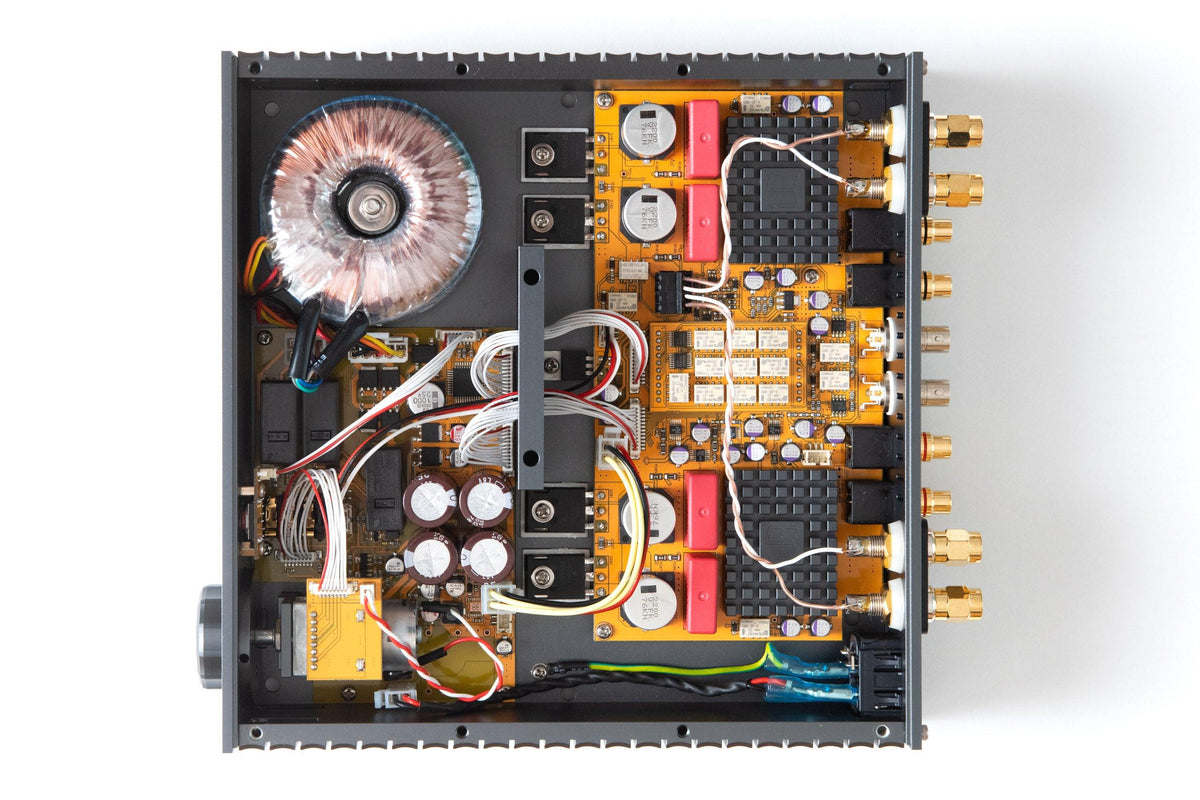

The AMP-23R's newly developed Essence Circuit was born from years of expertise acquired from previous-generation technologies. Now with a completely new and advanced PCB artwork, the circuit employs all discrete transistors with zero negative feedback and features an ultra-fast and ultra-wide frequency response. All these advanced technologies are concentrated into a compact module, called “Essence” which takes its important role at the input of the amplifier. The Essence module then delivers its incoming music signals to output circuits through a precise attenuator that sets the lossless amplification factor, or gain.

SPECIFICATION

MAXIMUM POWER

25 watts (8 Ω, 1 kHz) | 45 watts (4 Ω, 1 kHz) | 4 watts (60 Ω, 1 kHz)

GAIN

22.5 dB max (Speaker, Headphone High) | 7 dB max (Headphone Low)

GAIN CONTROL

MPU Controlled 1,024 Stepped Attenuator

FREQUENCY RESPONSE

10 Hz ~ 500 kHz

INPUT IMPEDANCE

10 kΩ (Voltage) | 10 Ω (ENLINK)

INPUT

2 Voltage (RCA) | 1 ENLINK (BNC)

OUTPUT

5 Way Speaker Binding Post | 1/4″ Headphone Out

USER INTERFACE

One Button & Gain Phase Control | Remote Controller

POWER CONSUMPTION

30 watts (Idle) | 100 watts (Max)

DIMENSIONS

230 mm (W) x 230 mm (D) x 55 mm or 82.5 mm incl. Isolation (H)

WEIGHT

4.0 kg (net) | 4.5 kg (shipping)
