The platter is started and stopped by the front panel Run/Stop momentary push button switch.

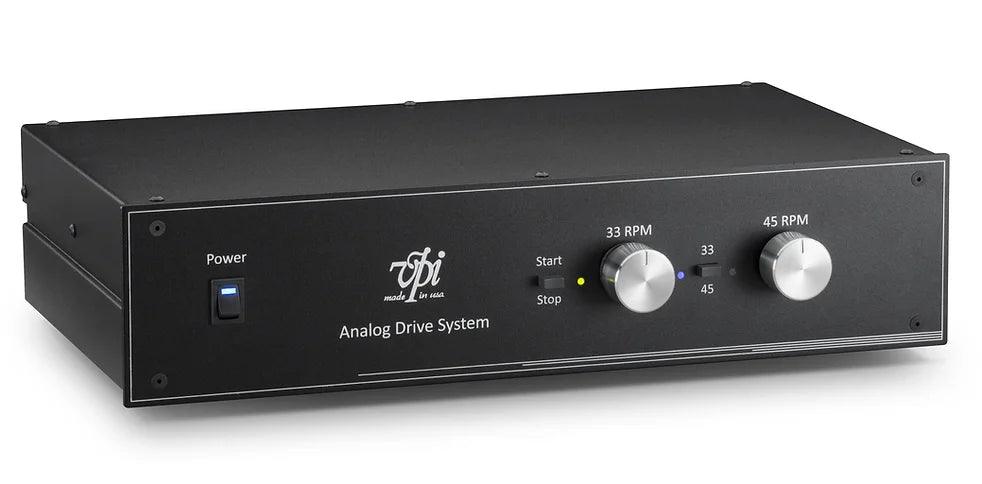

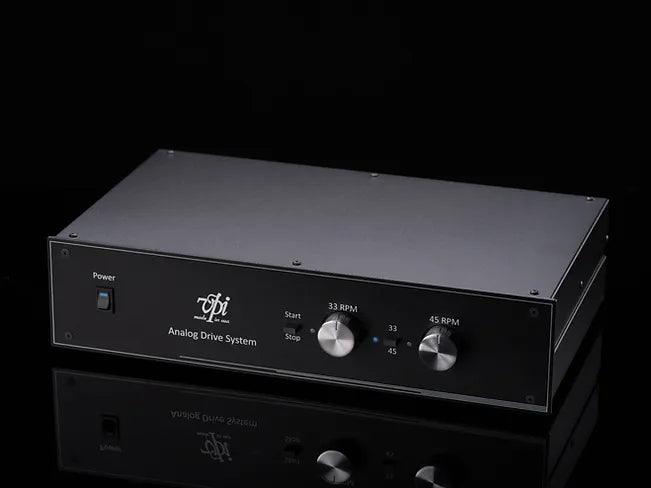

The front panel contains a two-position push button switch for selecting either 33 RPM or 45 RPM operation.
There are separate speed adjustment controls for 33 and 45 RPM.
The controls have a detented center position that is factory calibrated for 60 Hz (33 RPM) and 81 Hz (45 RPM).
The speed is continuously adjustable +/- 3 Hz
Blue LED indicators adjacent to the controls indicate which speed is set at a glance.

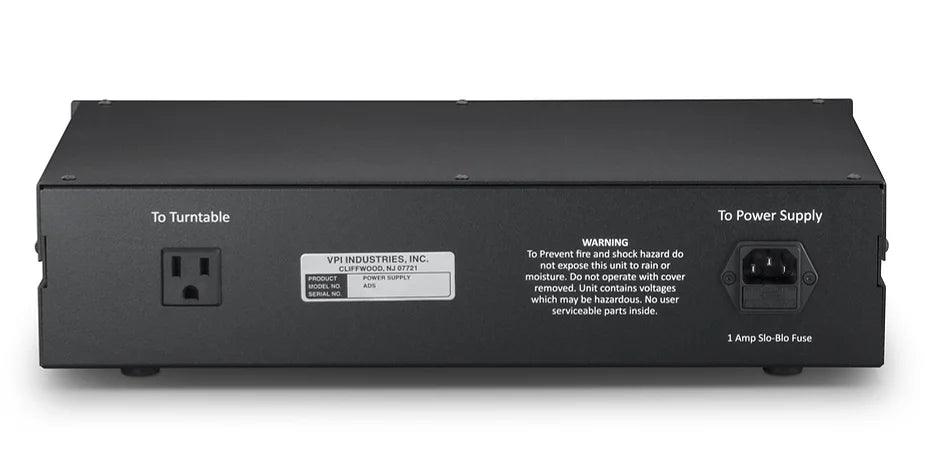

Line Voltage: 115/230 VAC Factory set Line Frequency: 50/60Hz Line Fuse: 1 amp (Slo-Blo) Output voltage: 115/230 VAC Factory set Start Voltage: 120/240 VAC Run Voltage: 90/180 VAC Output Frequency: 50Hz/60Hz Factory Set Output Frequency Range: 60 Hz Center Detent: 60Hz @33 RPM & 81Hz@ 45 RPM 50 Hz Center Detent: 50Hz @33 RPM & 68Hz@ 45 RPM Control Range +/- 3Hz Output Power: 15W Dimensions: 16” X 4” X 12” (W X H X D) Weight: 10lbs
