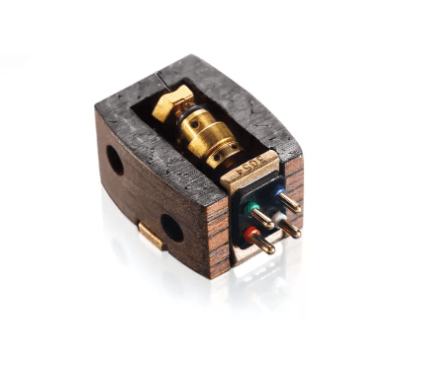

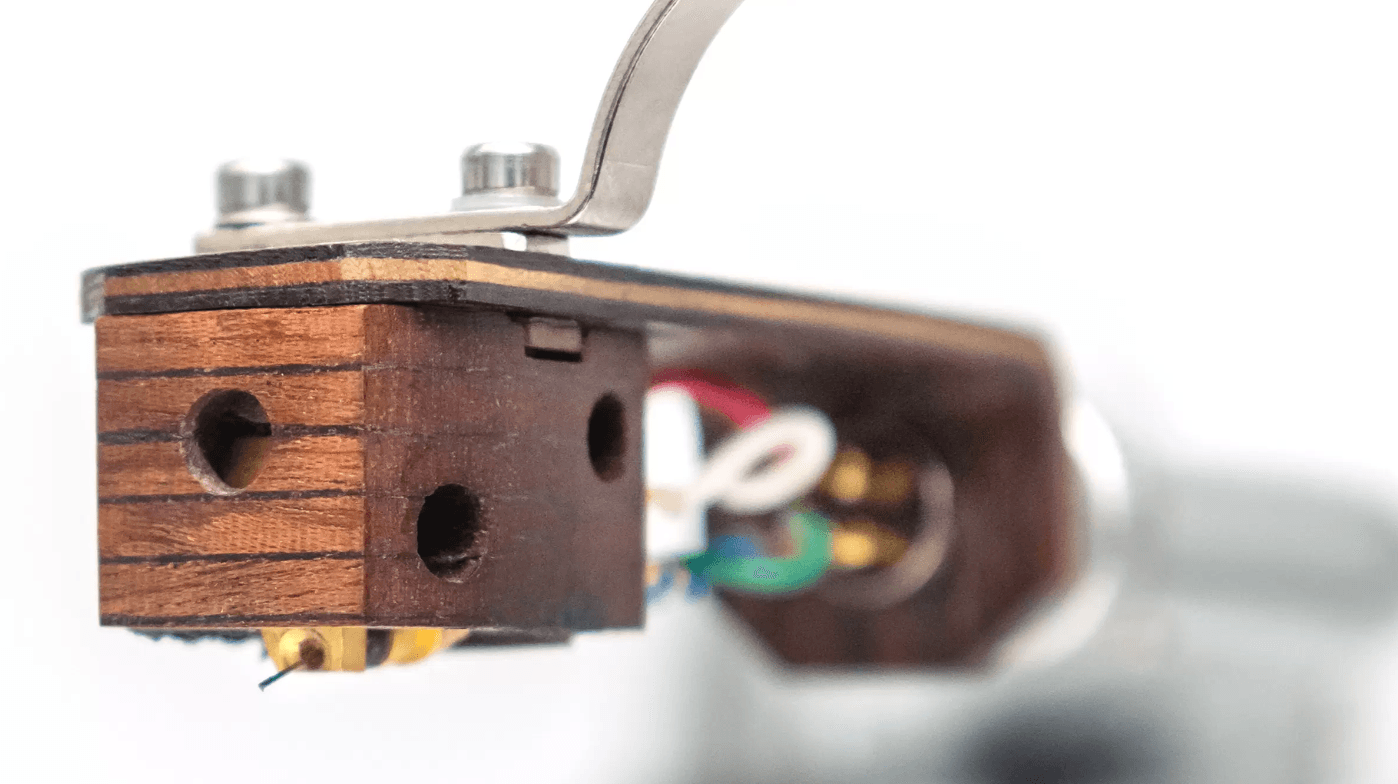

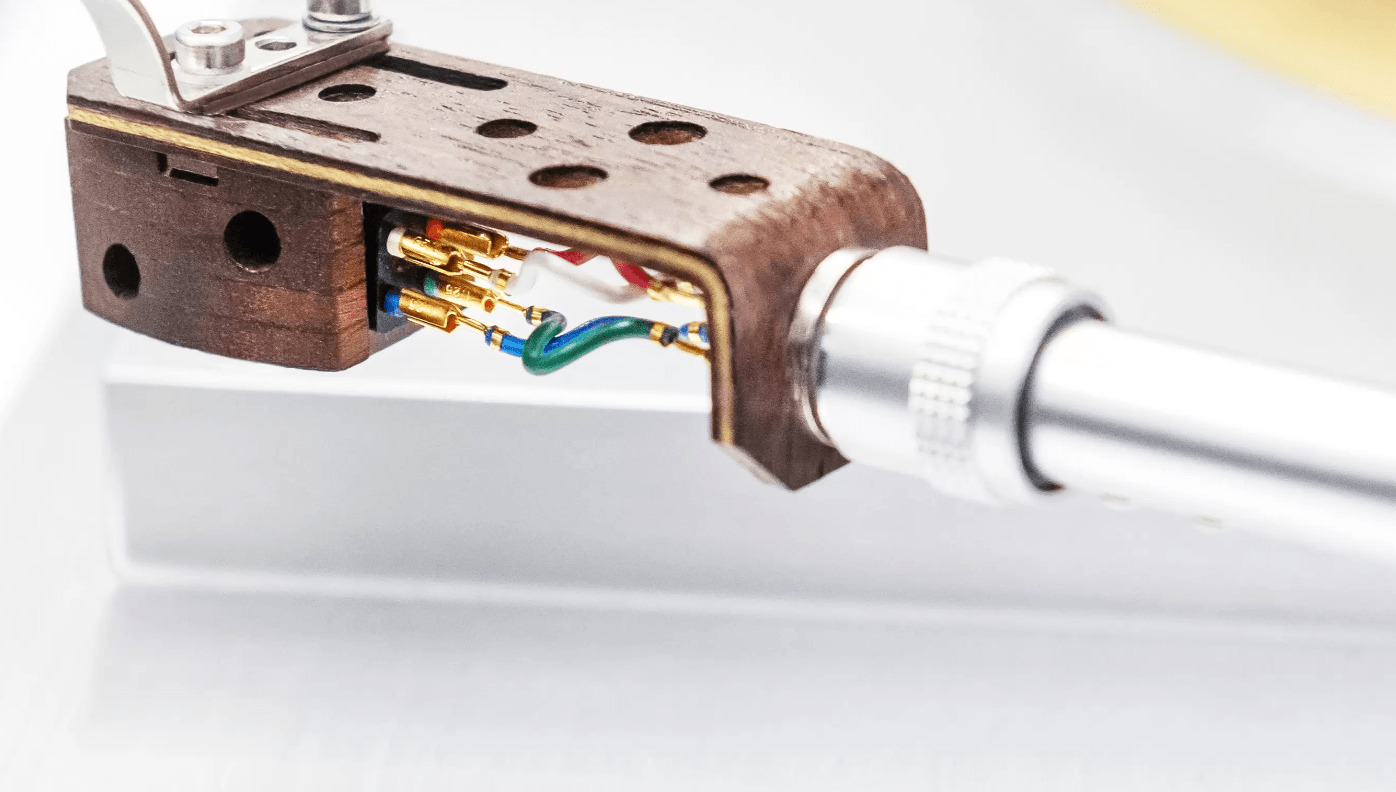

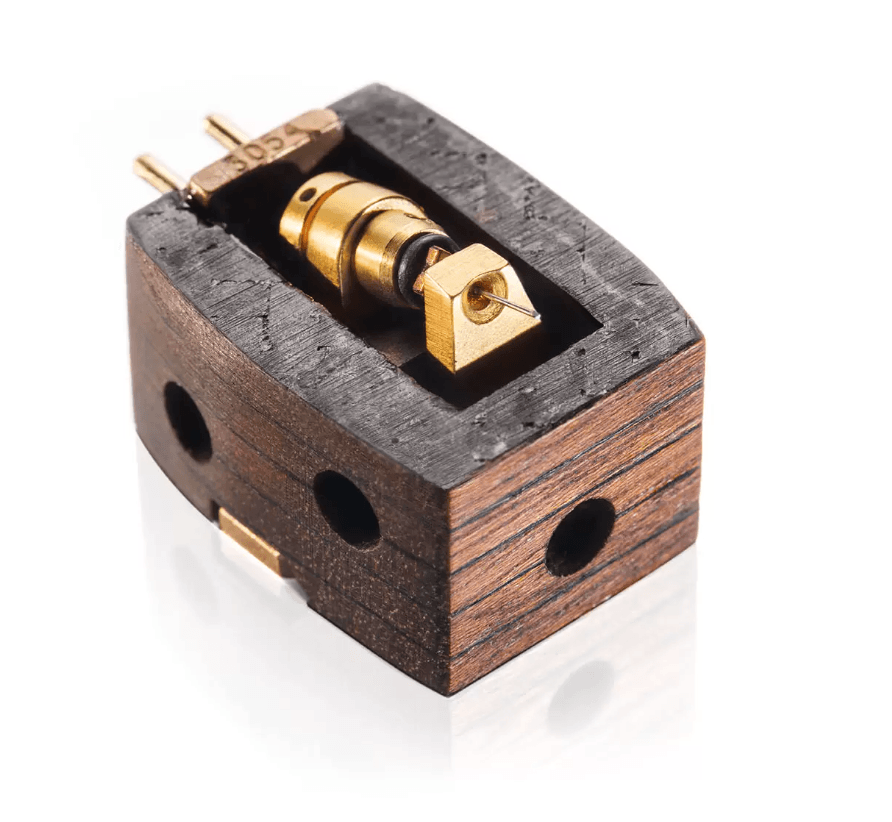

Stein Music Aventurin Cartridge

Have questions about this product?

We love answering questions. Talk to an expert now.

FREE SHIPPING

on all e-commerce orders over $100

TECH SUPPORT

Always Included

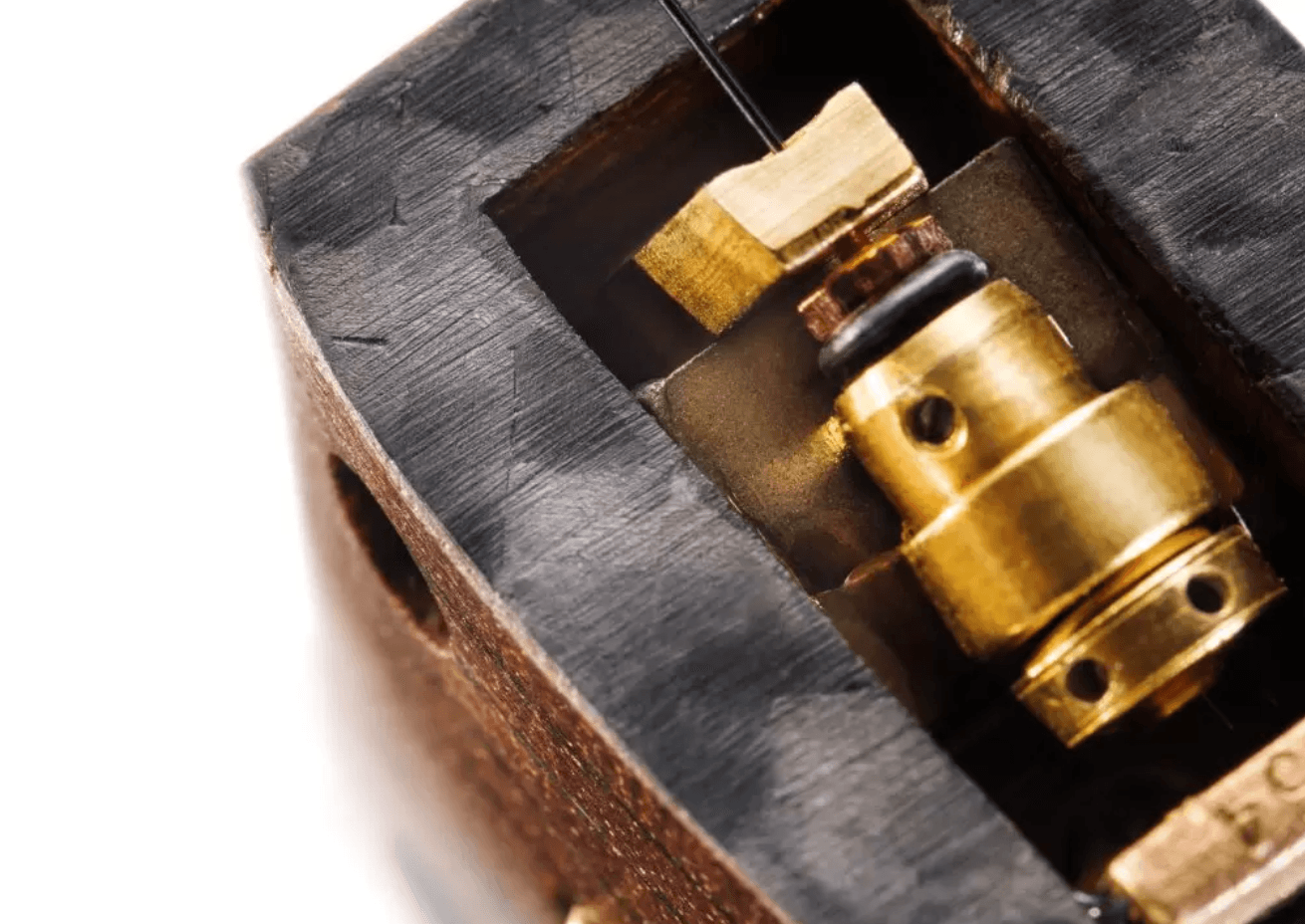

A MicroRidge ground needle on a boron needle carrier, coils of high purity copper on a ruby ​​core, combined with one of the strongest available magnets, based on a stress-free cast bronze base and mounted in a carbon mahogany composite case. These are the ingredients that make music an experience. All critical parts are coated with Maestro paint. High-quality handmade from Germany.



Specifications

• Frequency Range: 10 Hz- 50,000 Hz
• Frequency Response: 20 Hz – 25,000 Hz +/- 1dB
• Output Voltage: 0,4 mV (@3.54cm/sec/45Deg. 1,000 Hz)
• Output Impedance: 14 ohm @ 1,000 Hz
• Channel Separation: 35 dB or more
• Channel Balance: Below 0,5 dB
• Compliance: 12 μm/mN
• Cantilever Material: solid boron rod stylus Chip: Micro-ridge diamond.
• Recommended Stylus Pressure: 1.8-2.2 grams
• Vertical Tracking Angle: 20-22 degrees
• Weight: 11,5 grams
• Optimal load resistance: 300 – 10,000 Ohms
• Tracking ability at 315Hz and 2 gram tracking force >80μm
• Suitable for Phono Stages with about 60 dB gain
• Lacquered with Stein Music Maestro Lacquer for optimum resonance control
• Cast bronze base for maximum stability
• Handcrafted housing made of a carbon/mahogany composite for best resonance control
• Please allow at least 50 hours of break-in time
