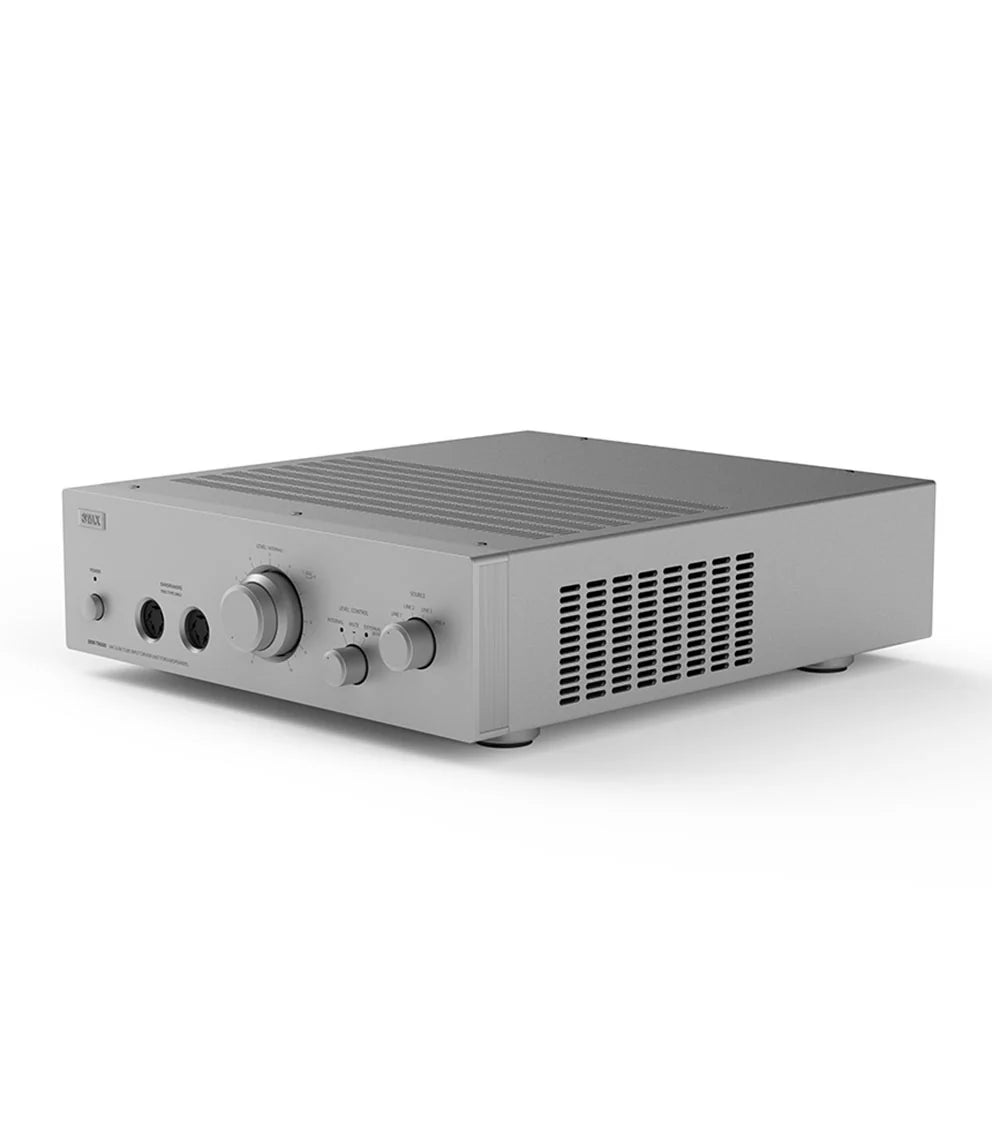

Stax SRM-T8000 Driver unit for Earspeakers

Have questions about this product?

We love answering questions. Talk to an expert now.

Color
Black
Silver
z
z

FREE SHIPPING

on all e-commerce orders over $100

TECH SUPPORT

Always Included



The SRM-T8000 is a precision driver unit engineered specifically for STAX electrostatic earspeakers, featuring a sophisticated 4-input selector and XLR connectivity for seamless integration with analog line-level sources. Its hybrid amplifier topology combines a carefully selected low-noise 6922 dual triode tube in the first stage with a high-current emitter-follower output stage, delivering the nuanced performance these demanding transducers require. The balanced amplifier design eliminates coupling capacitors and transformer coloration, preserving the natural, uncolored character of your source material. A dual-axis 4-gang volume controller provides precise level management, while direct mode functionality allows connection to preamplifier outputs or standalone operation. Two RCA and one XLR balanced input can bypass the volume control for maximum signal integrity, with an optional LINE4 expansion slot for future enhancement. Non-magnetic chassis construction and vibration-dampening feet ensure acoustic isolation and mechanical stability.

  • Frequency response: 1Hz - 115kHz +0, -3dB
  • Rated input level: 100mV (at 100V output)
  • Maximum input level: 30Vrms. (at minimum volume)
  • Gain: 60dB (x 1000)
  • Harmonic distortion: 0.01% or less (1kHz)
  • Input impedance: 50kΩ (RCA input), 50kΩx 2 (XLR input)
  • Maximum output voltage: 470Vrms (1330Vp-p) / 1kHz
  • Bias voltage: 580V DC
  • Mains voltage: AC120V/AC220/AC230/AC240, 50/60Hz (depending on your country’s voltage)
  • Power consumption: 95W/Max. 58W (without optional slot)
  • Operating temperature: 0 to 35 degrees C (less than 90% humidity, non condensing)
  • Dimension: 320 (W) x103 (H) x395 (D) mm (maximum protruding portion included)
  • Weight: 7.3kg
  • Others: equipped with PARALLEL OUT, optional slot and volume by- pass function and mute function.
Color Black, Silver
