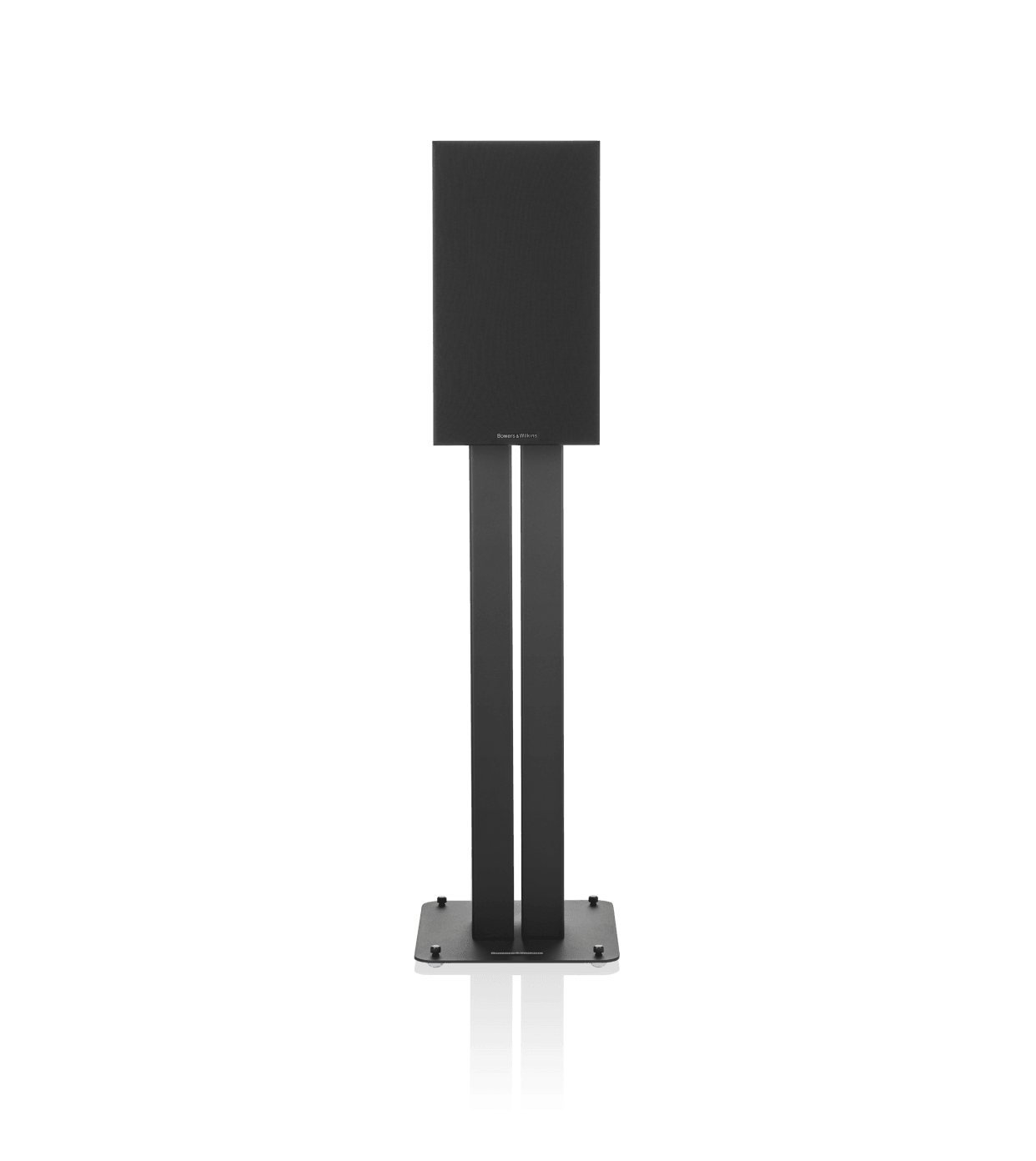

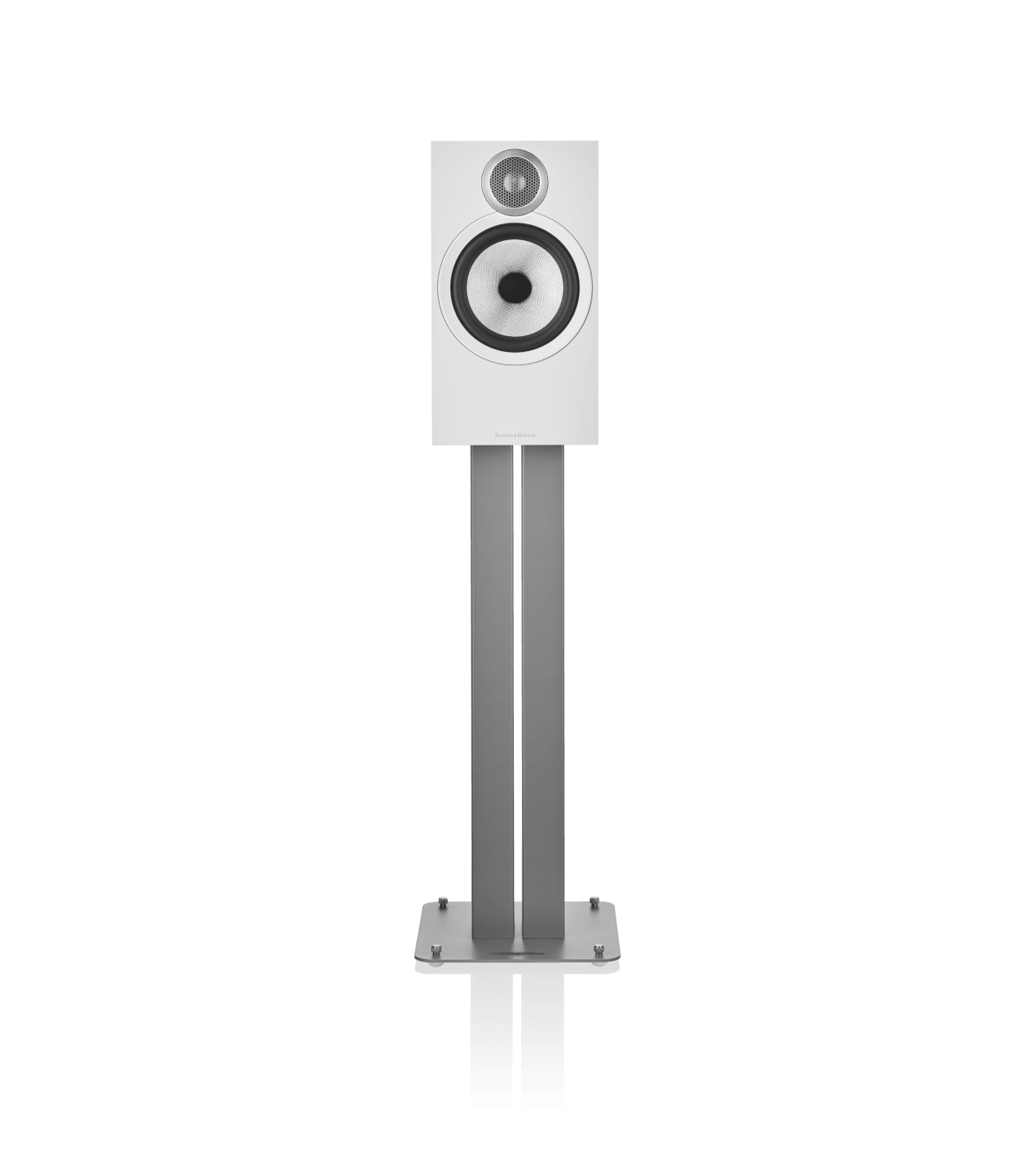

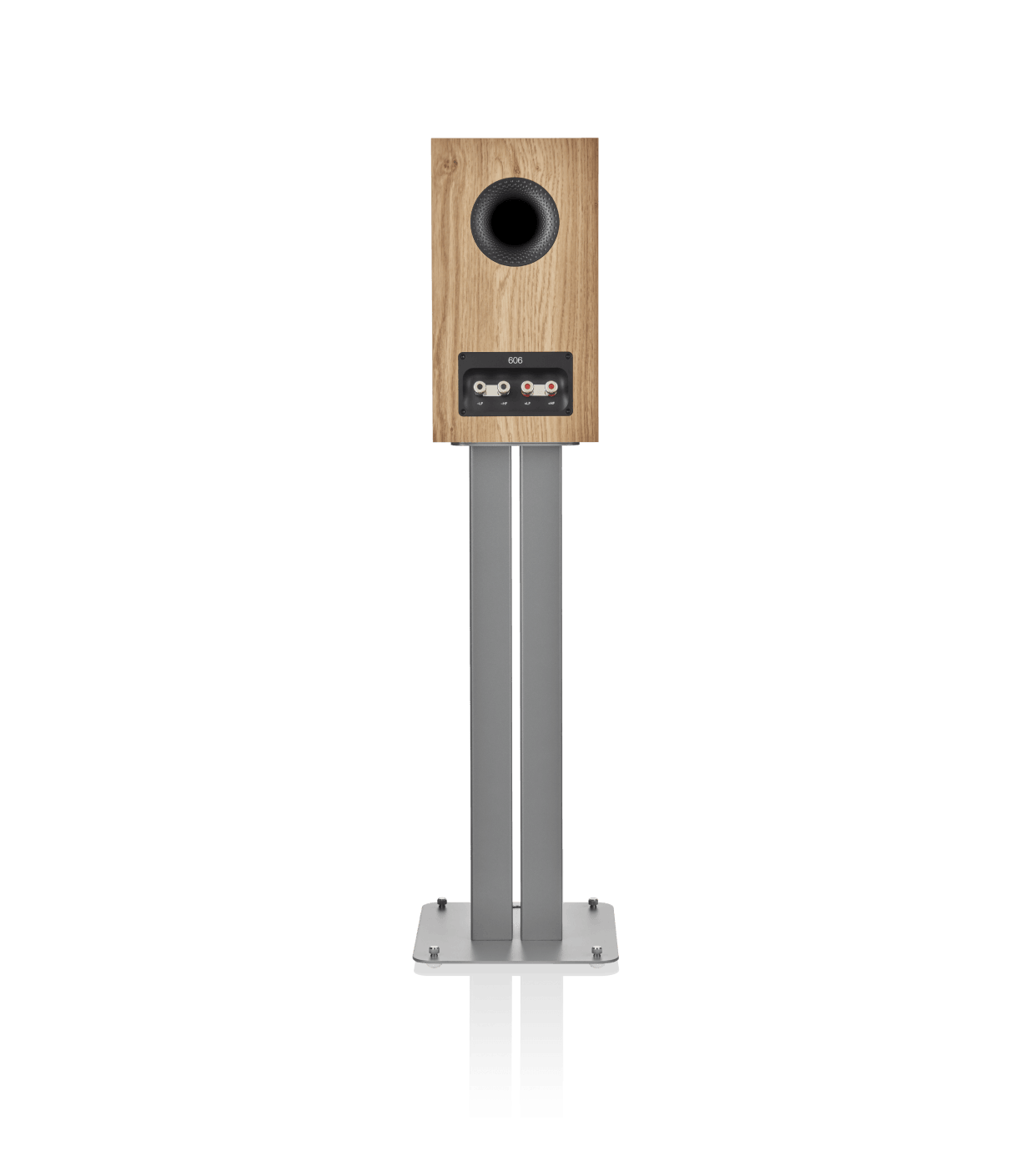

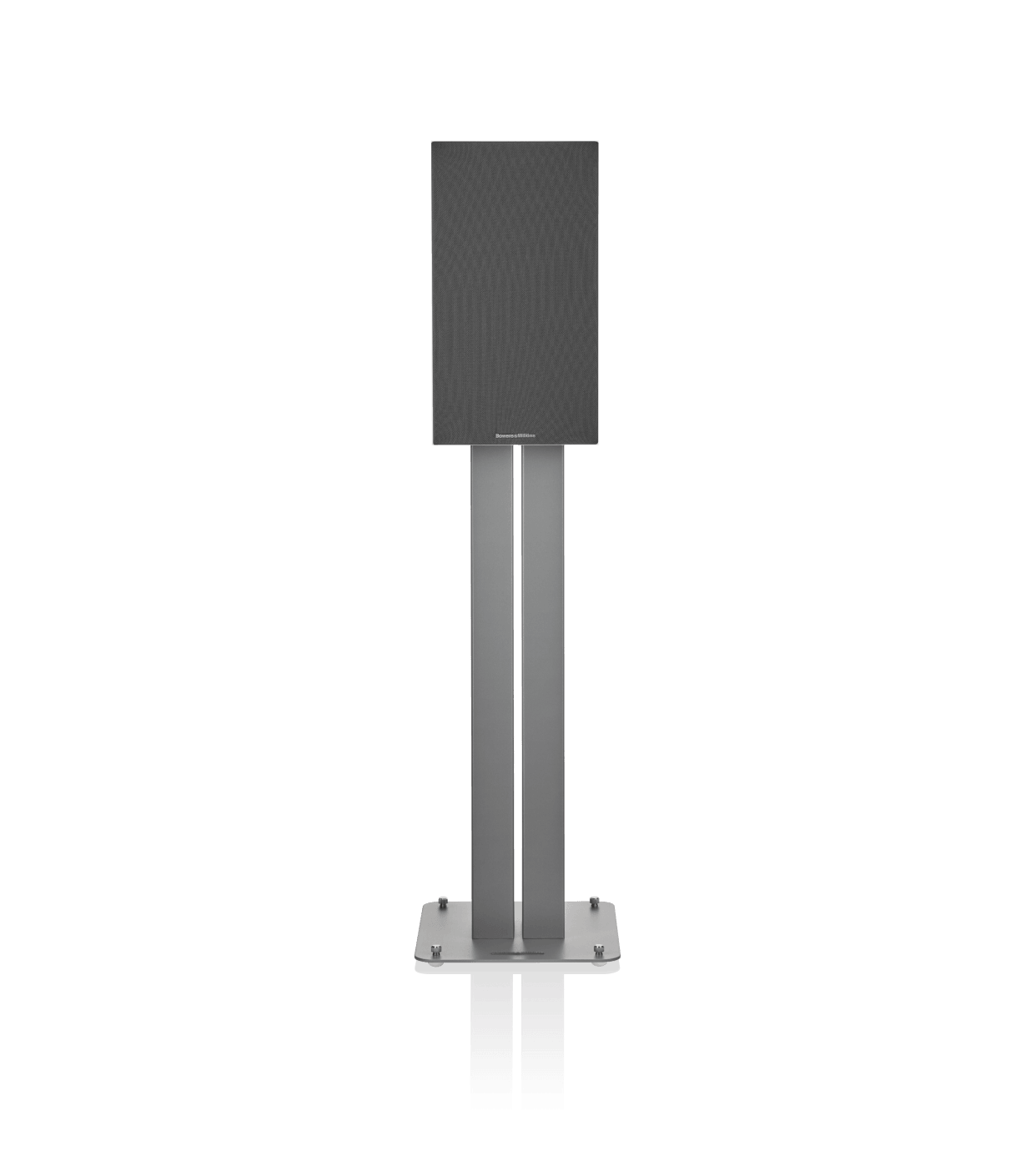

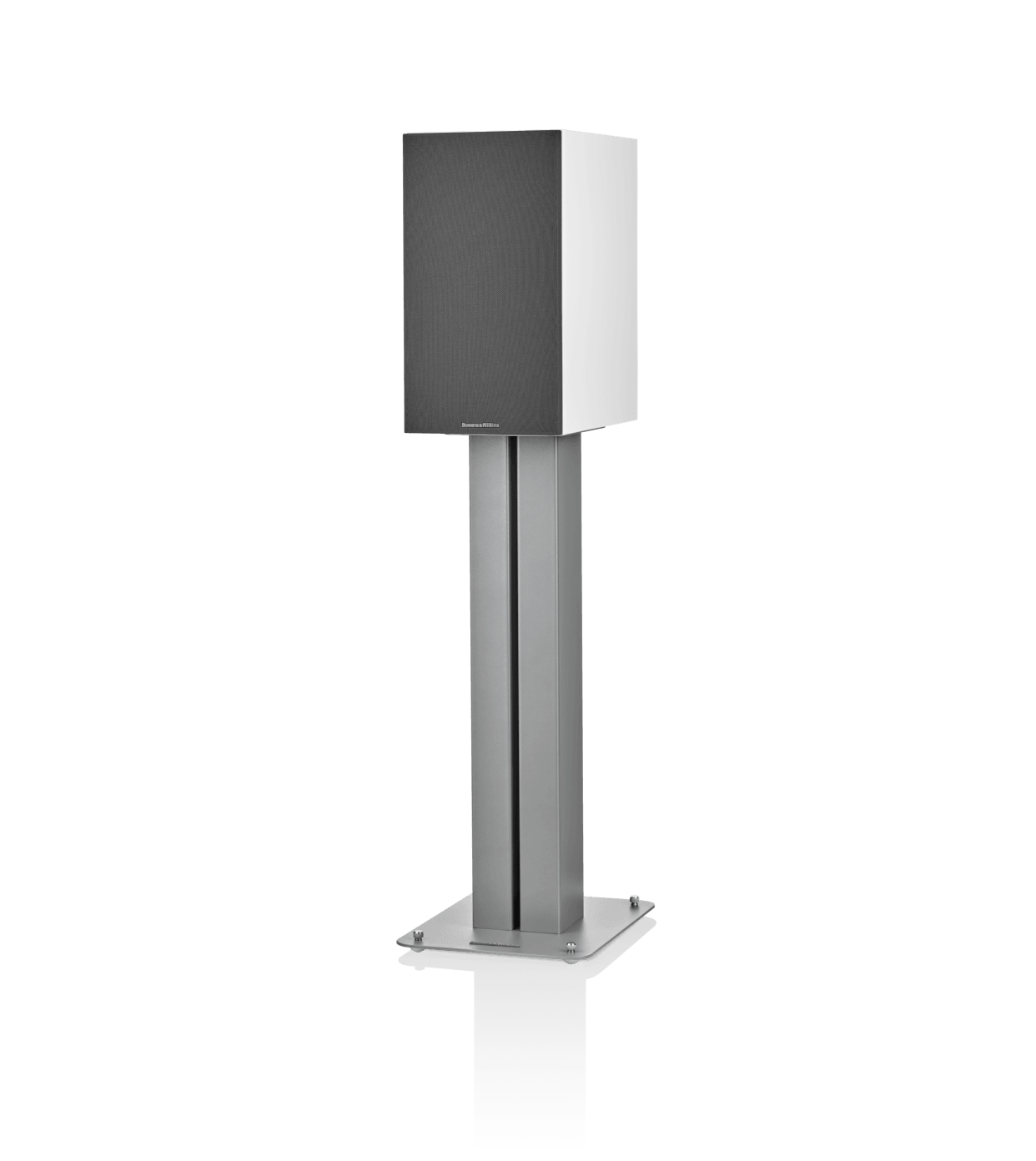

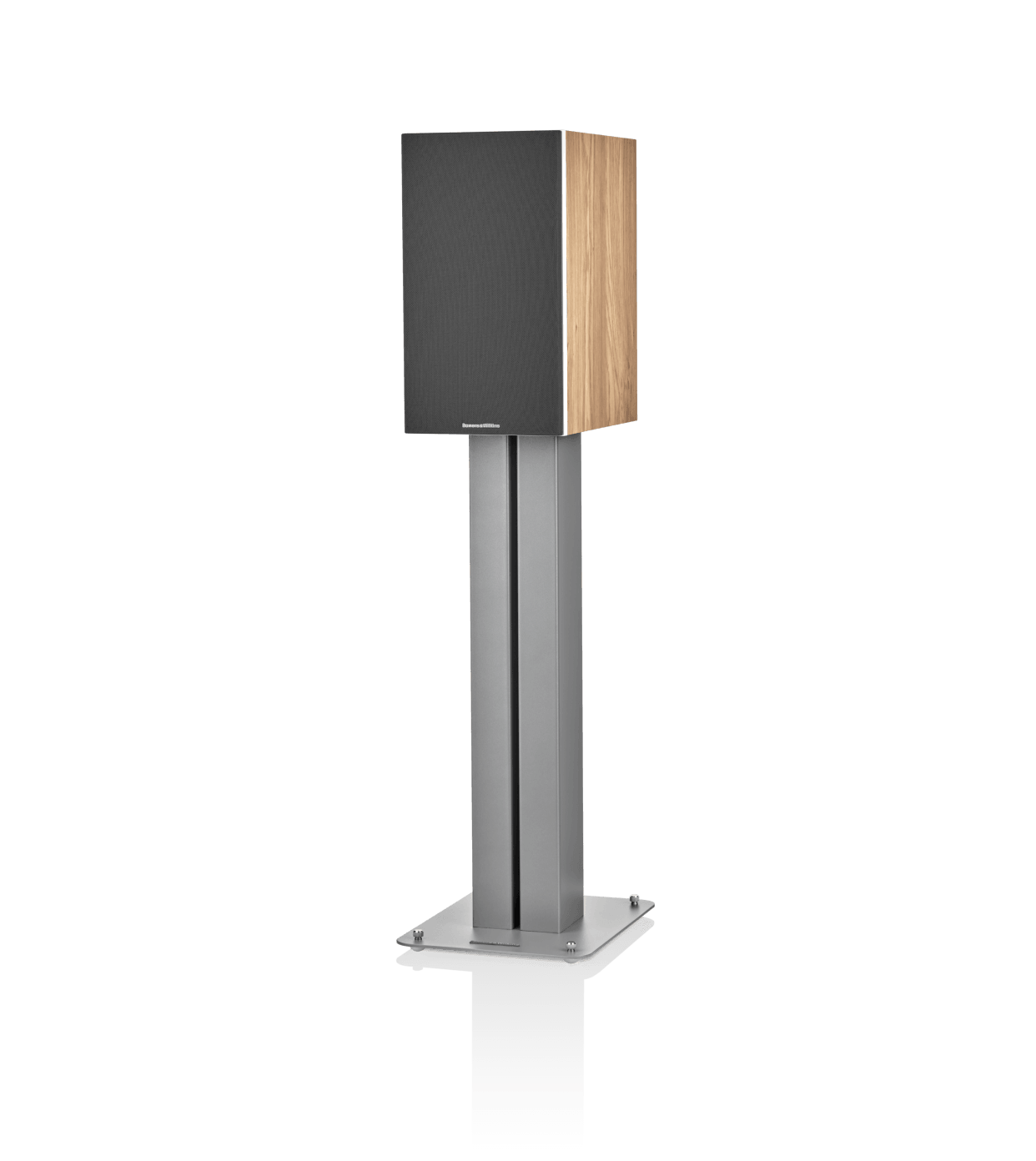

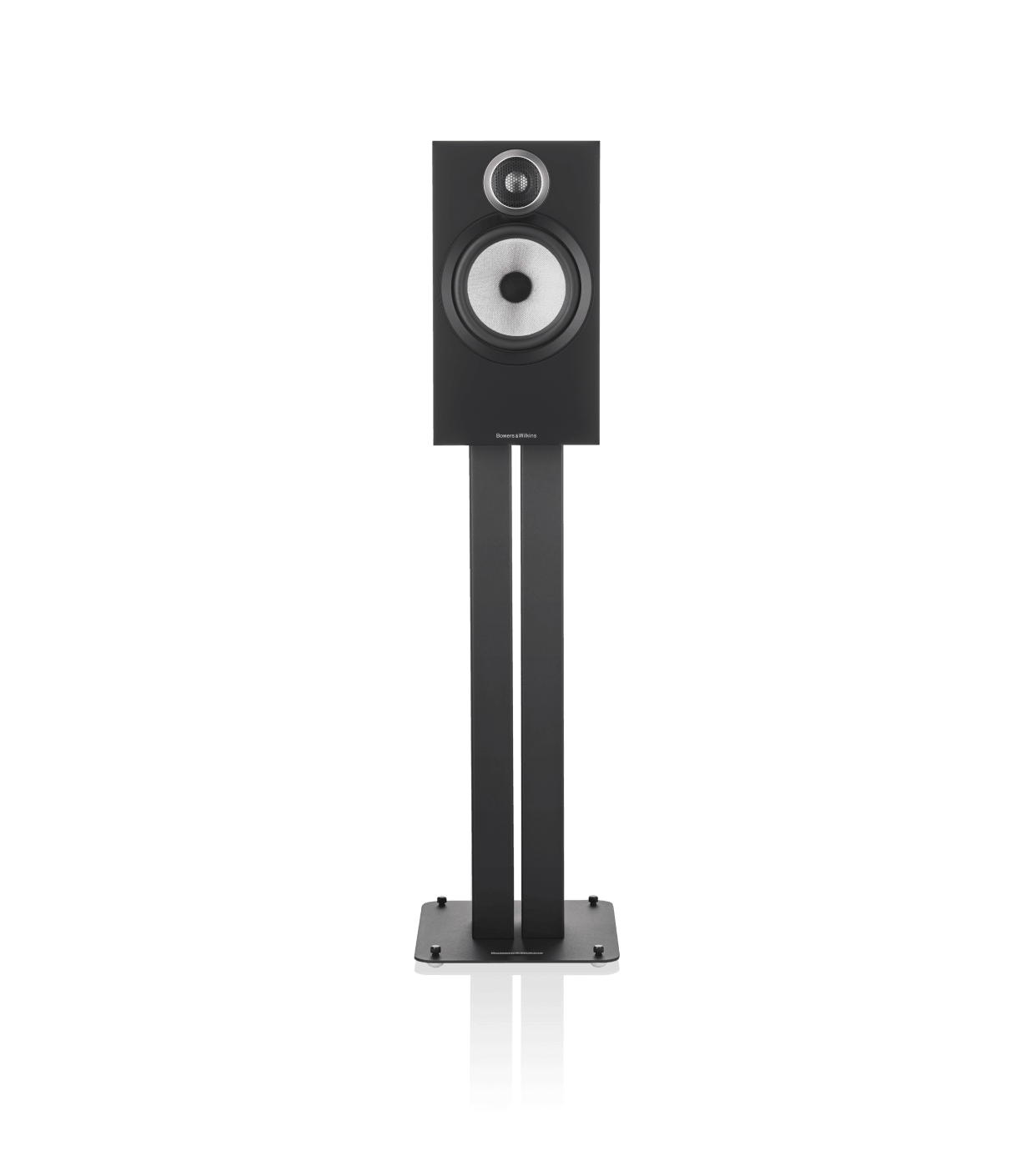

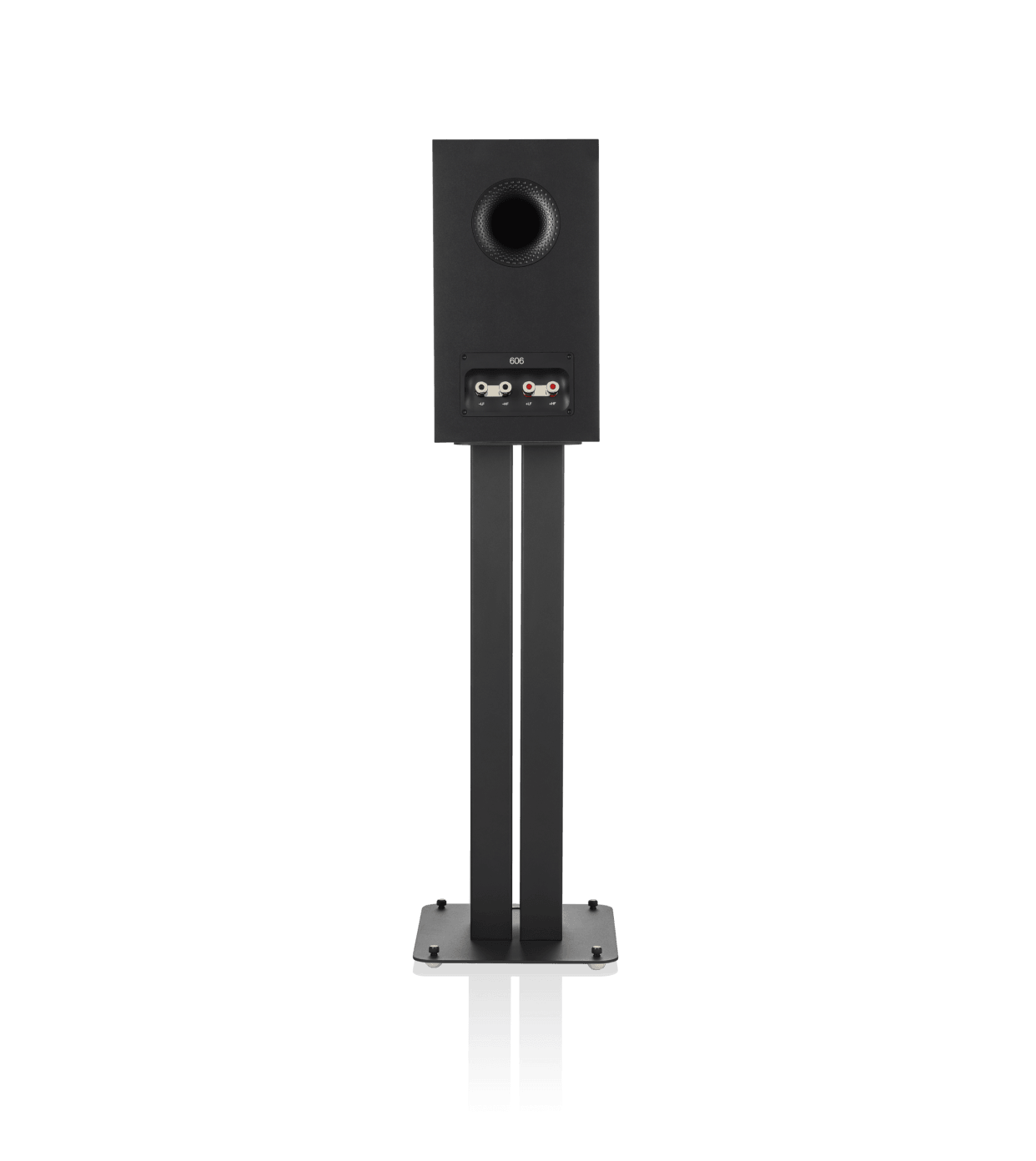

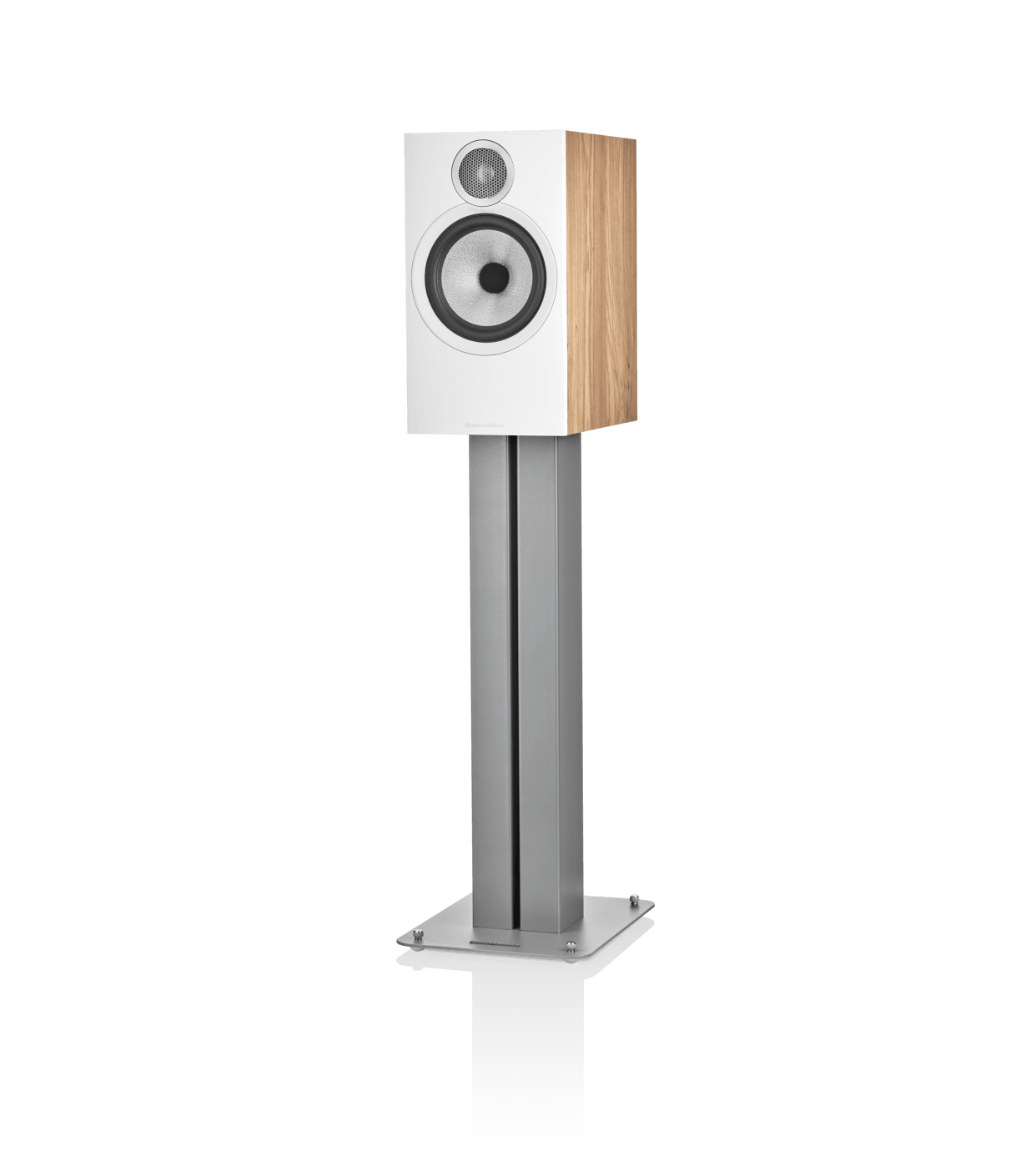

Bowers & Wilkins 606 S3

606 S3 introduces our new and even more acoustically transparent tweeter grille mesh, first developed for our revered Signature models. Alongside the new Titanium Dome tweeter, the resolution and realism are exceptional. Thanks to its composite construction, the Continuum cone avoids the abrupt transitions in behavior that can impair the performance of a conventional drive unit. With 606 S3, experience a more open, neutral performance that delivers voices and instruments with precision and transparency. Derived from the speaker terminals recently introduced in our 700 Series range, the speaker terminals on the new 606 S3 feature an improved layout and a cleaner signal path between your amplifier and your loudspeakers. The essential loudspeakers for music lovers.

Specifications

Size & weight

Dimensions-

Height: 344mm (13.6 in) cabinet only

Width: 189mm (7.4 in) cabinet only

Depth: 300mm (11.8 in) cabinet only

328mm (12.9 in) including grille and terminals

Net weight-

7.05kg (15.5 lb)

Technical details

Technicals features-

Decoupled Double Dome Titanium tweeter

Continuum cone bass/midrange

Flowport

Frequency response (+/-3dB from reference axis)-

52Hz-28kHz ±3dB

Description-

2-way vented-box system

Drive units-

1x ø25mm (1 in) Titanium Dome high-frequency

1x ø165mm (6.5 in) Continuum cone bass/midrange

Frequency range-

-6dB 40Hz-33kHz

Sensitivity (on axis at 2.83Vrms at 1m)-

88dB

Harmonic distortion-

2nd and 3rd harmonics (90dB, 1m on axis)

<1% 100Hz-22kHz

<0.5% 150Hz-12kHz

Nominal impedance-

8 Ω (minimum 3.7 Ω)

Recommended amplifier power-

30W-120W into 8 Ω on an unclipped program

Max recommended cable impedance-

0.1 Ω
