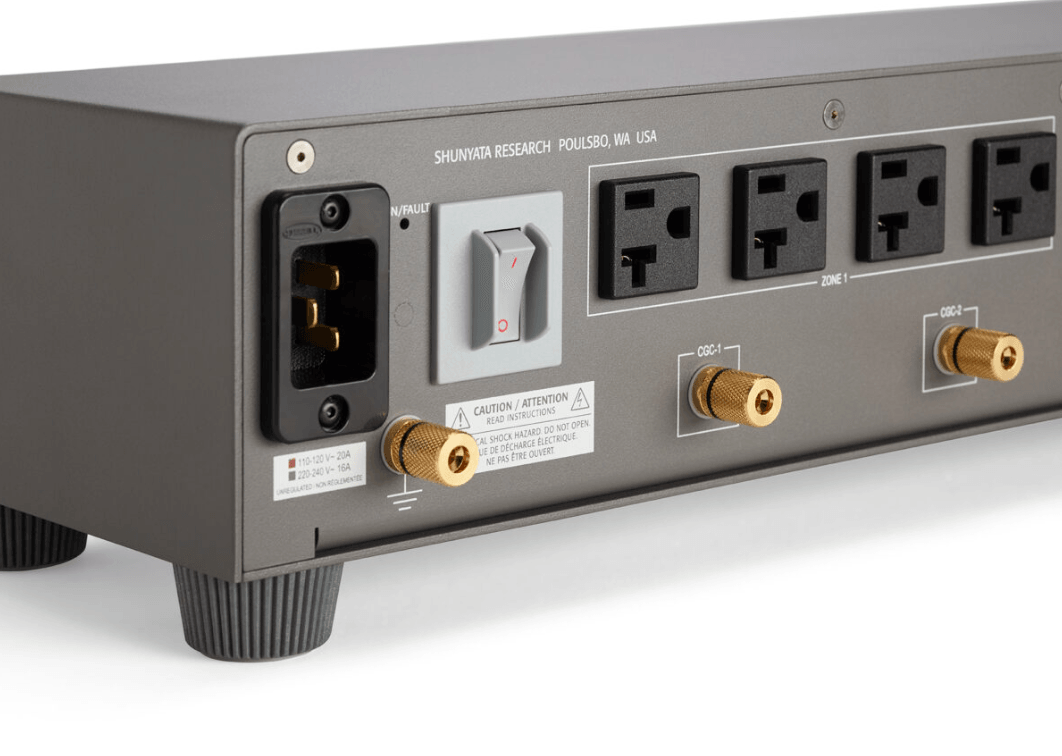

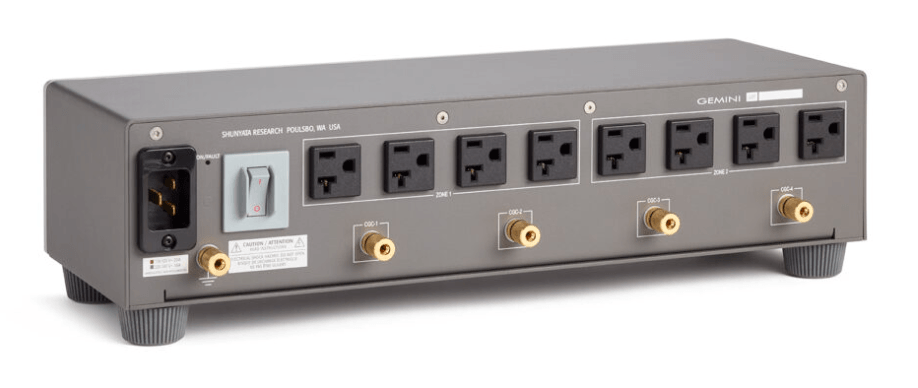

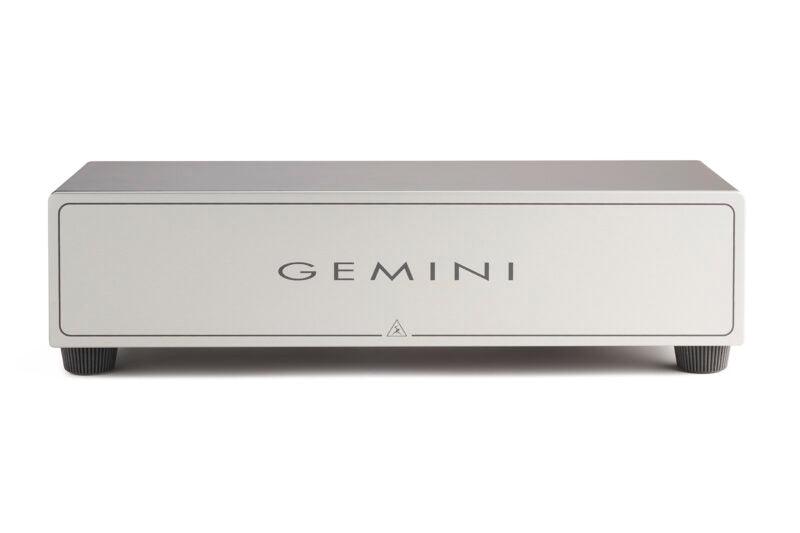

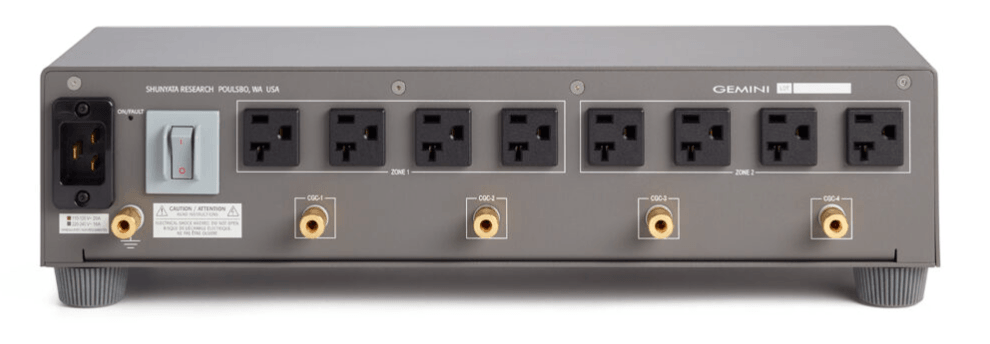

Shunyata Research GEMINI Model-8

A High-Current, High-Performance Power and Ground Hub Solution

The GEMINI Model-8 delivers unprecedented performance and value by acting as both a high-current power distributor and an advanced ground noise reduction hub. Similar to the four-outlet Gemini Model-4, the Gemini Model-8 features patented NIC™ noise isolation chamber technology that provides a common grounding point for the system, extending noise reduction to all system components. This dual-plane approach to noise reduction addresses both AC noise and minimizes voltage differences between component chassis, helping to eliminate potential ground loops. Gemini Model 8 is a full 20A capable unit, featuring a C-19 (20A) IEC for maximum current carrying capacity.

The GEMINI Model-8’s rugged construction, dual-zone AC line filtering, and 20A capability make it the ideal solution for powering entire high-performance audio or video systems. The affordable price and high current capacity of the Gemini Model-8 offer endless flexibility for applications in high-performance music systems, home theater, or pro recording. Its dual forms of noise reduction ensure maximum resolution and fidelity for sources, while the Gemini Model-8 is also an ideal power distributor for amplifiers, sub-woofers, recording consoles, or any electronics that require a maximum current draw. Taking its affordable price into account, the Gemini Model-8 may be Shunyata Research’s finest creation yet!

Specifications

Maximum Voltage:
90-125 VAC r.m.s. unregulated (US)
220-240 VAC r.m.s. unregulated (AS)

Current Ratings:
Input current maximum: 20A (US)
Peak instantaneous current @ 10ms: >1000A
Output current max: 20A

Transient Suppression:
Maximum transient pulse: 40,000A @ 8/50 μs

Over-Current Protection:
Hydraulic Electromagnetic Breaker

Wiring System:
12-gauge ArNi® conductors
OFE C10100 copper
Ratings: 600 V 105° C

Noise Suppression:
Input to Output (100 kHz – 30 MHz): > 40 dB reduction
Zone to Zone (100 kHz – 30 MHz): > 30dB reduction

Noise Reduction Technology:
NIC™ Noise Isolation Chambers (patented)
Trident Transient Protection Module
CCI™ v4 Noise Filters (3)
KPIP™ Process

Connectors & Outlets:
Inlet: IEC C19R
US Outlets: 8 NEMA5-15P

Vibration Control:
Vibration-damping panels (internal)
Shunyata Isolation Footer

Construction:
Powder-coated steel chassis – 16 gauge
Anodized aluminum faceplate

Dimensions:
Width: 17 inches (43.18 cm)
Depth: 6.13 inches (15.57 cm)
Height: 4.58 inches (11.63 cm)
Weight: 9.8 lbs (4.45 kg)
