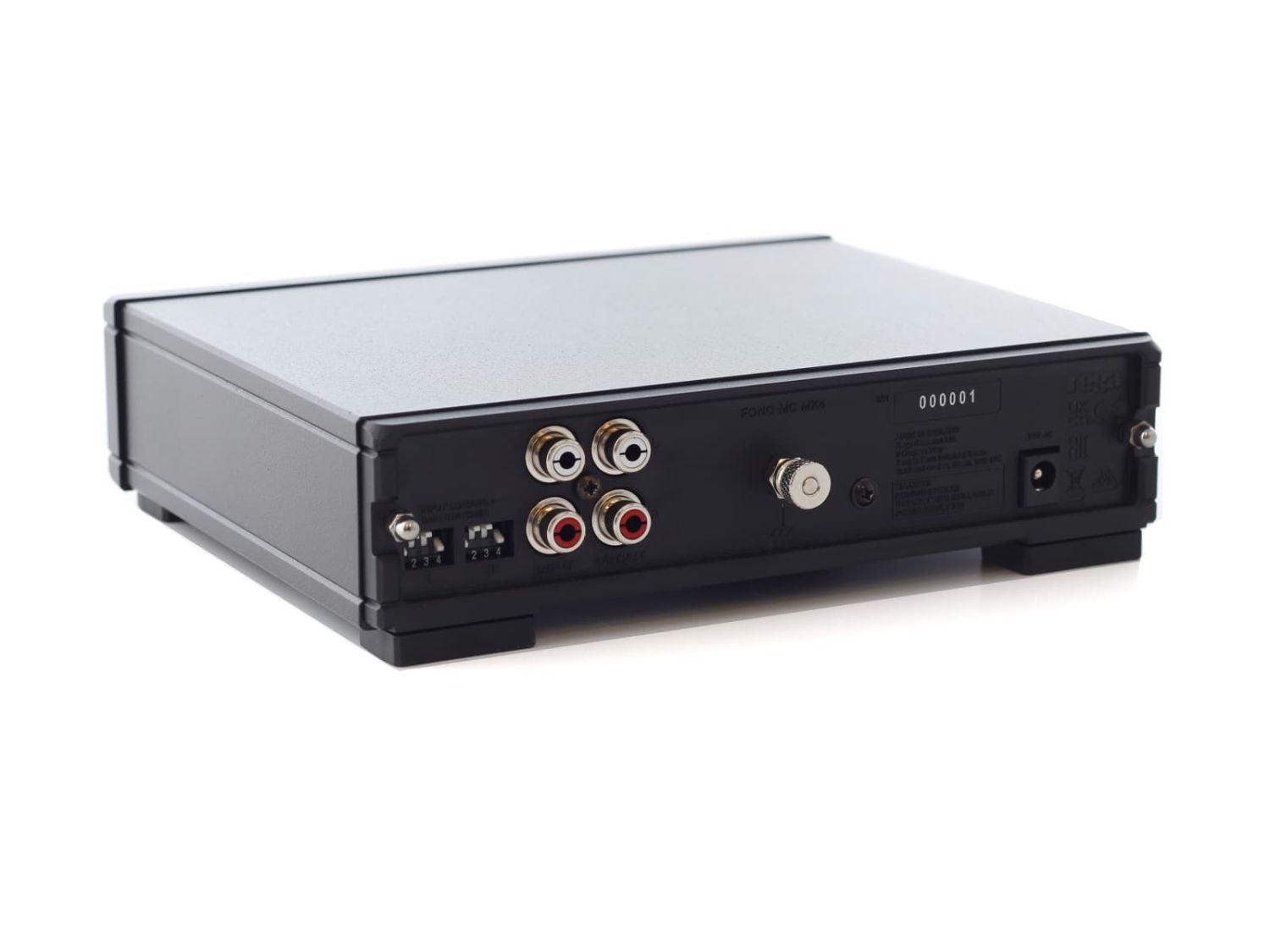

    Rega Fono MC MK4

    The Fono MC MK4 is a high-quality phono stage to maximize the potential of low-output MC cartridges, offering full adjustability for gain and loading. Its redesigned case matches the Fono MM MK5 and Neo MK2 for a modern look. It uses the Linear Systems LSK389 FET for a low-noise, linear input stage, with a high input impedance so the amplifier won’t affect cartridge performance.





    KEY FEATURES
    • Dedicated moving coil phono stage
    • Simple connectivity and operation
    • Fully adjustable via DIP switches via rear panel
    • MUSE operational amplifier used in RIAA equalization amplifier
    • Two selectable gain settings
    • Default factory settings matched for all Rega MC models
    • Latest design custom casework



    Polypropylene capacitors used in circuits, selectable input loading & two gain settings make Fono MC MK4 compatible with most MC cartridges. Developed on the Aria phono amp, Fono MC MK4 features a new aluminum case like Neo MK2 PSU & Fono MM MK5 phono stage.
    .
    TECHNICAL SPECIFICATIONS
    Output Impedance-200 Ω
    Recommended Minimum Output Load Resistance-5 frequency Response (50 kΩ Output Load)13 Hz (-3 dB) to 100 kHz (-0.3 dB)
    RIAA Accuracy (50 kΩ Output Load)-Better than ±0.2 dB 100 Hz to 100 kHz
    Power Requirements-24 V AC at 150 mA maximum


    LOAD SETTINGS FOR ADJUSTABLE MC STAGES
    Input Sensitivity (for 200 mV Output)-4 off = 133 uV / 4 on = 67 uV
    Input Loading Resistance-1 and 2 off = 400 Ω / 1 on = 100 Ω / 2 on = 150 Ω / 1 and 2 on = 70 Ω
    Input Loading Capacitance-3 off = 1000 pF / 3 on = 4300 pF / Gain (at 1 kHz) / 4 off = 63.5 dB / 4 on = 69.5 dB-
    Maximum Input Level (at 1 kHz)-4 off = 6.7 mV / 4 on = 3.4 mV
    Factory settings for all Rega MC cartridges Impedance 100 Ω / Capacitance 1000 pF / Gain Setting High
