MSB Technology Discrete DAC

Have questions about this product?

We love answering questions. Talk to an expert now.

FREE SHIPPING

on all e-commerce orders over $100

TECH SUPPORT

Always Included

With two prime DACs, we yield an unprecedented level of detail, reproducing the musicality, soundstage, and texture of an original performance, bringing the artist to you. A fully balanced, ultra-high precision, discrete ladder DAC architecture ensures each note tells a story. Additionally, MSB’s robust in-house design enables the finest quality playback of PCM and native DSD, while our low-impedance circuitry drives your amplification directly without adding coloration or buffering noise. The end result is a digital experience that defies expectations.

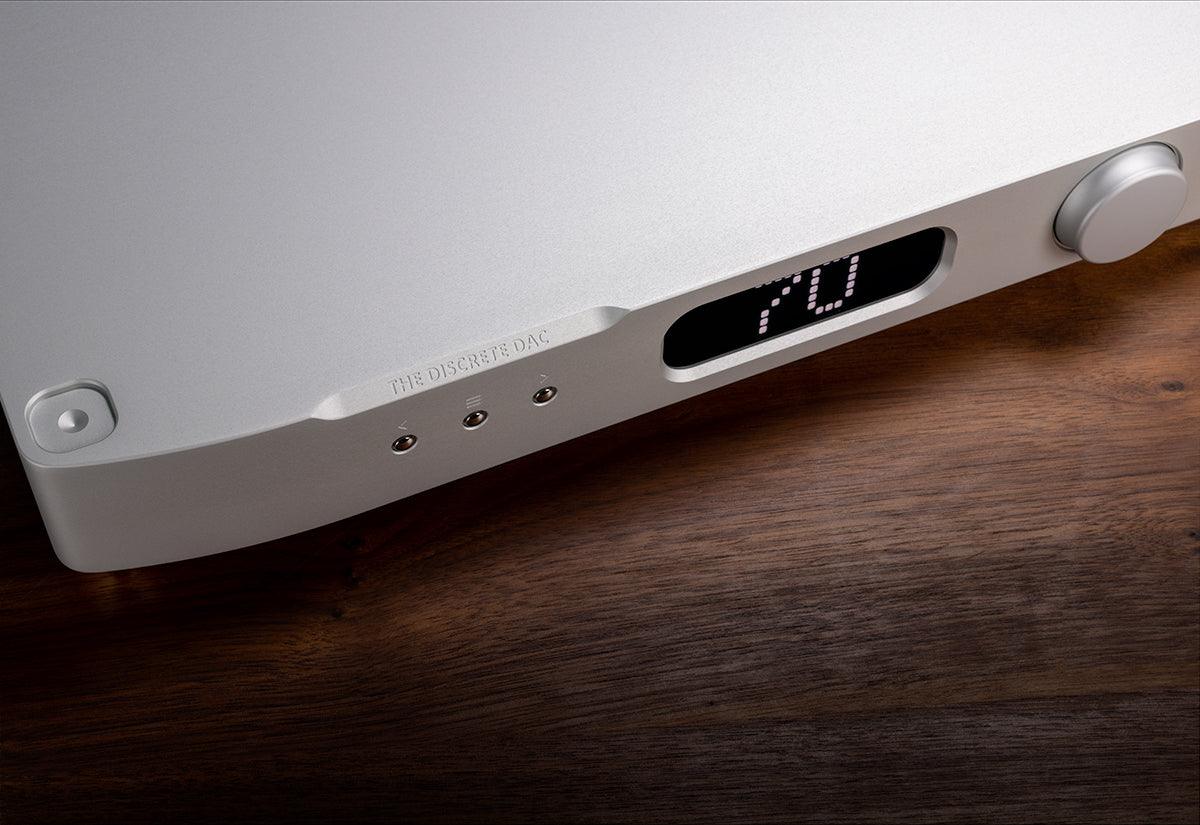

Equipped with high visibility and a wide viewing angle, the display is both easy to read and stunning, exhibiting our love for intuitive features.  The LED display, slaved to the audio clock, is refreshed between data processing to drastically reduce electrical interference. The in-house discrete design is then constructed into its own shielded CNC pocket for optimal isolation. Sit back and be immersed.

A modular I/O card keeps even the discrete DAC flexible, repairable, and upgradeable.  Along with an integrated clock, changing this card allows switching between single-ended and balanced outputs.

MSB thrives off the innovation required to meet consumer demands. We’re constantly improving digital input modules to stay at the forefront of the high-end audio industry, ensuring you’re always equipped with the most current digital file formats and interfaces. Focusing on our network renderer and USB input, your audio tech will be on the cutting edge. Put simply, your DAC is ready for the future.



Specifications
DAC Modules- 2x Prime DAC
Clock- On Board Clock
Digital Inputs- 2x User Replaceable Input Slots

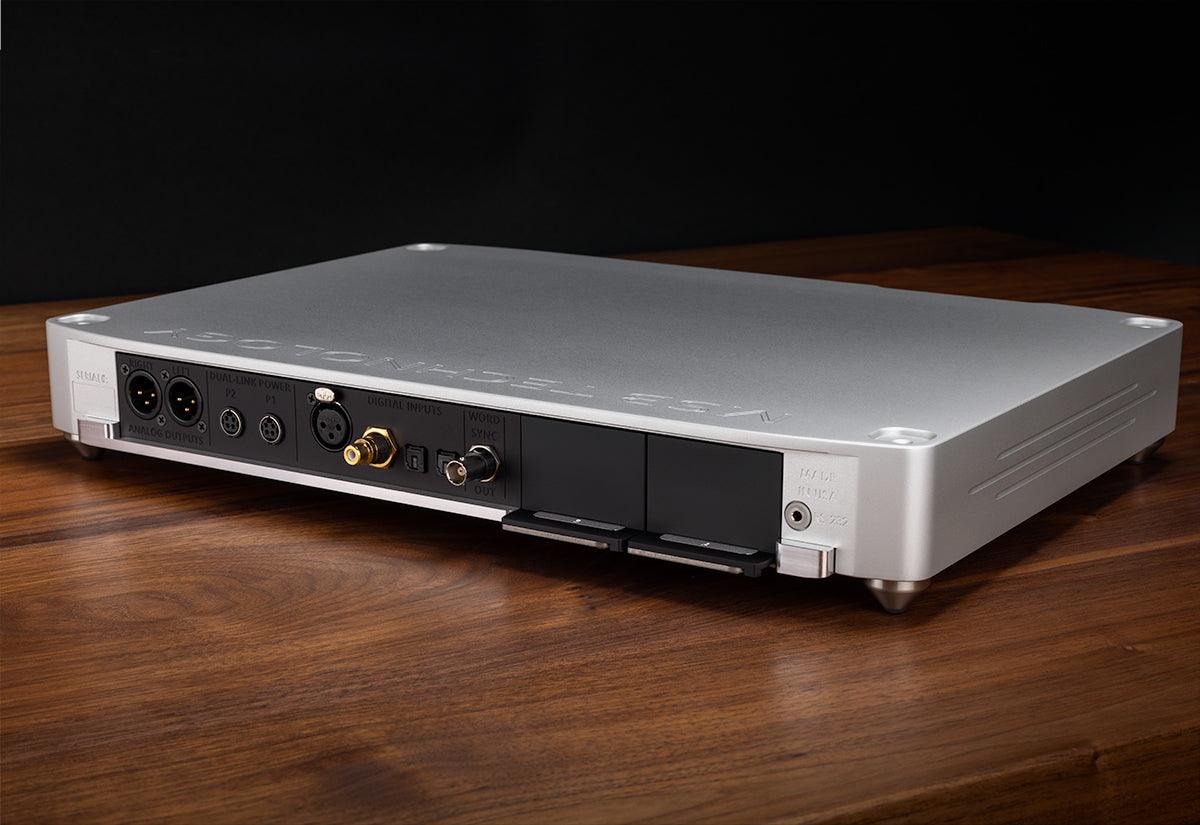

Fixed Inputs- 2x Toslink 1x Coaxial, 1x XLR, 1x World-Sync
Analog Outputs-
XLR Output- 300Ω Impedance (High Gain), 150Ω Impedance (Low Gain)
(Optional) RCA Output- RCA Analog Outputs, 100Ω Impedance
Analog Inputs- Not Supported
Analog Expansion Modules- Not Supported
Display- 119 LED Discrete Display
