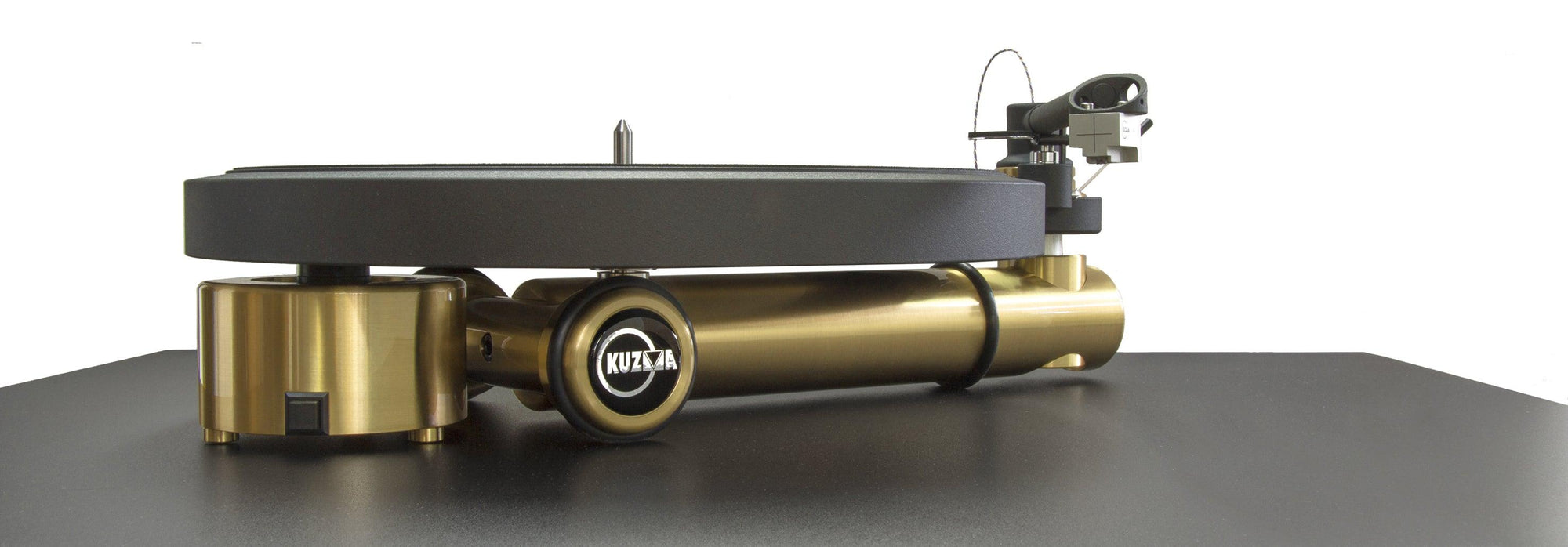

Kuzma Stabi S

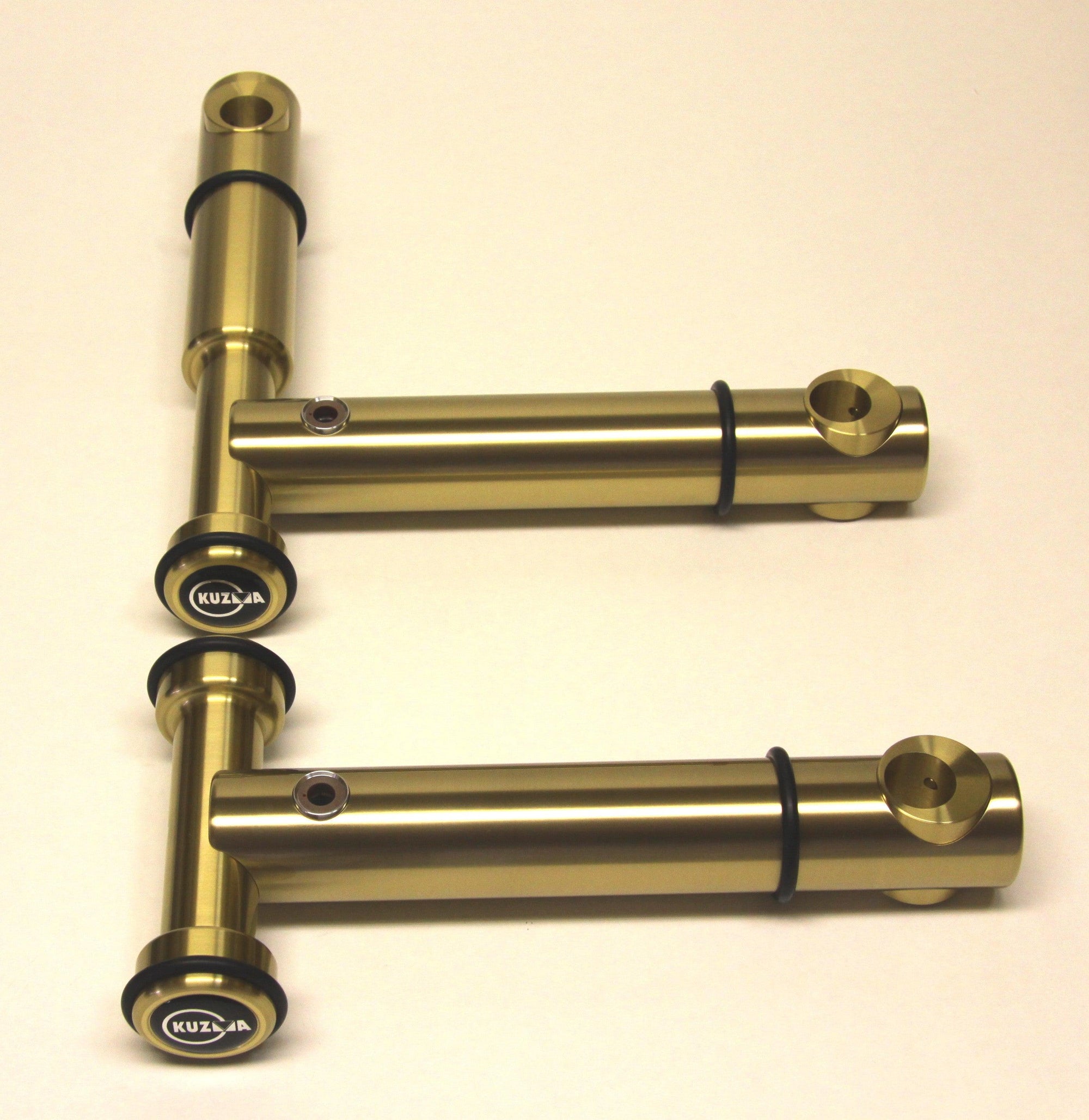

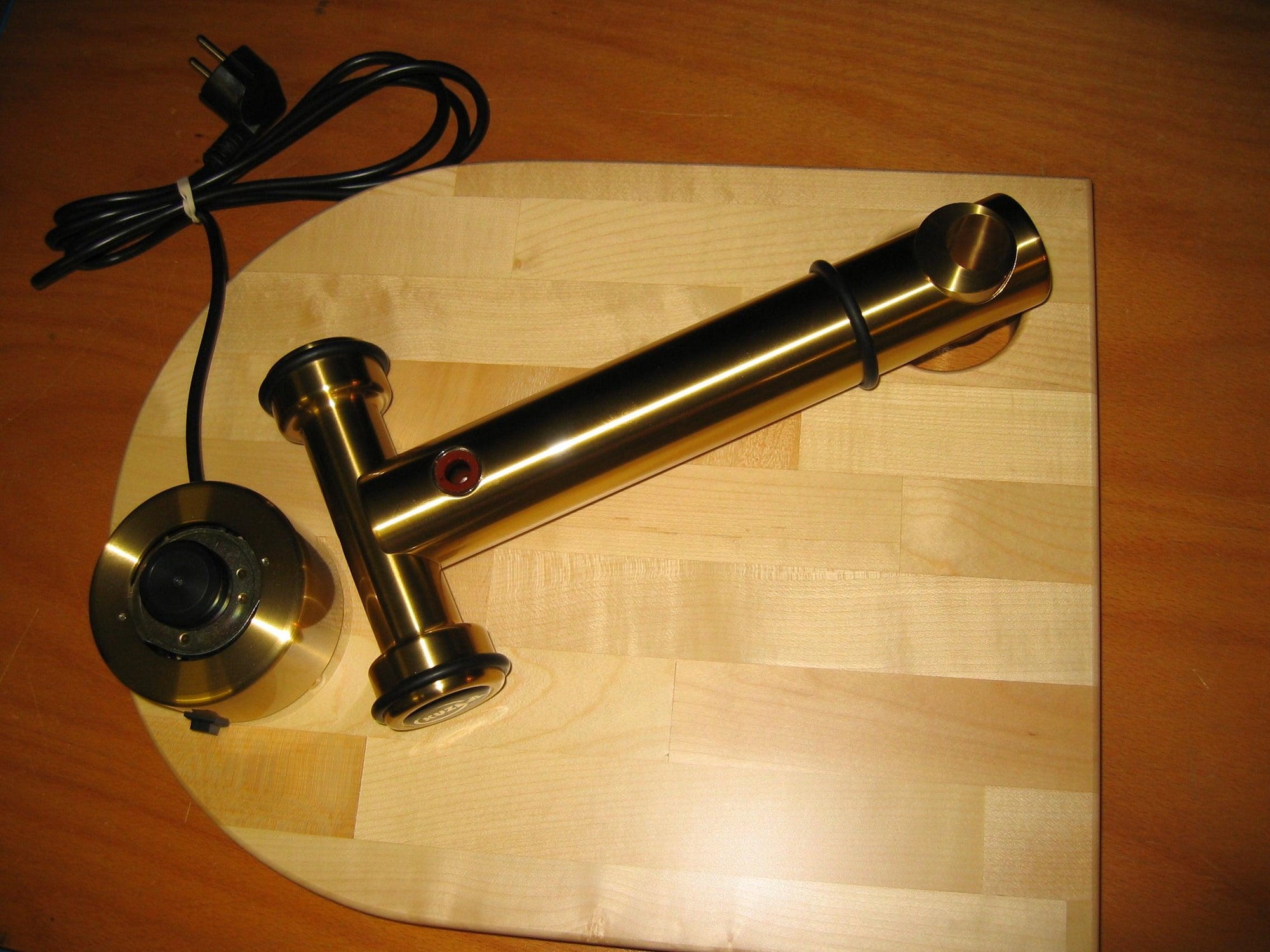

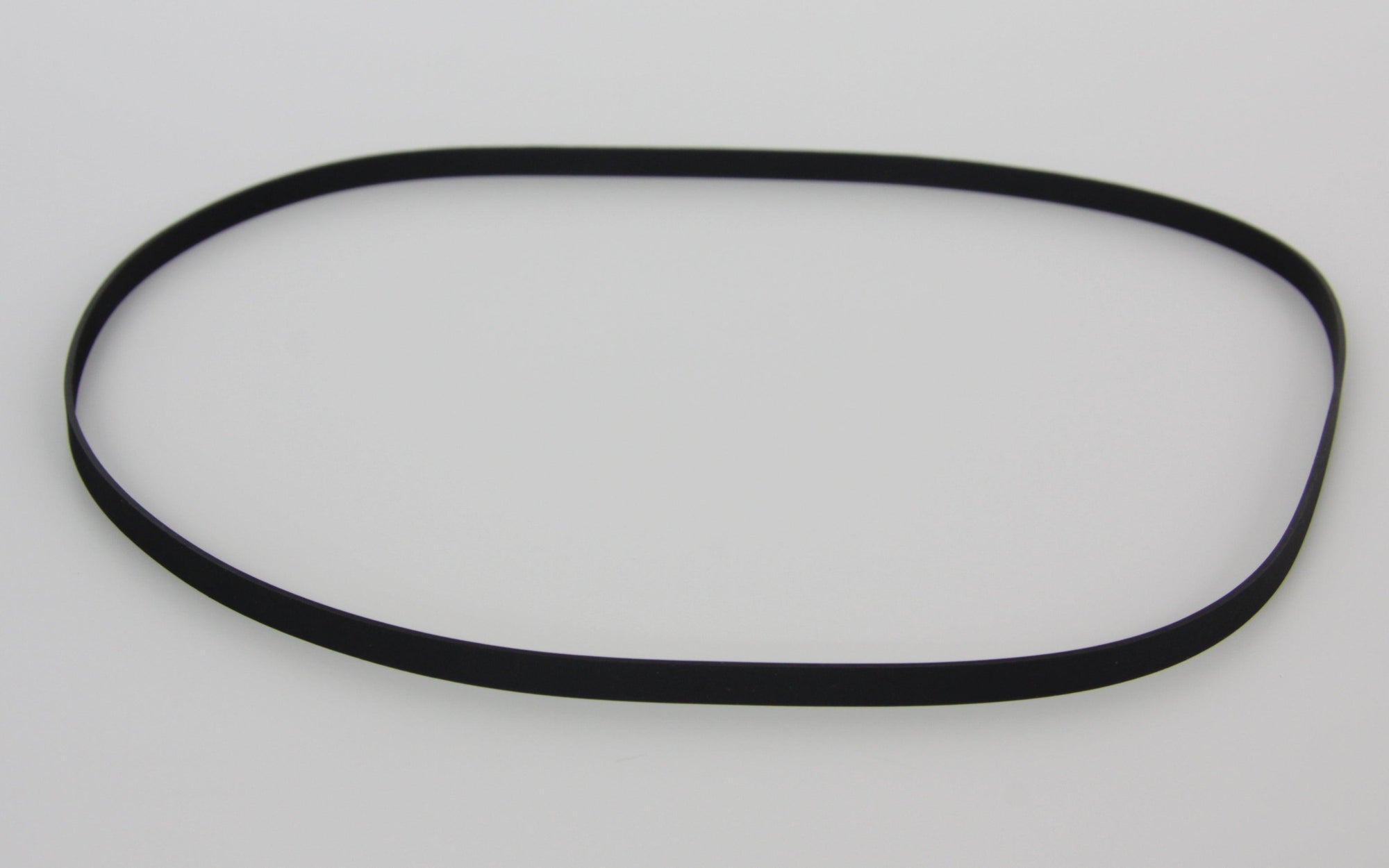

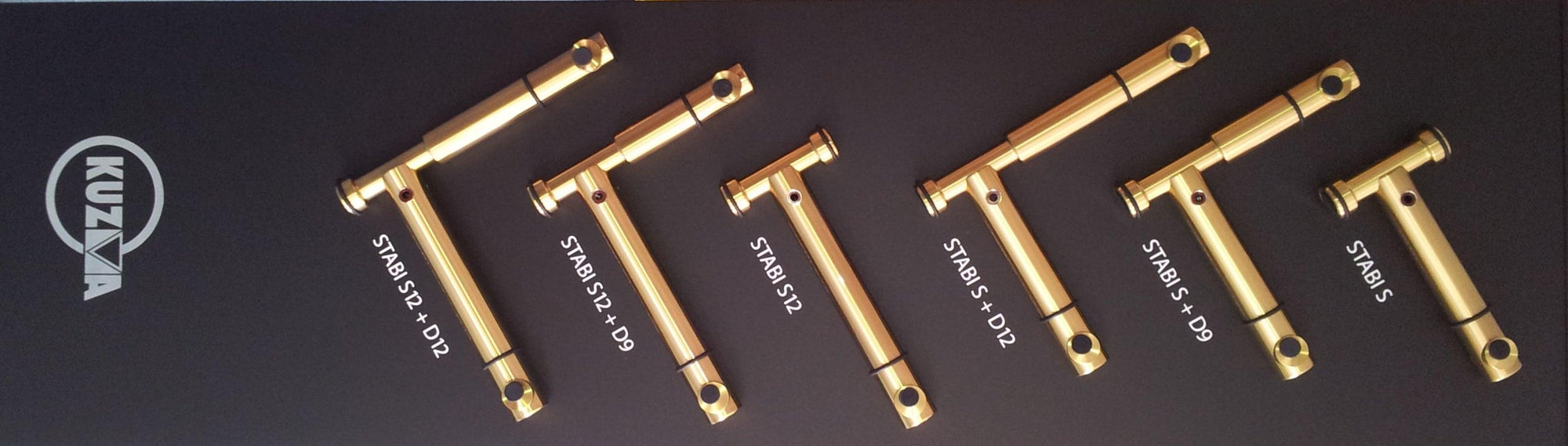

Stabi S is our smallest turntable with a design approach normally found only in more expensive models. Its unique shape and construction of solid brass rods, provide an extremely rigid connection to platter, bearing and tonearm support. There is no flat plate to resonate and transmit vibrations, only solid brass rods 50mm in diameter. A second brass rod provides stability and the two are clamped together in a T shape. The motor is housed independently in its own bras tower which dampens vibration of the motor itself. A ground, flat belt provides drive from the motor pulley to the subplatter.

Have questions about this product?

We love answering questions. Talk to an expert now.

FREE SHIPPING

on all e-commerce orders over $100

TECH SUPPORT

Always Included

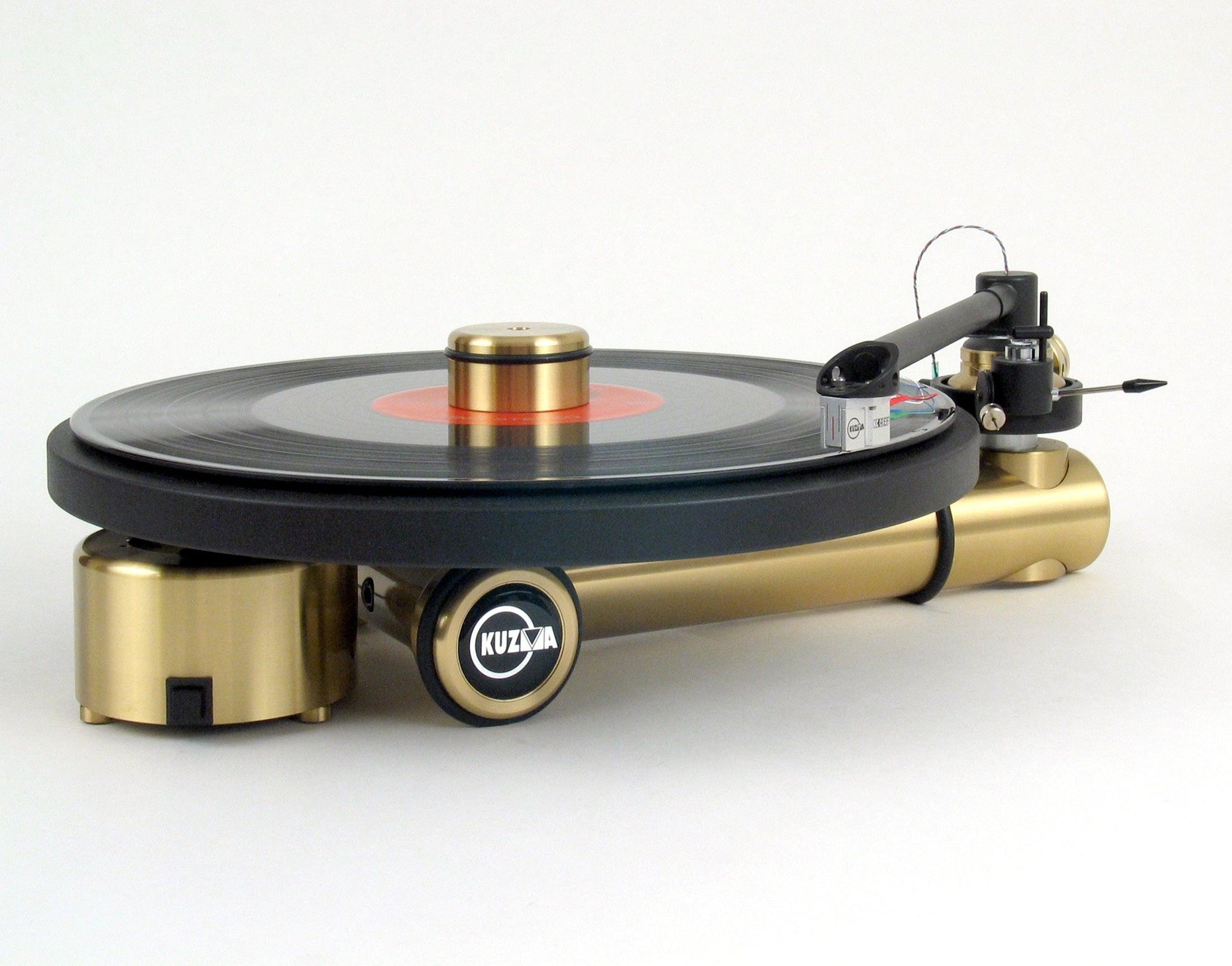

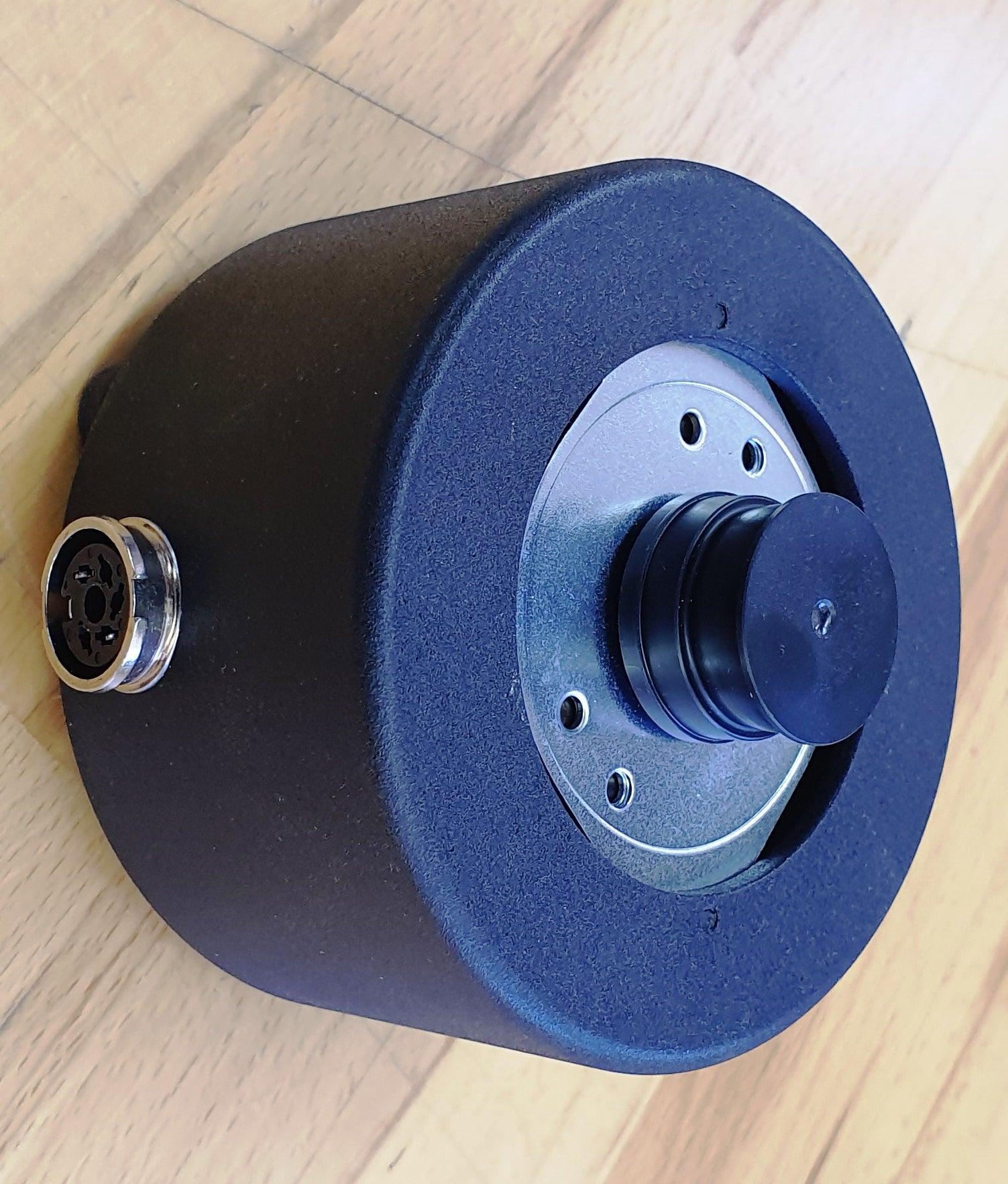

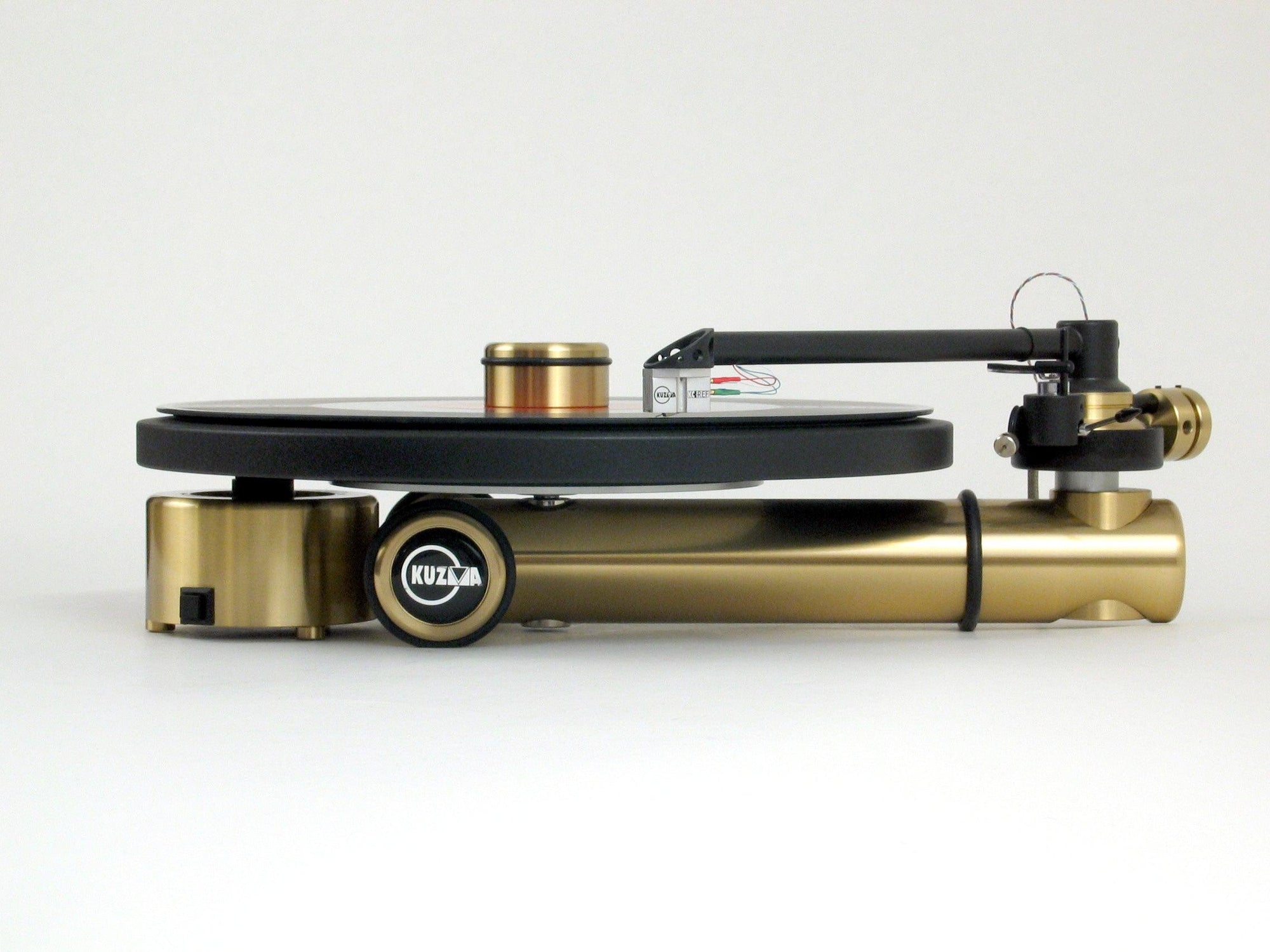

Stabi S is our smallest turntable with a design approach normally found only in more expensive models. Its unique shape and construction of solid brass rods, provide an extremely rigid connection to platter, bearing, and tonearm support. There is no flat plate to resonate and transmit vibrations, only solid brass rods 50mm in diameter. A second brass rod provides stability and the two are clamped together in a T shape. The motor is housed independently in its own bras tower which dampens the vibration of the motor itself. A ground, flat belt provides drive from the motor pulley to the sub platter.

The bearing is of highly polished, fine-grain carbon steel with a one-point contact, while the bearing sleeve is of a resin/textile material that has excellent damping, and non-resonant properties.

With a mat on top and rubber damping insert underneath, the sold aluminum platter provides a stable non-resonant platform for records. Since 2018  is supplied thicker platter- 30 mm.

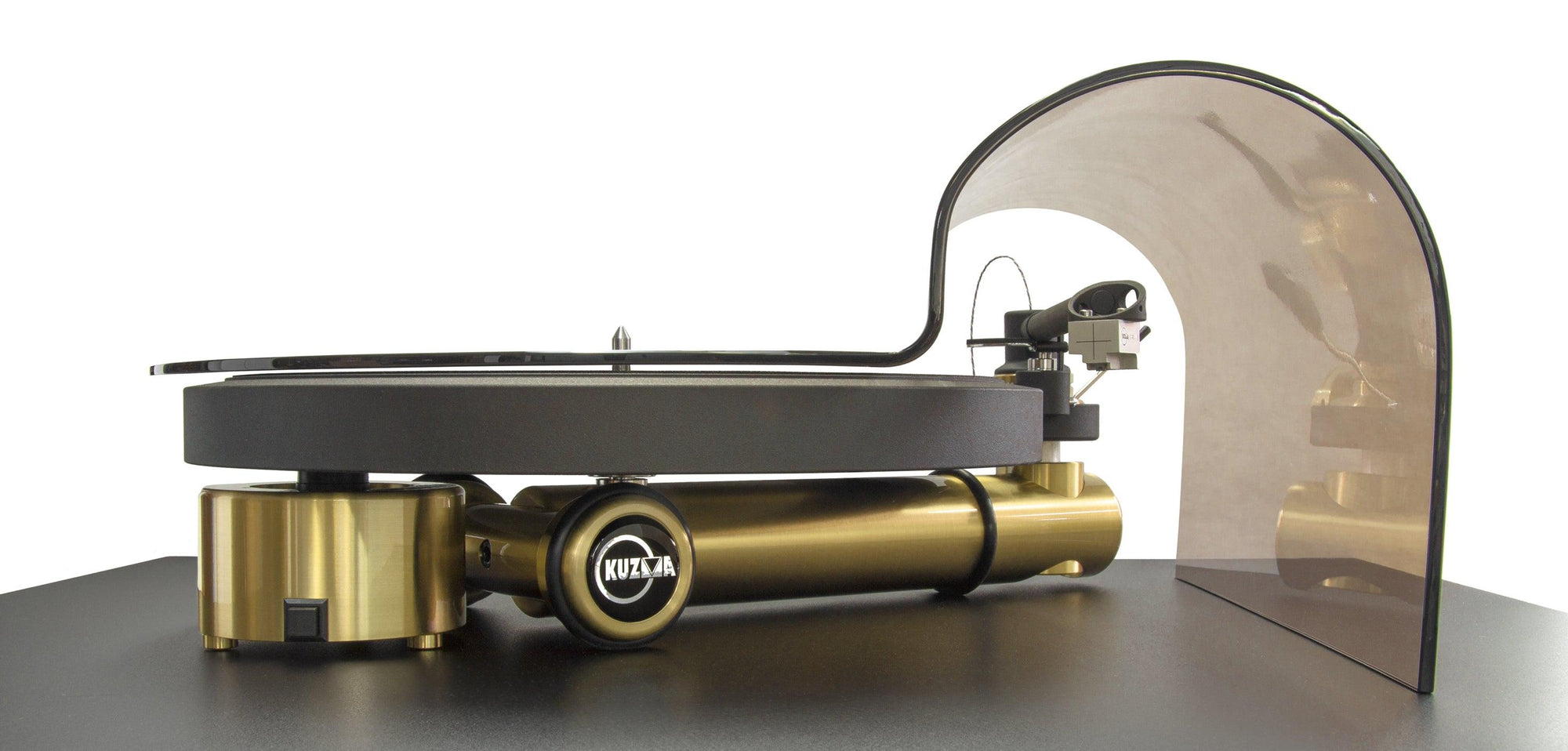

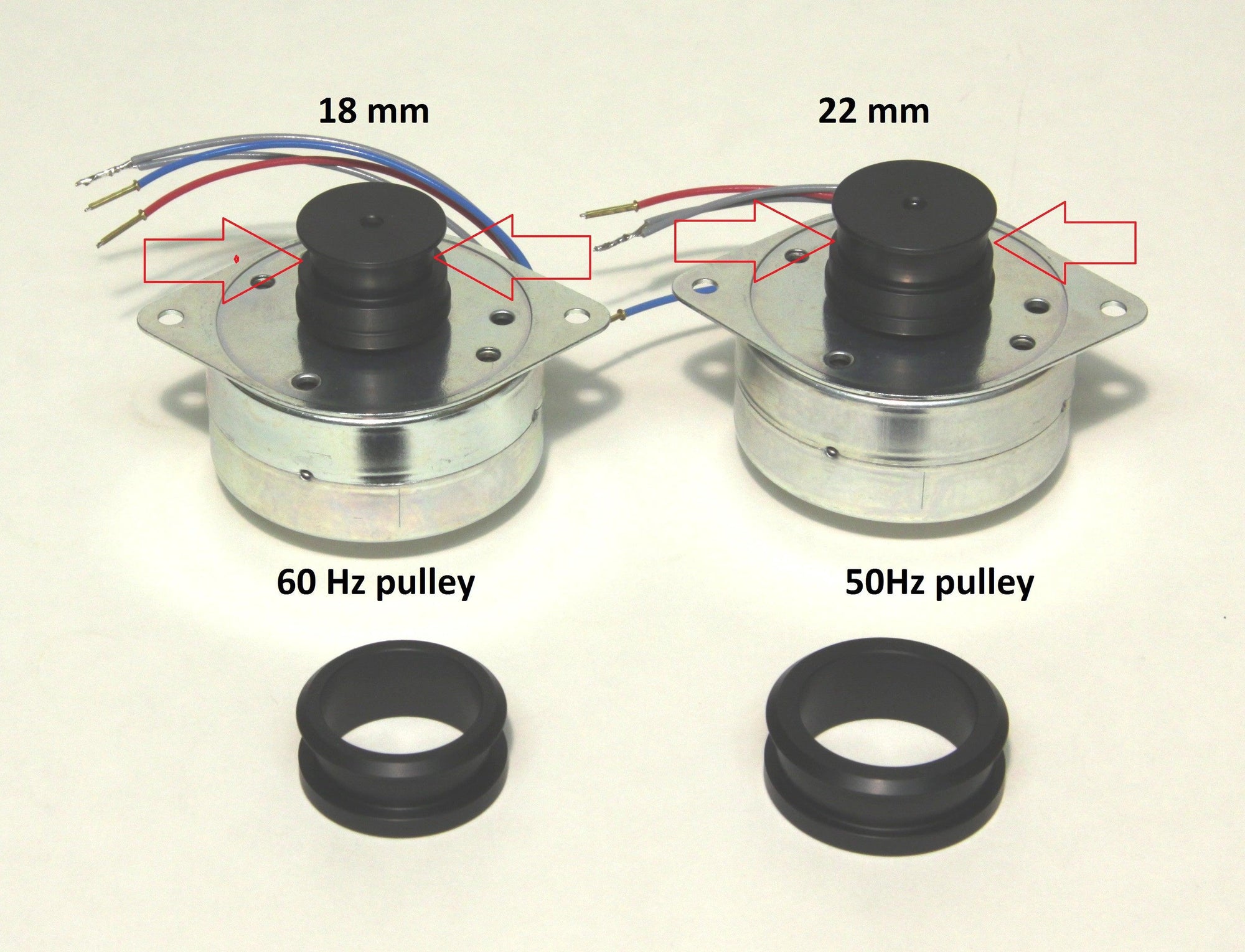

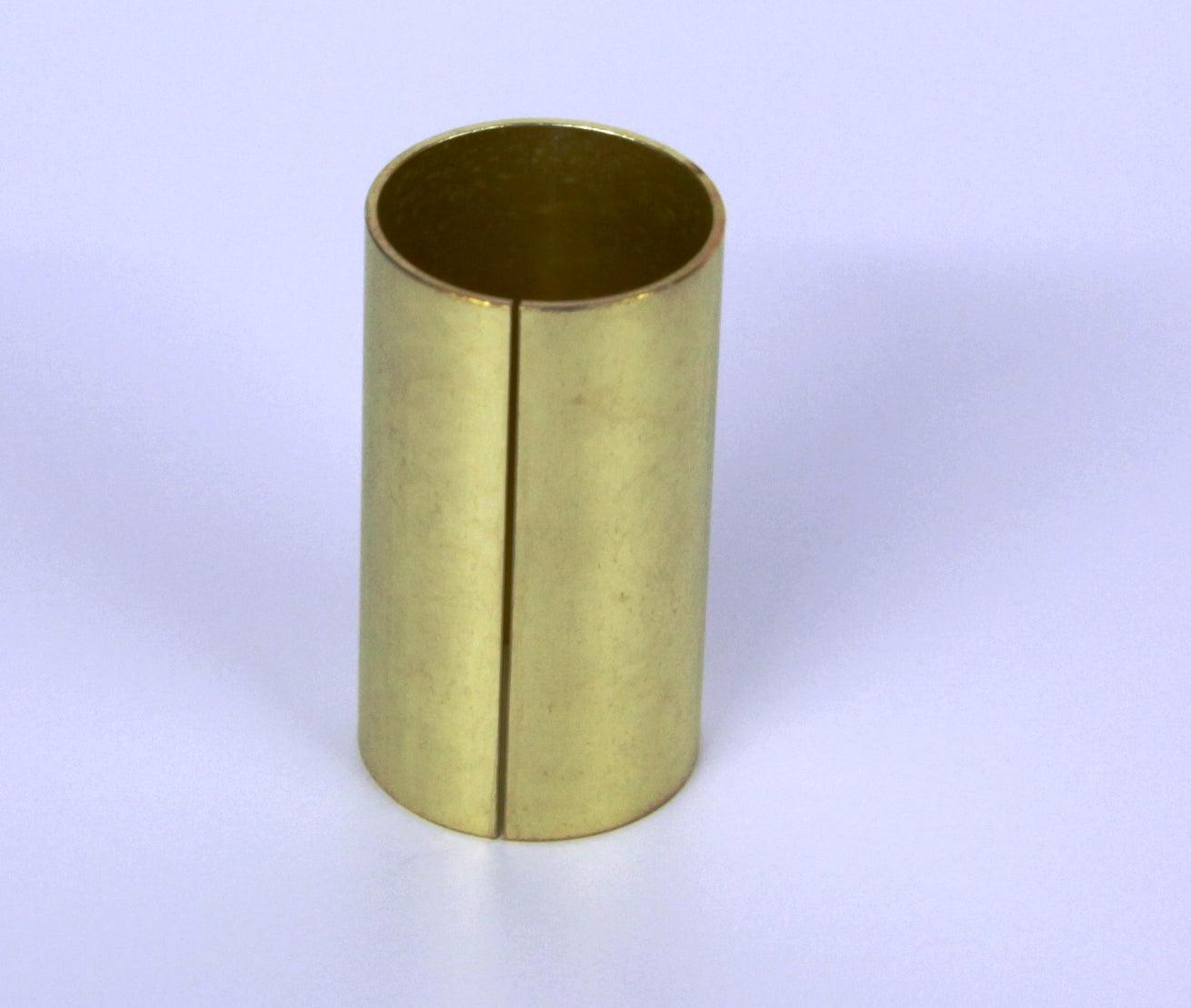

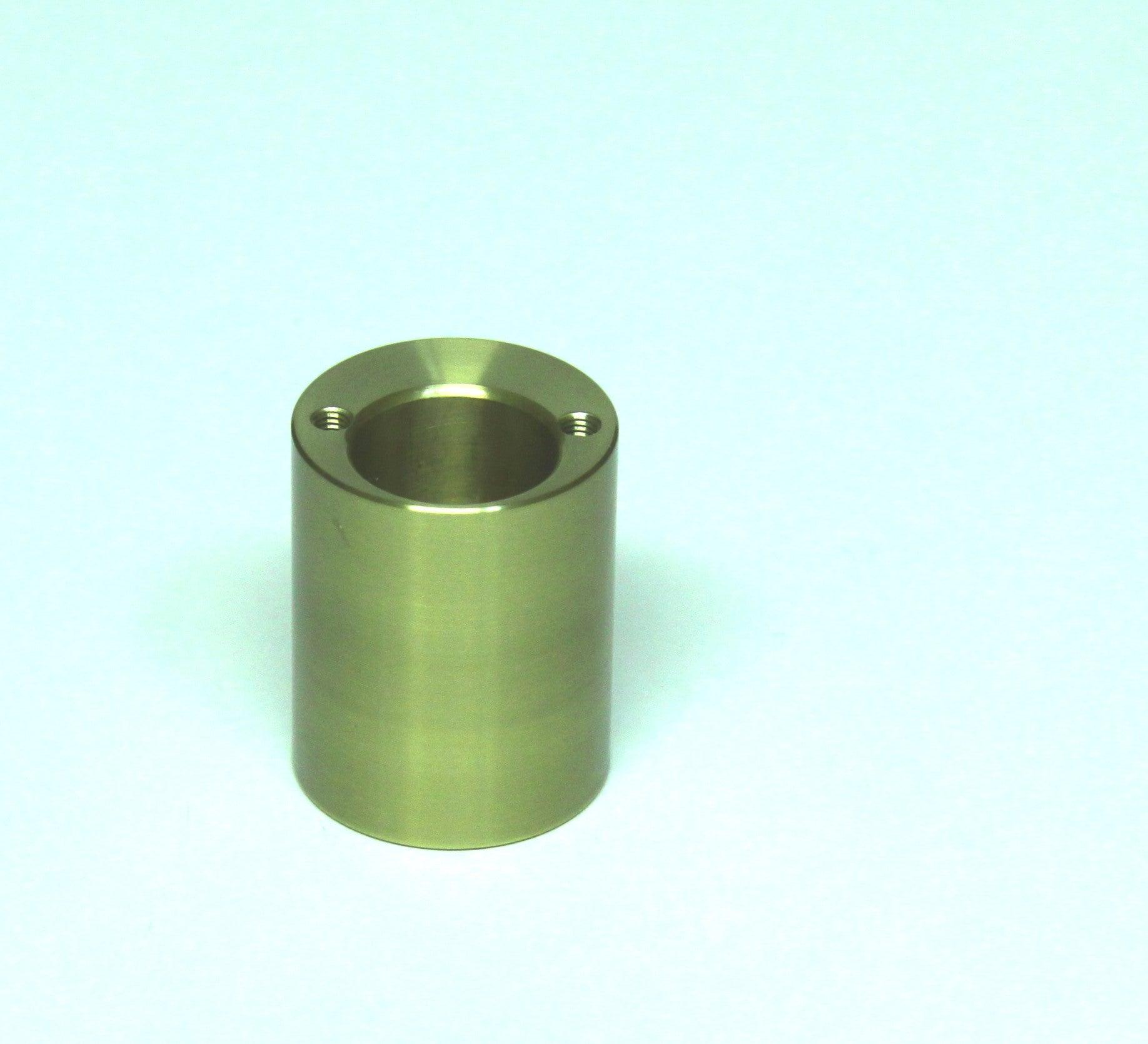

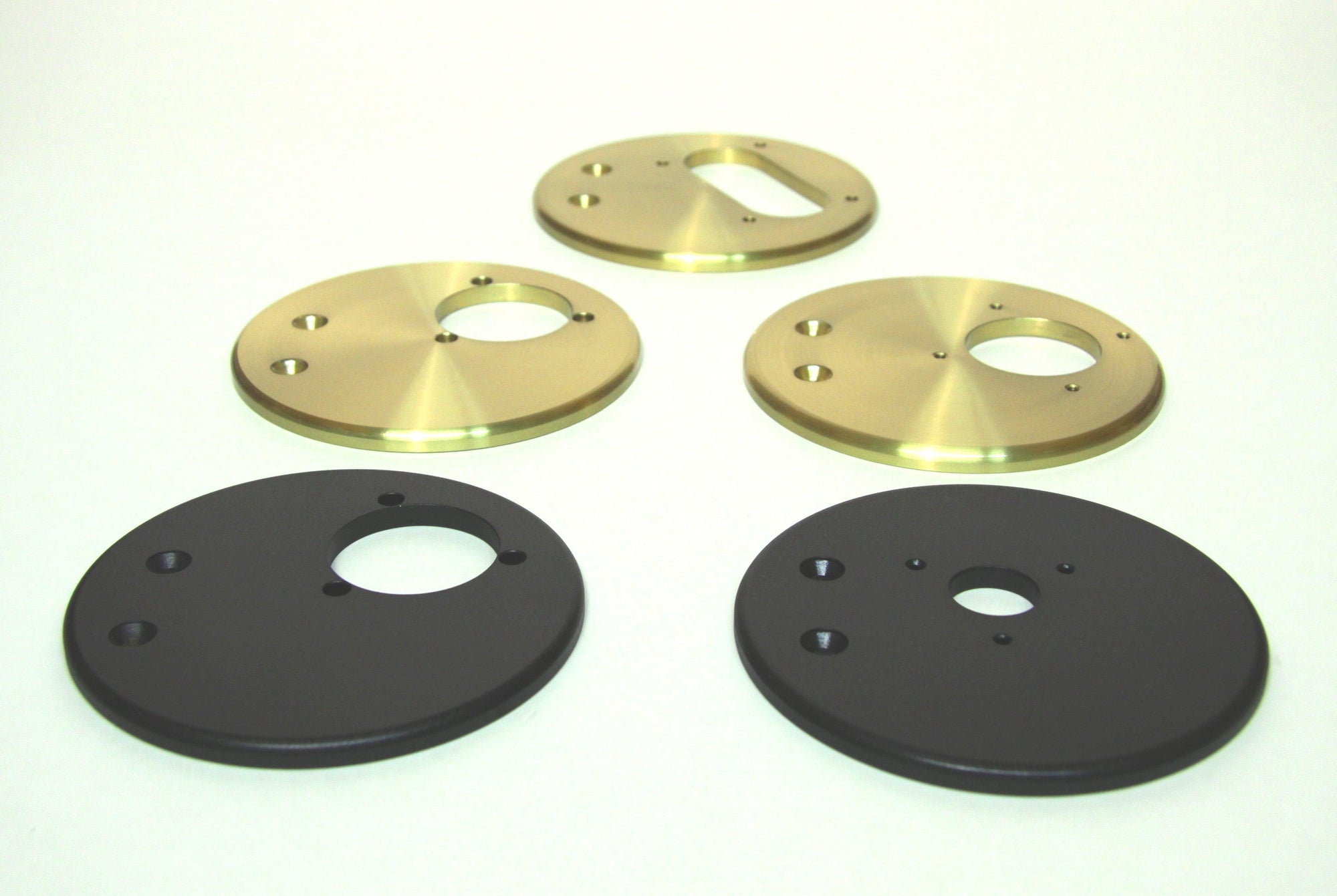

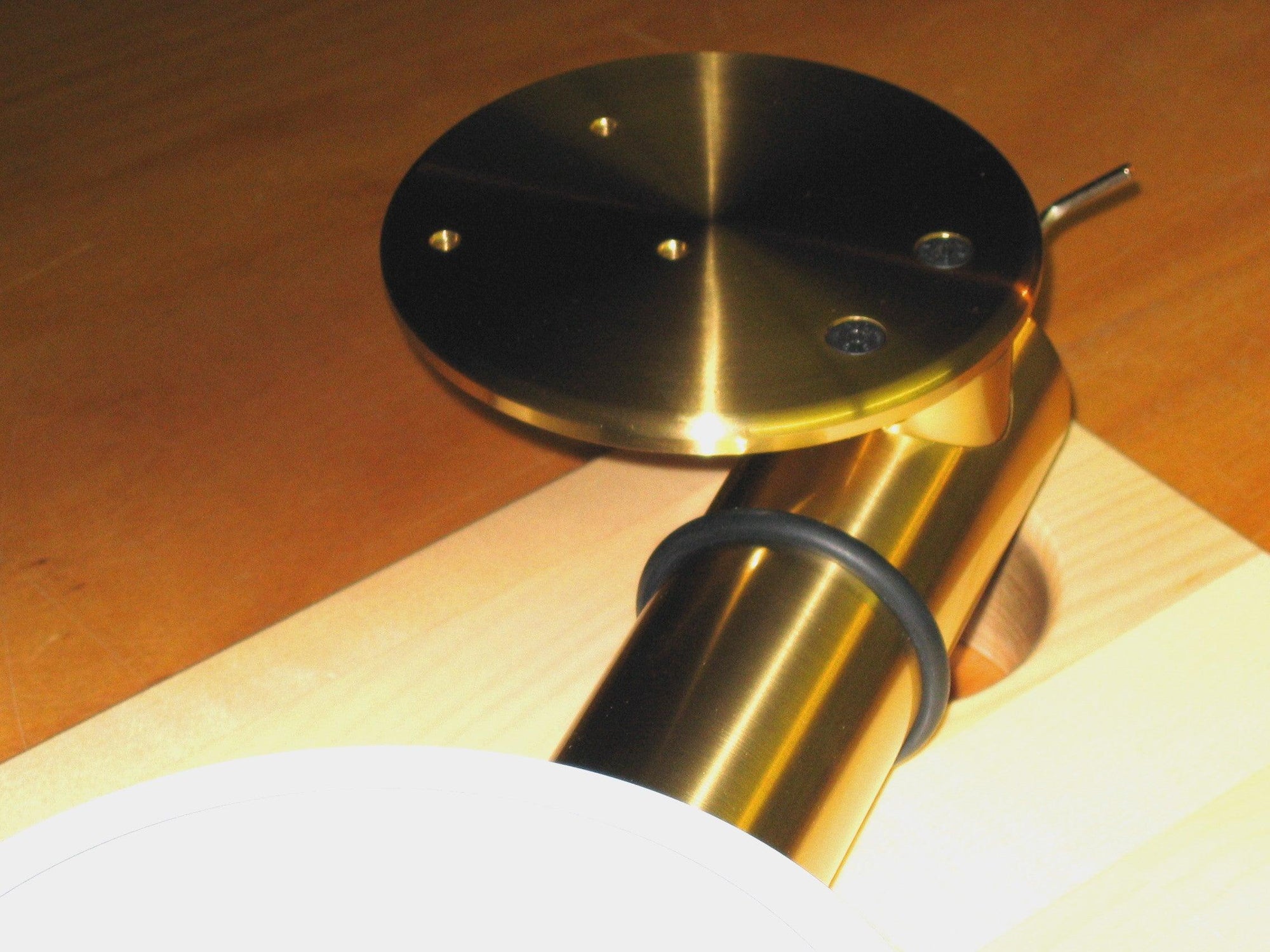

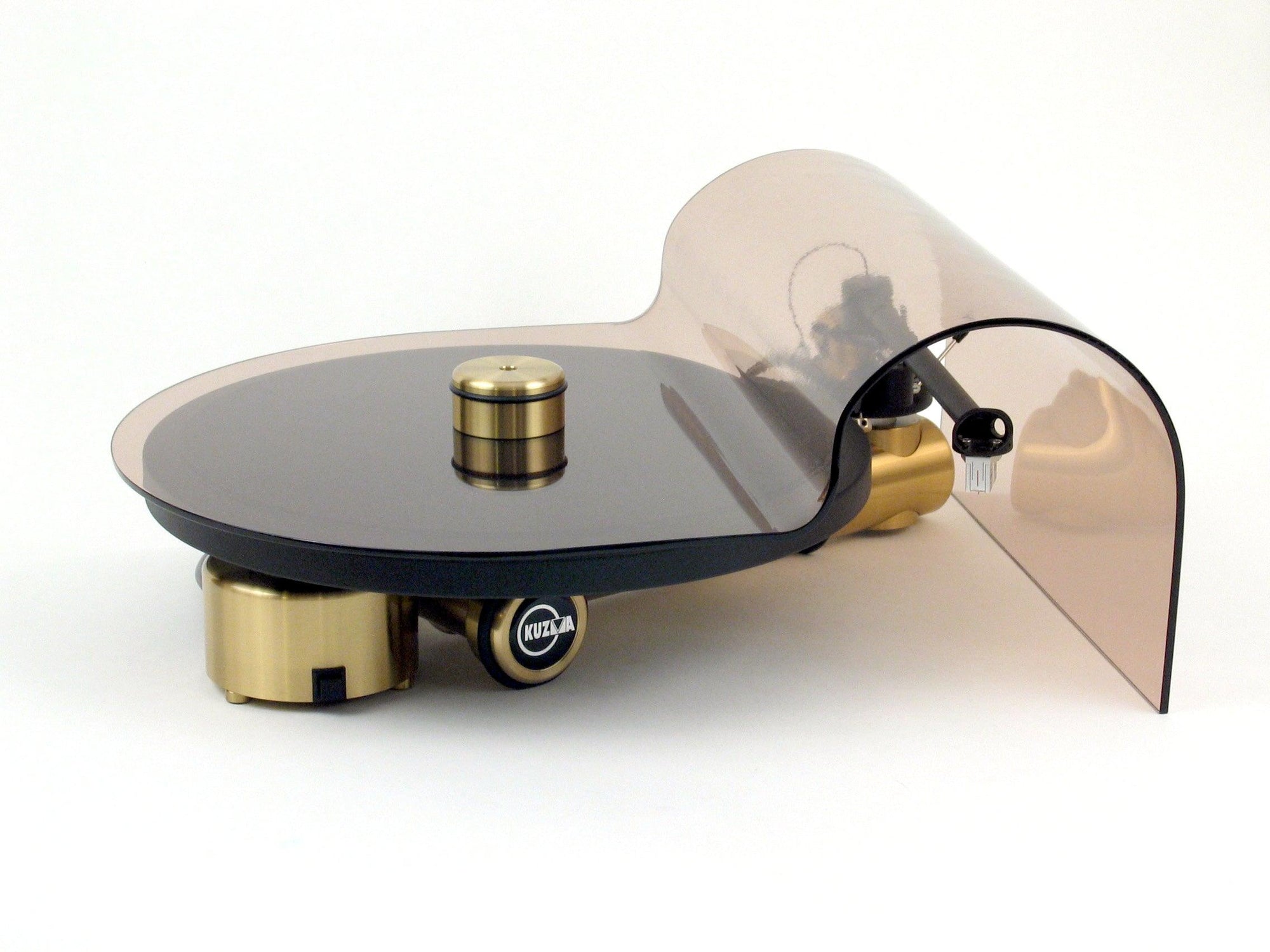

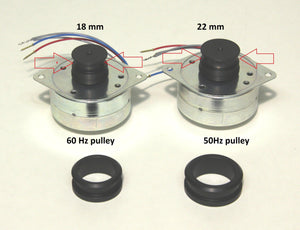

An acrylic cover protects the platter and tonearm while reflecting the turntable’s original shape. A 45 rpm adaptor is provided and is simply slipped over the 33 rpm pulley. The turntable can accommodate various tonearms by the use of different pre-cut brass plates and it allows for VTA adjustment on any tonearm mounted.

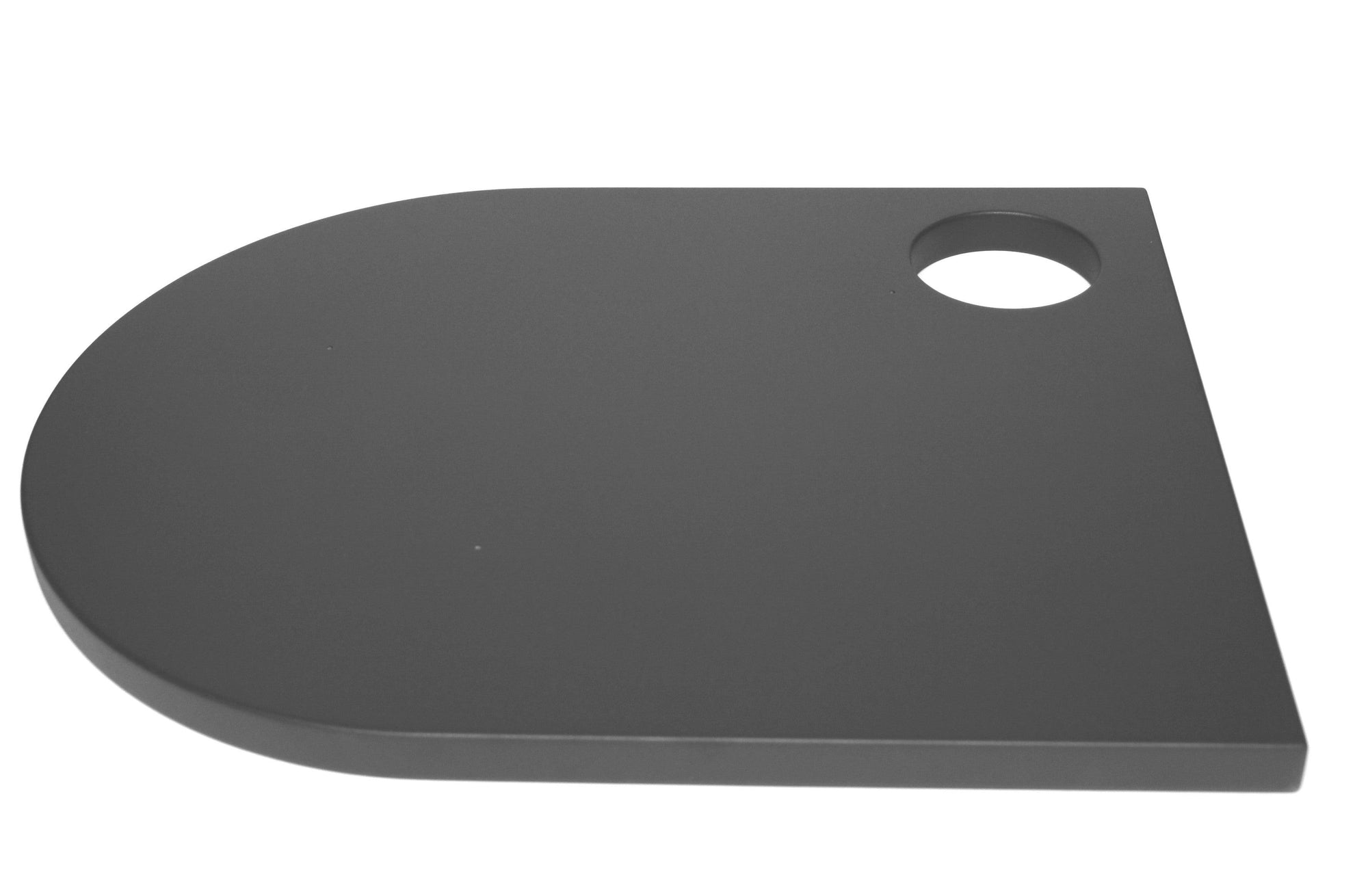

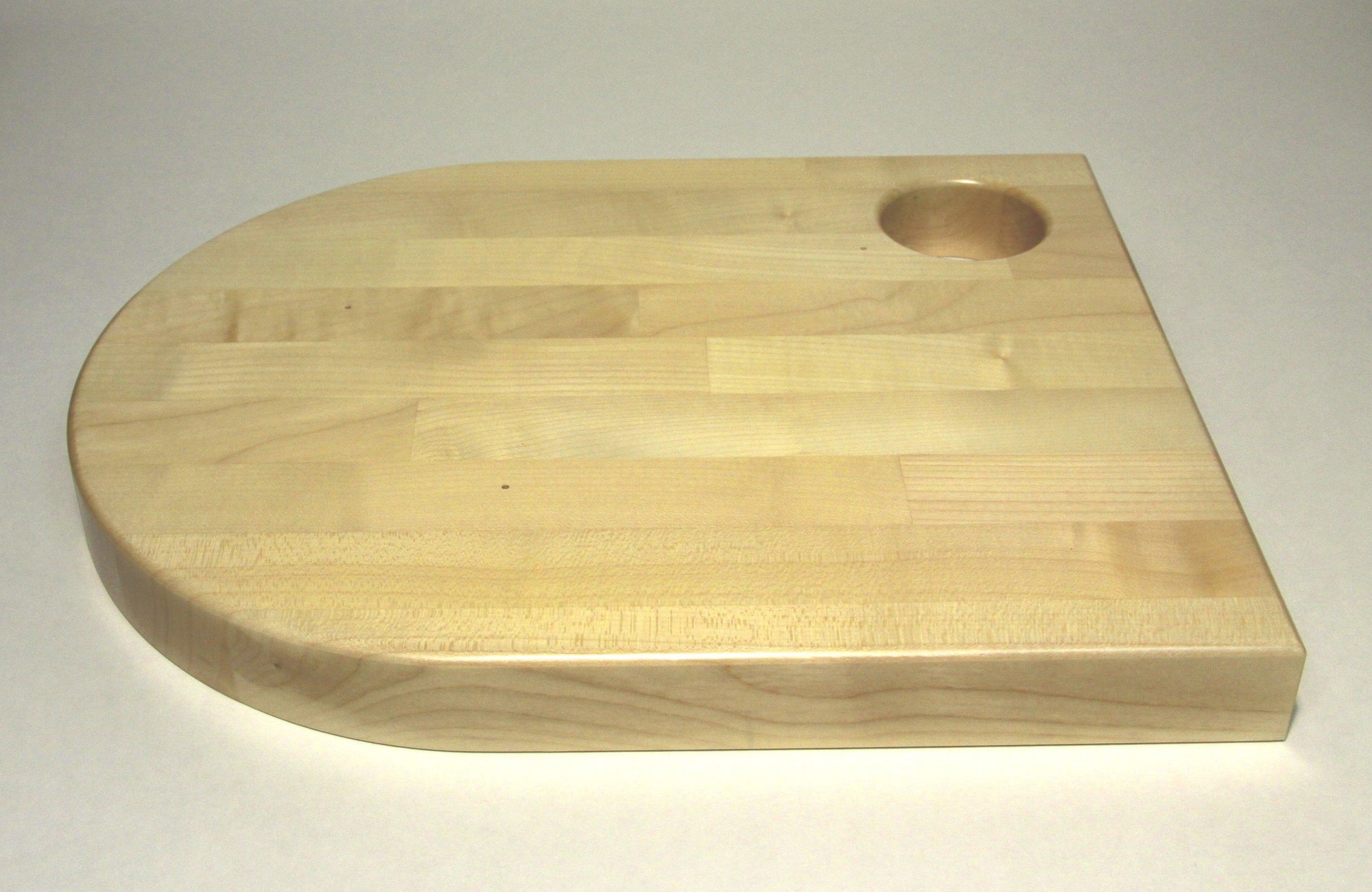

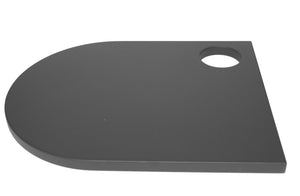

The whole turntable is supported by an optional high-density plywood plate.

Introduced: 1998



Specifications

Mass- 13 Kg

Platter mass- 4.3 Kg (since 2018 is supplied thicket platter- 30mm)

Platter material- Aluminium

Bearing type- Pointed shaft with resin/textile material

Shaft diameter- 10 mm

Drive- Flat rubber belt

Chassis/Levelling- Brass/ No

Turntable leveling- No

Motors- 1 pc AC

External power supply- optional

Speeds- 33.45 rpm

Armboard- optional (Kuzma arms fit directly)

VTA adjustment- Yes

No. of tonearms- 1 (+1 optional)

Max tonearm's length- 10" (optional 12")

Suspended- No

Dimensions- 400x300x170 mm

Finishes- Brass or black (RAL finish by order)

Clamp- Optional

Mat- Yes

Lid- Yes

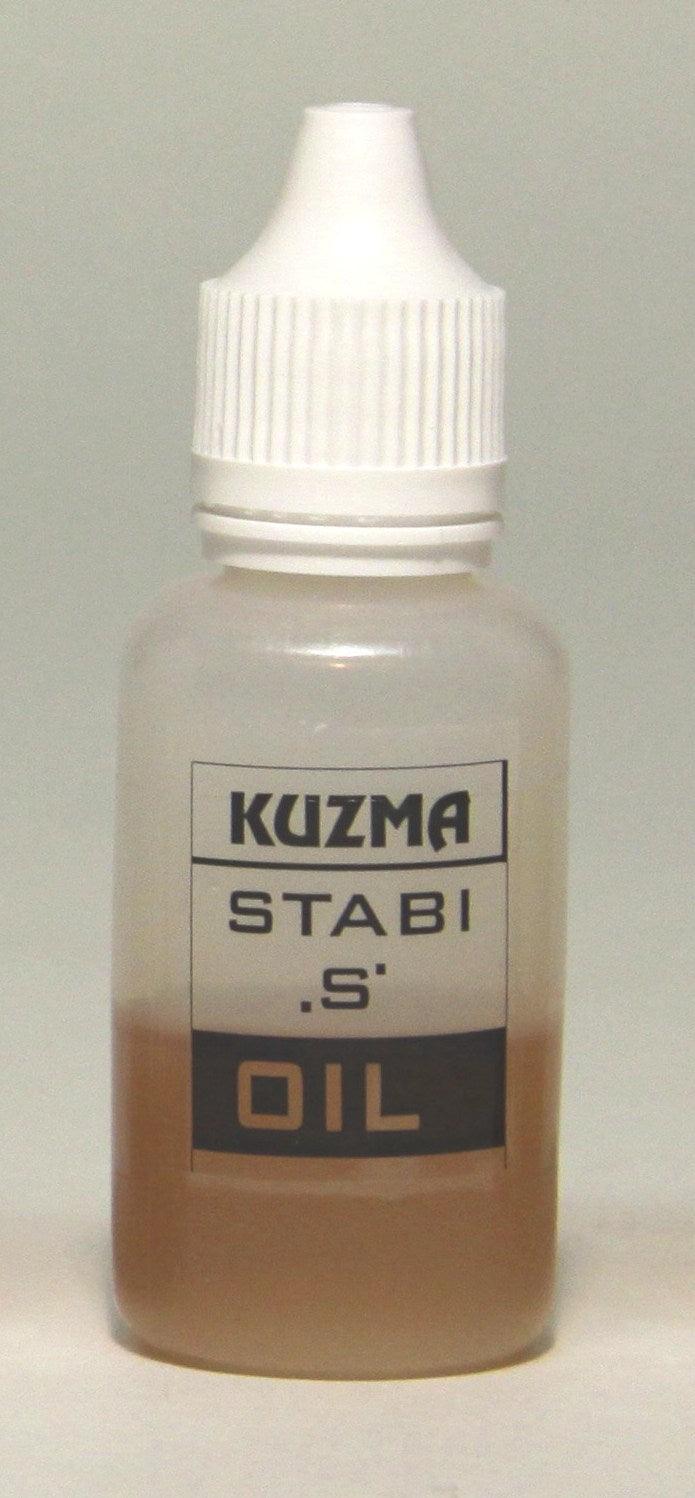

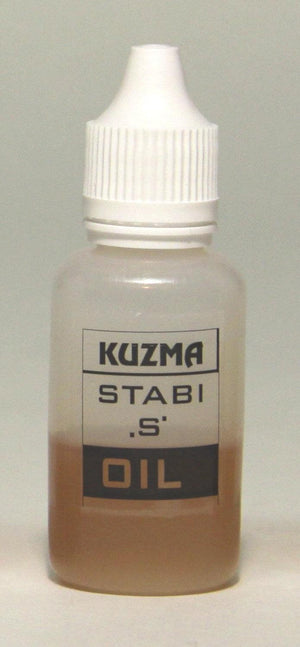

Accessories- Oil, Allen keys

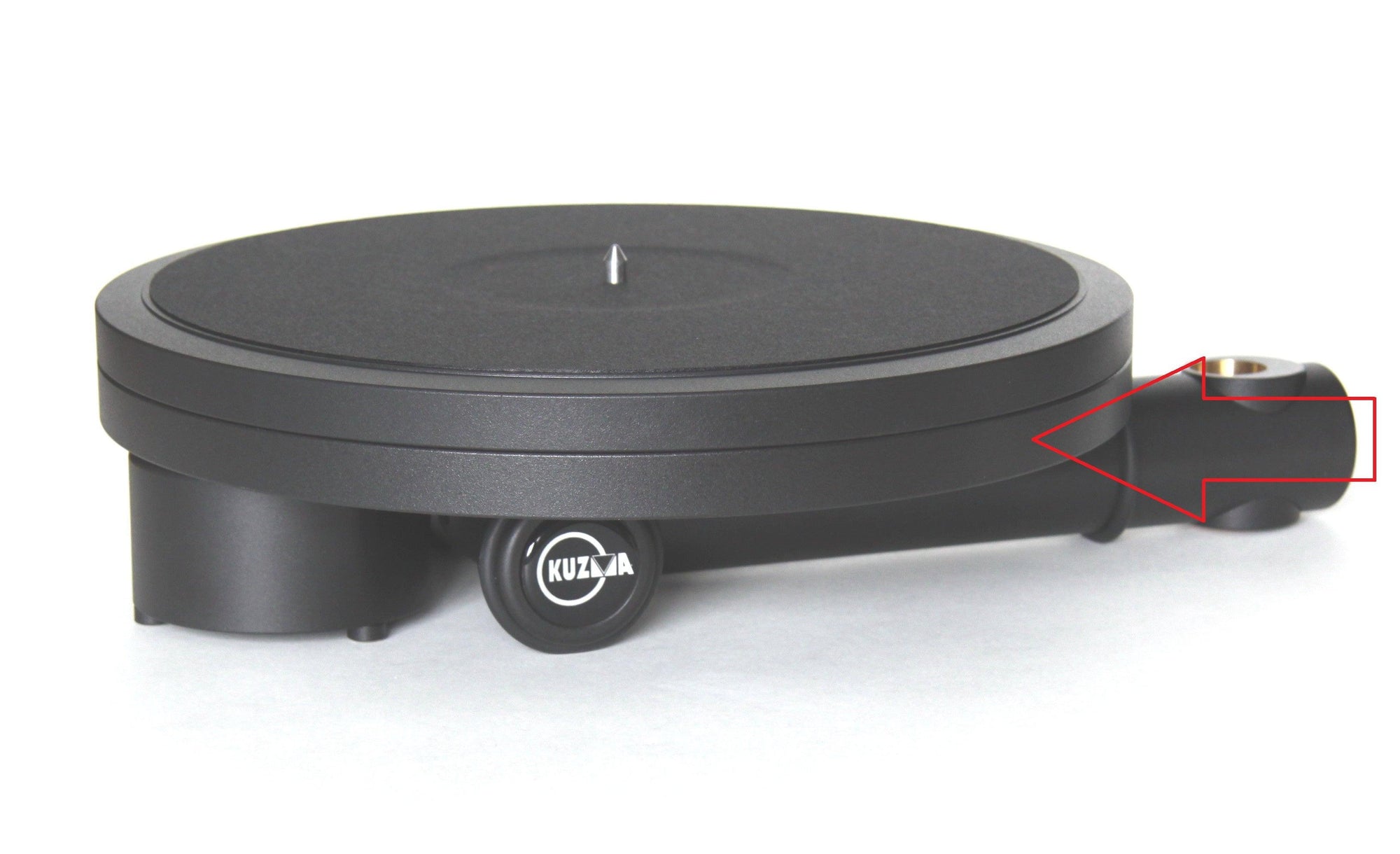

Options- SD-second arm kit, 12" kit, extra platter kit (2.6 kg only for older 20mm thicker platter)

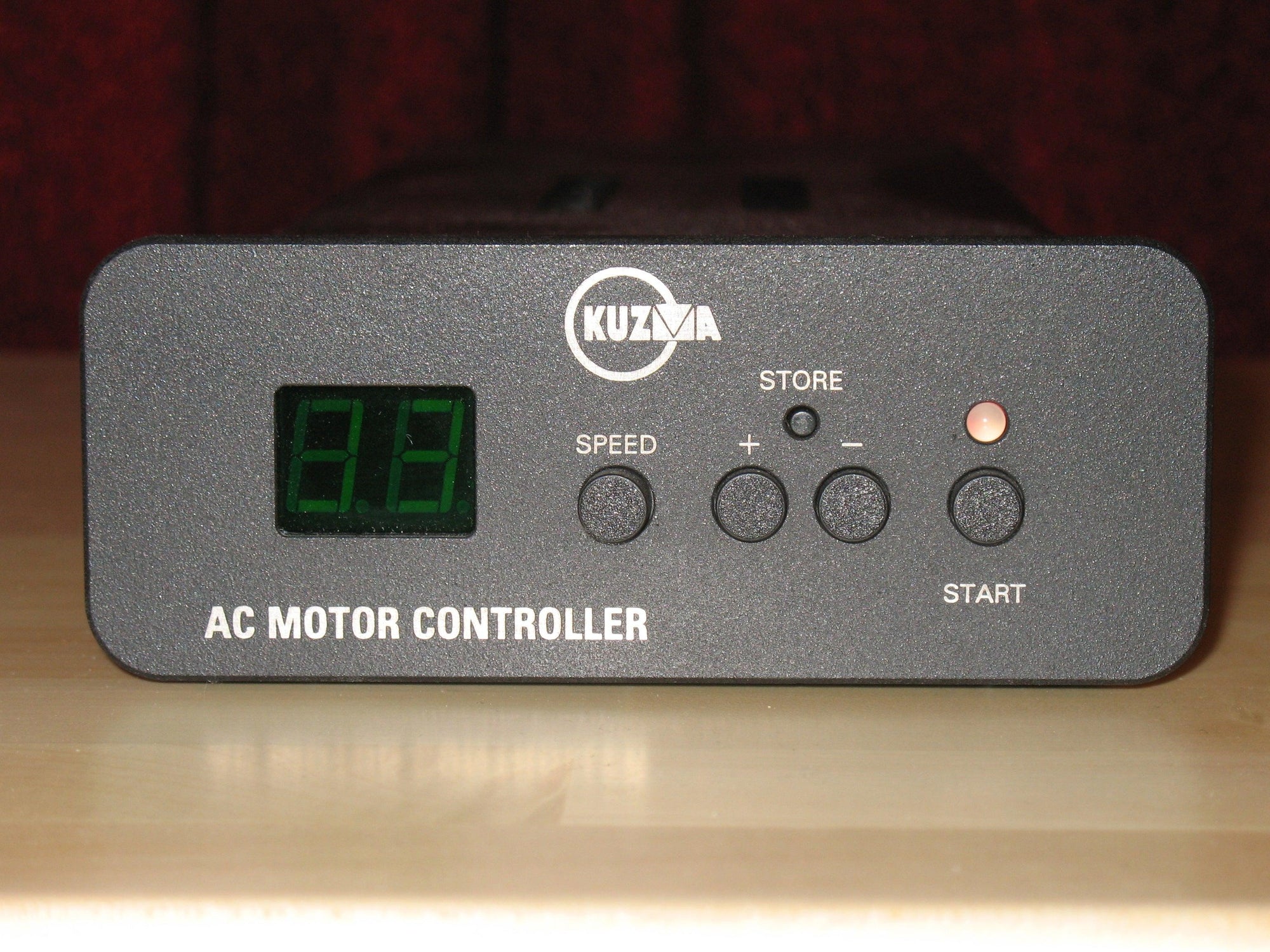

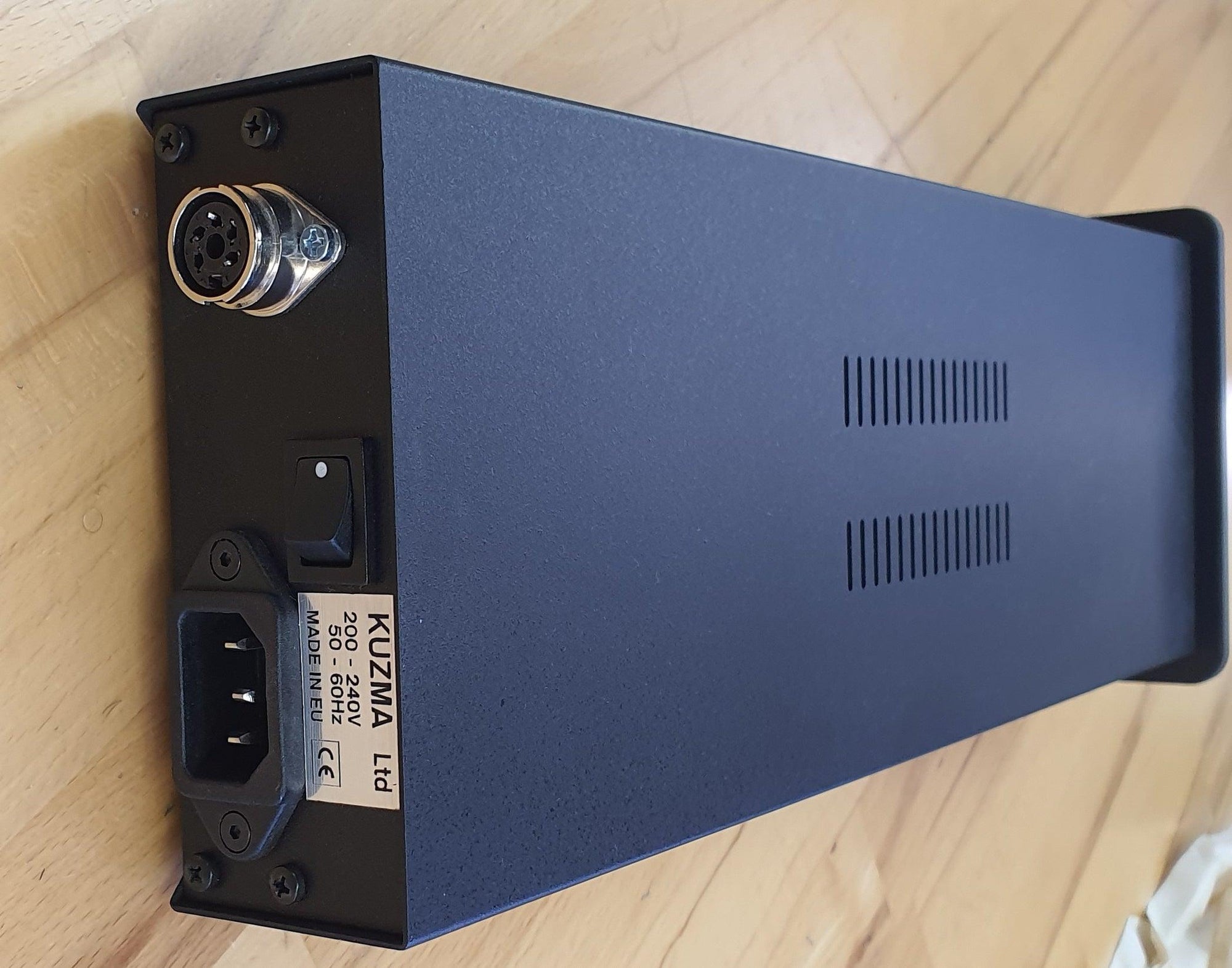

Options- Various arm boards, outboard power supply

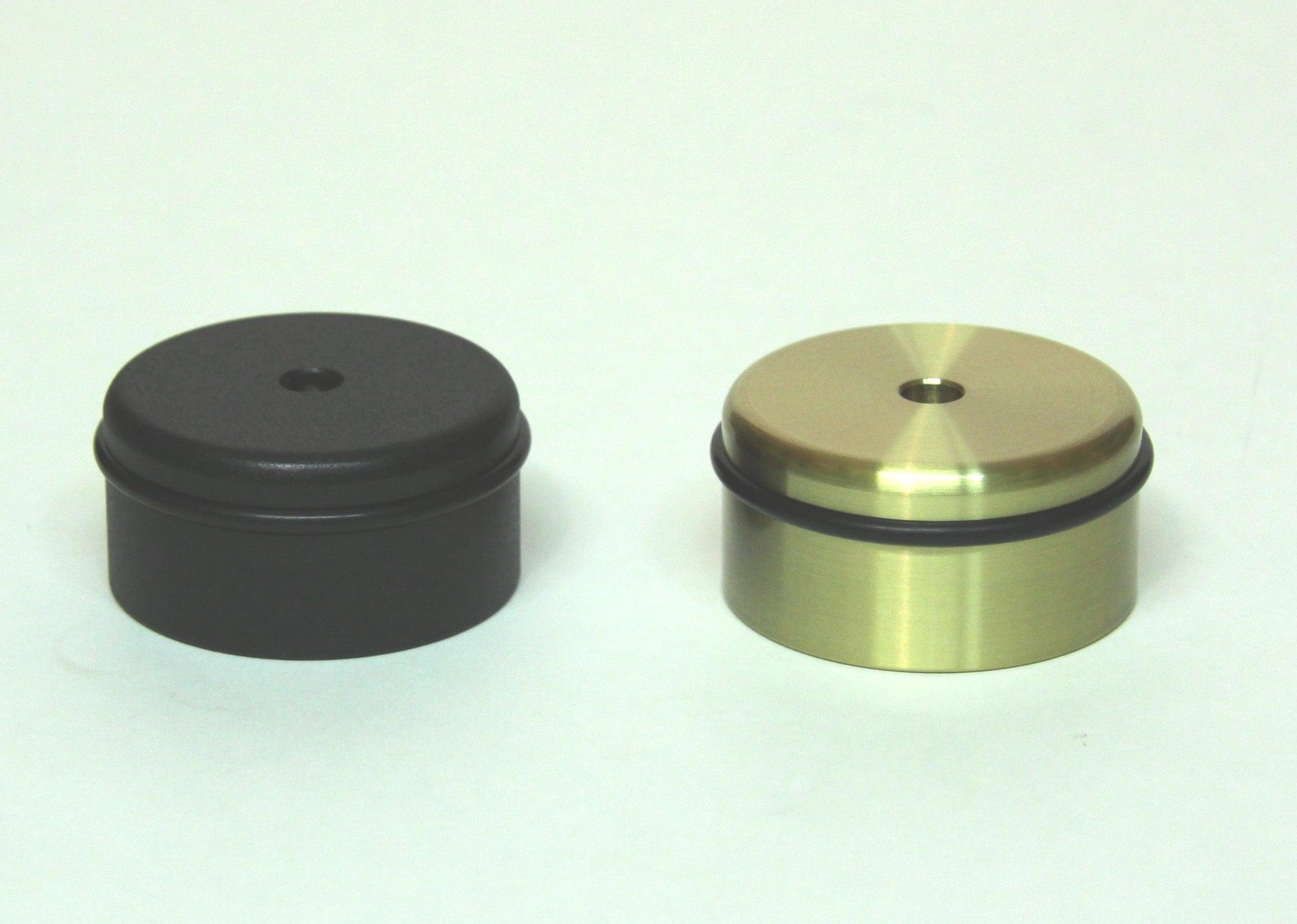

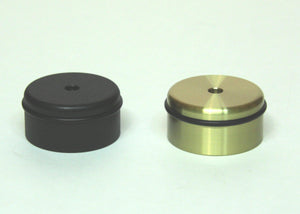

Options- Brass clamp (370 g), supporting platforms
