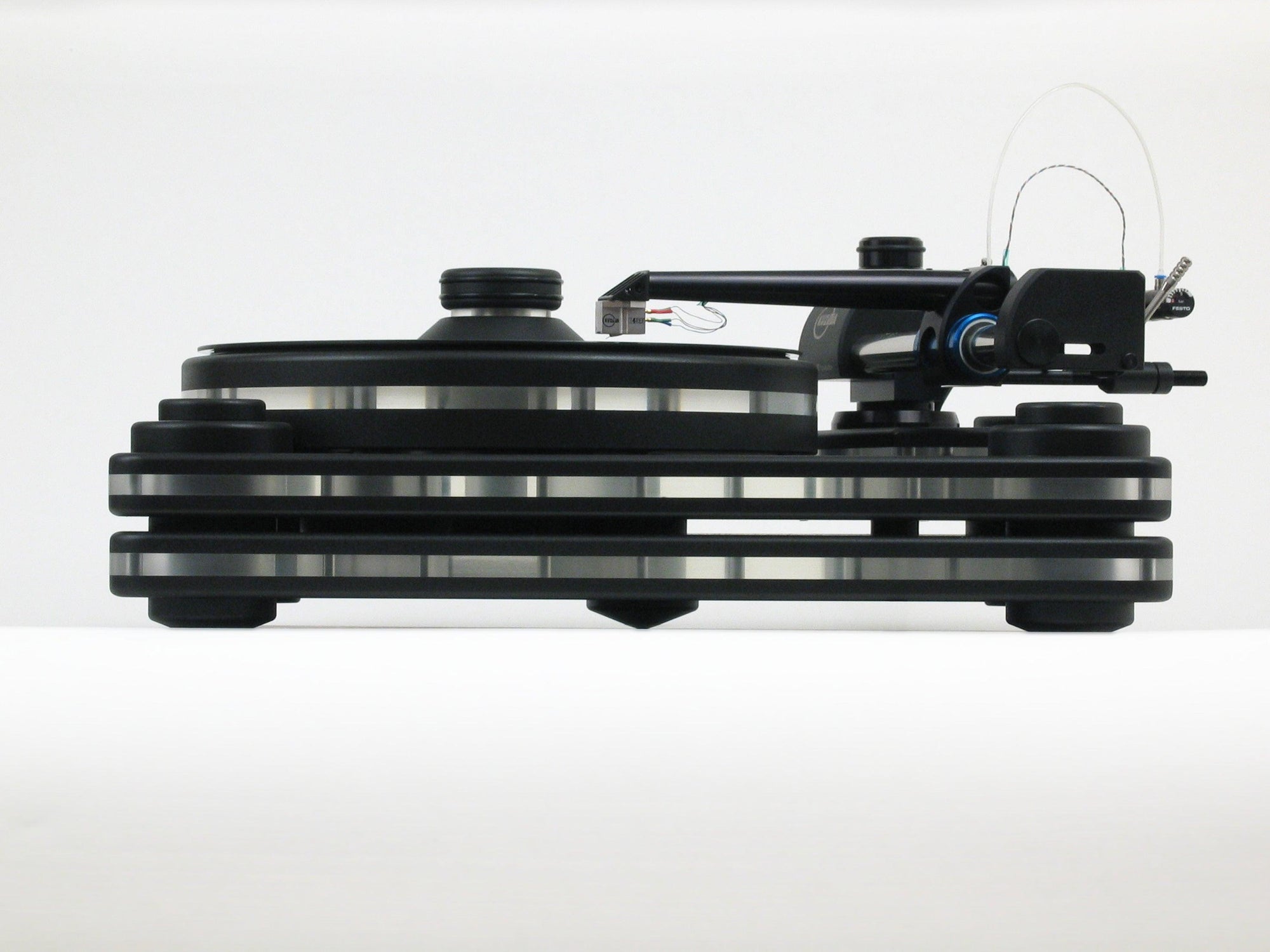

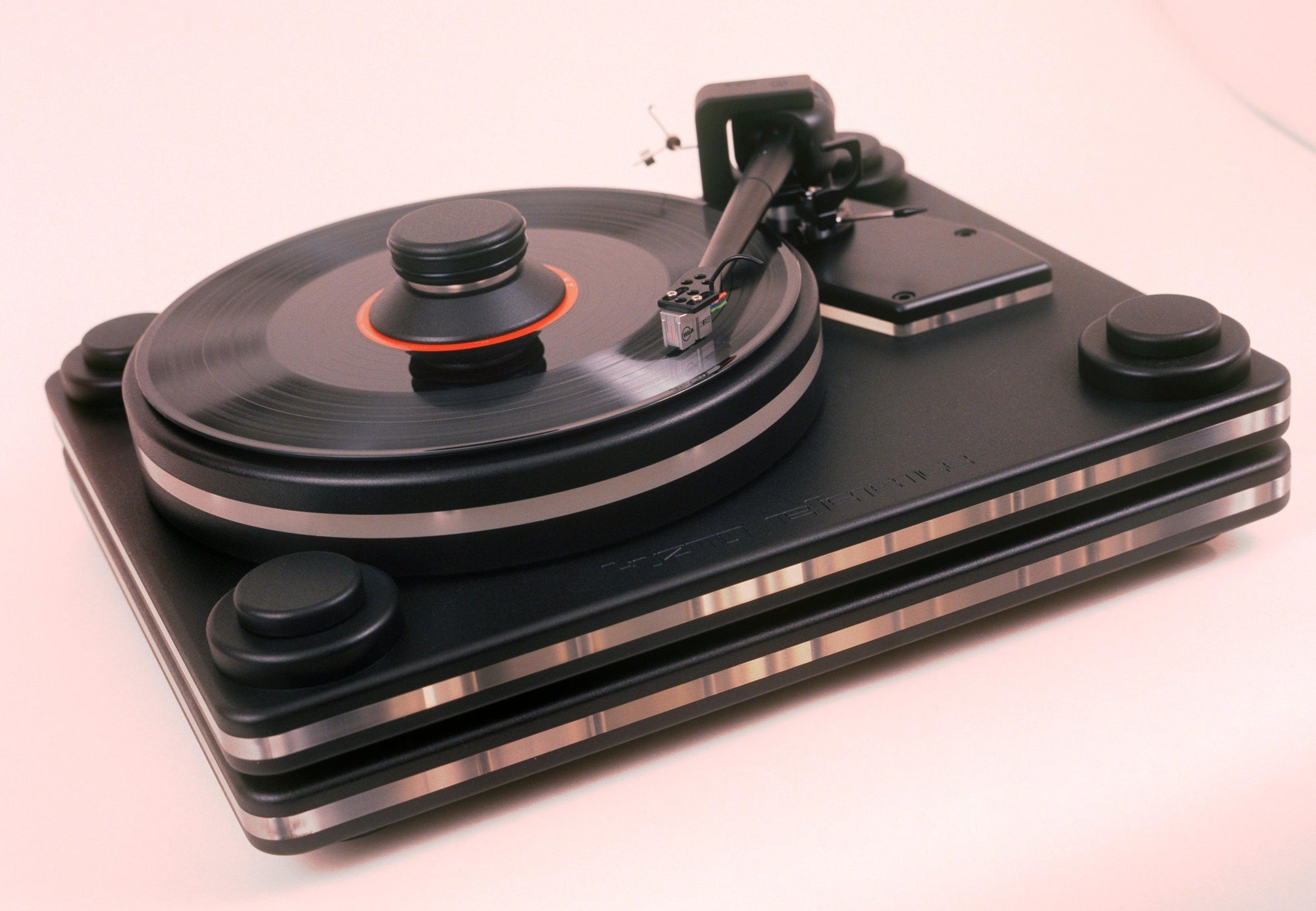

Stabi Ref was first introduced in 1992.

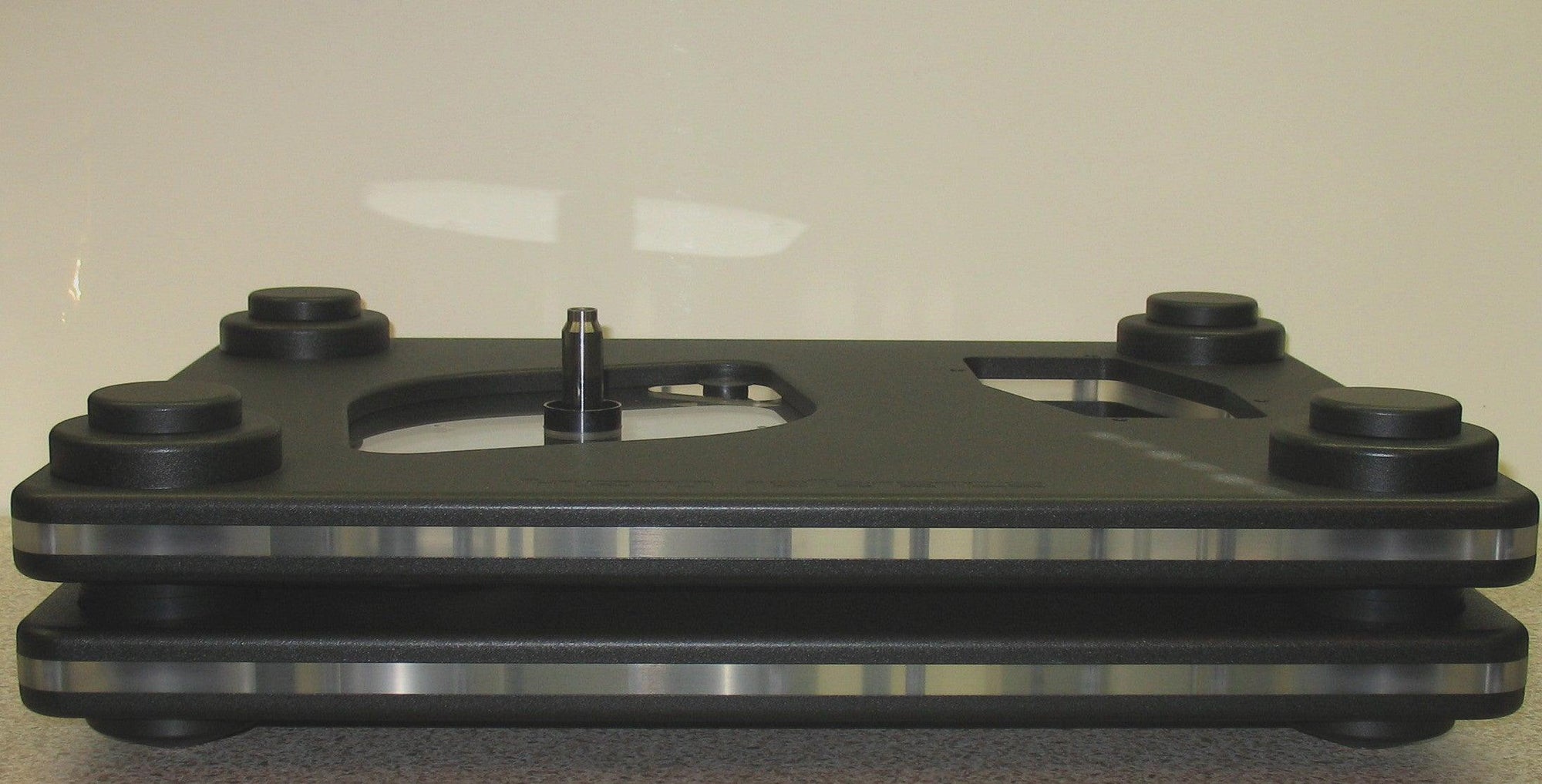

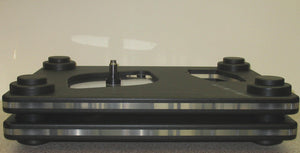

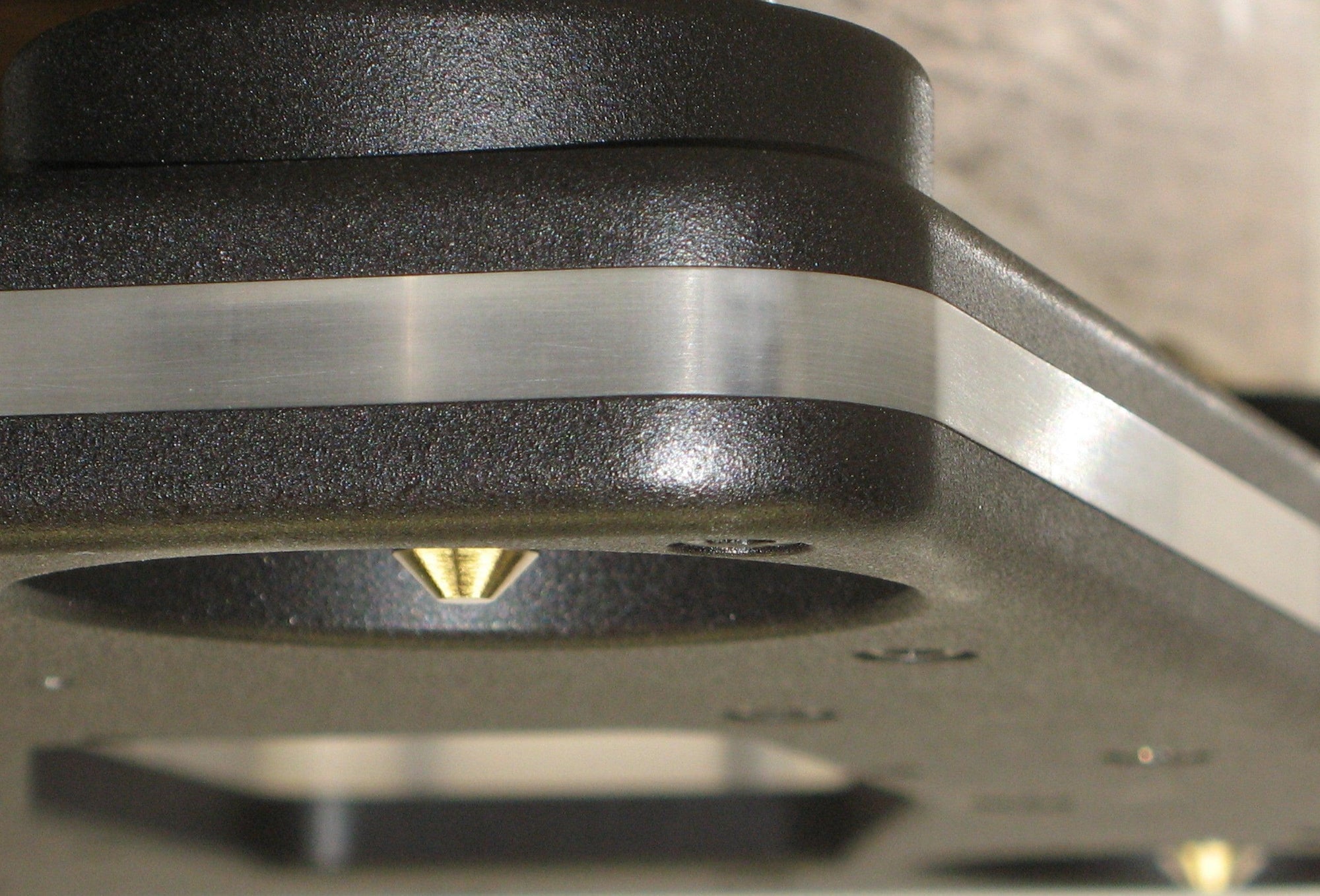

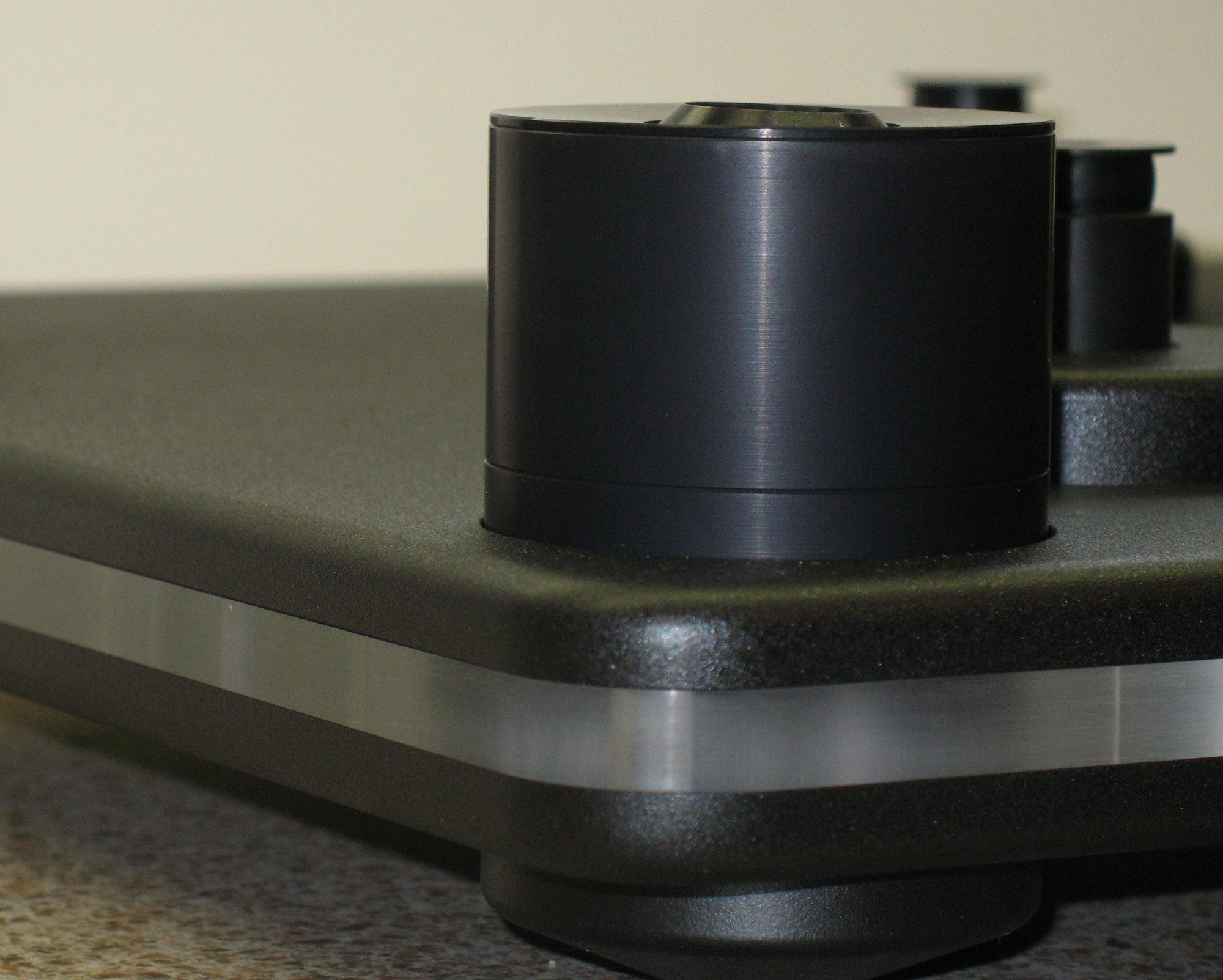

This is constructed from two plates, each plate being made from a sandwich construction of two 10 mm aluminum plates, separated by an acrylic plate clamped together with pre-stressed, non-magnetic, stainless steel screws. The turntable chassis (top plate) is suspended by large springs submerged in silicone oil, with a low resonance of 2.2 Hz, which dampens the movements of the springs themselves. The main base (bottom plate) is supported by three aluminum and stainless steel spikes. The top plate is easily leveled by four knobs. When this plate is lifted (for transport) the silicone suspension reservoirs are automatically sealed.

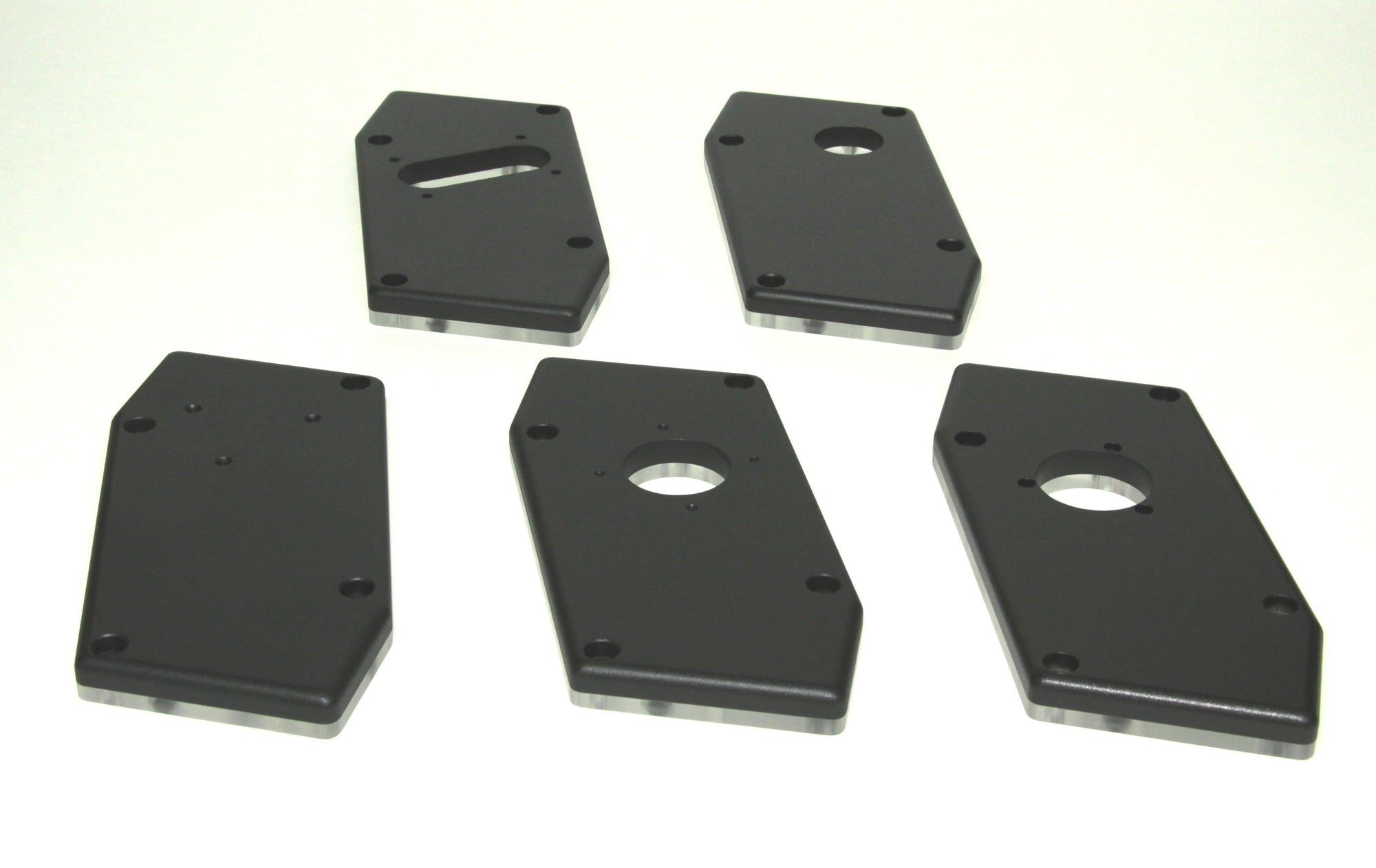

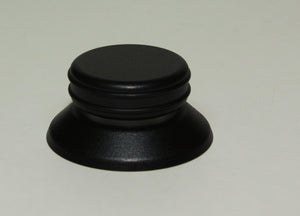

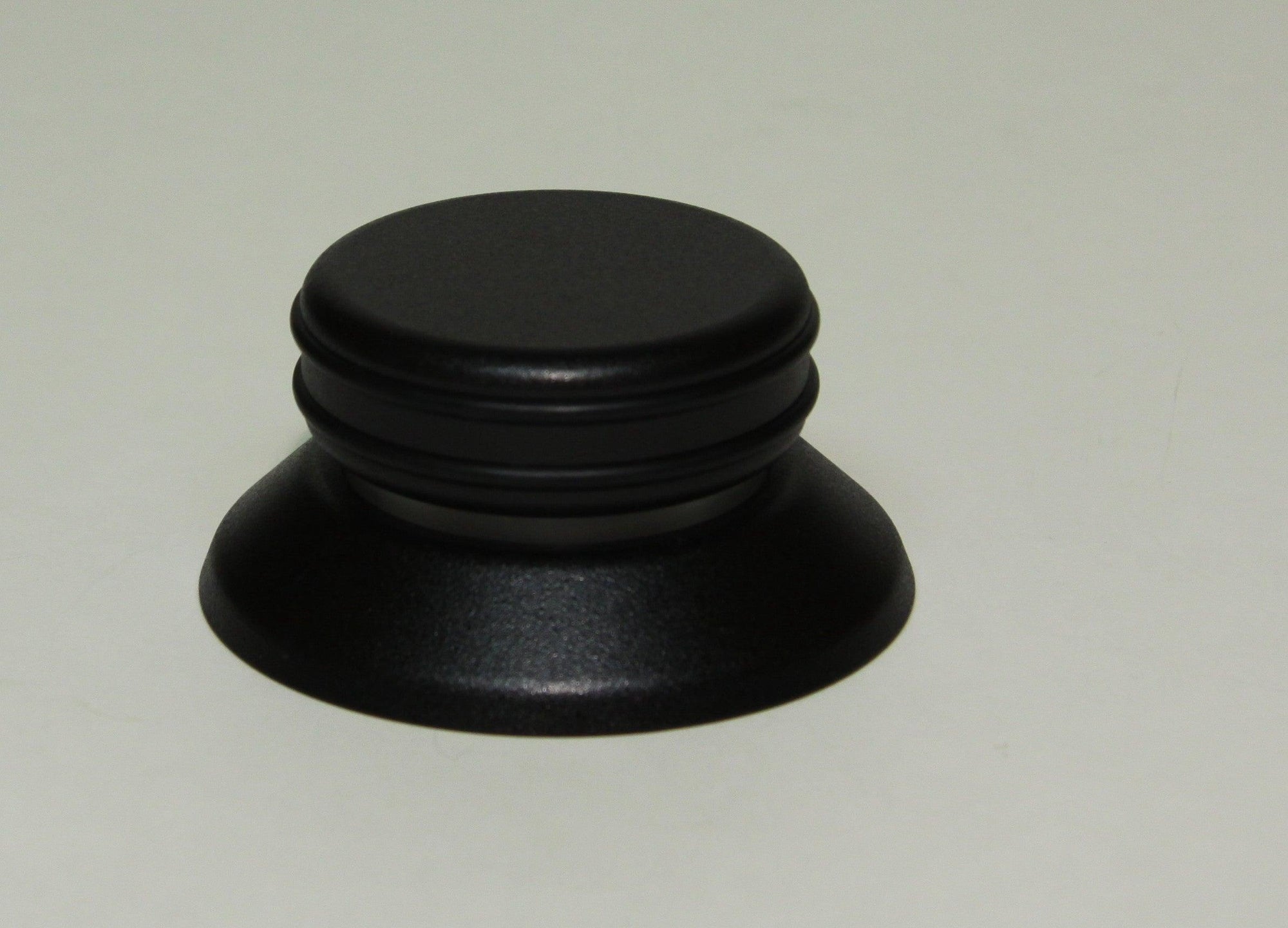

Two motors in a diamond drive, power the sub platter, which has an inverted bearing with a ruby ball. Both the ball and sliding ring have their oil bath for lubrication and damping of any vibration within the bearing. The platter is also of a clamped sandwich construction, in order to combine the strength of aluminum (rigidity) and the damping properties of acrylic, which produces an exceptionally stable and no resonant support for records. The mat and special clamp are made in much the same way as the platter and further serve to control all vibrations. The arm board also employs the sandwich construction design.

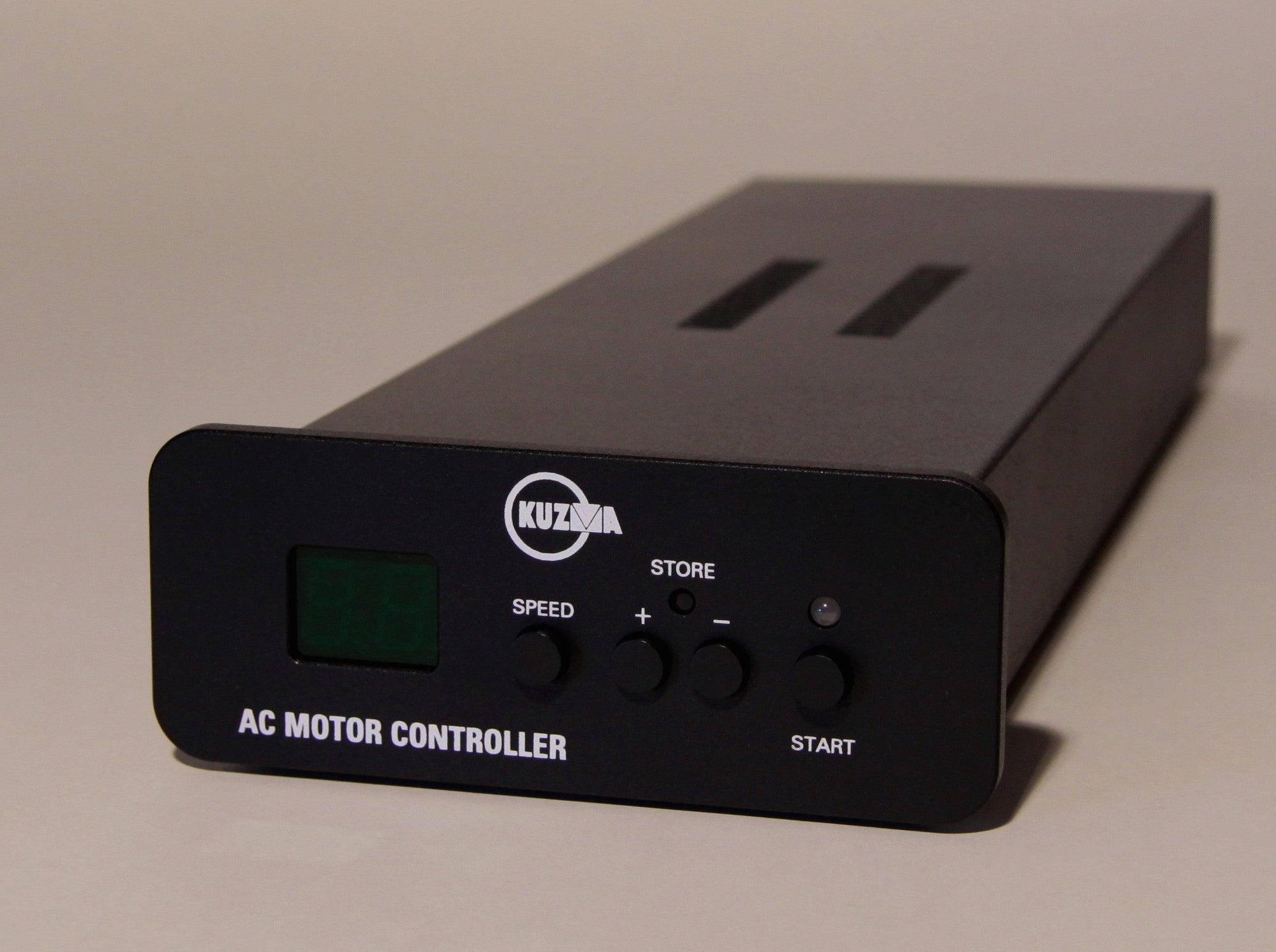

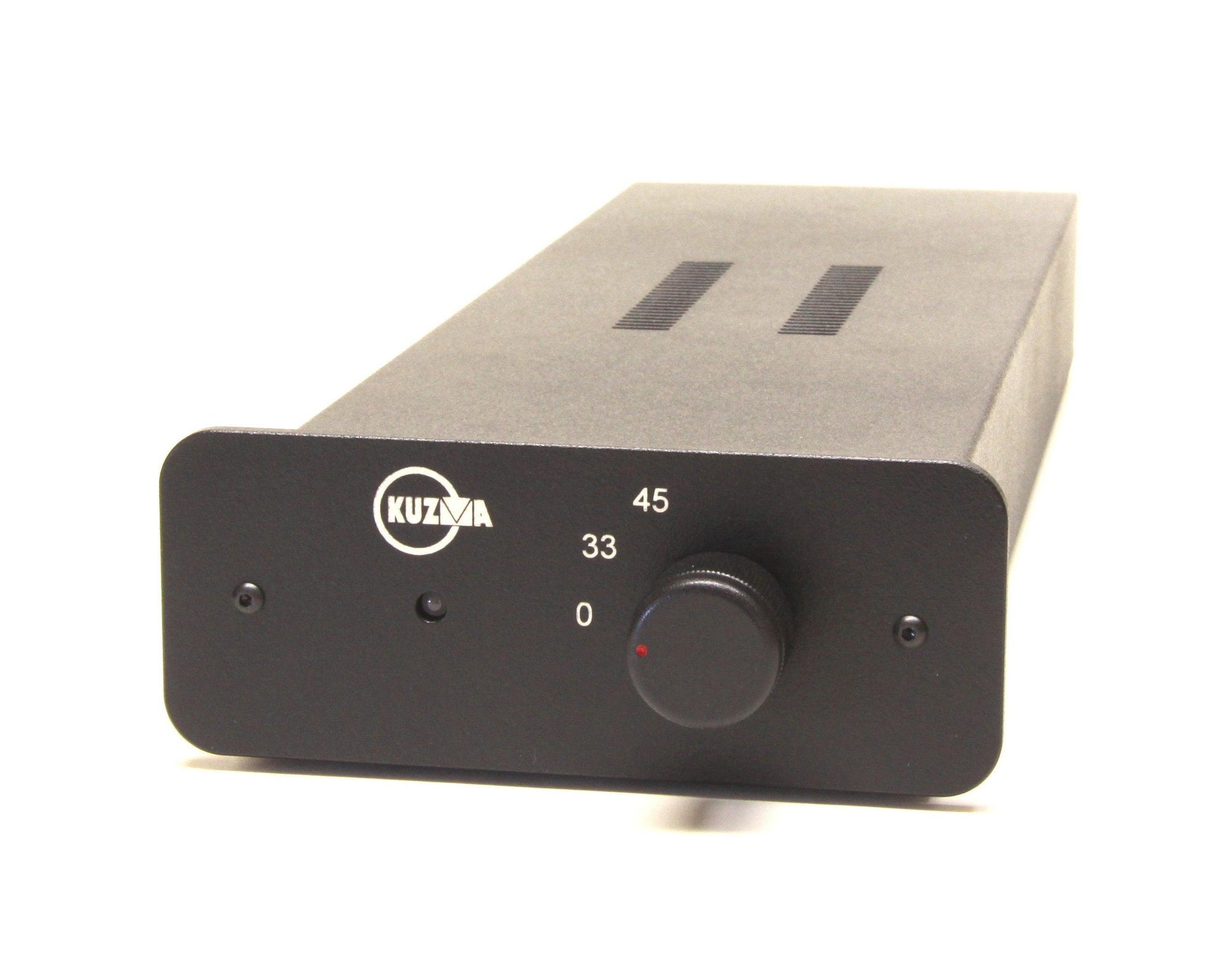

In 2009 we introduced a new power supply called PS Ref 2. This power supply is the only difference between models Stabi Ref 2 and Stabi Ref .
Specifications
Mass- 40 Kg
Platter mass- 8 Kg
Platter material- Aluminum & acrylic
Bearing type- Rudy ball- invented with resin/textile material
Shaft diameter- 16 mm

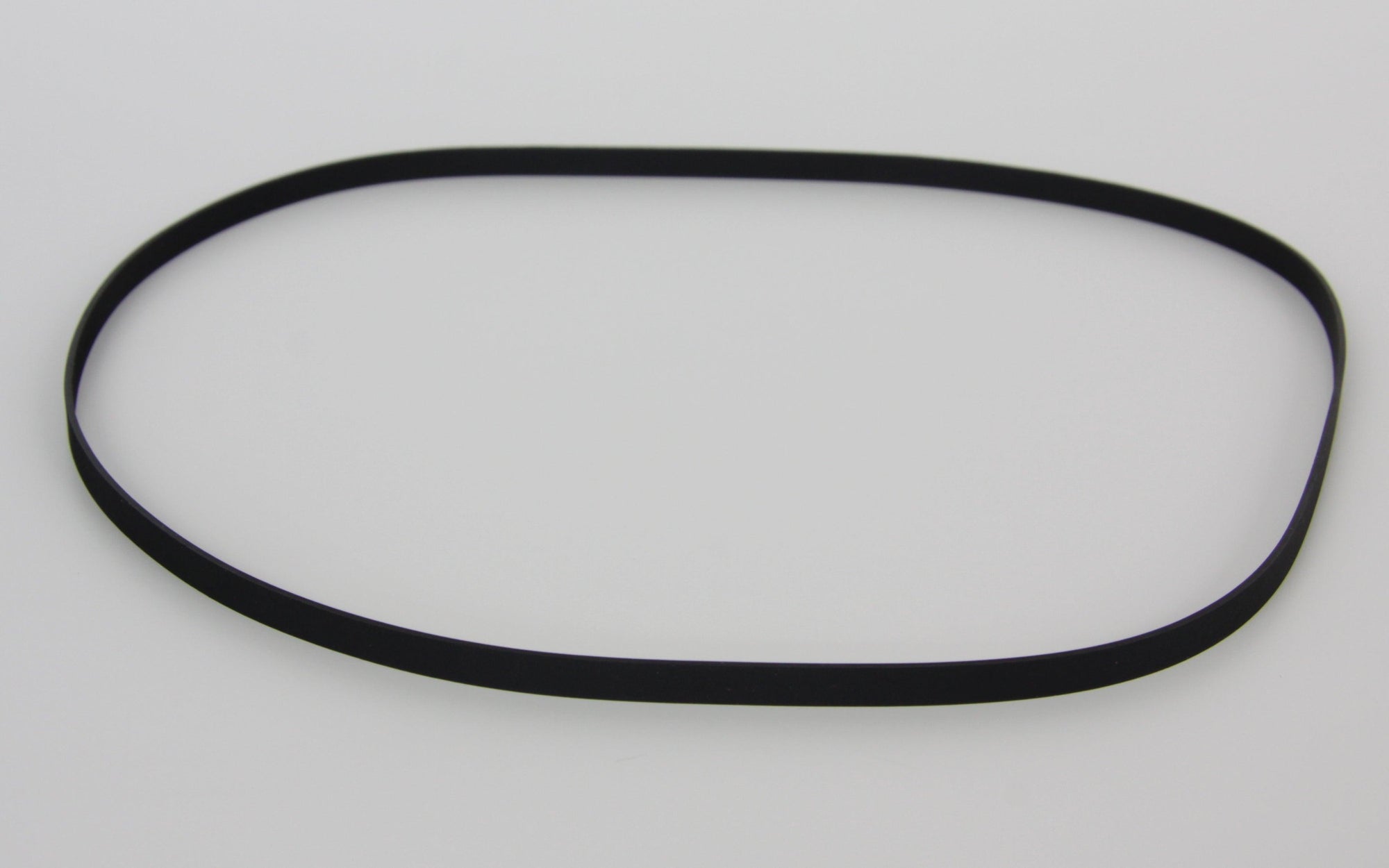

Drive- Flat rubber belt
Chassis/Levelling- Aluminum & acrylic/Yes
Turntable leveling- No
Motors- 2 pcs AC
External power supply- Yes
Speeds- 33.45 rpm
Armboard- Yes
VTA adjustment- Yes
No. of tonearms- 1pc
Max tonearm's cutout position- 10"
Suspended- Yes (2.2 Hz)
Dimensions- 500x400x200 mm
Finishes- Black
Clamp- Yes
Mat- Yes
Lid- No

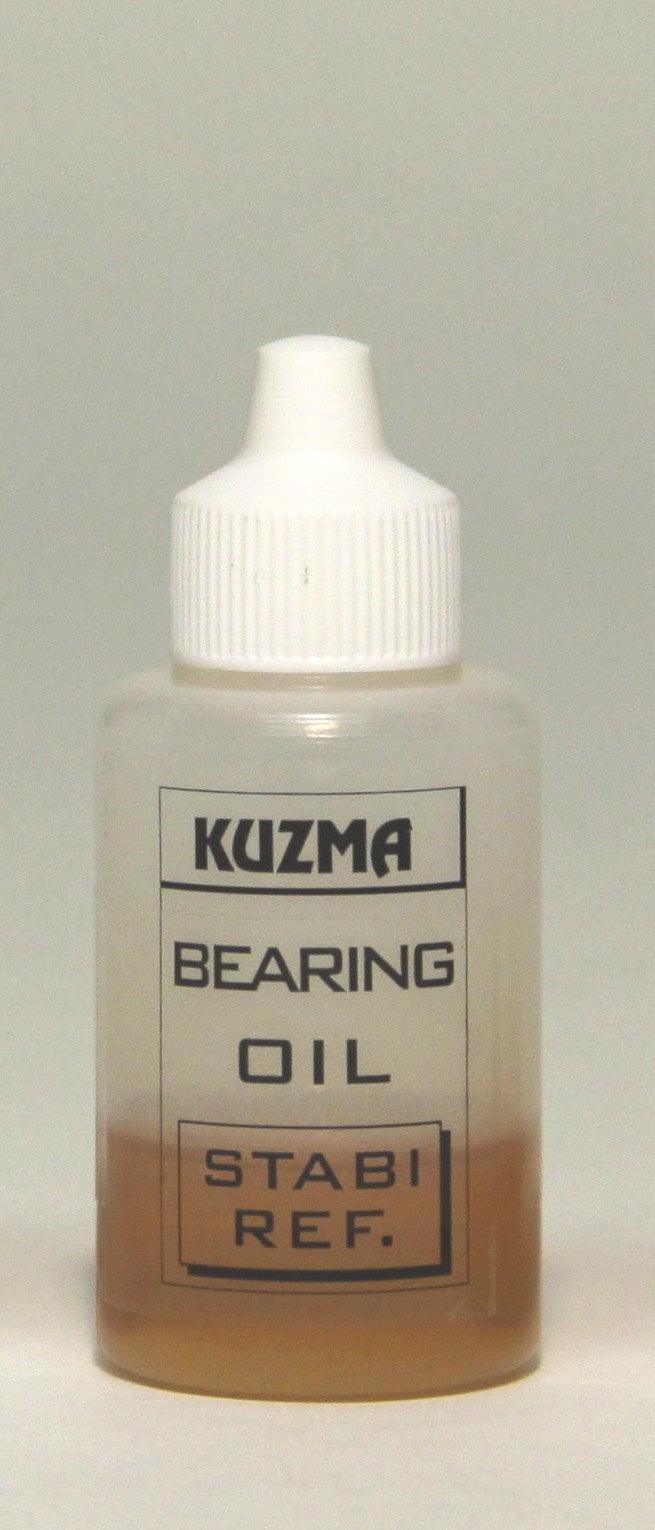

Accessories- Oil, Allen keys
Options- Various arm boards
