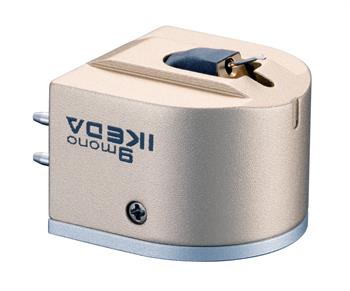

Ikeda 9mono MC Cartridge

Have questions about this product?

We love answering questions. Talk to an expert now.

FREE SHIPPING

on all e-commerce orders over $100

TECH SUPPORT

Always Included


The IKEDA 9mono MC Cartridge represents a purpose-built solution for mono vinyl playback, engineered from the ground up rather than adapted from stereo designs. Its solid aluminum alloy body houses a dual-coil architecture with independent right and left channels, each wound vertically to maximize efficiency while minimizing electromagnetic interference. The duralumin needle holder balances minimal weight with structural integrity, while the oval-shaped stylus is optimized to extract information from mono pressings across all eras. The permalloy core responds exclusively to horizontal motion, effectively suppressing extraneous hum that can compromise listening clarity. This thoughtful engineering approach unlocks the subtle character and original tonal qualities embedded in mono recordings.



Product Specifications:

Electromagnetic Generator:
Moving Coil (MC)

Output voltage:
0.22mVrms (1kHz 50mm/sec. Peak)

Coil Impedance:
2.0 Ohms (1kHz)

Appropriate Stylus Force:
1.8 Grams  ±0.2 Grams

Frequency Response:
10Hz - 45kHz

Channel Balance:
Within 0.5 dB (1kHz)

Stylus Chip:
Oval-shaped solid diamond

Cantilever:
Dual structure duralumin pipe

Weight:
10 Grams

Compliance:
7 × 10-6cm/dyne

Connecting Terminals:
Left Channel, White (hot), Blue (ground)
Right Channel, Red (hot), Green (ground)
