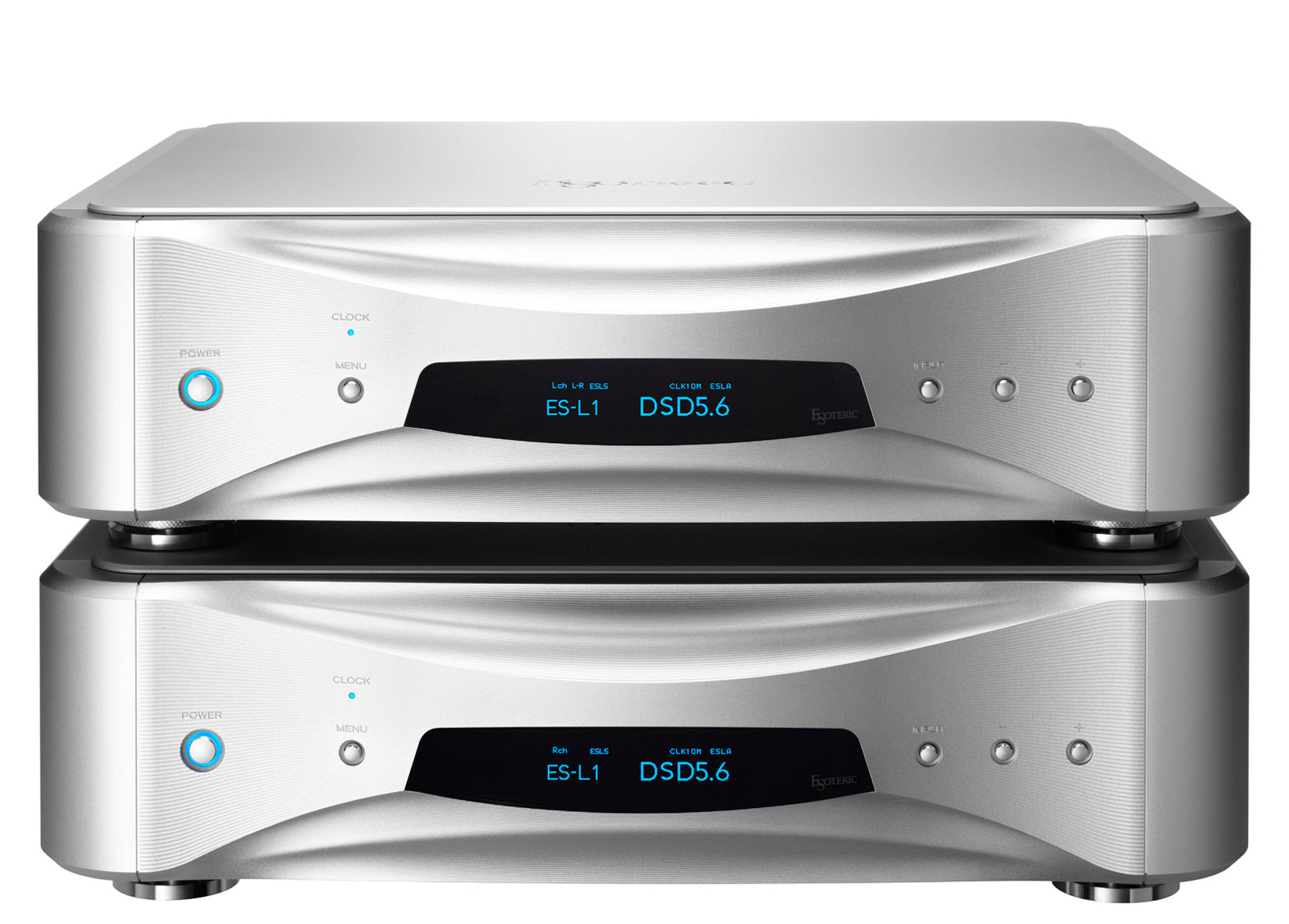

Esoteric Grandioso D1X SE Monoblock D/A Converter

Esoteric Grandioso D1X SE Monoblock D/A Converter

Have questions about this product?

We love answering questions. Talk to an expert now.

Call Now 941-259-6000

FREE SHIPPING

on all e-commerce orders over $100

TECH SUPPORT

Always Included

Description
Reviews
Q & A

The pinnacle of Esoteric's monoblock D/A conversion technology, the Grandioso D1X SE delivers uncompromising stereo playback performance. Built around a proprietary Master Sound Discrete DAC with custom FPGA and 64bit/512Fs Delta-Sigma modulation, this reference-grade converter handles DSD 22.5MHz and PCM up to 768kHz/48bit via ES-Link5. The upgraded DAC board features hand-selected components including the IDM-01, while a discrete Master Sound clock module ensures pristine timing. Dual independent toroidal transformers per channel, low-feedback DC regulators, and the high-slew-rate Esoteric-HCLD output buffer amplifier provide exceptional power delivery and signal integrity. ES-Link Analog current transmission, MQA decoding, USB input, and clock sync functionality round out a comprehensive feature set engineered for the most demanding listeners. Semi-floating top panel and redesigned pinpoint feet optimize mechanical isolation. Upgrade service available from the original D1X.

Digital audio inputs
ES-LINK	2
Input signal formats	Linear PCM (ES-LINK5 format)
	44.1k to 768kHz 48bit
	DSD (ES-LINK5 format)
	2.8MHz, 5.6MHz, 11.2MHz, 22.5MHz
XLR	1
Input level	5.0Vp-p
Input impedance	110Ω
Input signal formats (DUAL connection)	Linear PCM (DUAL AES format)
	88.2k to 384kHz, 16bit to 24bit
	Linear PCM (ES-LINK3 format)
	88.2k to 192kHz, 48bit
	DSD (ES-LINK1, ES-LINK2, DoP format)
	2.8MHz
Input signal formats (SINGLE connection)	Linear PCM (AES/EBU format)
	32k to 192kHz, 16bit to 24bit
	DSD (ES-LINK1, ES-LINK2, DoP format)
	2.8MHz
RCA	2
Input level	0.5Vp-p
Input impedance	75Ω
Input signal formats	Linear PCM (IEC60958 format)
	32k to 192kHz, 16bit to 24bit
	DSD (DoP format)
	2.8MHz
OPTICAL	1
Input level	–24.0 to –14.5dBm peak
Input signal formats	Linear PCM (IEC60958 format)
	32k to 192kHz, 16bit to 24bit
	DSD (DoP format)
	2.8MHz
USB	1 (USB2.0 standatd)
Input signal formats	Linear PCM 44.1k to768kHz, 16bit to 32bit
Input signal formats	DSD 2.8MHz, 5.6MHz, 11.2MHz, 22.5MHz
Analog audio outputs
XLR/ESL-A	x 1 (mono) each for left and right channels
Output impedance	100Ω (XLR)
Maximum outout level	5.0Vrms (XLR, 1kHz, full scale PCM signal input, 10kΩ loaded)
RCA	x 1 (mono) each for left and right channels
Output impedance	47Ω
Maximum output level	2.5Vrms (1kHz, full scale PCM signal input 10kΩ loaded)
Clock input
BNC	x 1 each for left and right channels
Input impedance	50Ω
Input level	Sine wave 0.5 to 1.0Vrms
Frequency that can be input	10MHz (±10ppm)
General
Power supply
	AC 220 to 240V. 50/60Hz
	AC 120V, 60Hz
	AC 230V, 50Hz
Power consumption	20W
External dimensions (W×H×D)	445 × 132 × 448mm 17-⅝" × 5-¼" × 17-¾" (including protrusions)
Weight
Left channel	23.1kg / 51 lb
Right channel	23.0kg / 51-¾ lb
Included accessories	Power cord × 1 HDMI cables × 1 Felt pads × 8 Owner's manual × 1 Warranty card × 1

Audio performance

Frequency response	5Hz to 30kHz (–3dB, 192kHz PCMsignal input)
S/N ratio	113dB
Distortion	0.0007% (when 1kHz, D/A converter operation mode set to M3)

This product is available in three different power supply variations shown in the specification section above. Make sure that the voltage shown on the rear panel matches the AC line voltage in your area.
The shape of the AC inlet and plug of the supplied power cord depends on the voltage rating and destination country.
Design and specification are subject to change without notice.
