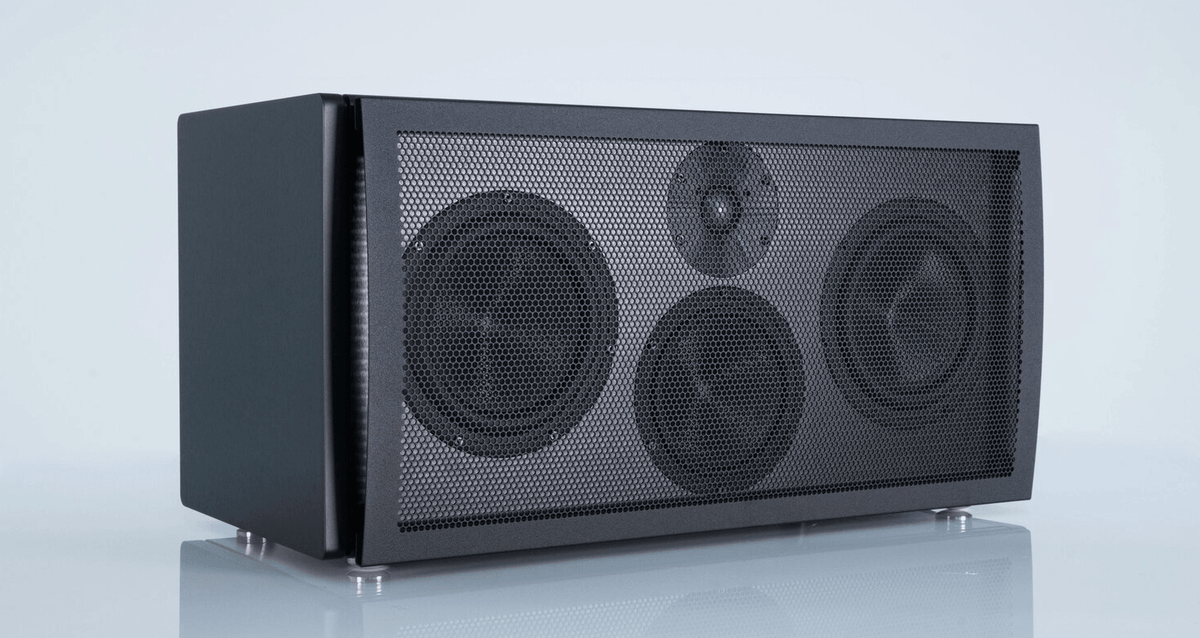

Magico ACC Center Channel

To achieve the clarity necessary for multi-channel movie and music soundtracks, which can adjust from nearly imperceptible to highly energetic instantly, a center channel loudspeaker that matches the vigor and precision of the left/right front speakers is an absolute necessity.

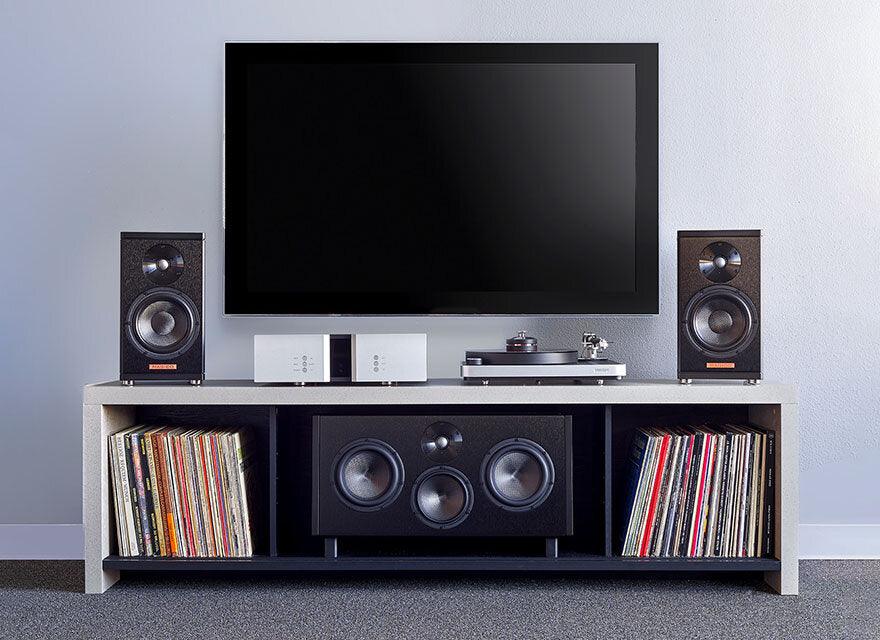

Magico introduces ACC, an impeccable pair to A3 for a seamless front soundstage. The ACC boasts a sealed aluminum enclosure, beryllium dome tweeter, carbon Nanographene cones, neodymium-based motor systems, and an elliptical crossover. Magico’s uncompromising design delivers remarkable sound quality at an affordable price, sporting the iconic “M” engraving. Along with A3, A1 two-way, ACC center channel and ASUB, Magico offers a full home-theater experience.


Aircraft Grade Aluminum Enclosure

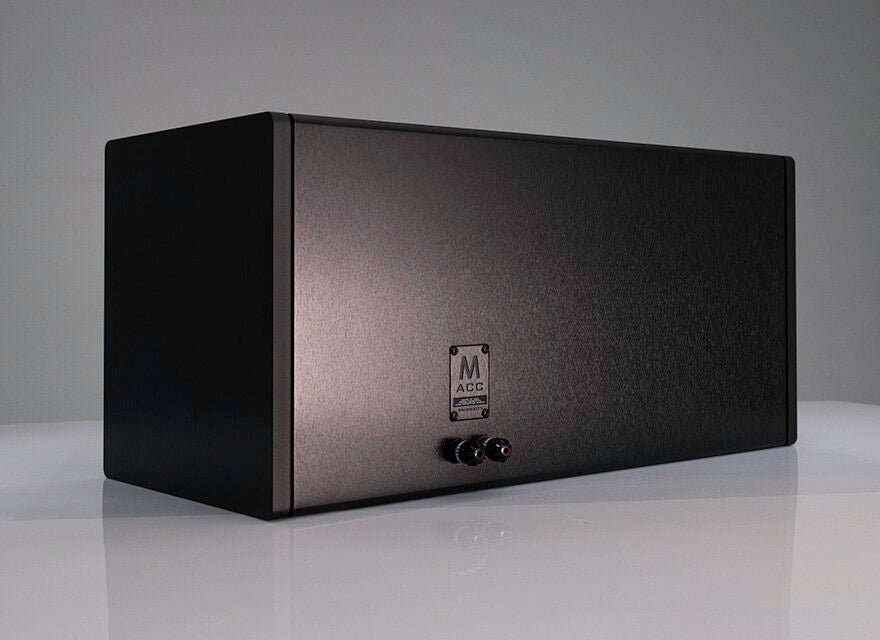

The ACC enclosure is constructed using ⅜” thick 6061 T6 aircraft-grade aluminum, similar to the enclosure developed for the Q1, and is available in an elegant brushed black-anodized aluminum finish. An innovative internal bracing technique and the most advanced damping materials make the sealed enclosure incredibly rigid and free of unwanted mechanical resonances. The finished enclosure design of the ACC is evaluated in simulation using the latest FEA software along with physical testing to meet the no-compromise requirements of Magico for optimized enclosure rigidity and stability and to ensure benchmark acoustical standards.

HIGH-FREQUENCY DRIVER

The ACC tweeter follows the A3 with a pure Beryllium-diaphragm tweeter with an optimized 28-mm dome surface which is based on the fundamental design platform and geometry of our reference M-Series tweeter design. The customized neodymium motor system is encased in an improved back chamber with our latest generation damping materials that facilitate ultra-low distortion, higher power handling, massive dynamic capabilities and extended linear voice coil movement.

MIDRANGE DRIVER

The 6-inch midrange driver, also deployed in the A3, features a Multi-Wall carbon fiber cone with a layer of XG Nanographene, providing an optimal stiffness-to-weight ratio and an ideal damping factor. The driver frame has been simulated and tested for the optimal combination of stiffness and damping. The minimum acoustical impact is achieved through reducing vibration modes while maximizing air flow. An overhung neodymium-based motor system incorporates extra-large magnets to ensure a
stabilized magnetic field in the 75-mm pure titanium voice coil. The ACC midrange driver is optimized for minimal music-related distortions in its band pass, in both the frequency and time domains, using the latest state-of-the-art FEA simulation of acoustical, mechanical, electromagnetic, and thermal behavior.

BASS DRIVER

Extended low bass frequencies, which are incredibly deep and fast, result from 7-inch bass drivers (x2) that are found in the A3 which are produced with advanced manufacturing techniques using MultiWall carbon fiber with a layer of XG Nanographene. Powerful neodymium magnets control a 75-mm pure Titanium voice coil that has long throw excursion and produces clean, undistorted sound
pressure levels. Individual driver performance and the ACC loudspeaker in its final form are tested and optimized for acoustical, mechanical, electromagnetic, and thermal behaviors using the latest state-of-the-art Finite Element Analysis simulation testing equipment.

CROSSOVER

The drivers in the ACC are acoustically integrated using Magico’s proprietary Elliptical Symmetry Crossover topology that utilizes state-of-the-art components from Mundorf of Germany. The dividing network features a 24db per octave Linkwitz-Riley filter that maximizes frequency bandwidth while preserving phase linearity and minimizing intermodulation distortion.

Specifications
Dimensions: 13"H x 12.7"D x 26"W
Weight: 96 lbs.
High: 1.1” Beryllium Tweeter
Mid: 6” Graphene Nano-Tec Midrange
Bass 7” Graphene Nano-Tec Bass (x2)
Sensitivity: 88dB
Impedance: 4 ohms
