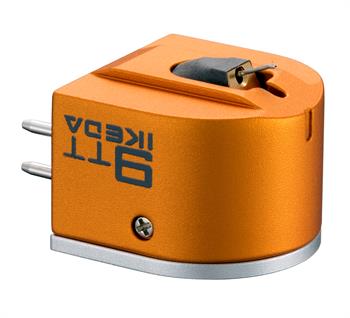

Ikeda 9TT MC Cartridge

Have questions about this product?

We love answering questions. Talk to an expert now.

FREE SHIPPING

on all e-commerce orders over $100

TECH SUPPORT

Always Included


The Ikeda 9TT MC Cartridge represents a refined evolution of Ikeda Sound Labs' acclaimed 9 series, engineered for superior handling and sonic clarity. Precision-machined from solid aluminum alloy, the body provides exceptional rigidity for the generator unit. A dual-layer duralumin cantilever minimizes mass and warping while maximizing structural integrity. The line-contact stylus architecture delivers accurate groove information to the magnetic coils with minimal distortion. Advanced engineering—including high-efficiency Permalloy cores, low-impedance windings, potent neodymium magnets, and optimized magnetic geometry—ensures transparent sound reproduction free from coloration. Meticulous fabrication and alignment protocols unlock the subtle details and tonal character preserved in vinyl recordings.



Product Specifications:

Electromagnetic Generator:
Moving Coil (MC)

Output Voltage:
0.16mVrms (1kHz 35.4mm/sec. at 45°peak)

Coil Impedance:
2.0 ohms (1kHz)

Appropriate Stylus Force:
1.8 grams ±0.2 grams

Frequency Response:
10Hz - 45kHz

Channel Separation:
Over 27dB (1kHz)

Channel Balance:
Within 1.0dB (1kHz)

Stylus Chip:
Solid Diamond, Line Contact

Cantilever:
Double layered duralumin pipe

Weight:
10 Grams

Connecting Terminals:
Left Channel, White (hot), Blue (ground)
Right Channel, Red (hot), Green (ground)
