The elegant Fono Mini A2D Mk2 is a high-quality MM phono stage that combines our celebrated Fono MM circuit with a USB interface for effortless digital conversion of your beloved vinyl. This tasteful best-selling pre-amplifier has been restyled to offer enhanced usability and unparalleled value for money, making it a valuable addition to any hi-fi setup.
KEY FEATURES
Compatible with all moving magnet cartridges
USB output
A2D functionality
Compact custom case design
Adjustable gain level to optimize performance
Install a digital audio editor (e.g. Audacity) for PC vinyl transfer. Monitor volume & balance. The level meter indicates the output level. Adjust via the front panel 'Level' control. Note record levels for best results.

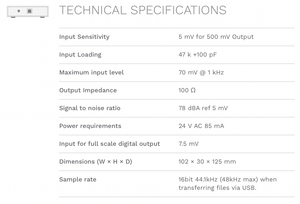

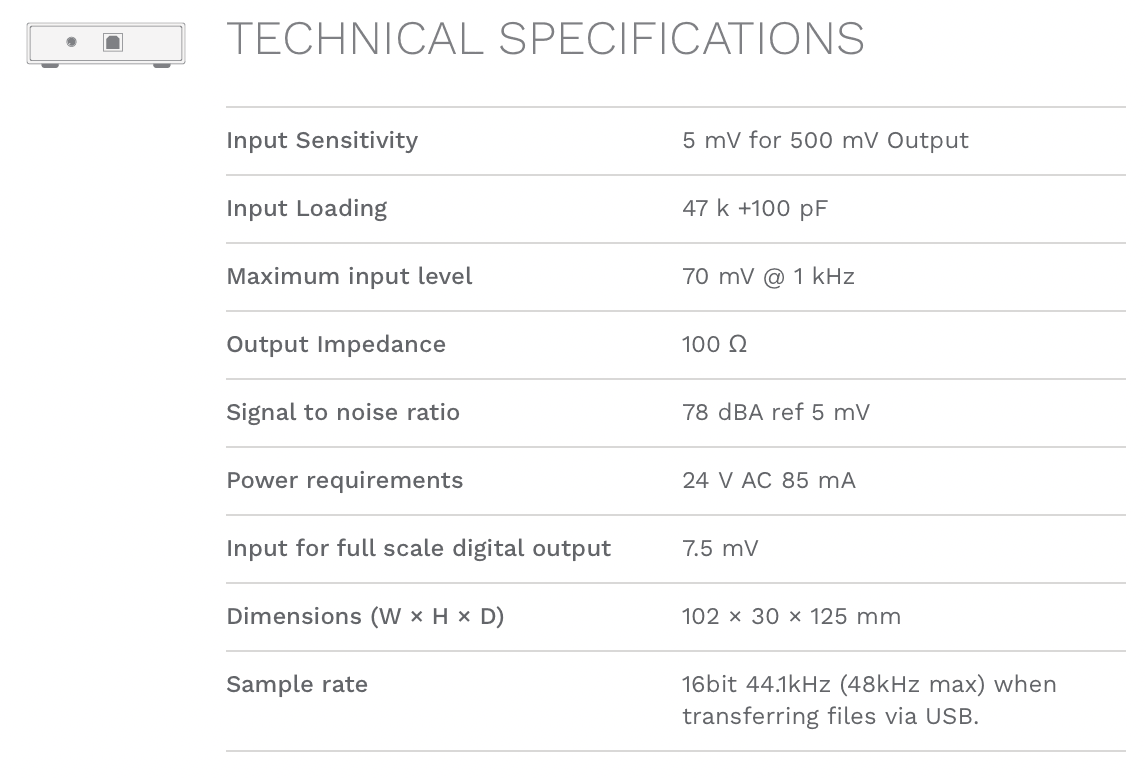

TECHNICAL SPECIFICATIONS
Input Sensitivity-5 mV for 500 mV Output
Input Loading-47 k +100 pF
Maximum input level-70 mV @ 1 kHz output Impedance-100 Ω
Signal to noise ratio-78 dBA ref 5 mV
Power requirements-24 V AC 85 mA
Input for full scale digital output-7.5 mV
Dimensions (W × H × D)-102 × 30 × 125 mm
Sample rate-16bit 44.1kHz (48kHz max) when transferring files via USB.
