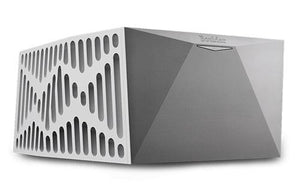

    Boulder 3060 Stereo Power Amplifier - Suncoast Audio
    Boulder 3060 Stereo Power Amplifier

    Boulder 3060 Stereo Power Amplifier

    There are projects like the Boulder 3060 Stereo Amplifier that contradict conventions and redefine striving for perfection. Attempts are made to push the boundaries of what is thought to be possible. These projects involve countless hours of research, experimentation, and hard work, with each step along the way creating small improvements. When accumulated, each of these small improvements mean big leaps forward. They embody the concept of what it takes to be the very best and the results are breathtaking. Just like the Boulder 3060.

    Have questions about this product?

    We love answering questions. Talk to an expert now.

    Call Now 941-259-6000

    FREE SHIPPING

    on all e-commerce orders over $100

    TECH SUPPORT

    Always Included

    The Boulder 3060 stereo amplifier combines meticulous engineering with exclusive limited production, each unit custom-built to order. Delivering 900 watts per channel into any loudspeaker load, it employs 60 bipolar output transistors per channel for unparalleled speaker control and dynamics. Four 99H gain stages—Boulder's most advanced—work alongside 48 massive filter capacitors in an ultra-responsive power supply architecture. Full Class-A biasing to rated output minimizes heat while maximizing efficiency through intelligent analog circuit management. Five potted power transformers in machined housings eliminate vibration and noise completely. Hand-assembled in Boulder's Louisville facility, the 3060 features a precision-cut aluminum and polished stainless steel base matching the amplifier's distinctive casework geometry, delivering reference-grade performance for the most demanding audio systems.



    Specifications

    Peak Power, 8 Ohms- 1000W

    Peak Power, 4 Ohms- 1650W

    Peak Power, 2 Ohms- 2000W

    THD, 8 Ohms, 900W- 20-2 kHz: 0.0006%, 20 kHz: 0.0025%

    THD, 4 Ohms, 900W- 20-2 kHz: 0.0008%, 20 kHz: 0.0030%

    THD, 2 Ohms-, 900W- 20-2 kHz: 0.0012%, 20 kHz: 0.0045%

    Equivalent Input Noise (EIN), 20 KHz BW- 1.5 μV

    Magnitude Response, 20 to 20 KHz- +0.00, -0.04 dB

    Magnitude Response, -3dB at- 0.015 Hz, 200 kHz

    Voltage Gain- 26dB

    Input Impedance- Balanced: 200KΩ,
    Unbalanced: 100KΩ

    Common Mode Rejection (Balanced only)- 60 Hz: 90dB,
    10 kHz: 70dB

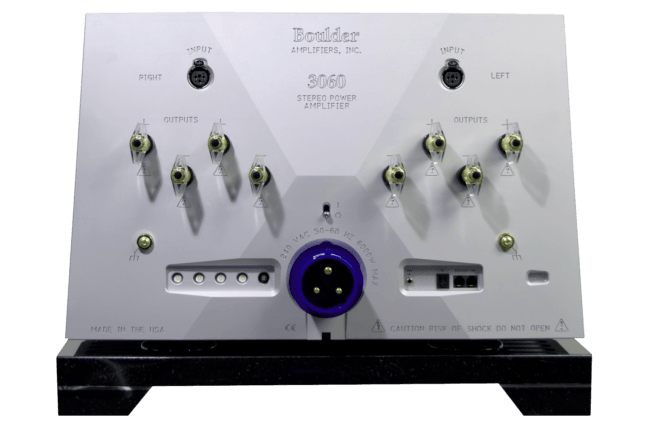

    Inputs- 3-pin balanced (XLR)

    Output Connectors- 2 sets of 6 mm / .250 inch wingscrews

    Power Requirements- 220-240 VAC
    50-60 Hz, 300W nominal, 6000W at maximum output

    Weight- Amplifier: 355 lbs. (161 kg),
    Base: 86 lbs. (39 kg),
    Shipping: 563 lbs. (256 kg)

    Amplifier Topology- Pure Class A to full-rated output
